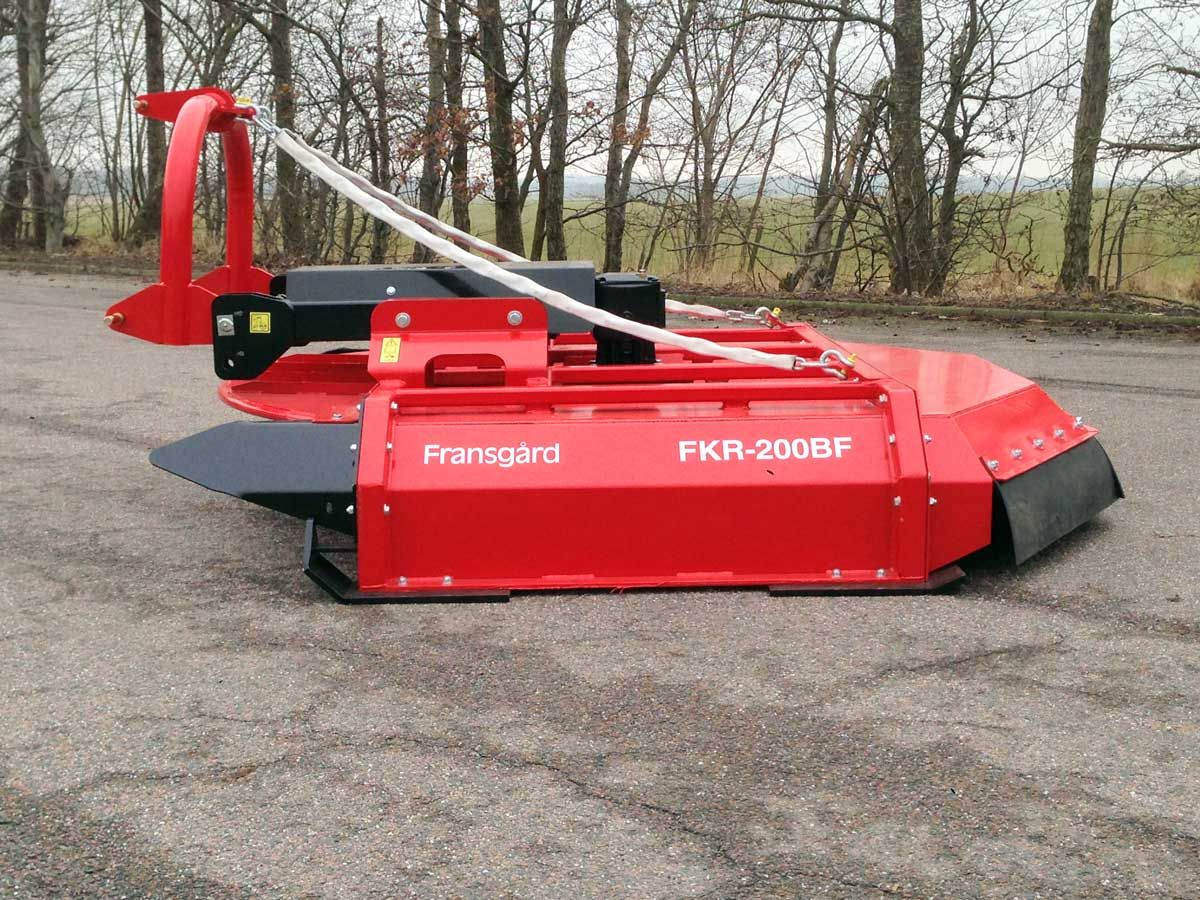

Chain Mower FKR-200BF
Presentation

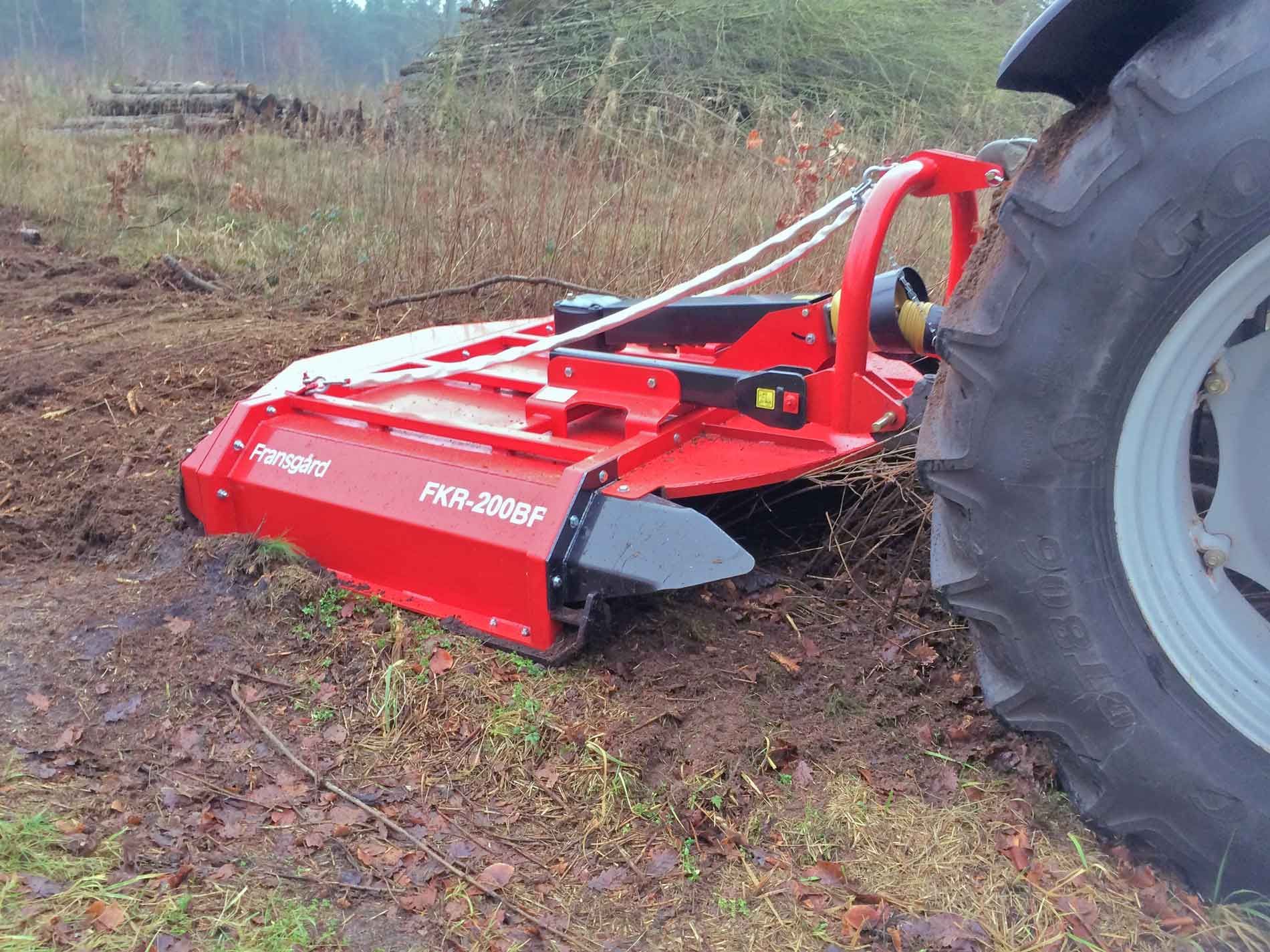

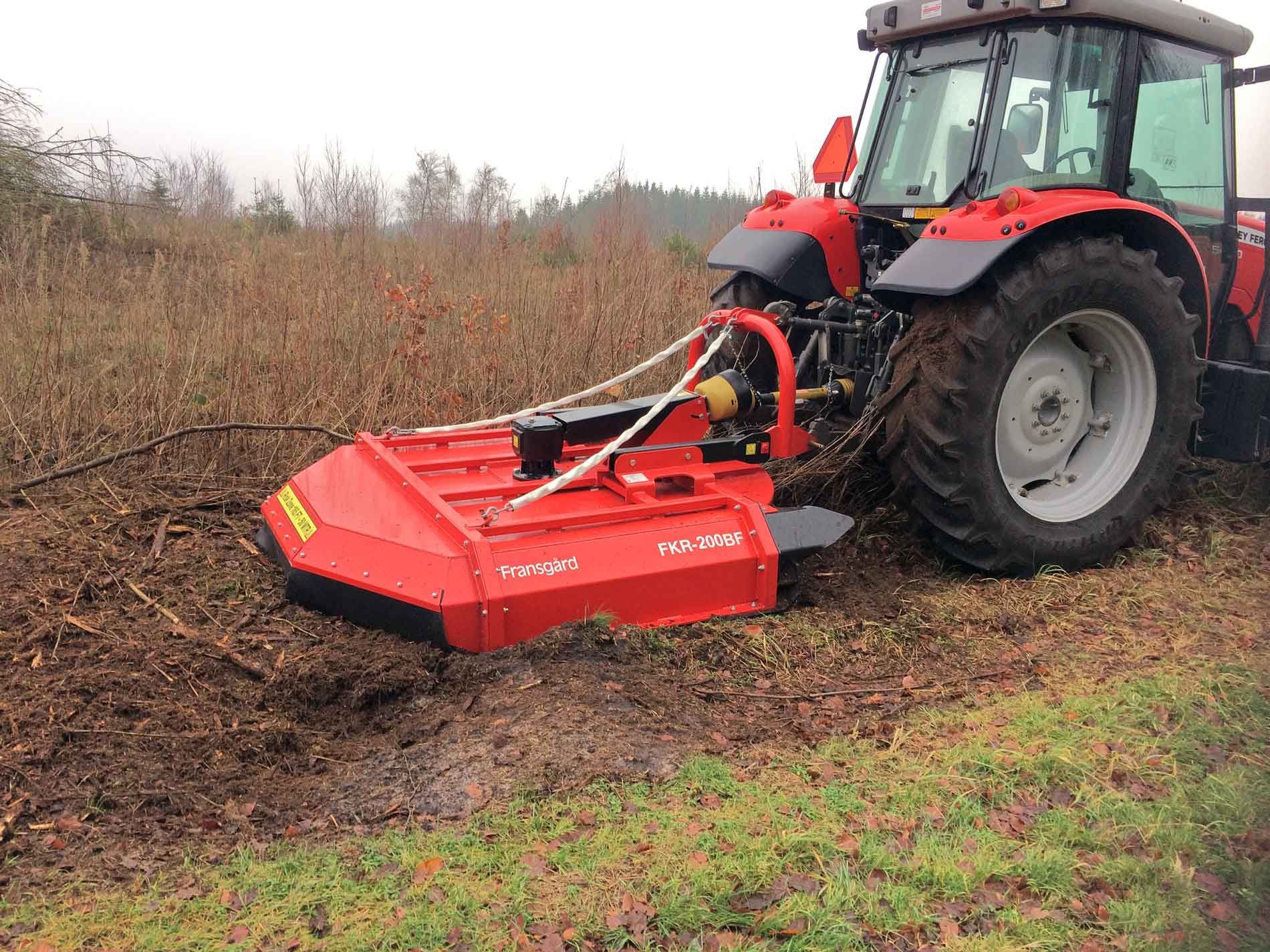

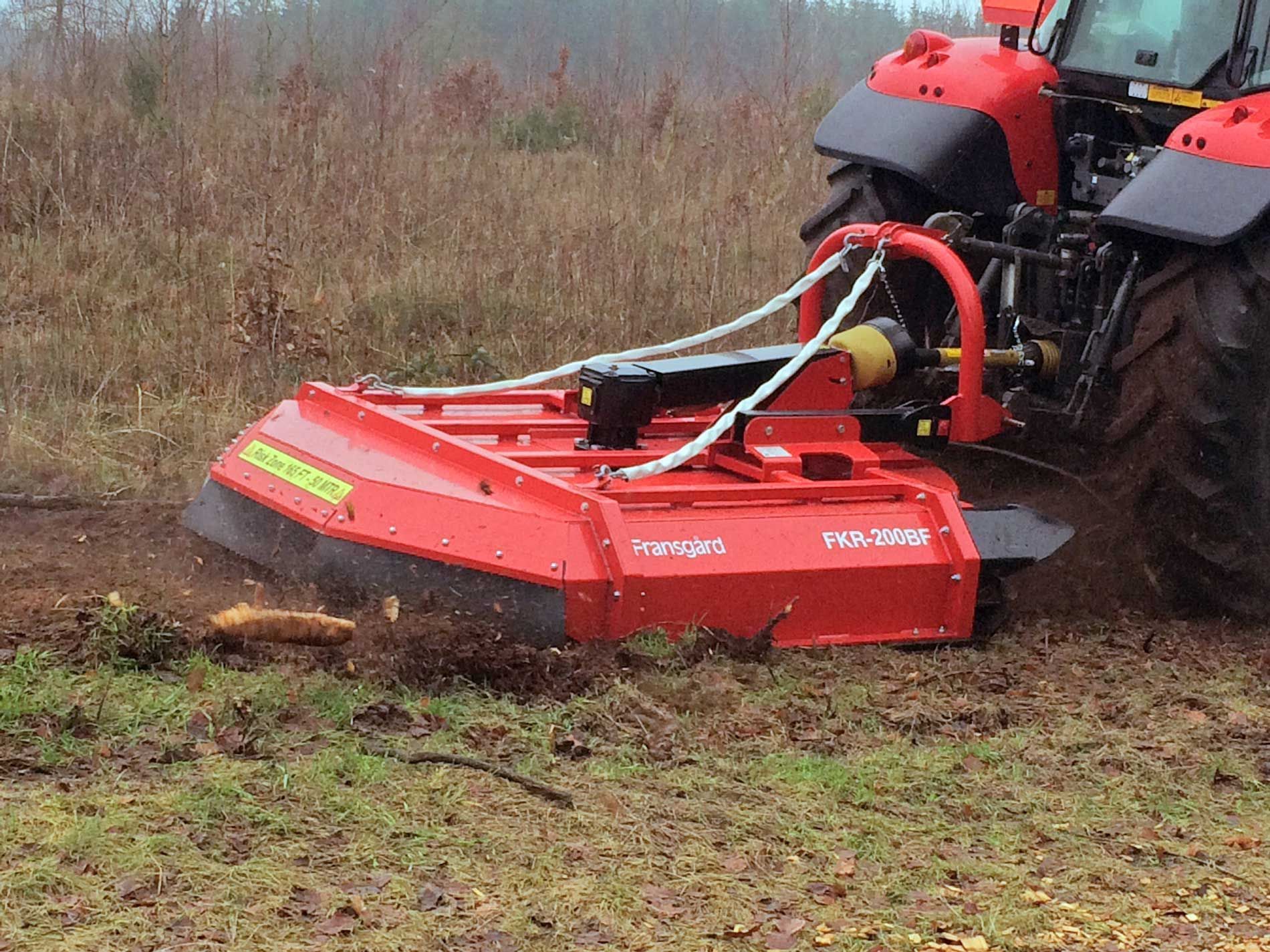

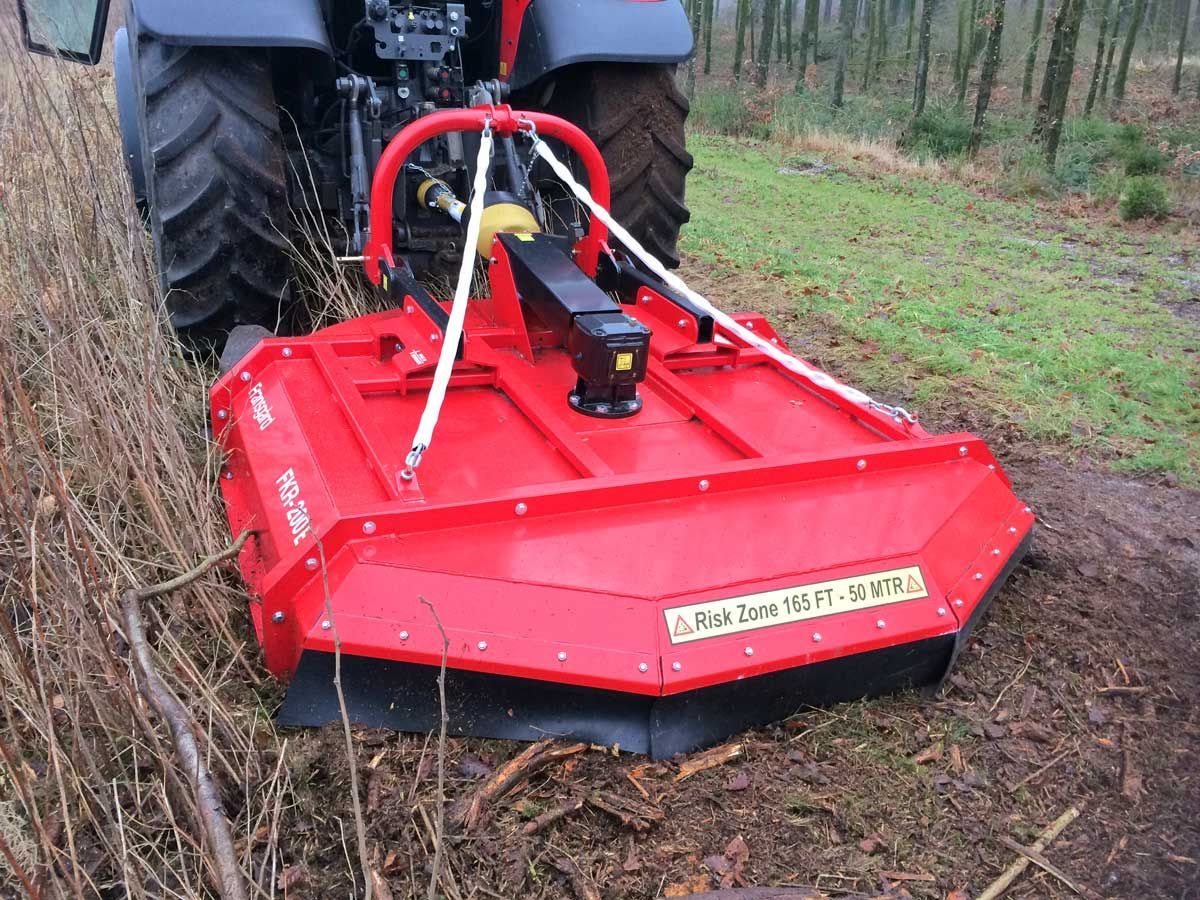

The FKR-200BF chain mower is an efficient machine for mowing/clearing set-aside land, road medians and unwanted tree growth in plantations, etc. The machine can be mounted both rear and front on the tractor.
With a 2 m working width, it is ideal for controlling unwanted vegetation on the forest floor.

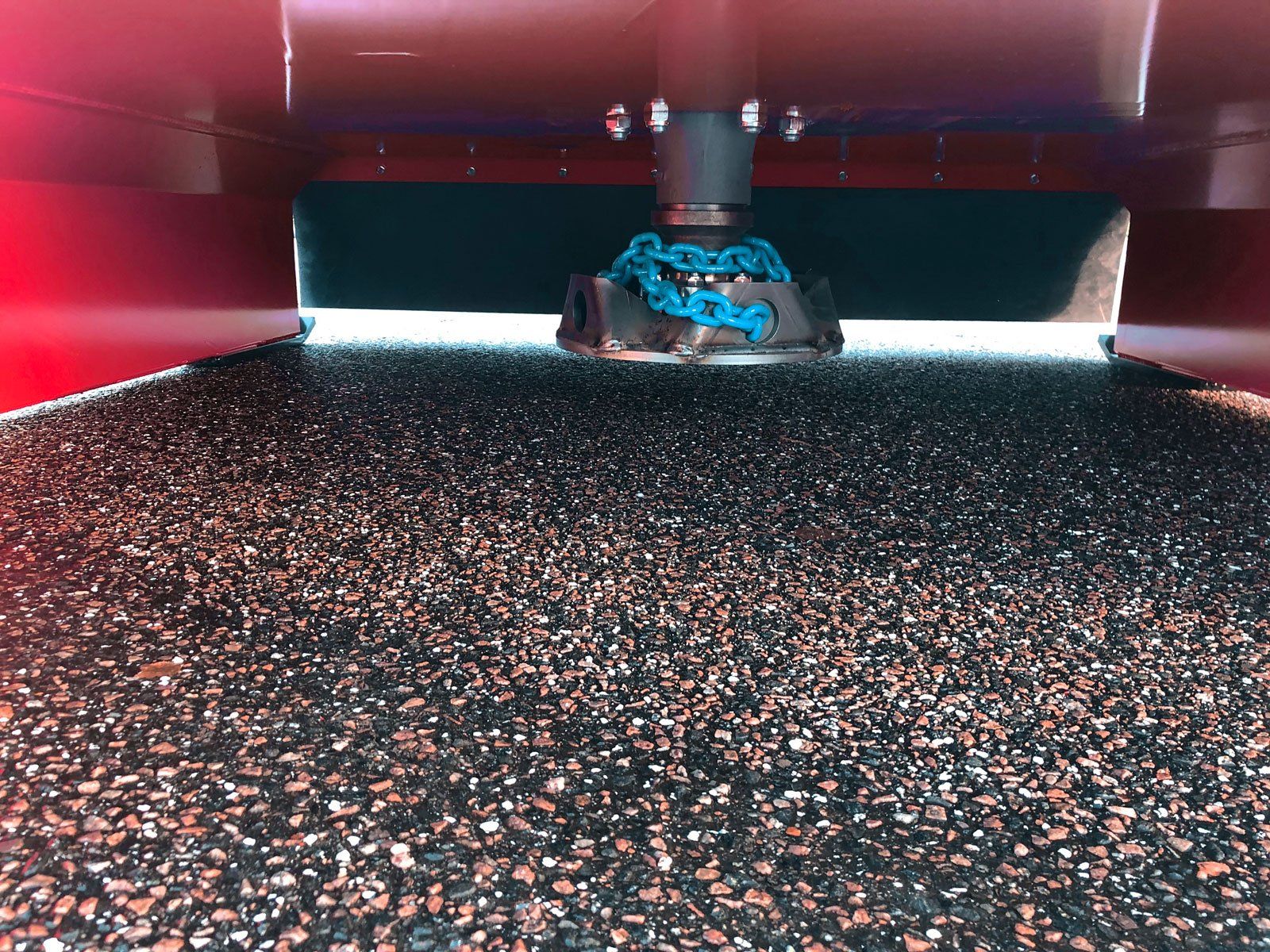

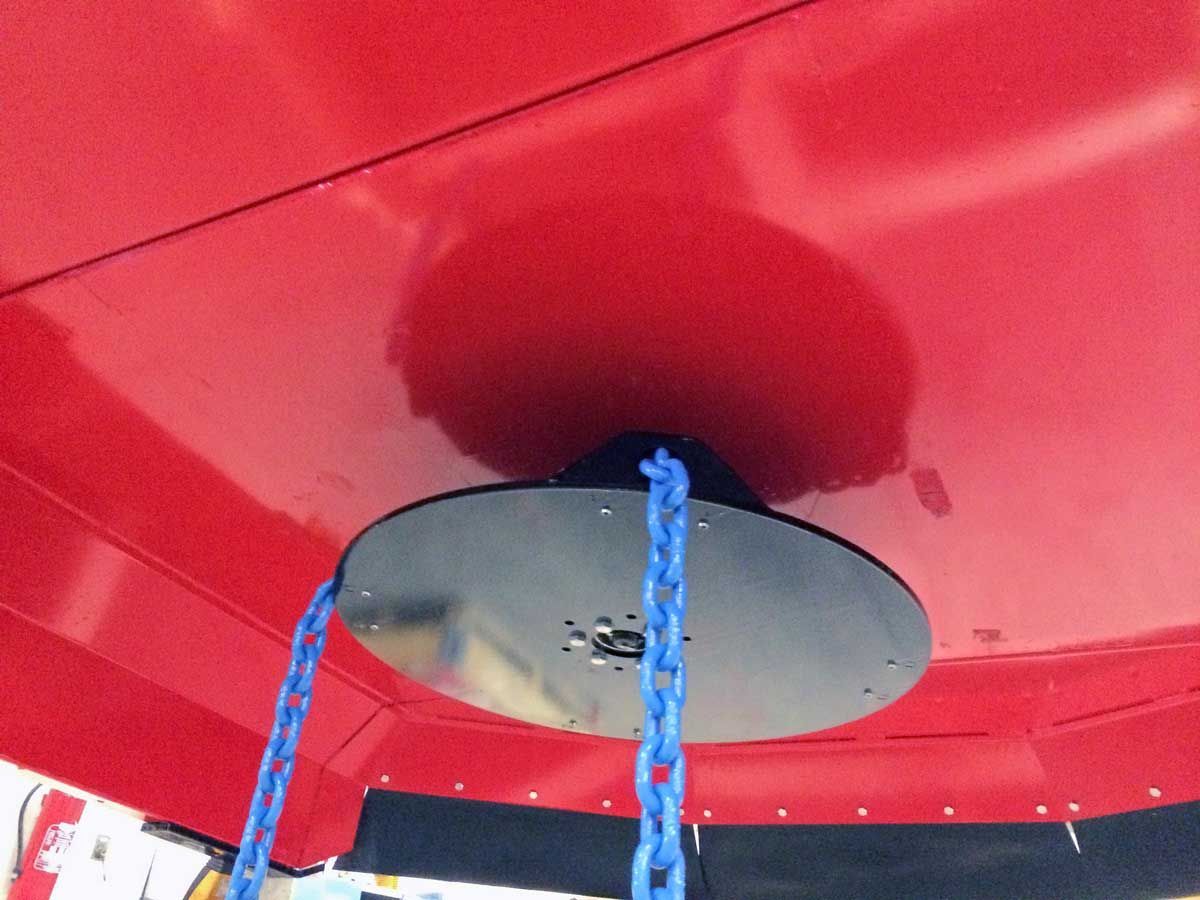

It is equipped with either 2 or 4 high-quality G100 steel chains, offering excellent wear resistance without being excessively hard. This prevents the chains from breaking if they hit stones or other hard objects. At 1000 rpm, the machine delivers highly efficient cutting performance. It can also be fitted with 3 heavy-duty blades.
Solid construction built from high-strength materials

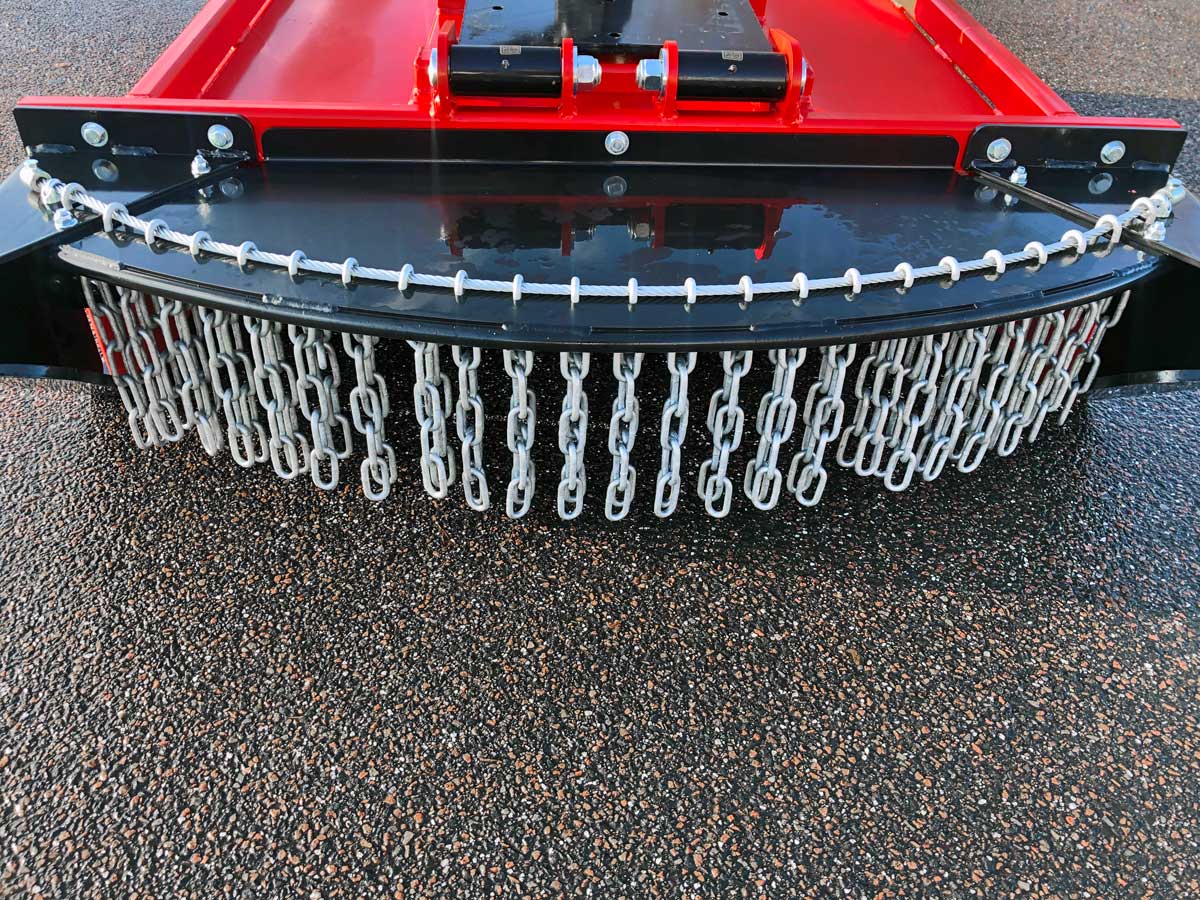

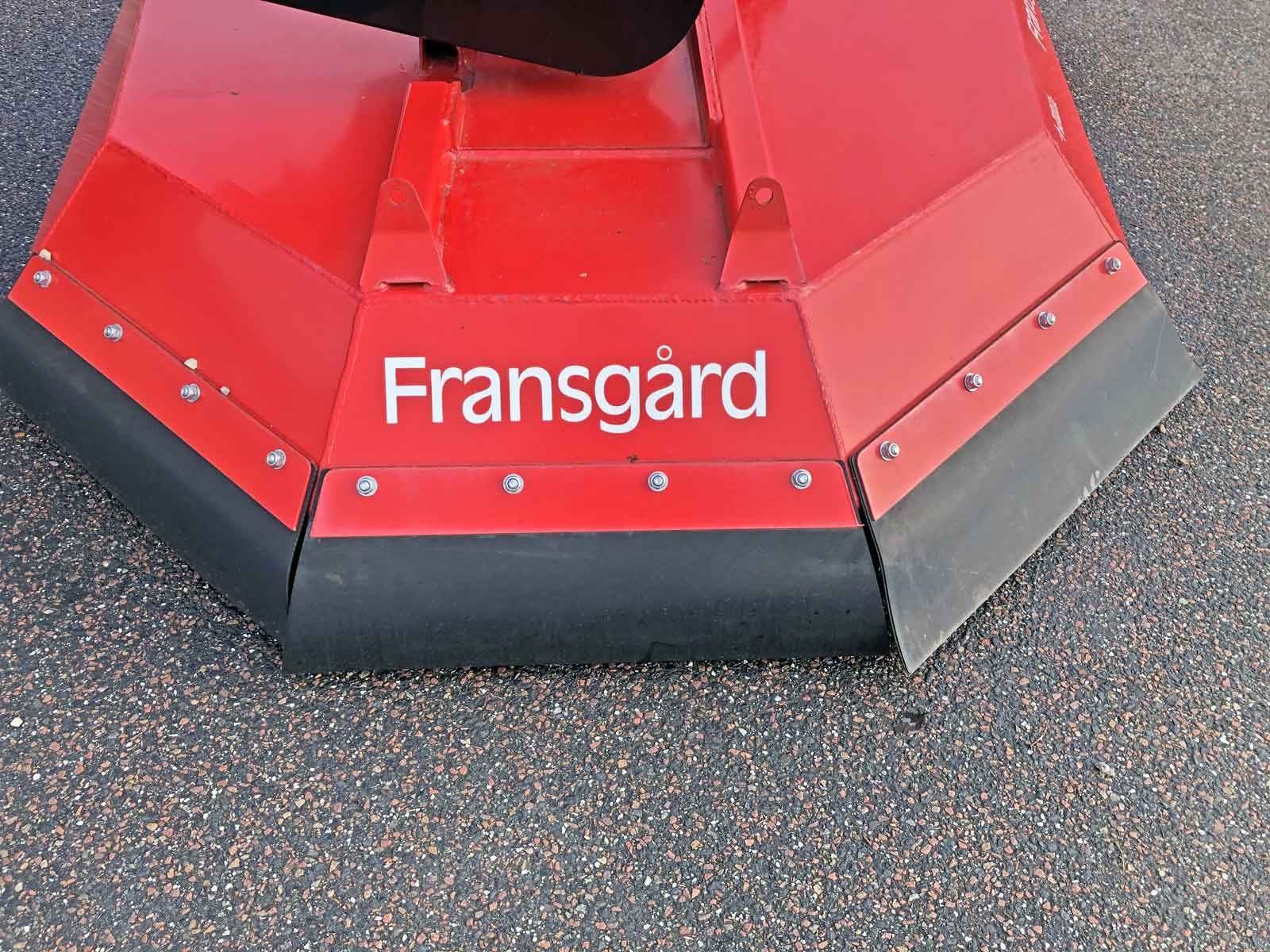

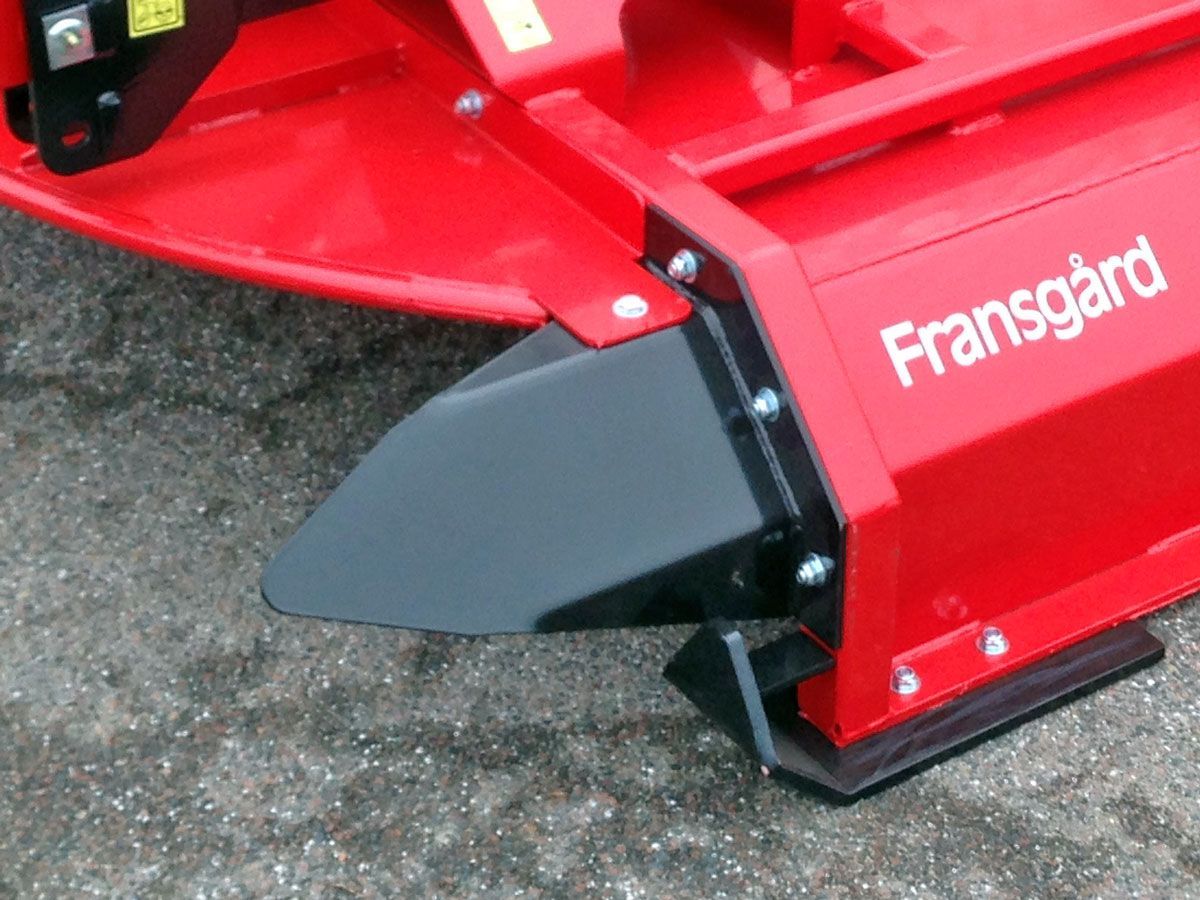

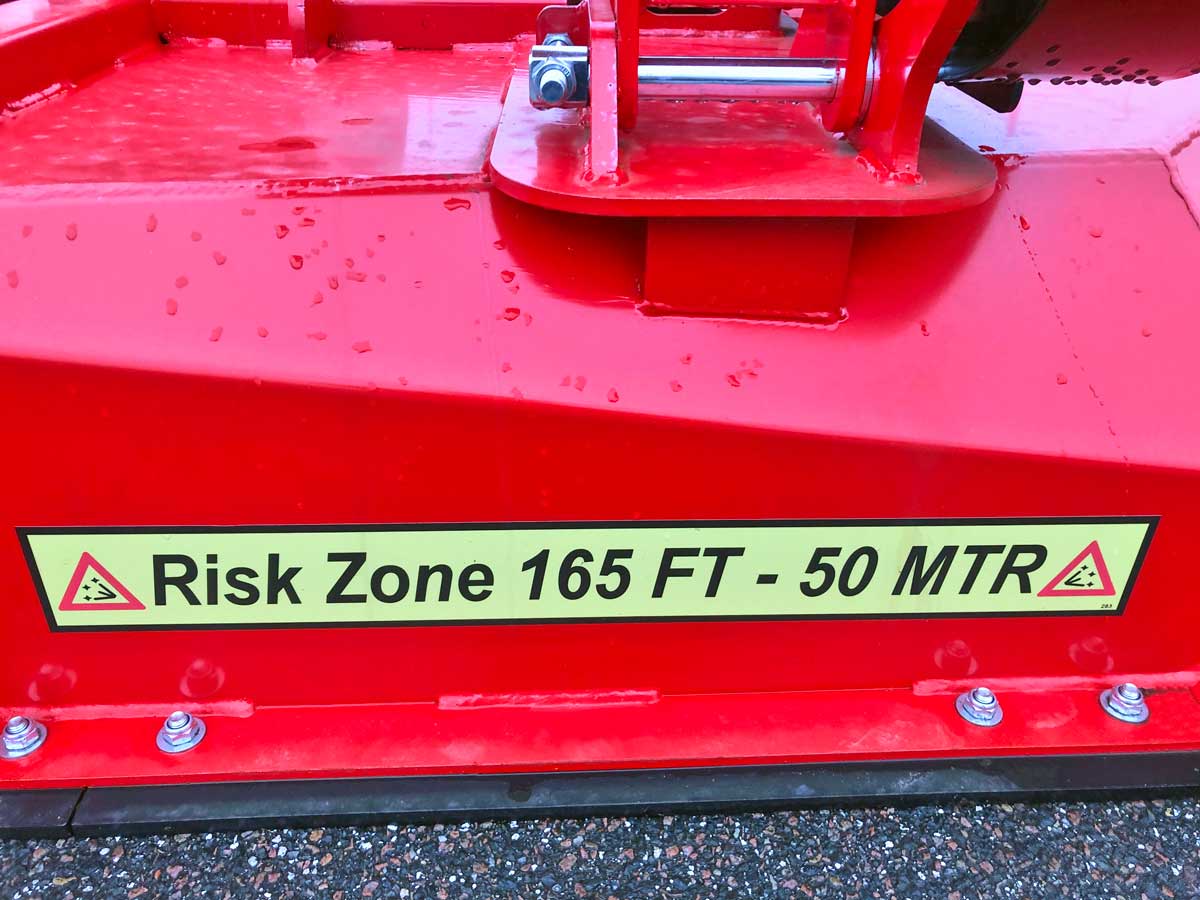

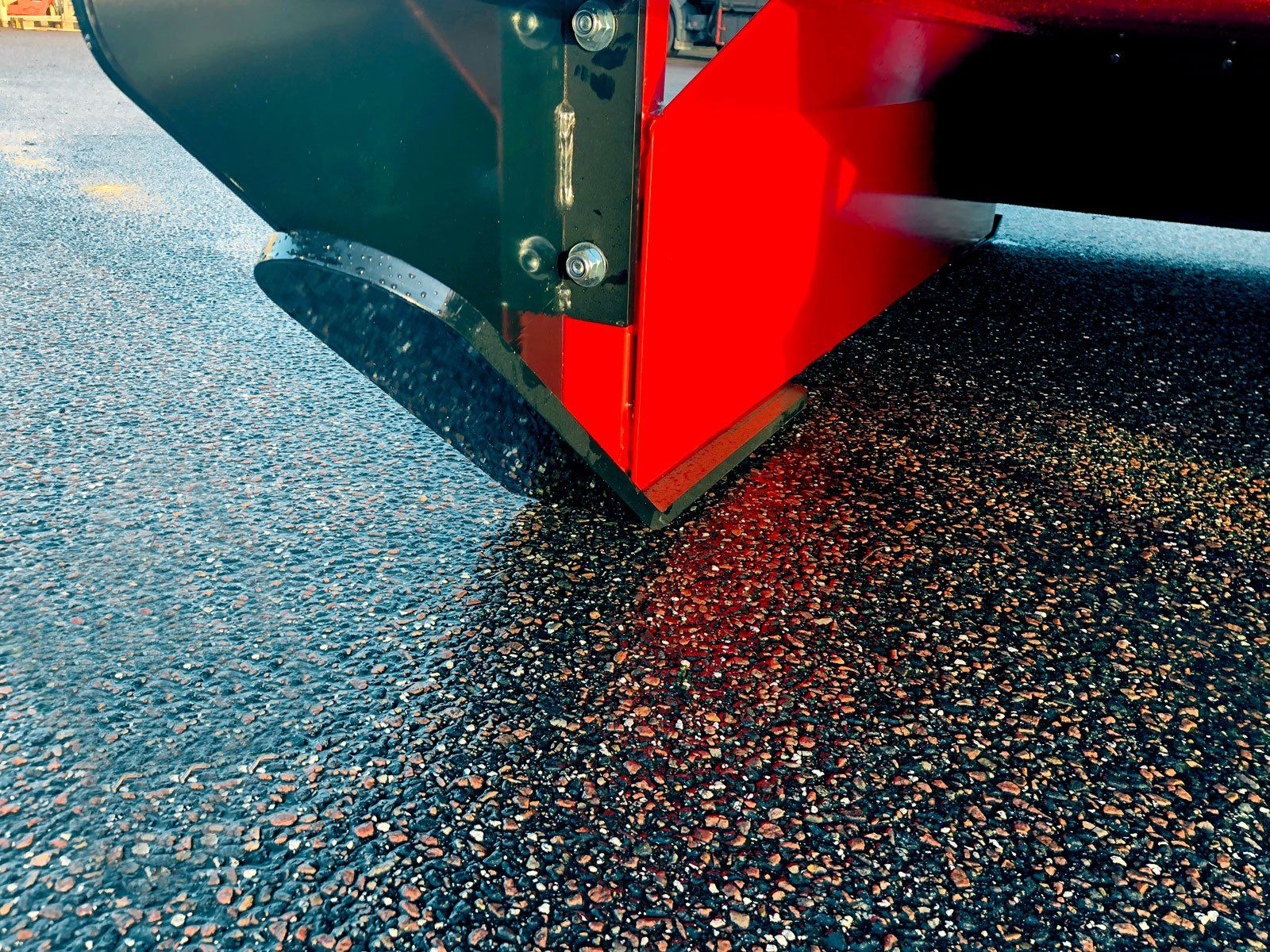

The FKR-200BF is fitted with a heavy chain curtain to minimize material discharge during operation. It is constructed with heavy-duty wear skids in Hardox 500 and a main frame made of Domex 420 high-strength steel. The FKR-200BF is supplied with a 200 cm working width.

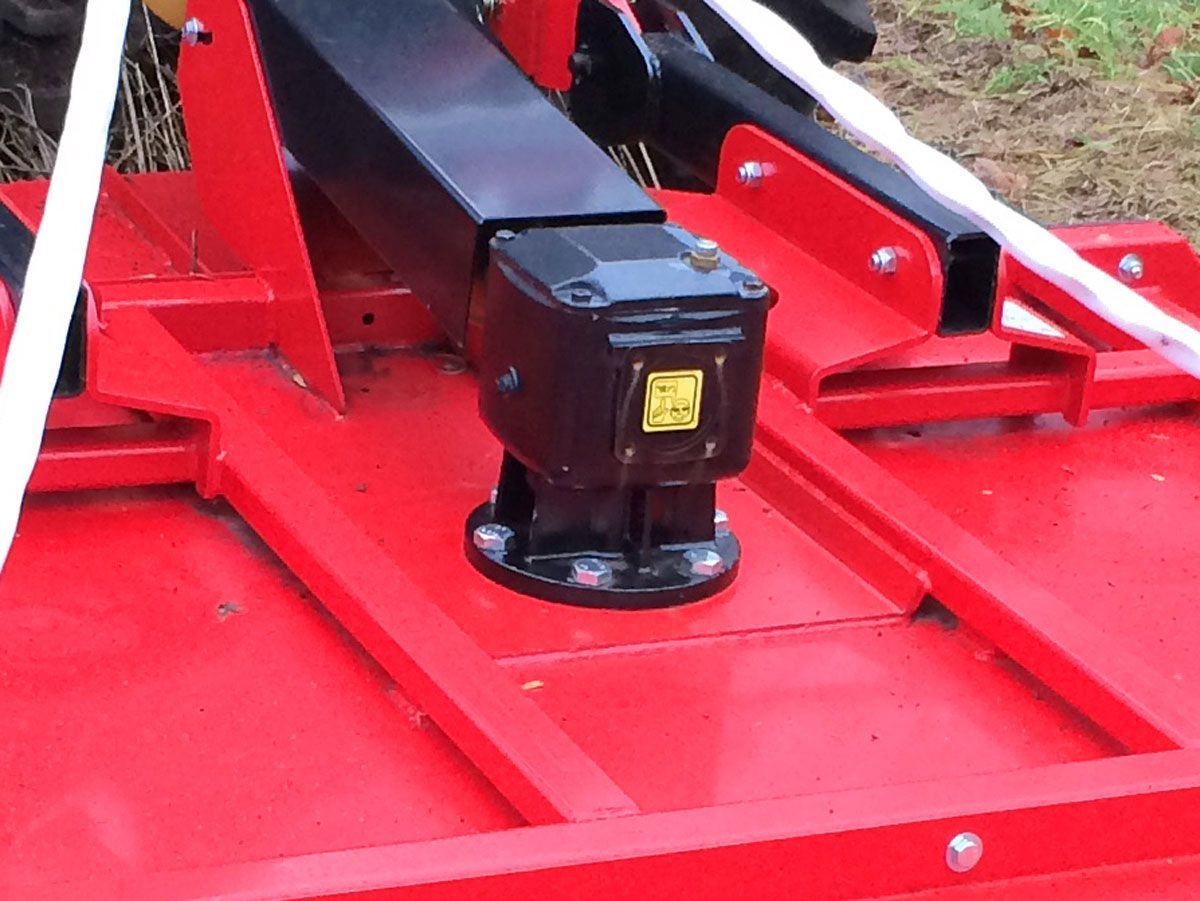

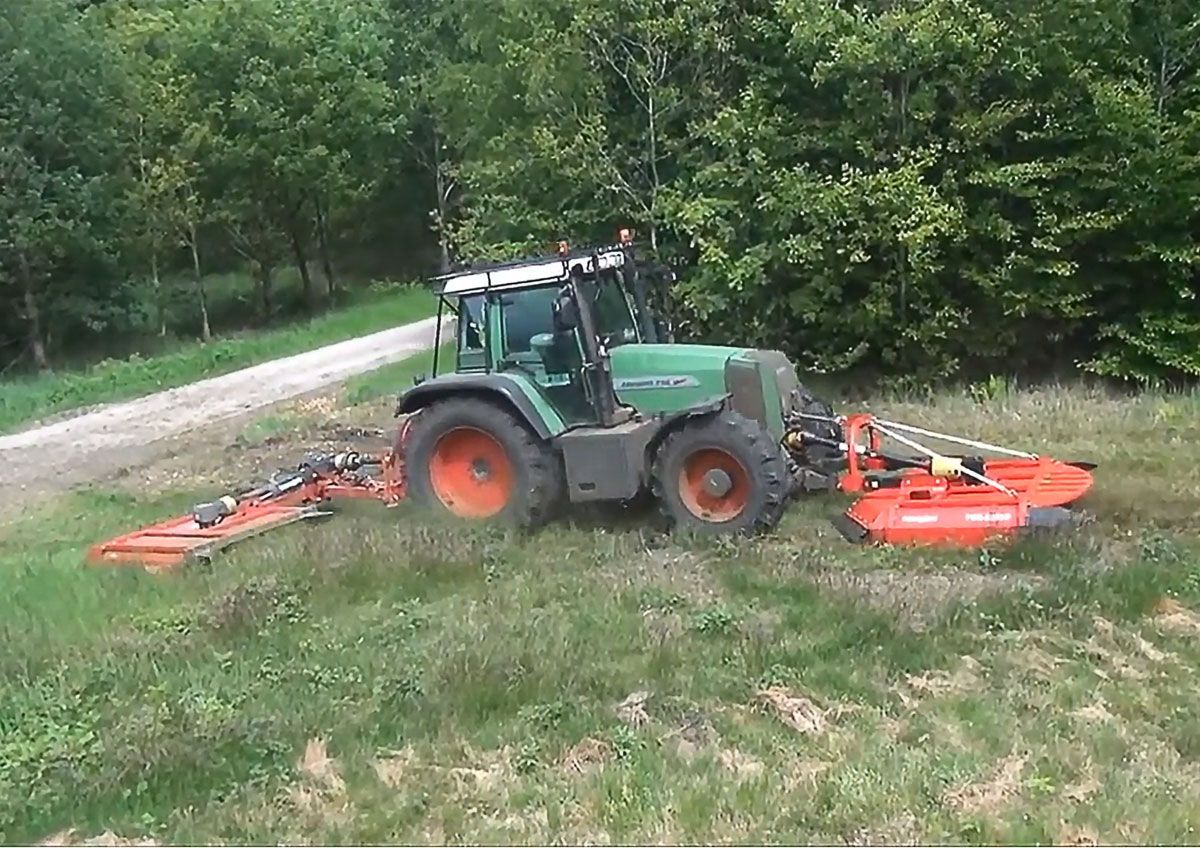

The machine operates optimally at 1000 PTO rpm and is equipped with an integrated overrunning clutch in the PTO shaft. When used as a front-mounted unit, the PTO shaft must be replaced.

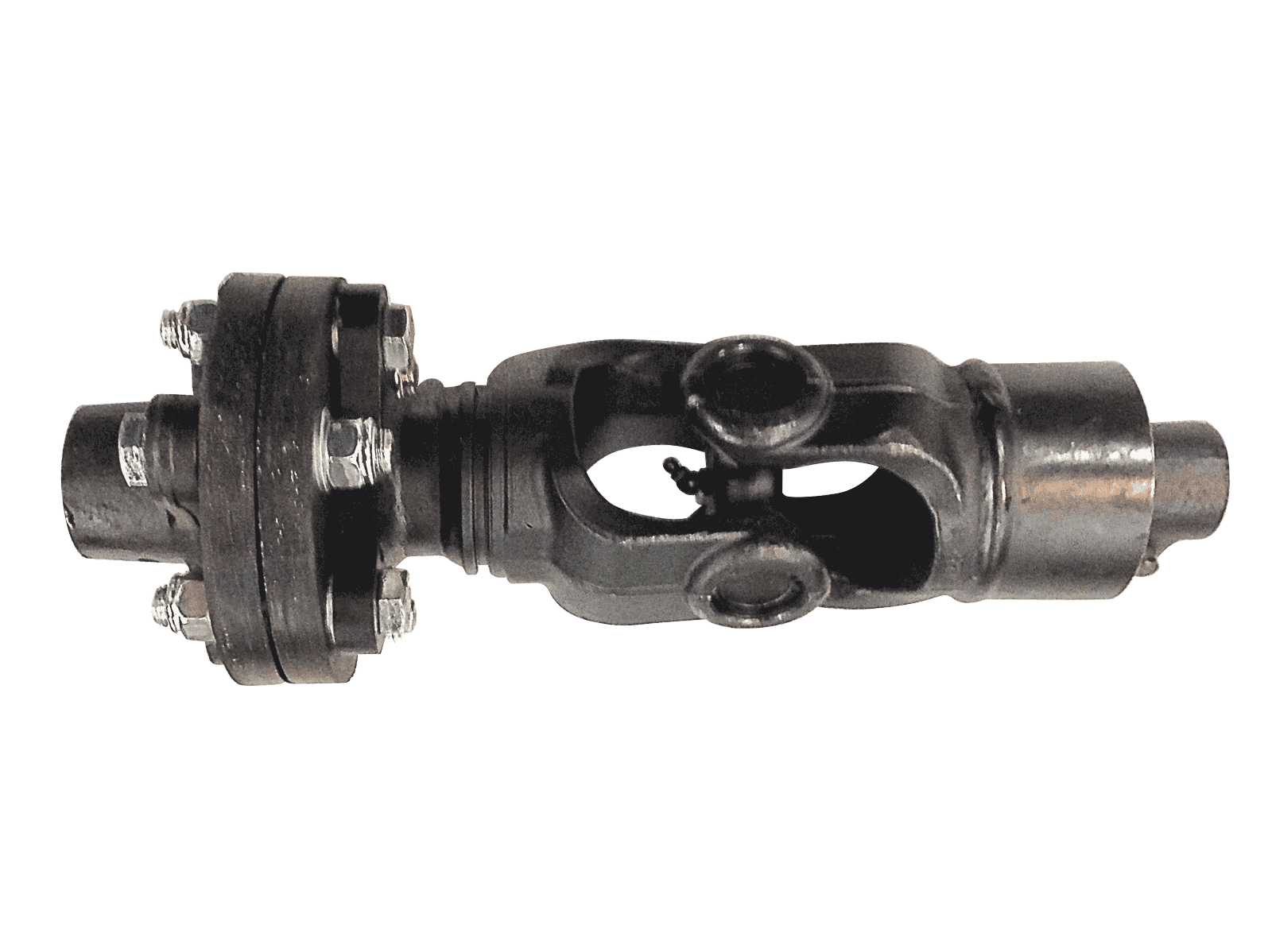

A PTO shaft specifically designed for front mounting is available as optional equipment.
Technical data
| Model: | FKR-200BF |
|---|---|
| Working widht | 200 cm |
| Number of chains | 2 or 4 pcs |
| Chain dimension | 10 or 13 mm |
| Chain quality | G100 |
| Wear skids | Std. |
| PTO speed | 1000 o/min. |
| Power requirement | 70Hk |
| 3-punktsophæng | Cat. I/II |
Details

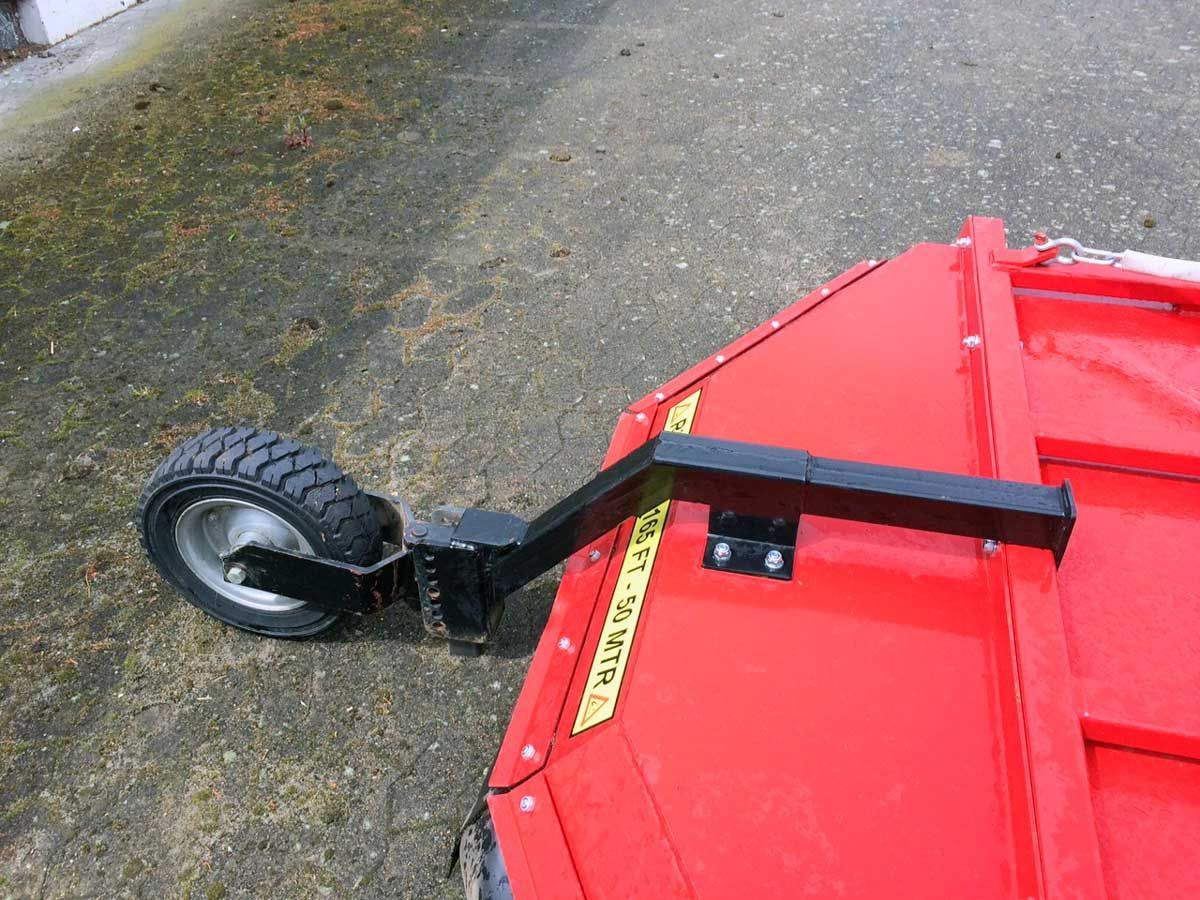

Optional Equipment

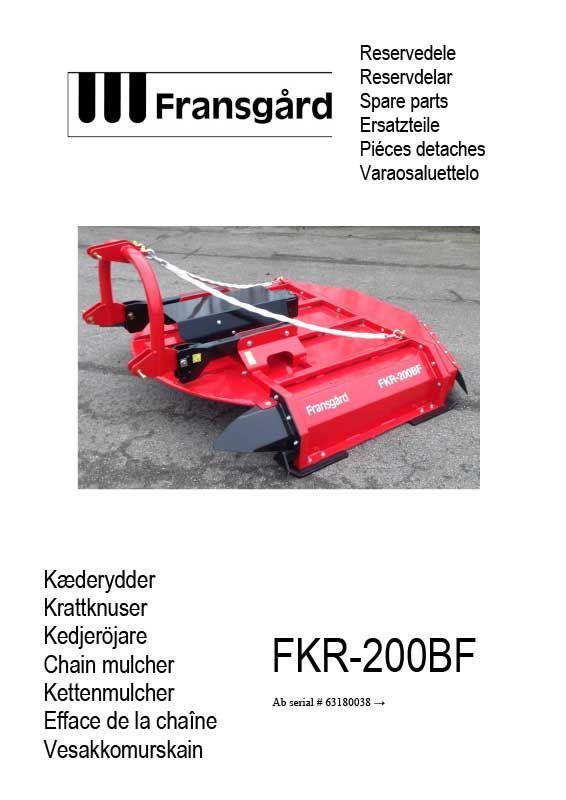

Download PDF files
