Mechanical leveller GT-210 - GT-250

Presentation

Fransgård's GT-210 and GT-250 mechanical levellers are built to a high quality in our own factory in Denmark.

Its high level of functionality makes it suitable for levelling soil, clearing snow and smoothing roads.

Technical refinements increase utility value

The leveller is adjustable 360° in 10 positions. It can be mechanically offset adjusted 55 cm to the right or left side. The adjustment is done without using tools. The blade is prepared for mounting wide support wheels that can be offset to provide a good slope on the road and thus direct rainwater away from the road.

Side plates can be fitted - on both the right and left sides - to hold the material, and a snow blade on the right side to cut the edge diagonally so snow doesn't fall out behind the blade after driving. All features that give a better result.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Technical data	GT-210	GT-250
Working width	2.10 m	2.50 m
Blade height	60 cm	60 cm
Reversible wear steel	Standard	Standard
Support wheels	Possible	Possible
Offset adjustment	50 cm	50 cm
Pivoting blade	360°	360°
Vertical adjustment	1 pos.	1 pos.
Hydraulic adjustment	No	No
3-point suspension	Cat I/II	Cat I/II
Weight	360 kg	385 kg
Tractor performance	Max. 120 HP	Max. 120 HP

Details:

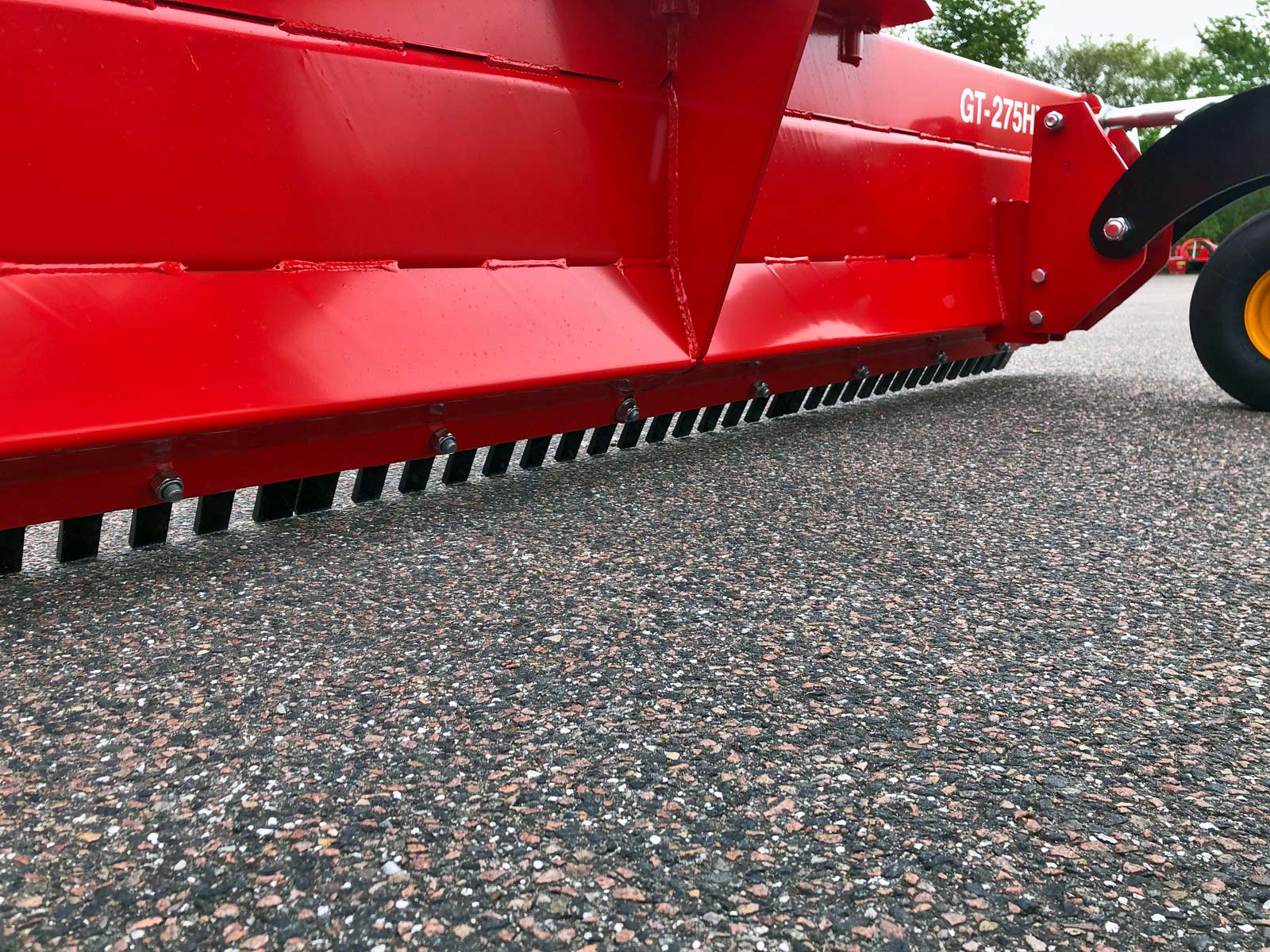

Blade rear

Strong blade with reinforcements at the rear. The lower rear reinforcement is designed to allow the leveller to be reversed without turning the blade. This allows you to reverse over any excess material, for example, when you come to an asphalt road, and the leveller will press and distribute the material out into the road.
Button

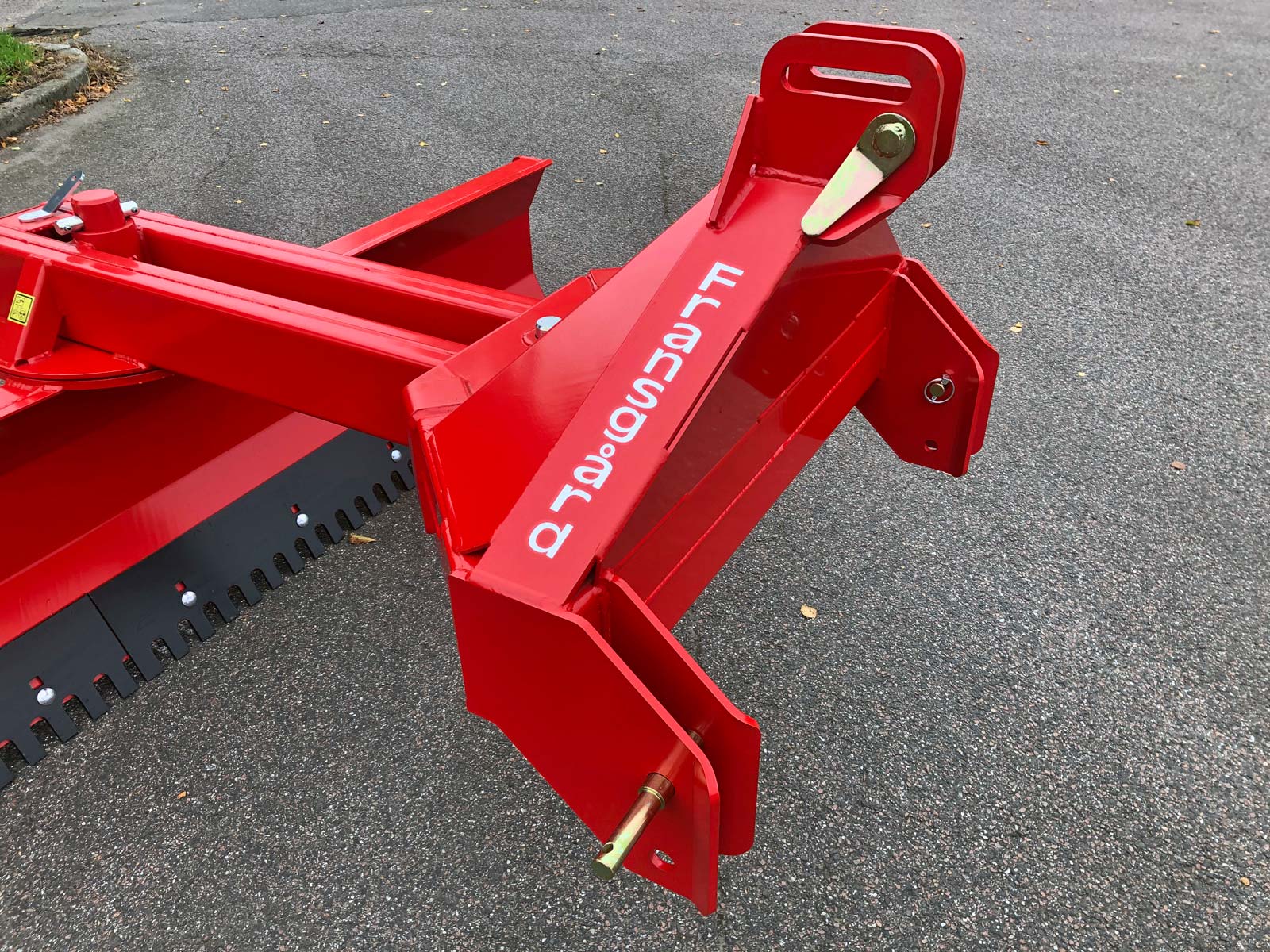

3-point cat II

With the 3-point suspension on Fransgård's leveller, the lift arms can be mounted at 2 different heights to fit most tractors. If the lifting arms are mounted in the lower hole on one side and the upper hole on the other side, the blade will have a horizontal cutting angle of approximately 7 degrees.
The top bar attachment also has both a fixed hole and an elongated slot, where you can advantageously mount the top bar bolt when, for example, levelling roads, the leveller will follow the terrain better and you will achieve a better end result.
Button
Blade ends

Reinforced ends on the blade of the leveller, which are also prepared for mounting the side flap and snow blade.
Reversible wear steel bolts on with 16mm steel bolts grade 12.9.

Button

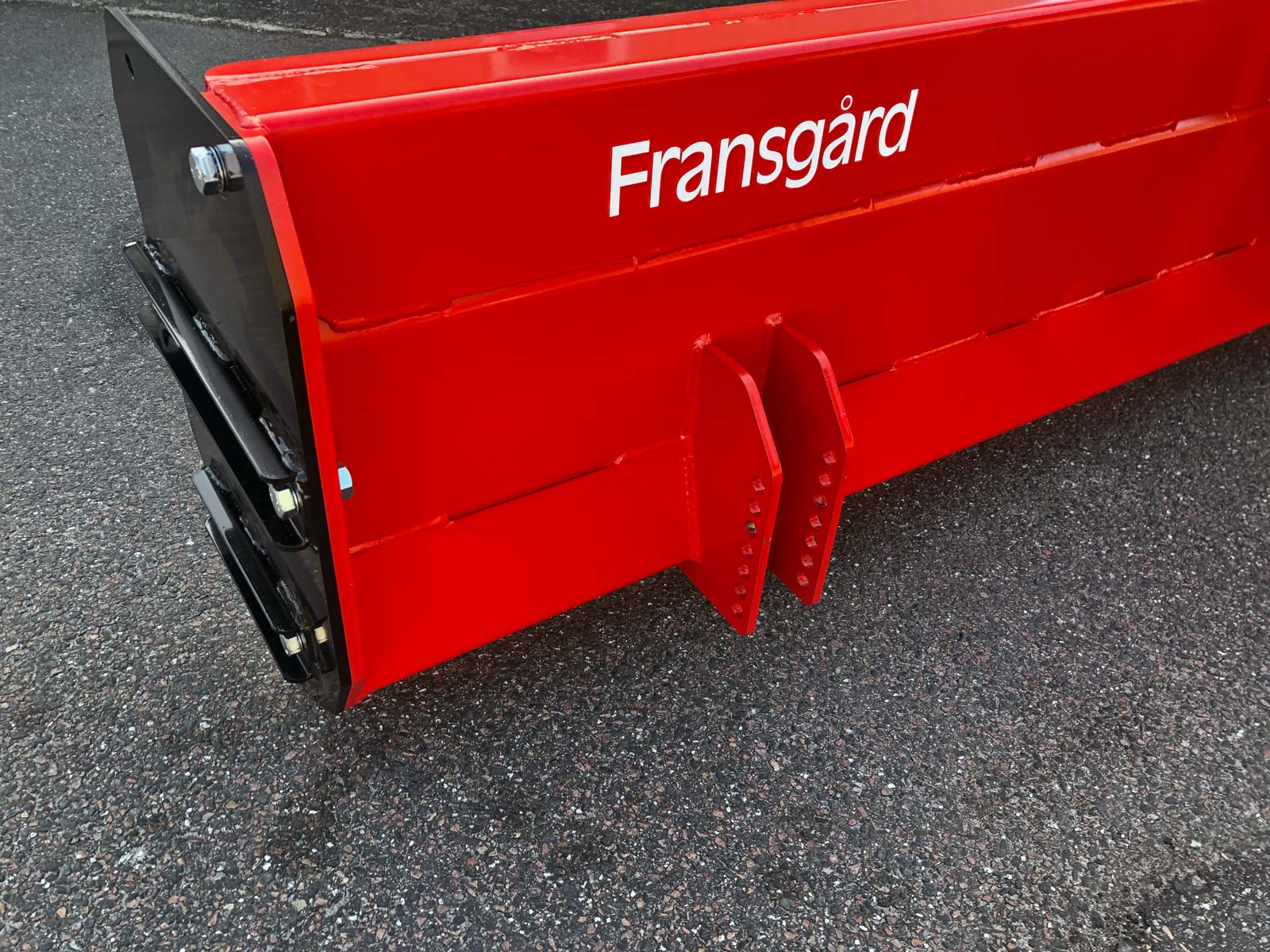

Prepared for wheels

The leveller is prepared for the installation of wheel sets item no. 2512 or 2513
Button

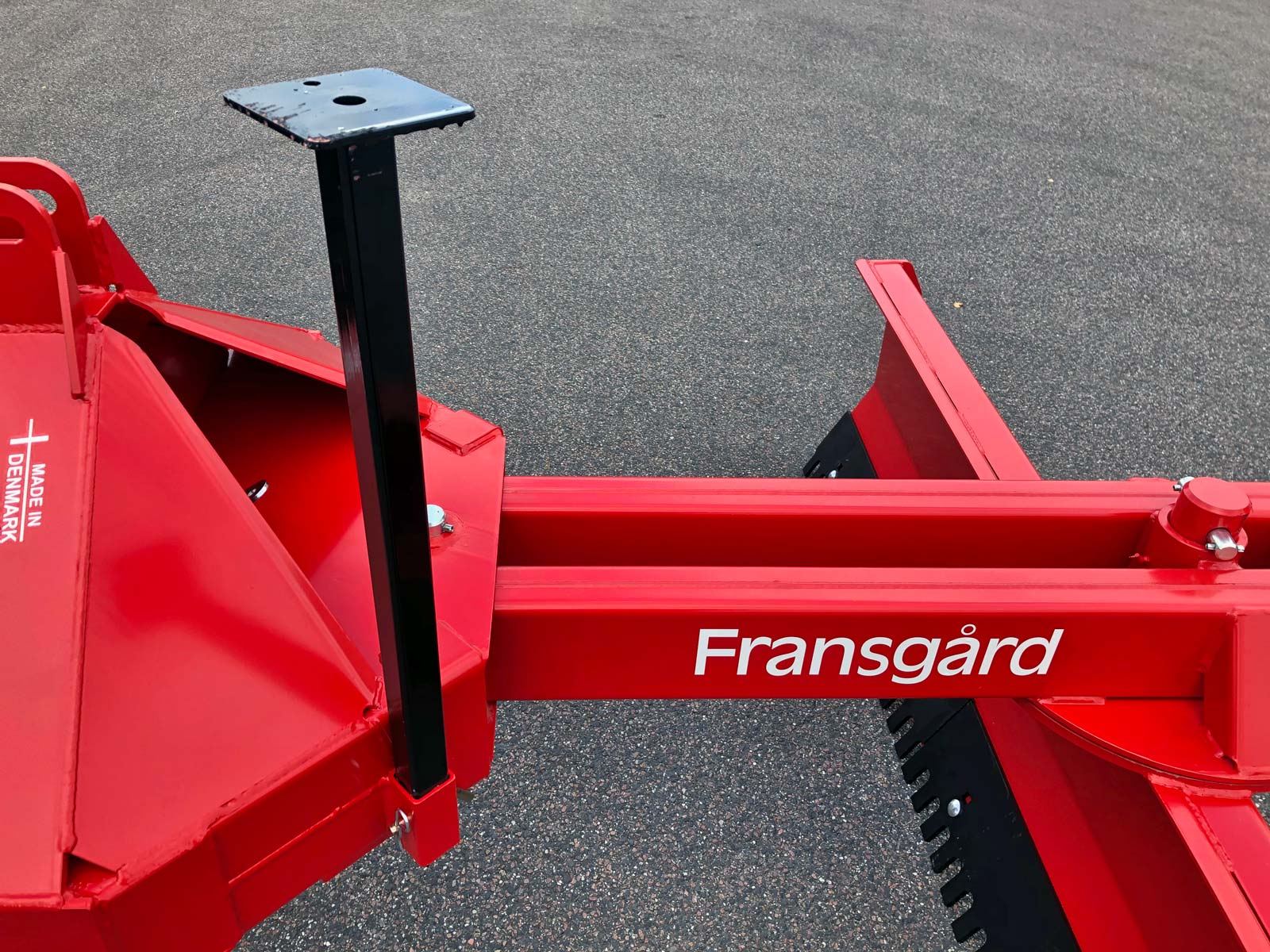

Support legs

Support legs are easily placed in the holder, so you always have them with you when you need to park the leveller.
Button

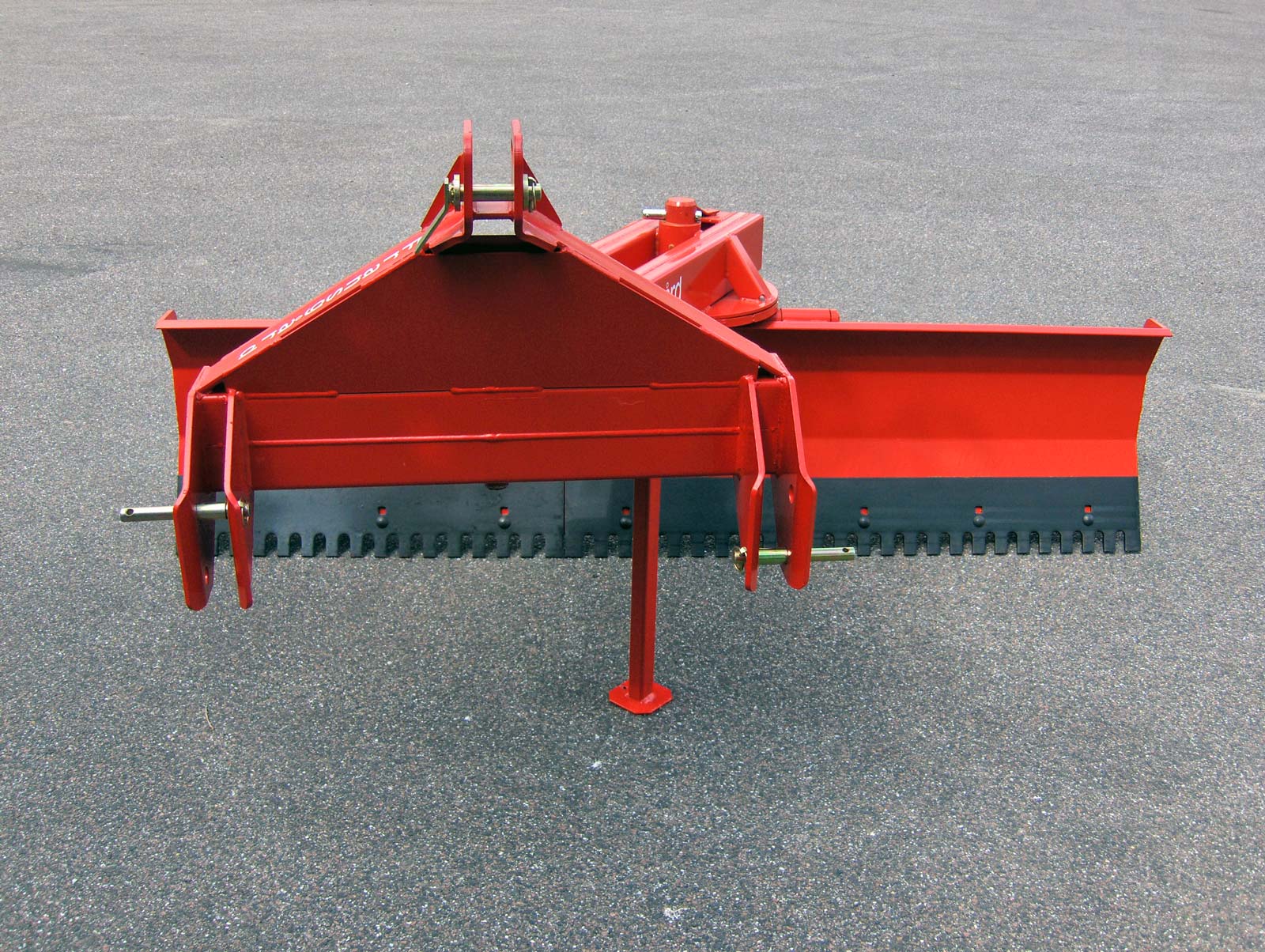

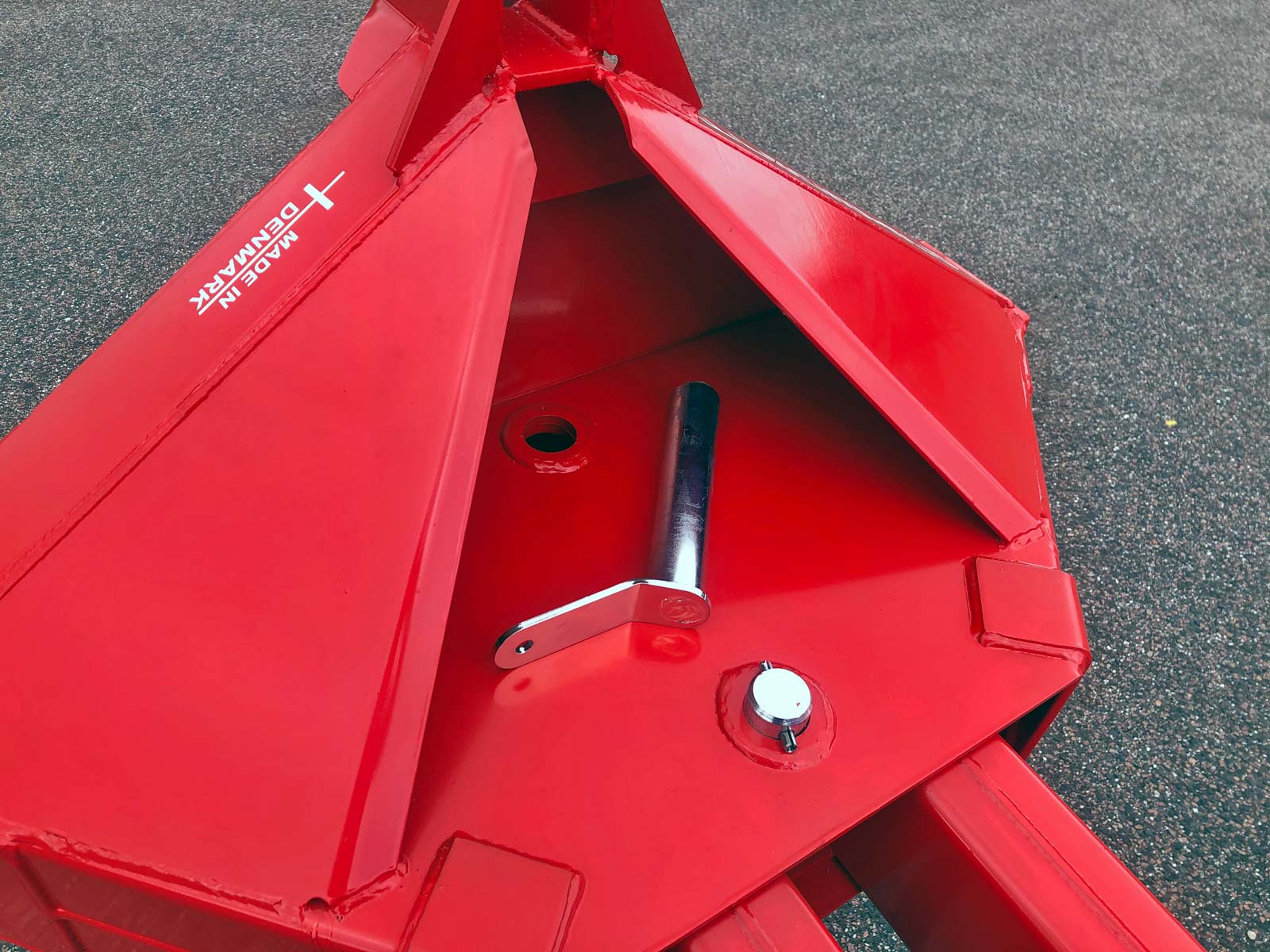

Bolts, offset adjustment

The leveller can be mechanically offset adjusted to the right or left side.
The locking bolt is mounted without using tools. All locking bolts are galvanised.

Button

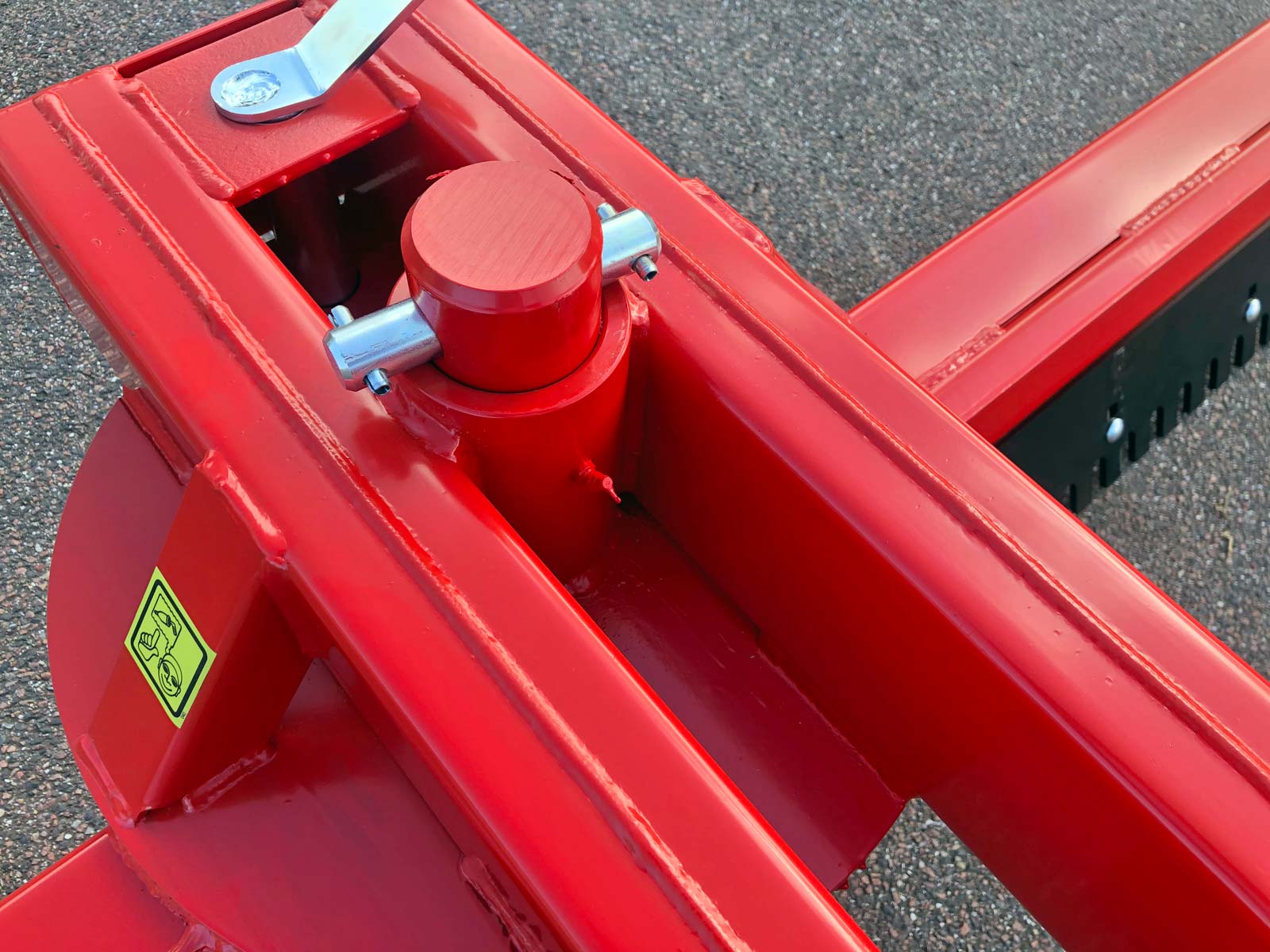

Main axle, boom

The blade and boom are assembled with a strong 75 mm main bolt
Button

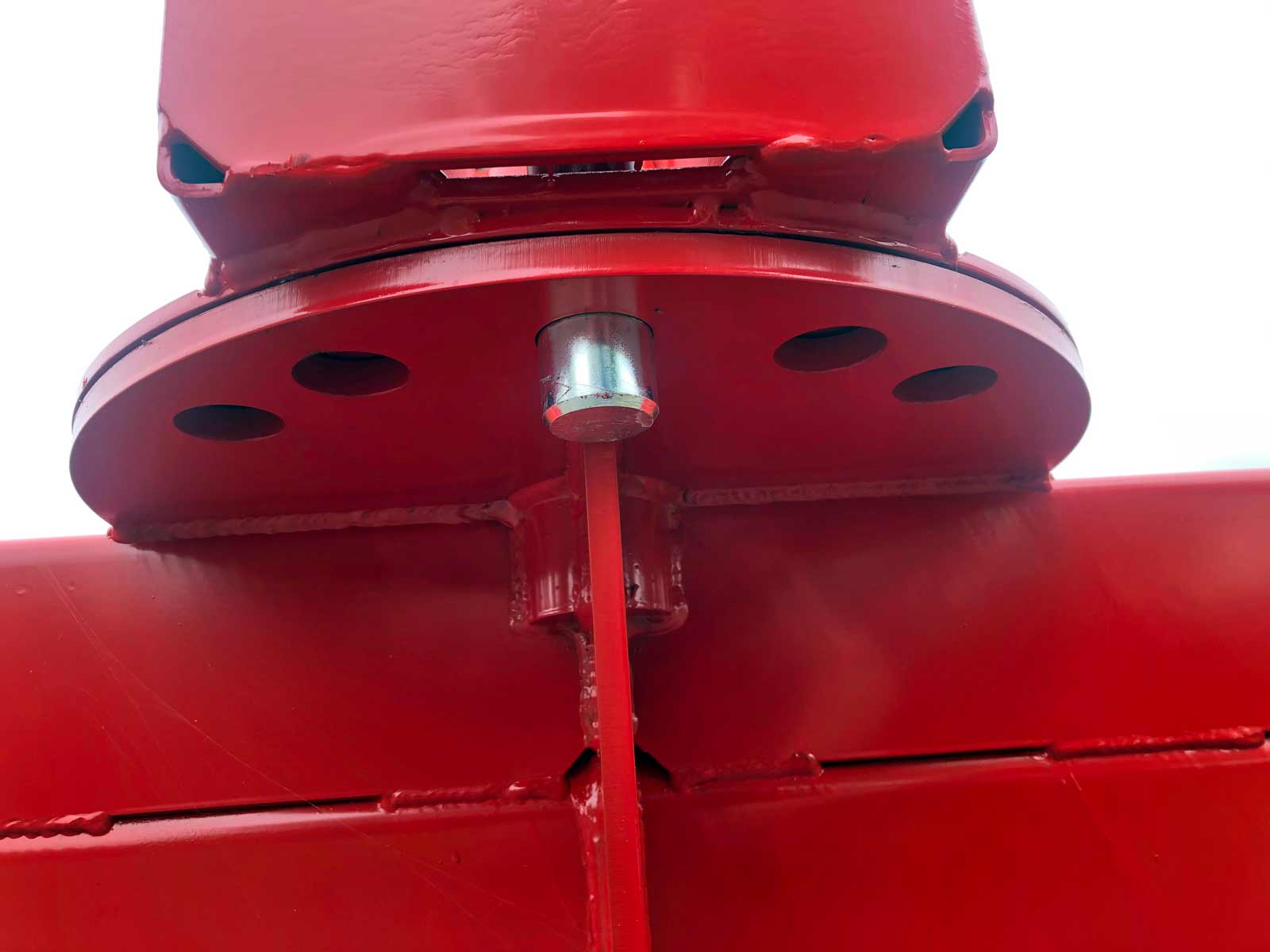

Pivot

The pivot on the blade has 10 adjustment settings all the way around, and the blade can rotate 360 degrees.
Button

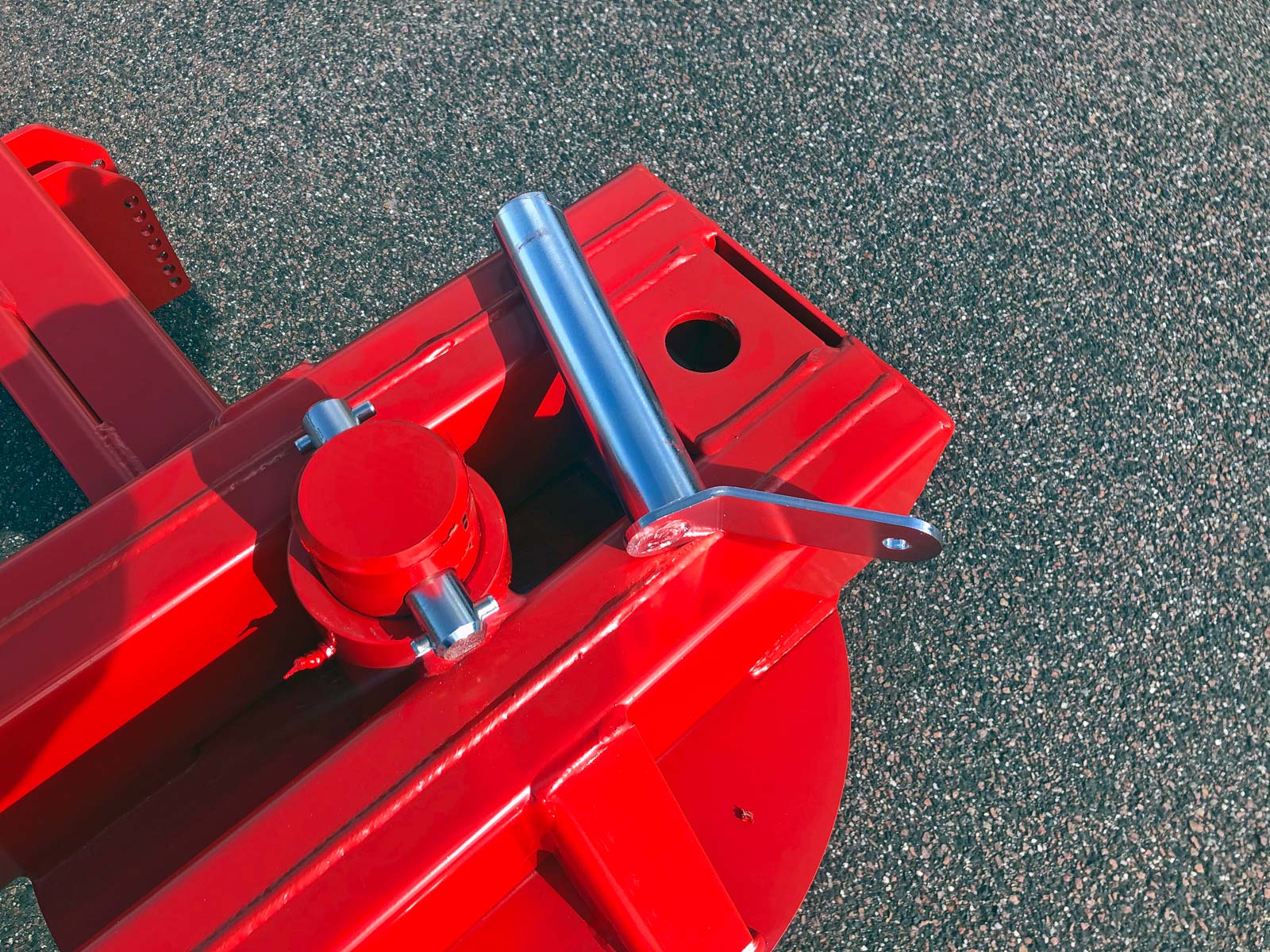

Bolt for blade adjustment

The blade is easily adjusted to the desired position with the locking bolt, which is operated without using tools.
Button

Optional extras

Item no. 2511

Towing shoes help to ensure that the insert does not go too deep during work. Made of Hardox 500 steel
Button
Item No. 2512

Wheel set with wheel width 15 x 600, adjustable up and down via 2 bolts with a ring split.
Button
Item No. 2513

Wheel set with wide wheels 15 x 600, stepless height adjustment via spindle. The wheels can turn 360 degrees, so you can reverse with the leveller without turning the blade.
The wide rear wheel spacing makes for a smoother operation.
Button
Item No. 2517-2520

Rubber blade for mounting on all Fransgård models of levellers. The rubber blade is mounted behind the existing wear steel, which acts as a backstop on the rubber blade. It should be fitted 2-3 cm lower than the wear steel and can be continuously moved downwards as it wears down. You drill the holes in the rubber blade yourself and mount it with the bolts provided.
Button
Item No. 2533

Side flap to hold the material. Can be mounted on both the right and left side.
Button
Item No. 2533

All Fransgård's newer levellers are ready for mounting side flaps and are easily mounted with the 3 bolts provided.
Button
Item No. 2545

Snow blade for the right side, cut the snow edge diagonally so that it does not collapse and in behind the tractor where you have just driven.
Button
Item No. 2545

All Fransgård's newer levellers are ready for mounting snow blades and are easily mounted with the 3 bolts provided.
