Grapple Tong HZ-1500

Presentation

The HZ series of grapple tongs from Fransgård Maskinfabrik are designed to grab and move felled or freed logs out of forest areas with tongs. Our grapple tongs are very useful, for example, when the logs are lying shoulder to shoulder after a storm.

The machine is efficient for fast moving of whole or cut logs. The flexible suspension of the grapple tongs make it possible to pull logs out of hard-to-reach areas, while the boom allows the logs to be stacked.

Models in 2 sizes

Fransgård's HZ grapple tongs are very robust and stable and are used in many places in the world. The sturdy base construction combined with brass bushings in all joints make the grapple tongs very durable and robust, so they can handle most tasks in the forest. The HZ-1500 has an opening width of 1.5 m.

If you need a larger opening width, we recommend our HZ-2300 with an opening width of 2.3 m.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Technical data:	HZ-1500
Opening width	1500 mm.
Hydraulic connections.	1 double
Swing cylinder.	No
Swing radius.	+ / - 45°
Closing force.	2,5 tonnes
Weight	132 kg.
Recommended tractor HP.	20-50 HP.

Details:

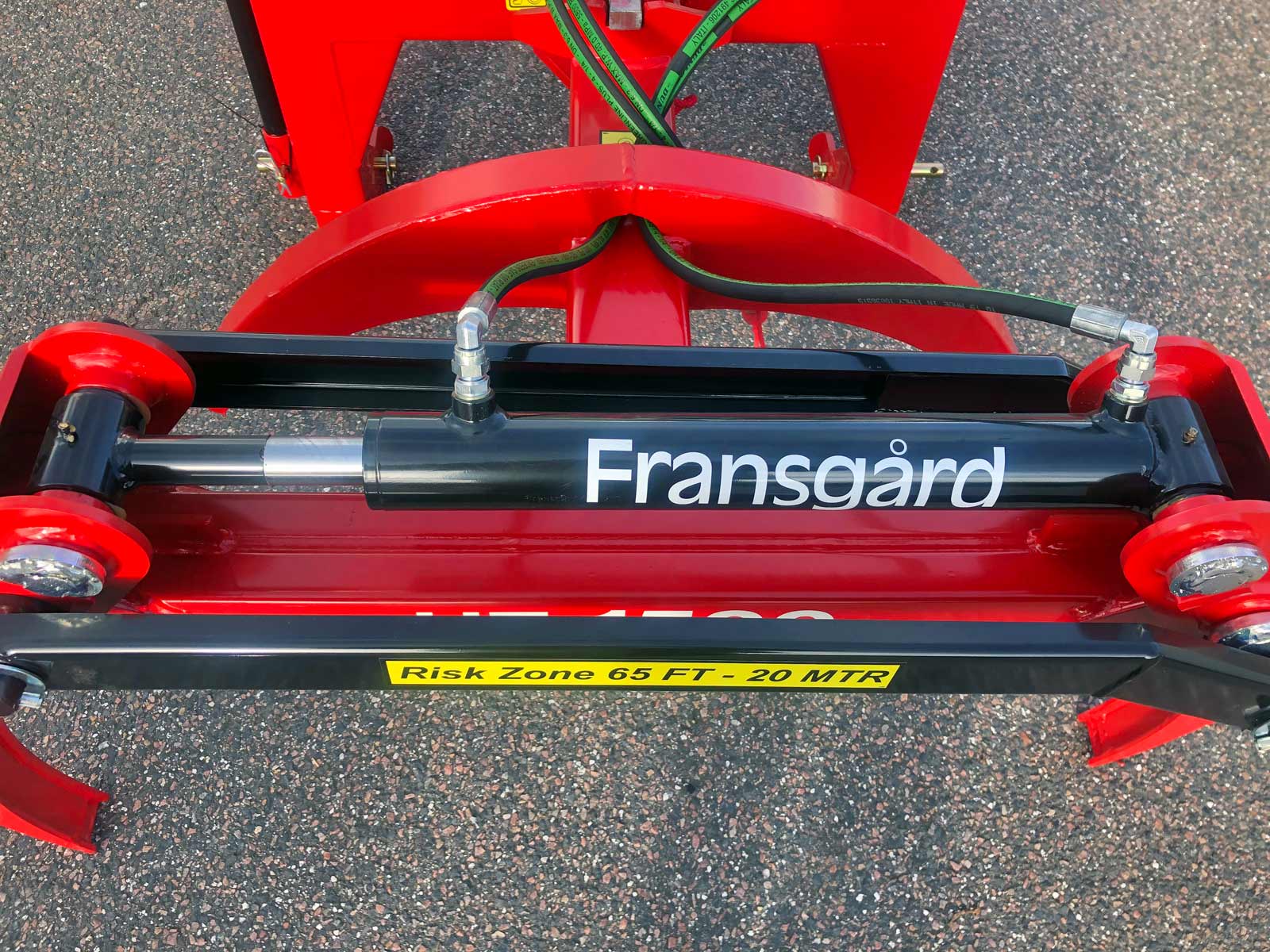

Hydraulic cylinder

The powerful double-acting cylinder ensures that the logs are held firmly.
Button

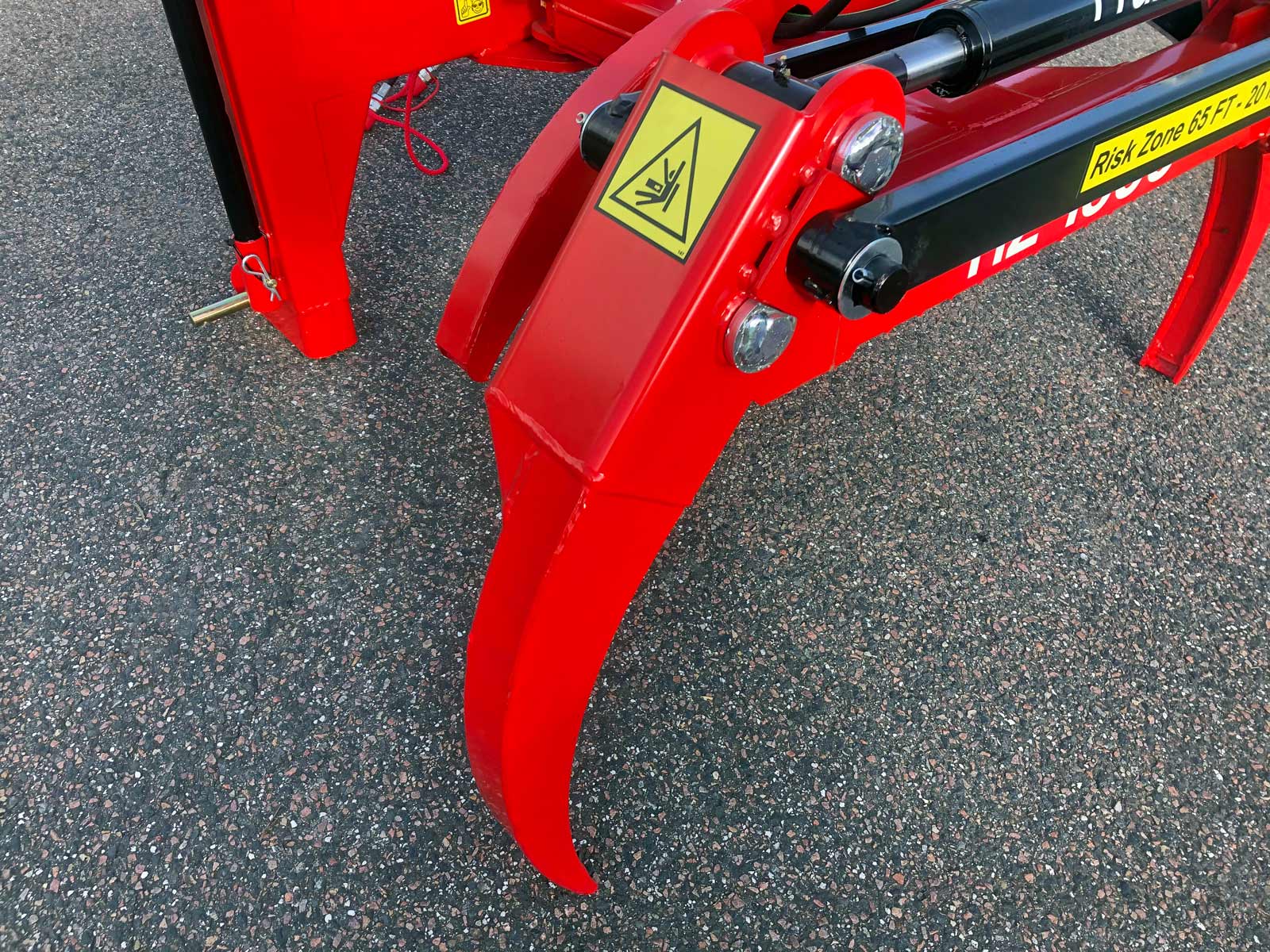

Tongs

The specially designed tongs close up to 10 cm and provide a very stable tool.
Button

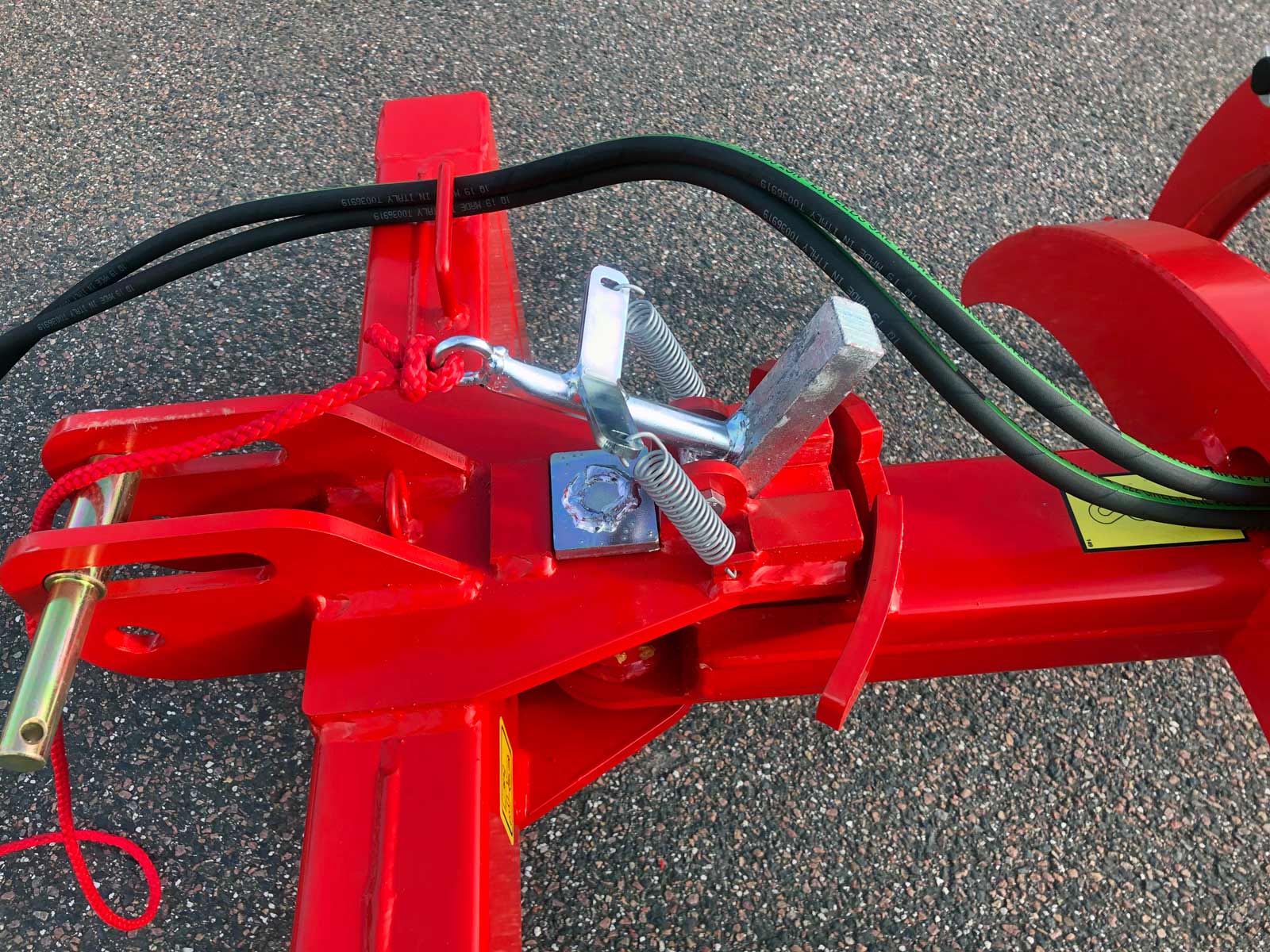

Swing lock

The lock pawl is manually engaged and disengaged. When extending with long logs, the pawl must be turned off so that the tongs can turn freely. The lock pawl can be switched off from inside the tractor via the red cord.
Button
Parallel bars

The 2 parallel bars on each side of the cylinder ensure that the tongs close at the same time.
Button

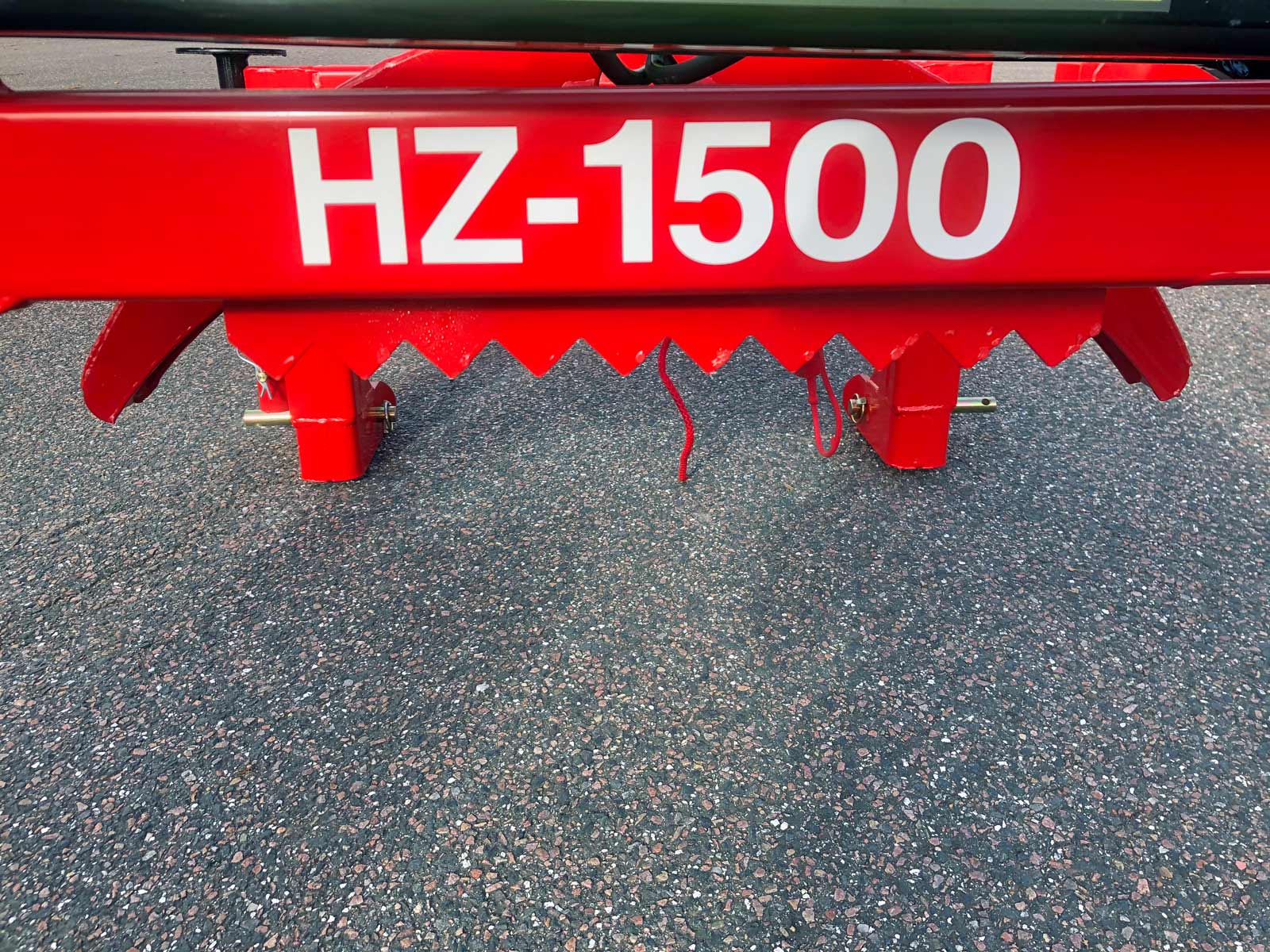

Sawtooth fittings

Fittings with sawteeth under the cross boom, ensure that the logs are held in the tongs during extension.
Button

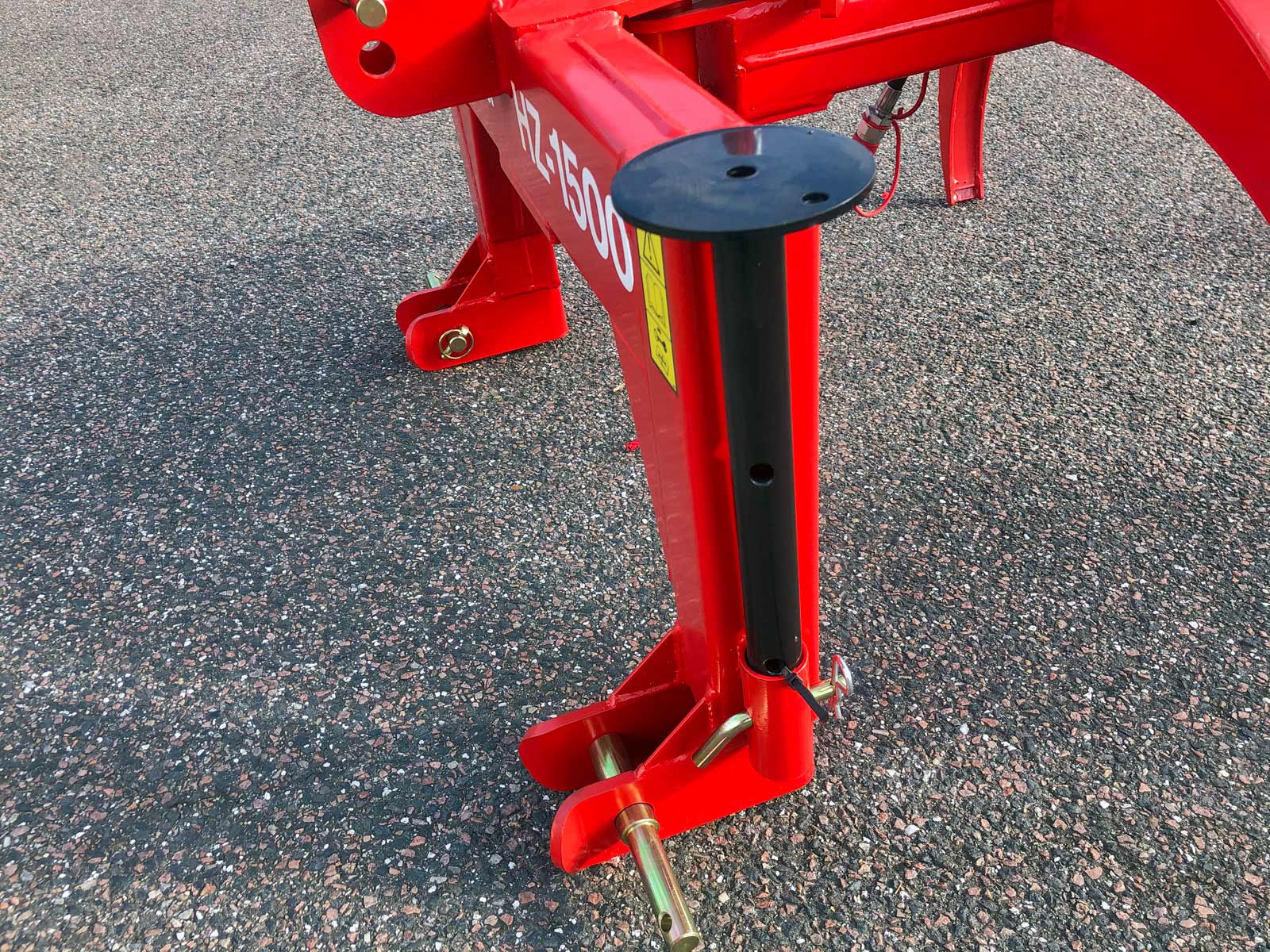

Support legs

The support legs are easily placed in the bracket and are always at hand when parking the tool.
Button

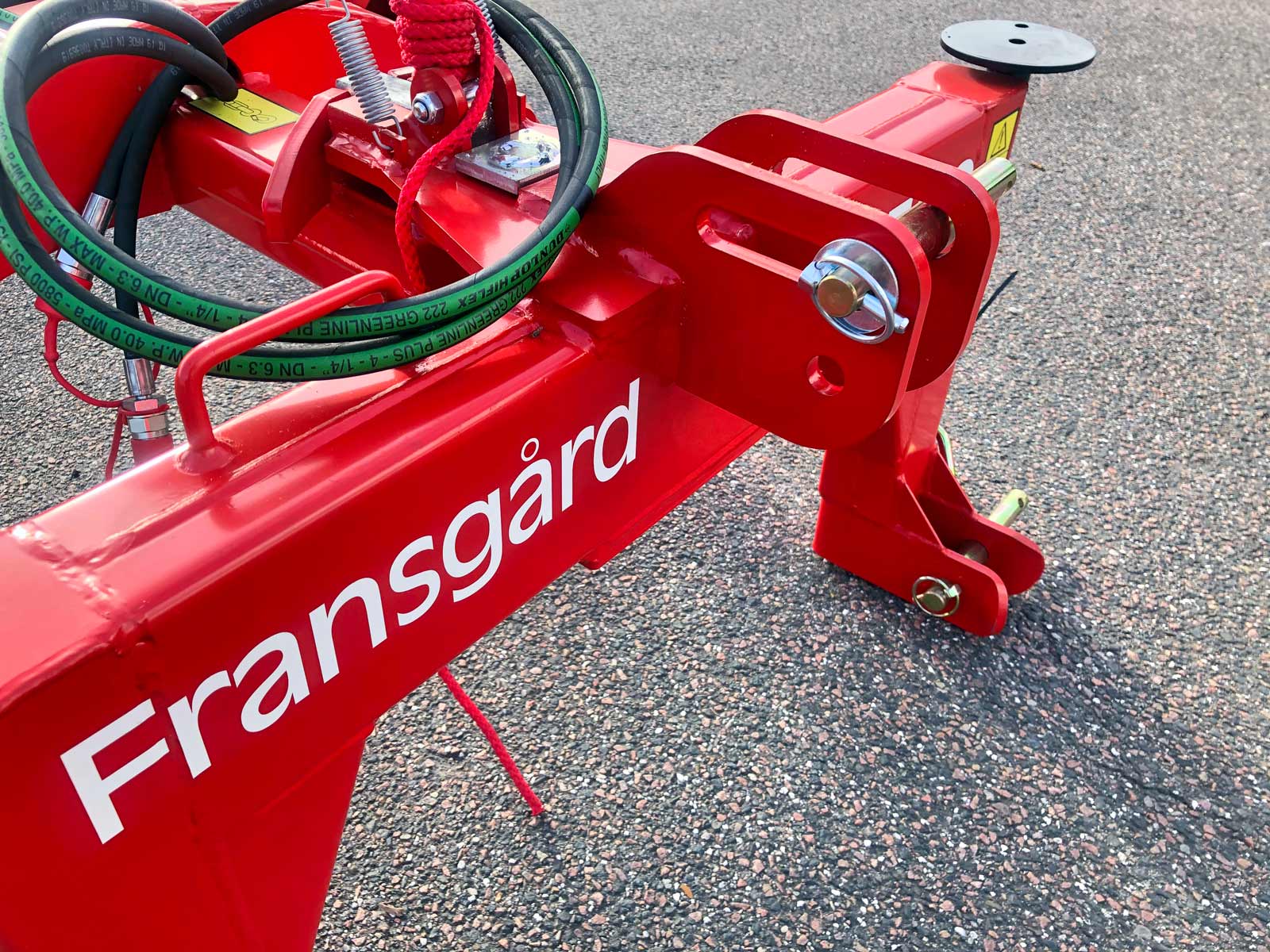

Top bar attachment

The top bar attachment has both a fixed hole and elongated slot. The fixed hole is used for short logs. The elongated slot can be used to advantage when driving out long logs.
Button

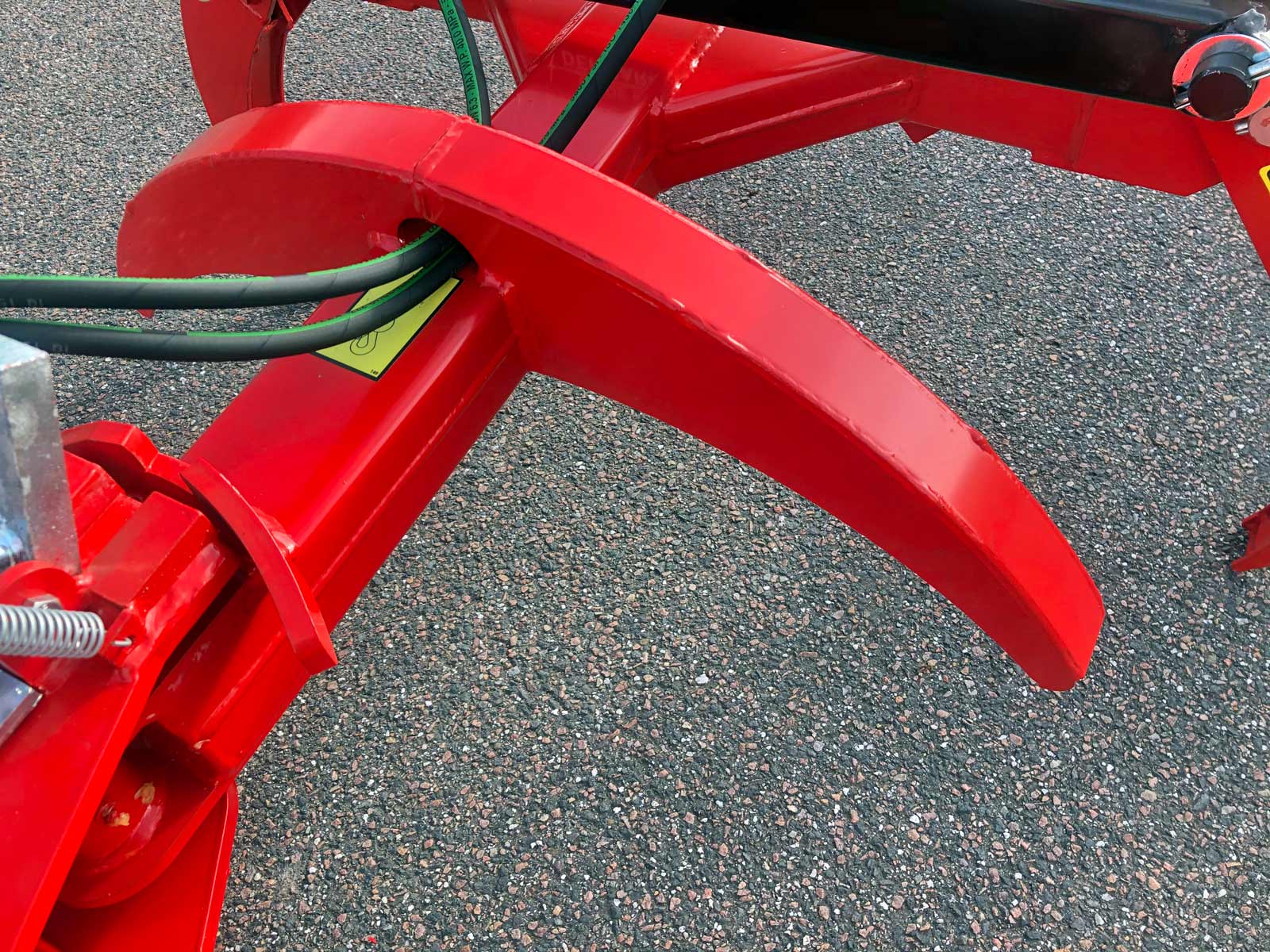

Guide rods

The 2 fixed guide rods in the middle of the arm ensure that short logs are kept in place during transport. If you are working with long logs, the ends of the logs must end before you get to the guide rods.
