Disc Mower DM-2050 · DM-2450 · DM-2850 · DM-3250

Presentation

Fransgård's lift-suspended disc mowers are designed to work with many types of crops in both large and small quantities, and make a wide and even cut that makes it easy to process the crop. This makes the mowers a highly efficient and attractive product for both professional and hobby farmers who want functional, high-quality machines.

Efficient mower with many new features that increase its utility value

The robust and service-friendly cutter bar from Italian manufacturer Comer operates in a sealed oil bath for minimal maintenance. The oval discs can be removed separately and serviced individually. Disc mowers are fitted with the new right- and left-turn blades, which cut the grass better. Combined with 2 cutter caps placed at the end of each side of the cutter bar, you even get a much better flow of the cut crop through the machine. Overall, it makes for faster and more efficient swath wilting.

The machine is driven by 4 or 6 v-belts (depending on the model). Strong springs in the suspension ensure that the cutter bar follows the terrain, resulting in a smoother cut. The frame for the plastic cover over the cutter bar is made in a hot-dip galvanised construction, which is much better at resisting the corrosion from the harsh, acidic grass sap. There's plenty of space above the bar and the heavy-duty safety cover helps create a vacuum that lifts the crop for a better, more even cut, with a standard stubble height of 7cm.

The disc mower is fitted with a strong 3-point suspension, which with a rolled 4-edge profile significantly increases the strength of the construction. The model is prepared for the installation of the hydraulic lifting system, which significantly increases efficiency, as the cutter bar can be raised by simply pulling a handle with direct access to the hydraulics on the disc mower, instead of having to raise the tractor's lifting arms, which is more time-consuming.

The mower works perfectly even at very high speeds and lies the swath in a width of about 60 cm narrower than the working width.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data

Model:	DM-2050	DM-2450	DM-2850	DM-3250
Working width	205 cm	245 cm	285 cm	325 cm
Transport width	190 cm	190 cm	190 cm	190 cm
Number of discs	5	6	7	8
Number of blades	10	12	14	16
V-belt SPB	4	4	4	6
Towing shoes	6	7	8	9
Hydraulic connectors	1 single	1 single	1 single	1 single
Height above the bar	60 cm	60 cm	60 cm	60 cm
3-point suspension	Cat II	Cat II	Cat II	Cat II
Disc rpm	3000	3000	3000	3000
PTO connector rpm	540	540	540	540
Power requirement kW/HP	45 / 60	60 / 80	67 / 90	75 / 100
Working speed km/h	10-20	10-20	10-20	10-20
Weight	489 kg	524 kg	550 kg	625 kg.

Details

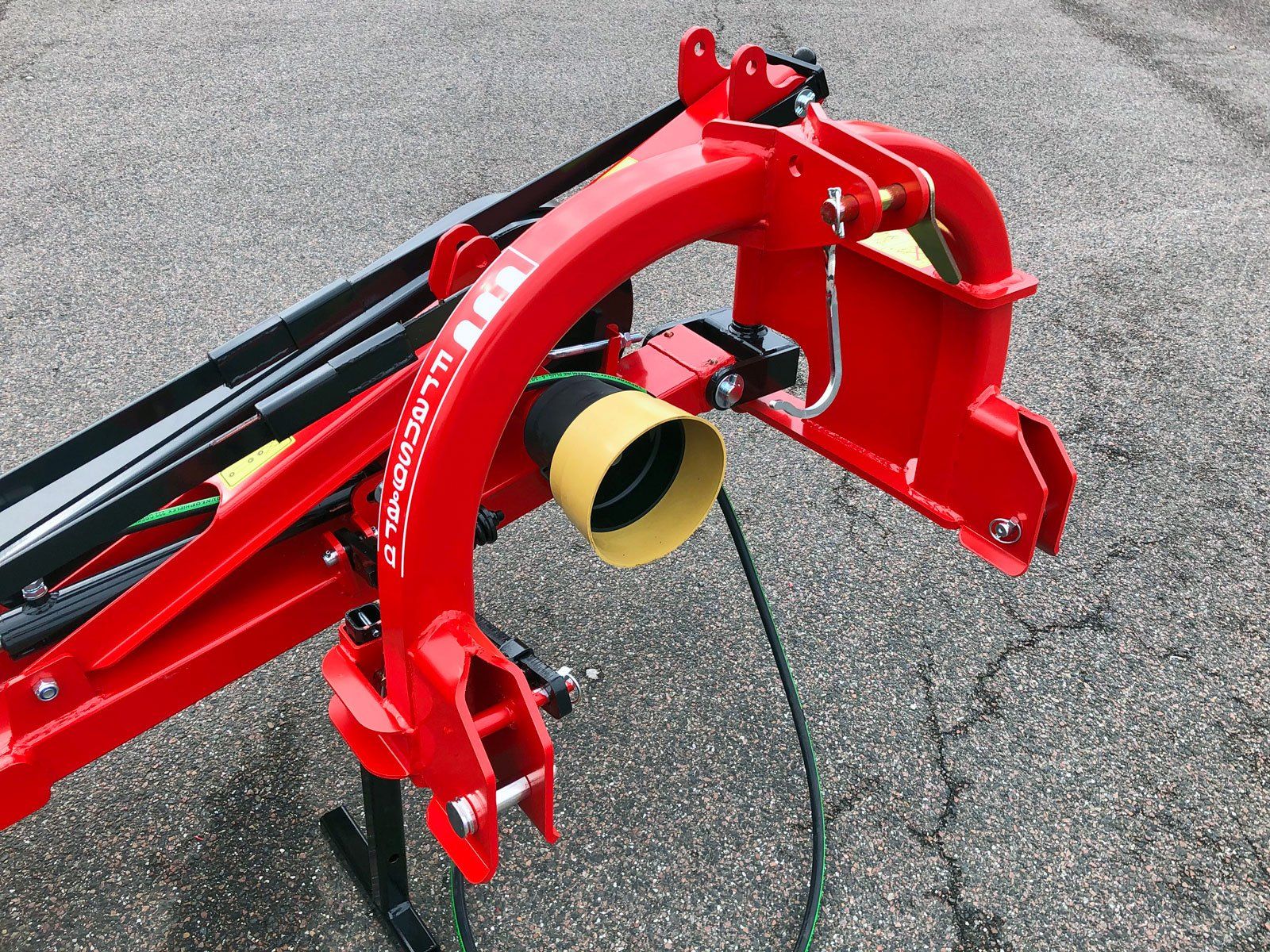

3-point suspension

The very strong 3-point suspension is rolled in a hollow profile, which provides both high strength and a simple beautiful design.
Button
Load springs

The large load spring, located under the main frame, ensures that the machine follows the terrain in the best possible way when working with the machine.
Button
Fittings for the transport chain

The cutter bar is fitted with a perforated plate for mounting the transport chain, so the bar is locked during transport.
Button

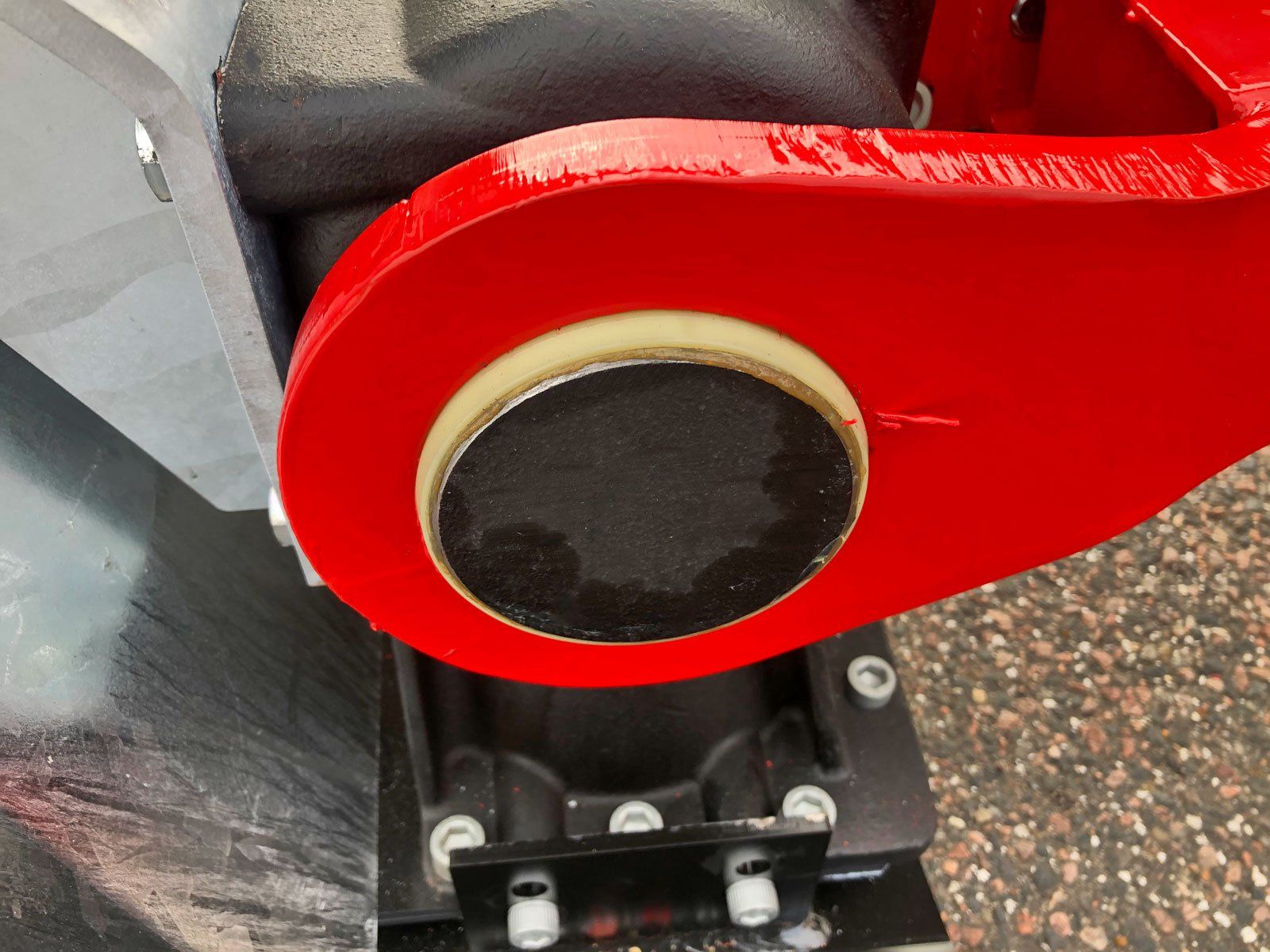

Swivel joint

The swivel joint between the cutter bar and the balancer arm is cast in the gearbox and fitted with nylon washers.
Button

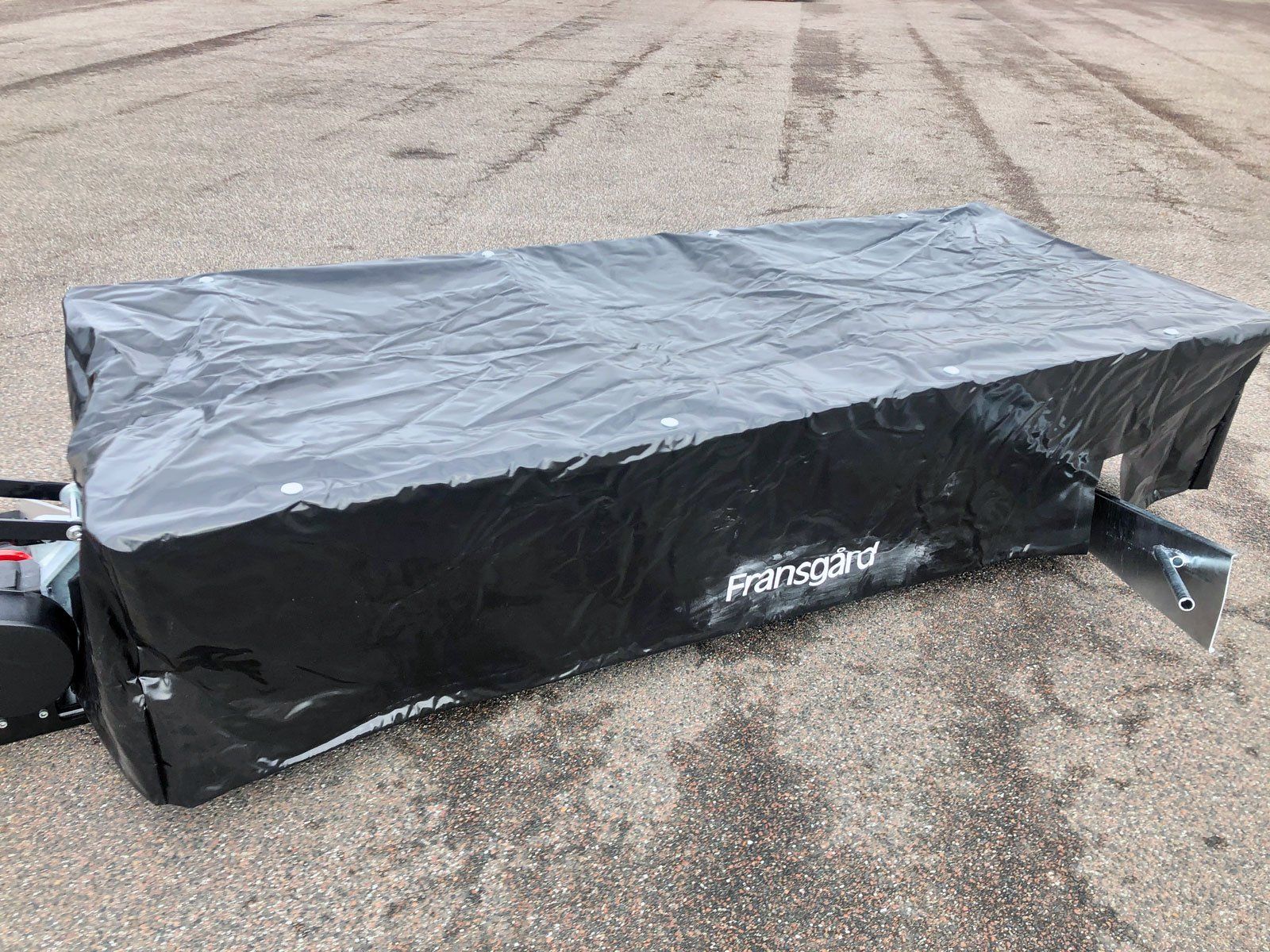

Cover

The heavy-duty tarpaulin cover ensures minimal ejection from the cutter bar during work and helps create a small vacuum to ensure the best possible flow across the bar. The cover is spring-loaded when folded.
Button

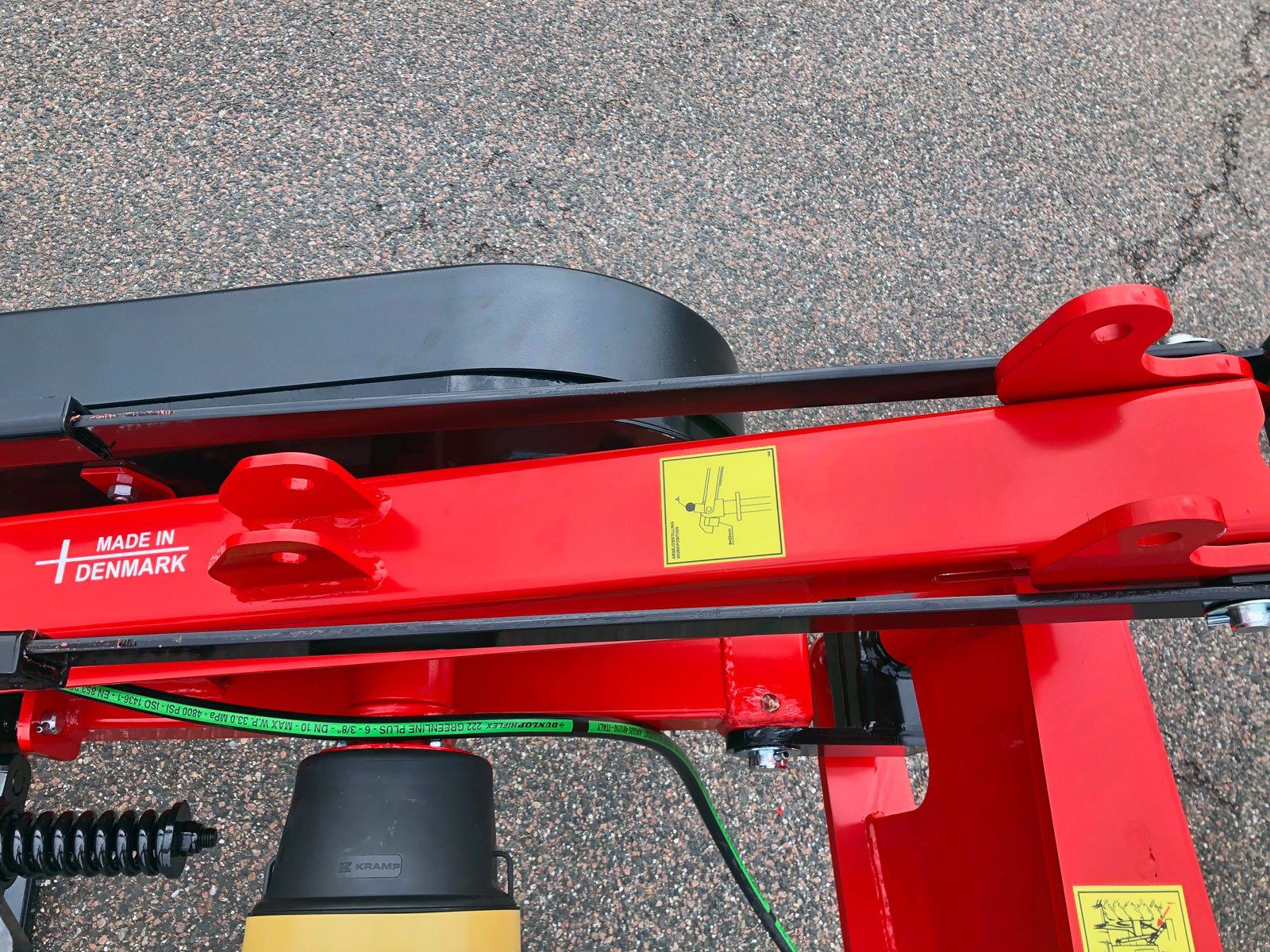

Prepared for parallel lifting

The disc mower is prepared for retrofitting an hydraulic parallel lift, which can also be ordered for the machine from new (optional extra item no. 7134)
Button

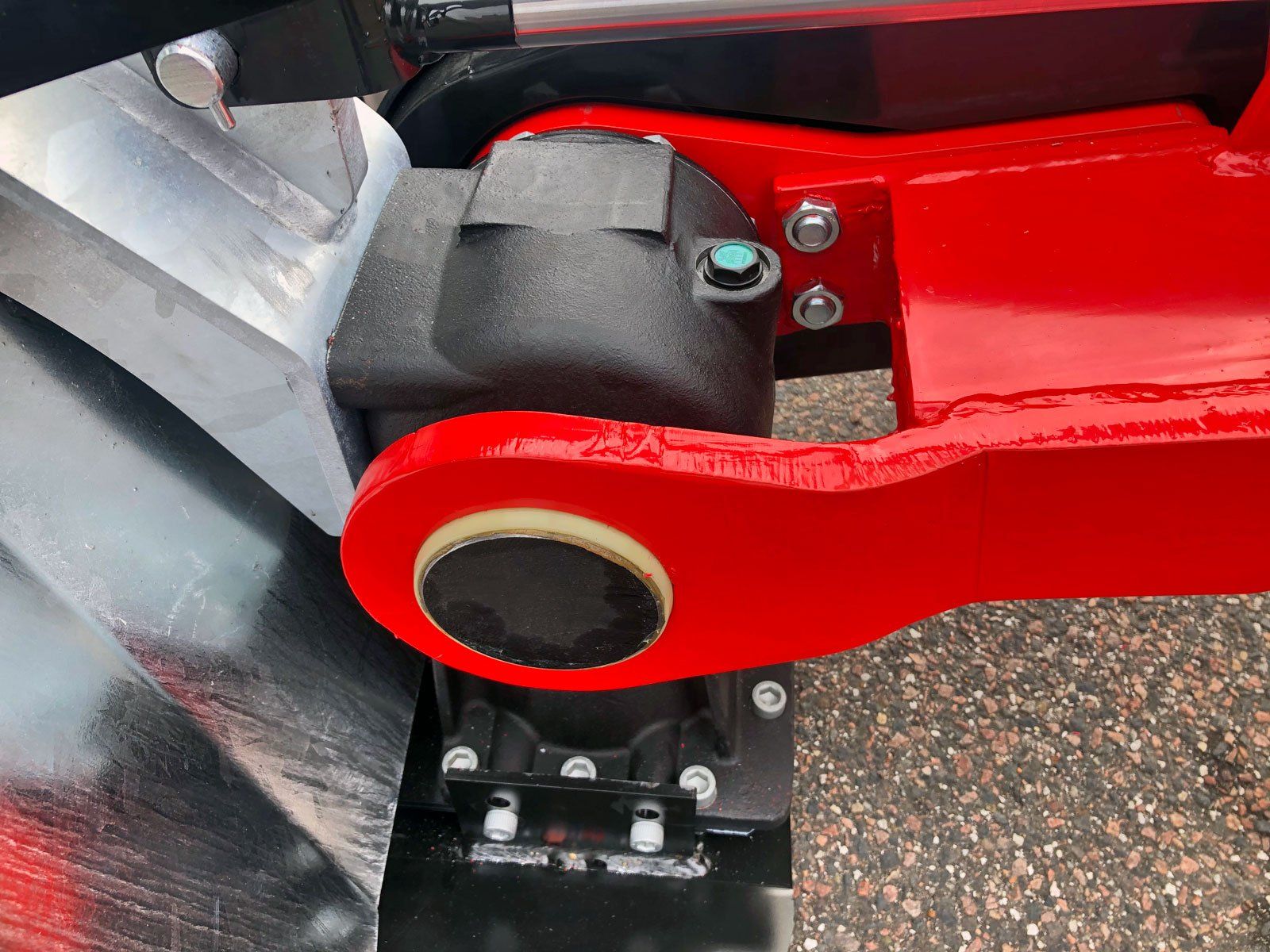

Gearbox

The solid gearbox on the cutter bar is made of cast iron and runs as a separate oil unit.
Button

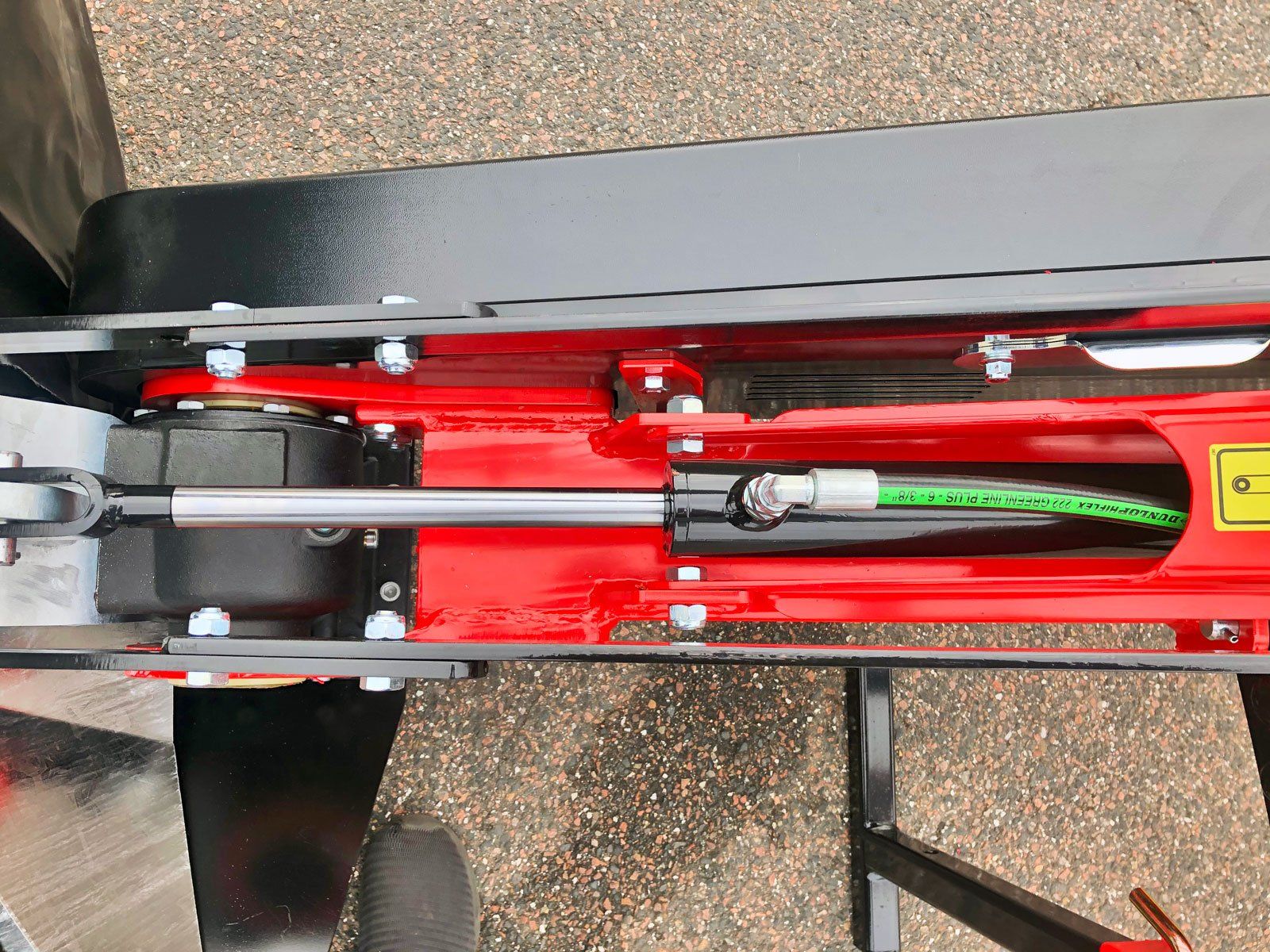

Hydraulic cylinder

The single-acting hydraulic cylinder ensures quick changeover for transport. The weight of the cutter bar brings the machine back into the working position.
Button

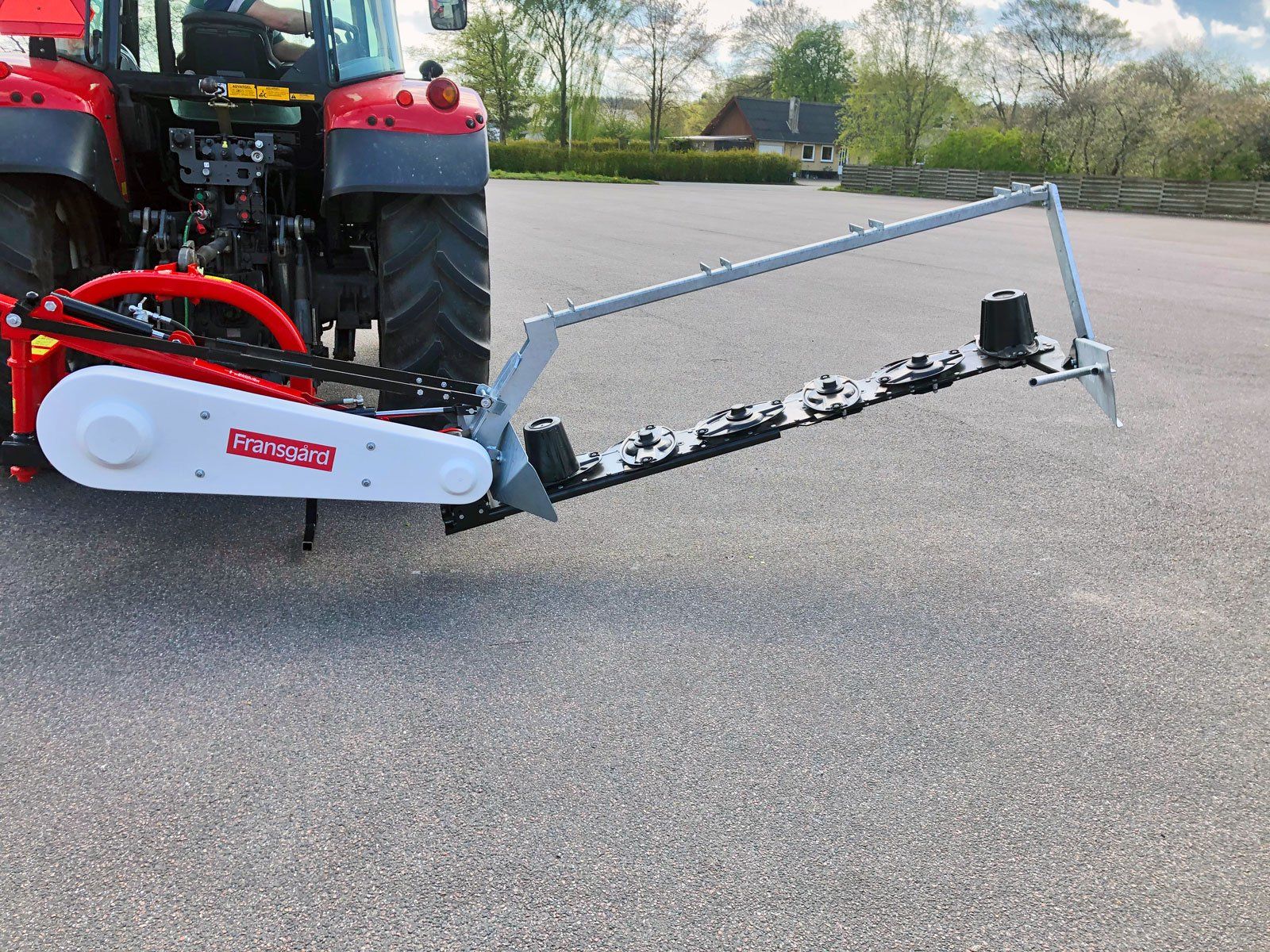

Hydraulic parallel lift

The disc mower can be fitted with hydraulic parallel lifting, so you can quickly lift the machine up and down while working in the field, saving time. (optional extra item no. 7134)
Button

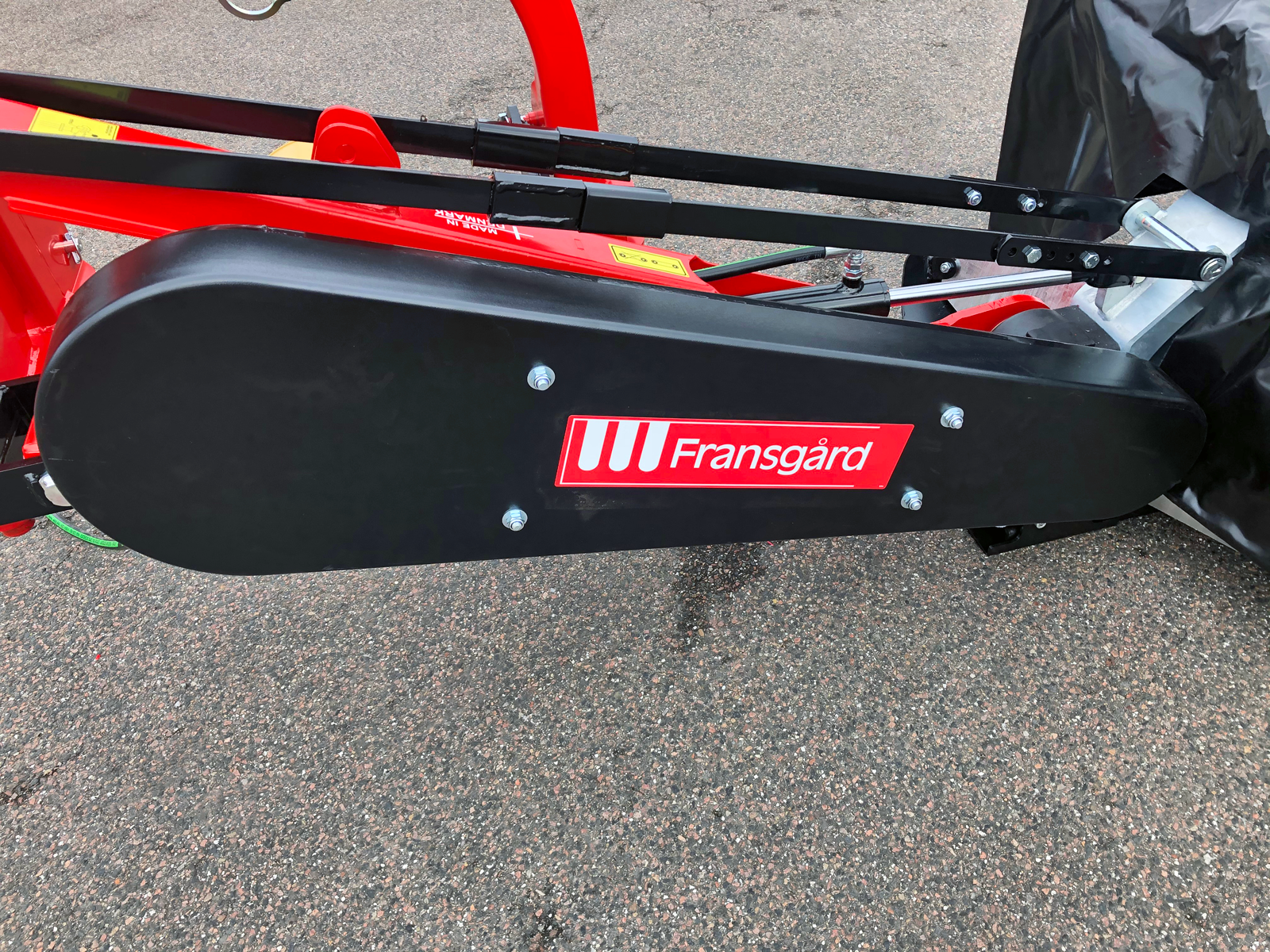

V-belt guard

The impact-resistant plastic v-belt guard protects the belts from sunlight and unwanted foreign bodies.
Button

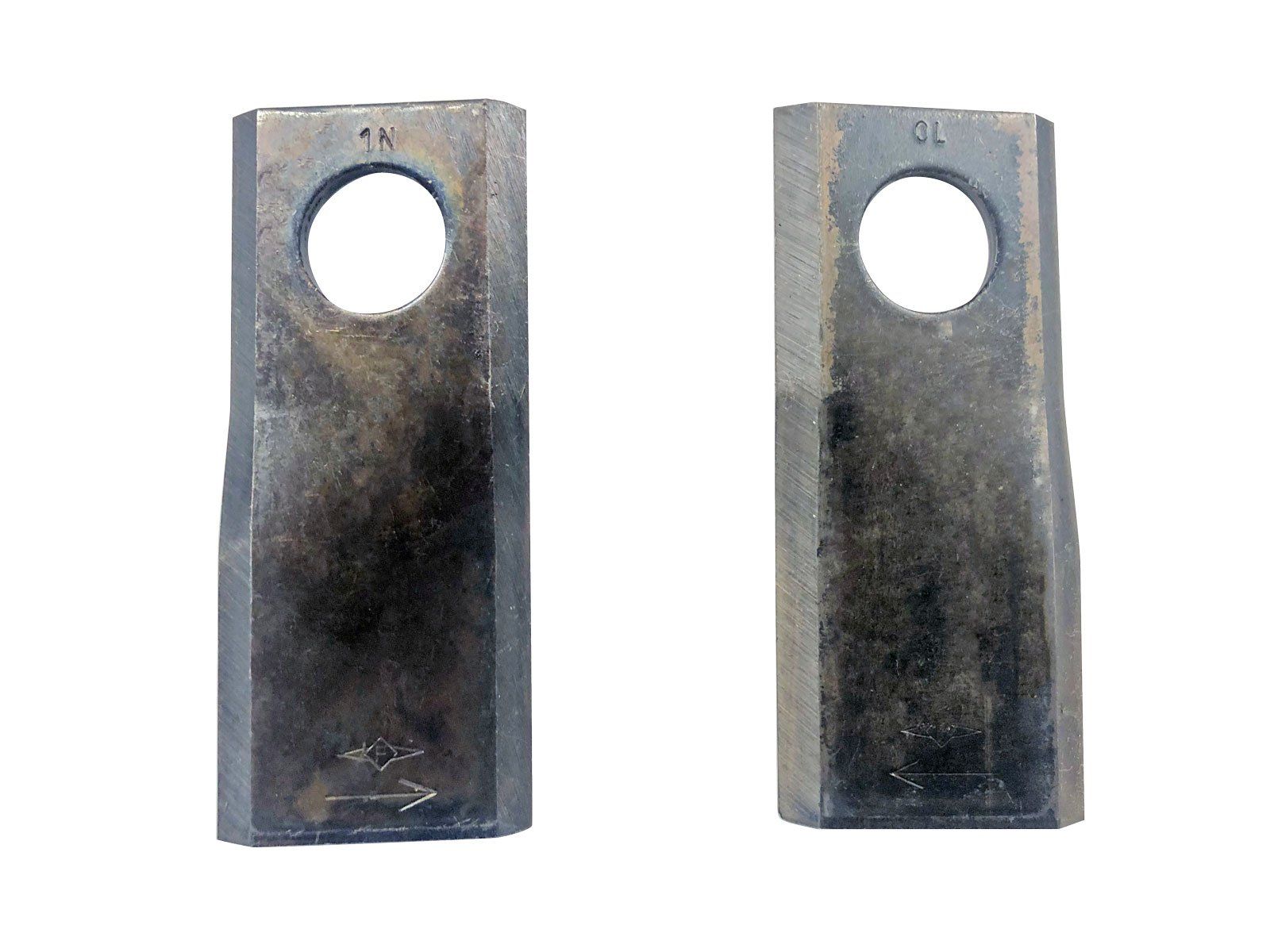

Blade, right/left

The mower is fitted as standard with right/left turning blades, which help to lift the material and give a very fine cut at a height of 7 cm.
Button

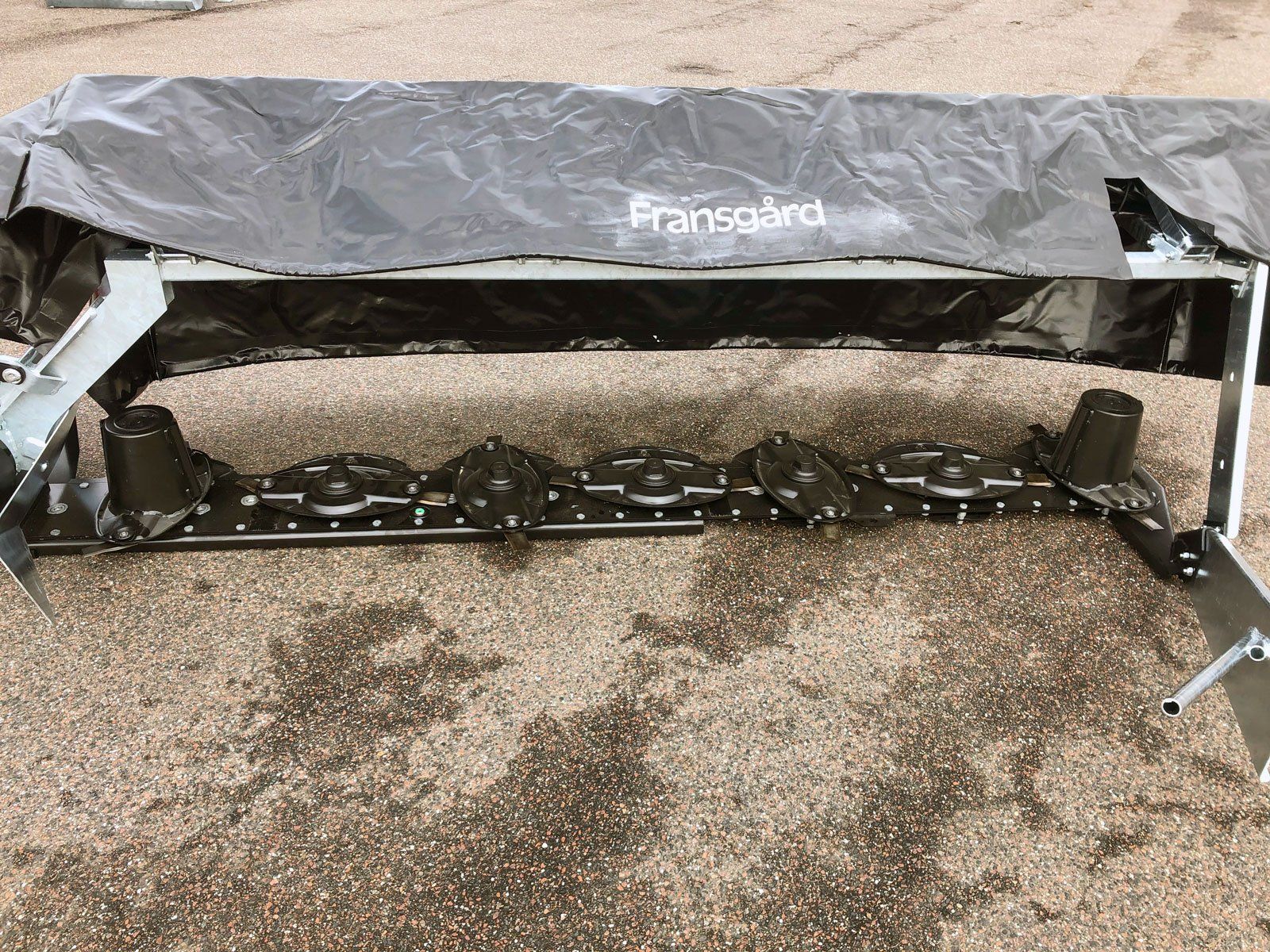

Cutter bar

The very solid cutter bar from Italian Comer runs in a sealed oil bath with the option to service the individual discs separately. The DM-3250 has 8 discs and extra reinforcement under the cutter bar.
Button

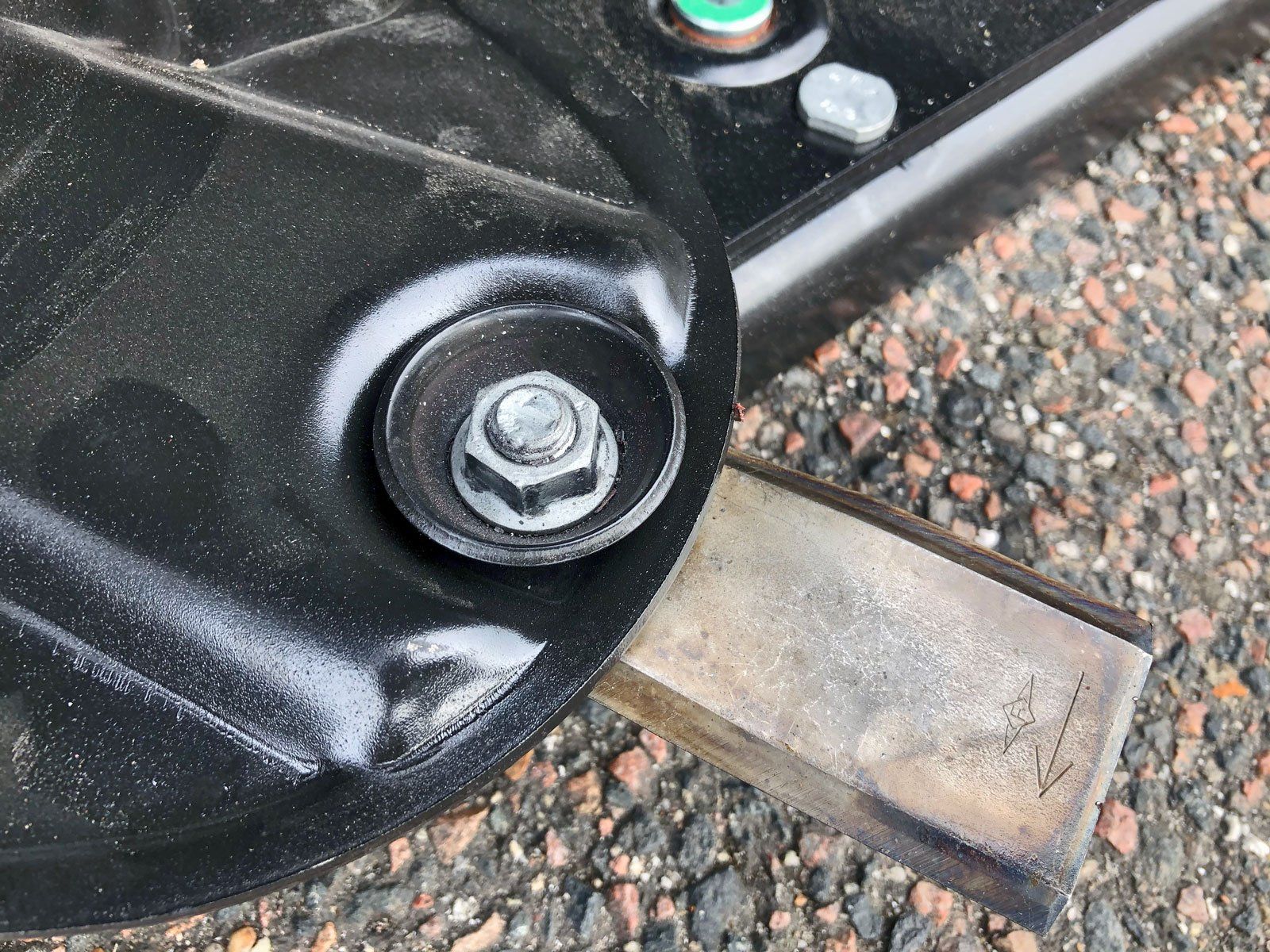

Blade mounted

Each blade is fitted with a special bolt so that it can rotate freely on the disc. The nut is well protected by a small bowl.
Button

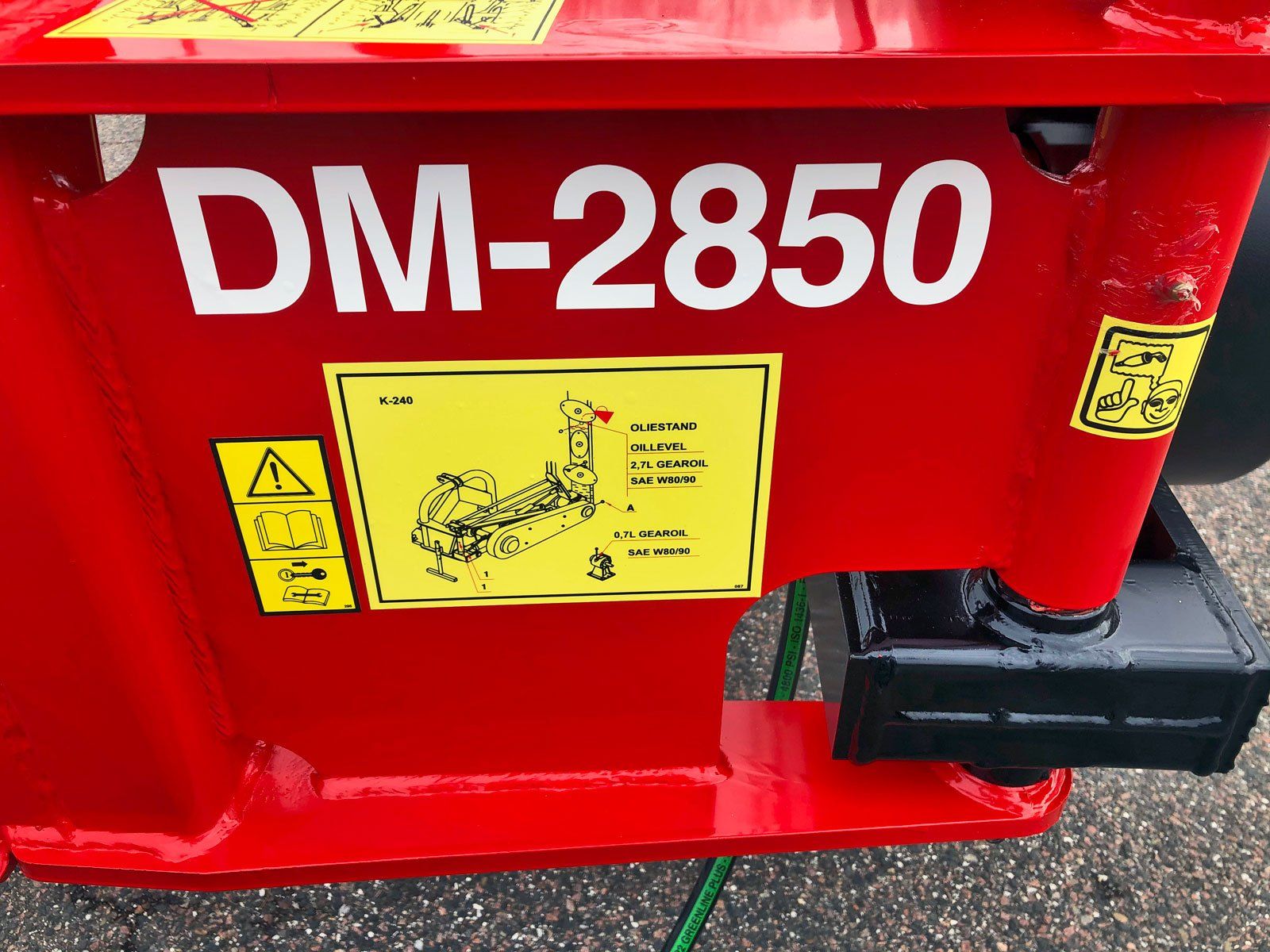

Labels

The machine is fitted with clear yellow instruction and safety labels.
Button

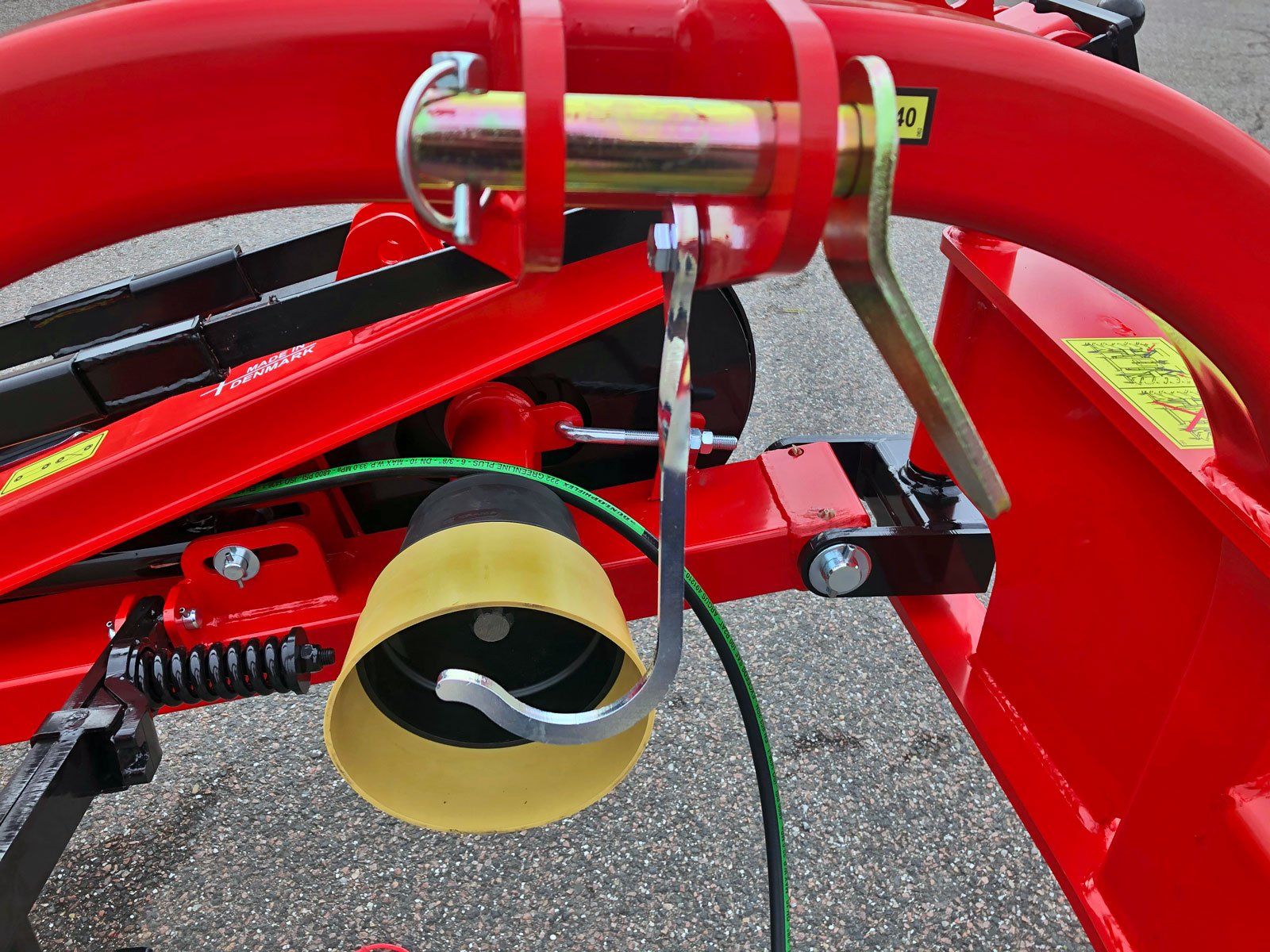

PTO hook

The 3-point suspension is fitted with a hook for the PTO axle when the machine is parked, which can be easily turned away while working with the machine.
Button

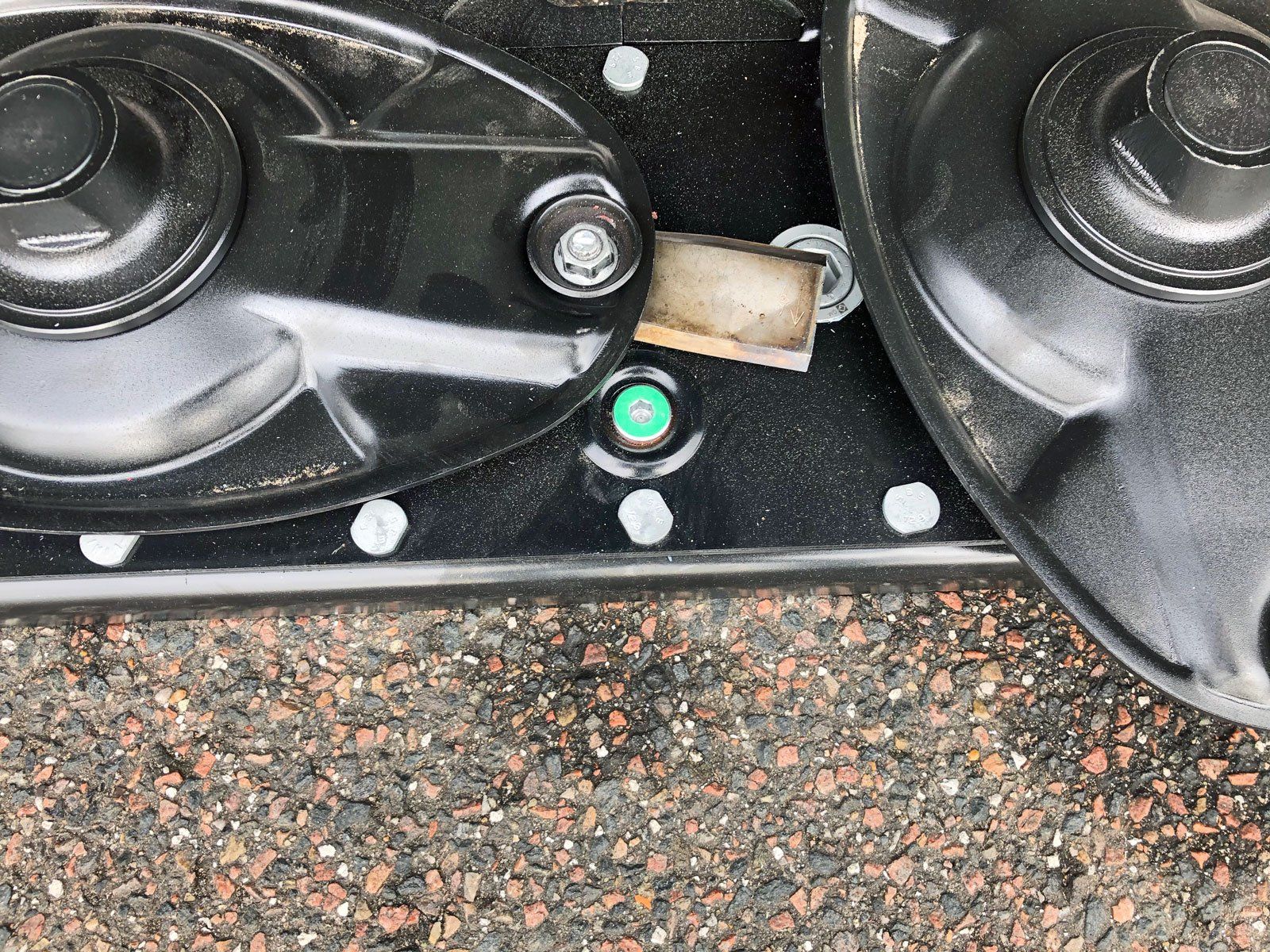

Filling plug

The plug for filling the cutter bar with oil is between the second and third discs. This is the same level the oil should be at when the cutter bar is vertical.
Button

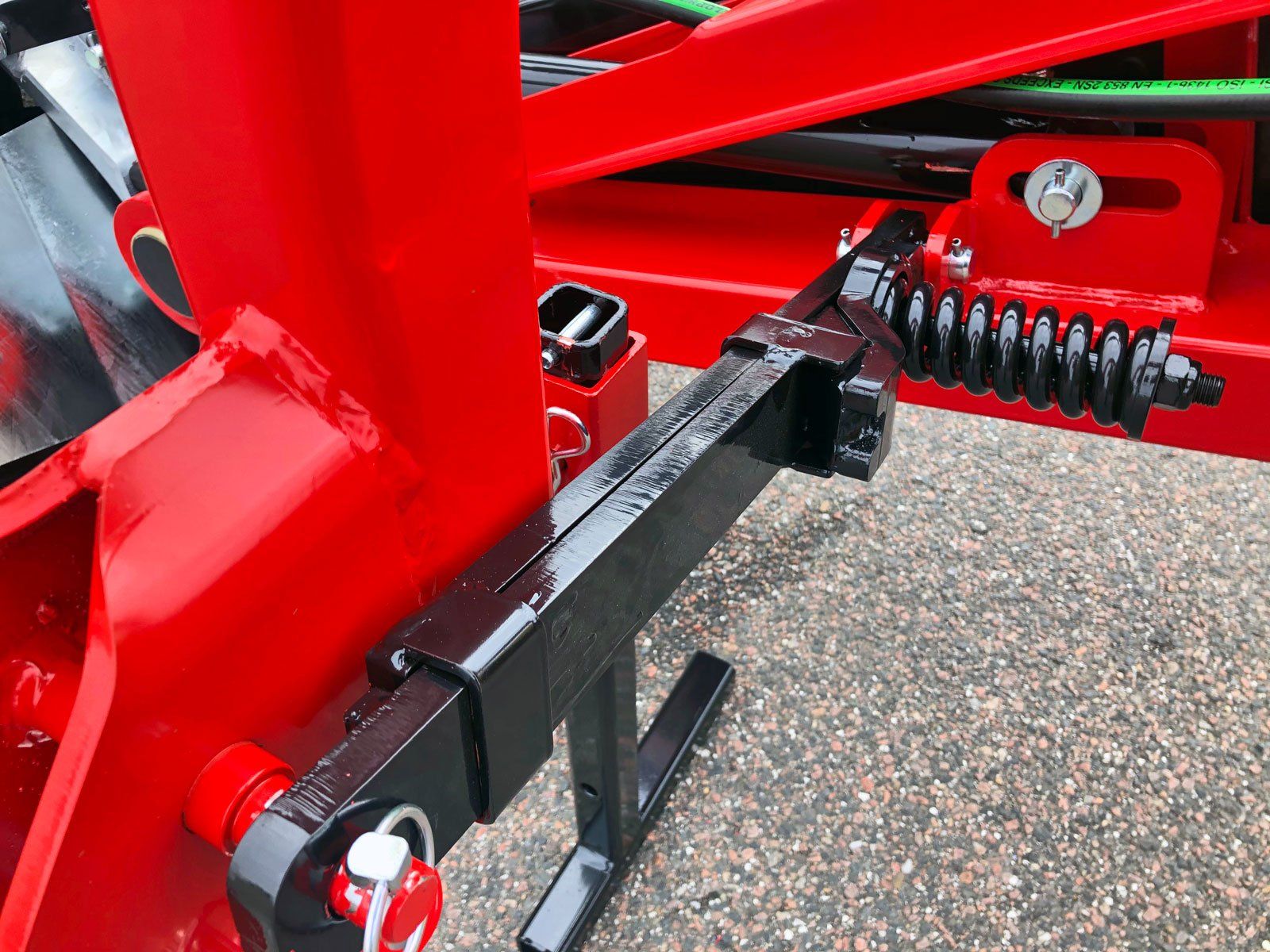

Collision protection

The mower is fitted as standard with a collision protection system that is automatically activated when the bar is hit and turns the machine in behind the tractor.
Button

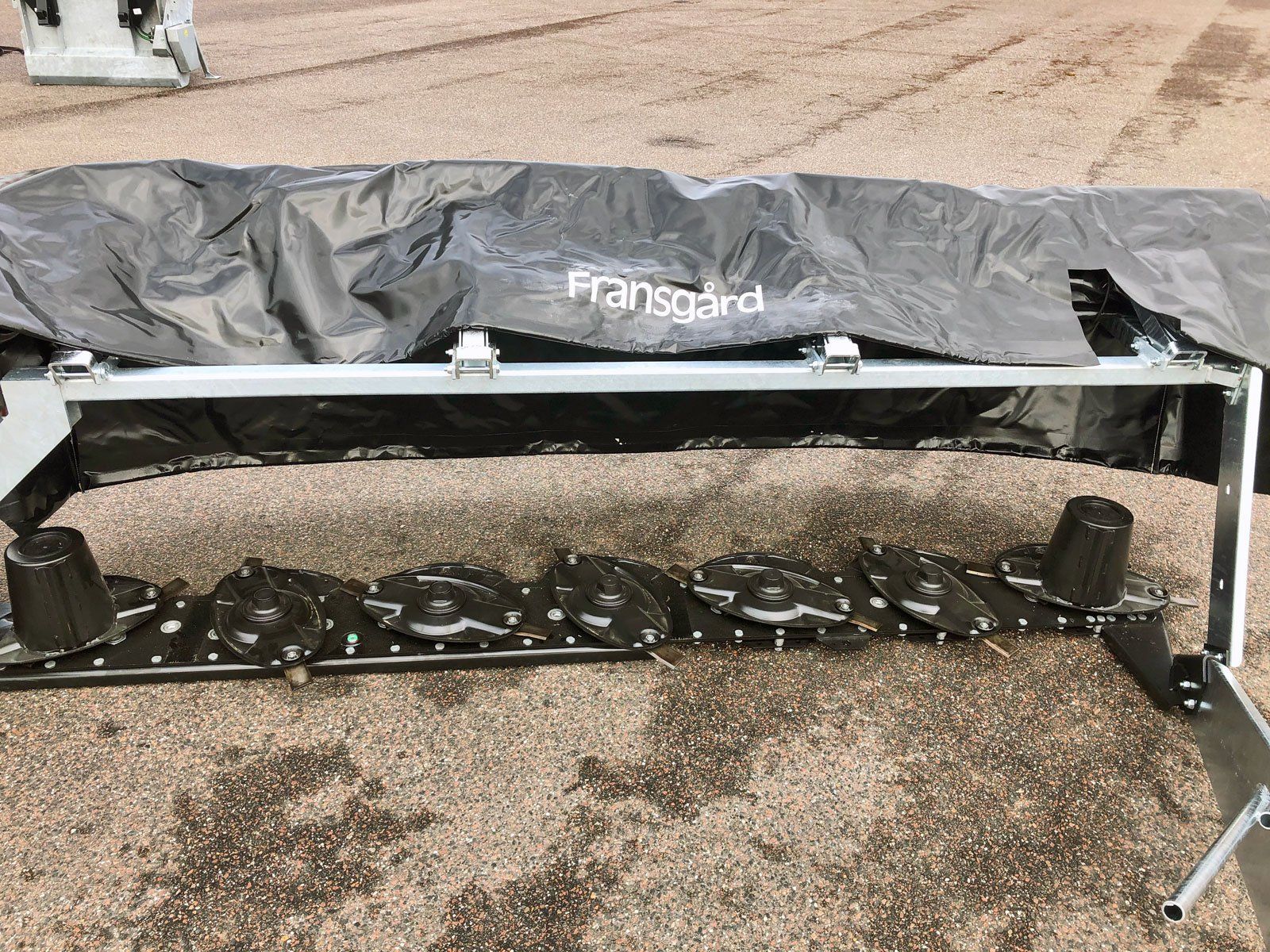

Frame under the cover

The steel frame under the cover is hot-dip galvanised as standard, which ensures optimum protection for the machine against the grass sap and significantly extends its service life.
Button

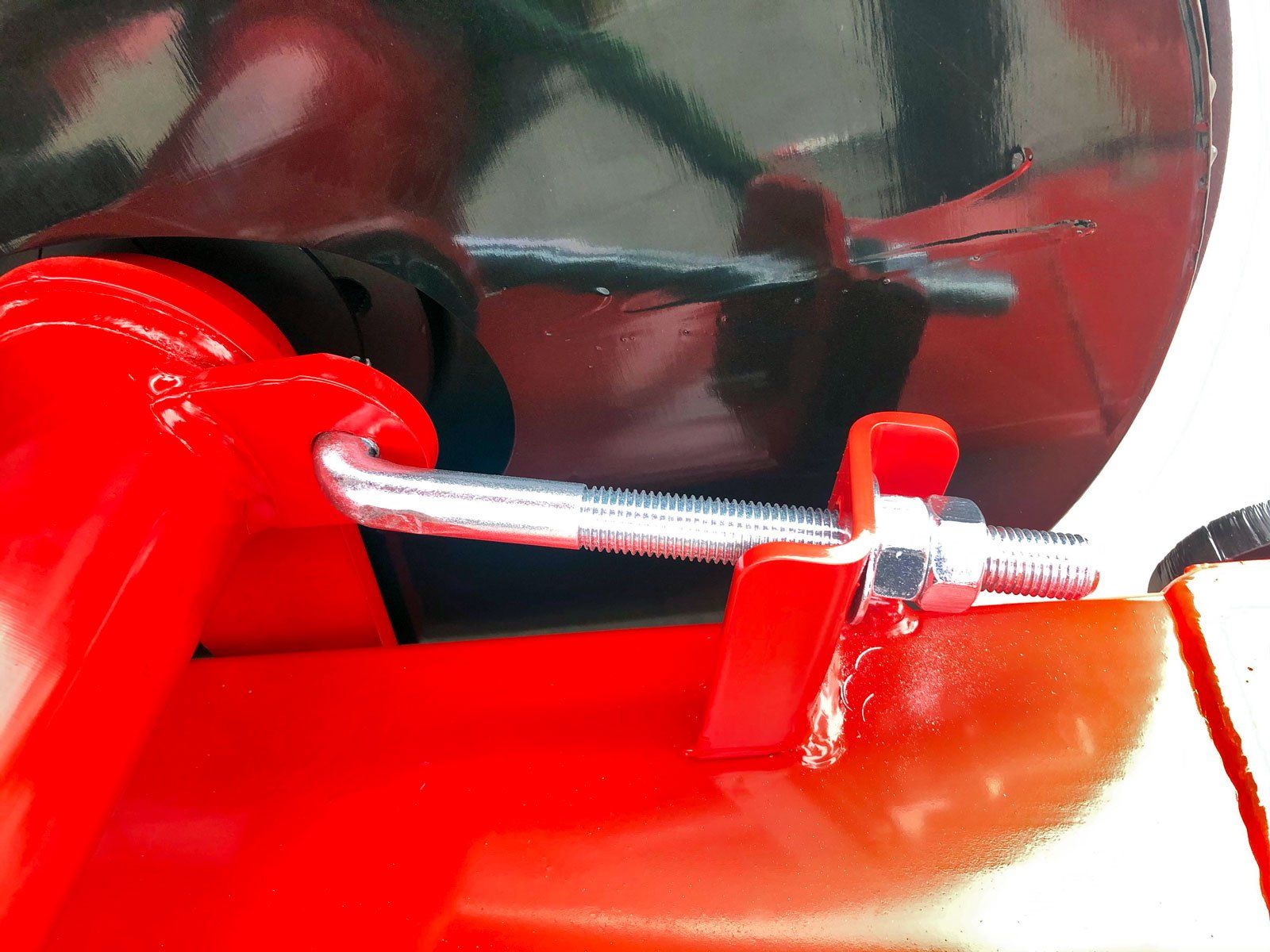

Belt tensioner

The galvanised belt tensioner is located on the outside of the v-belt guard, making it quick and easy to operate.
Button

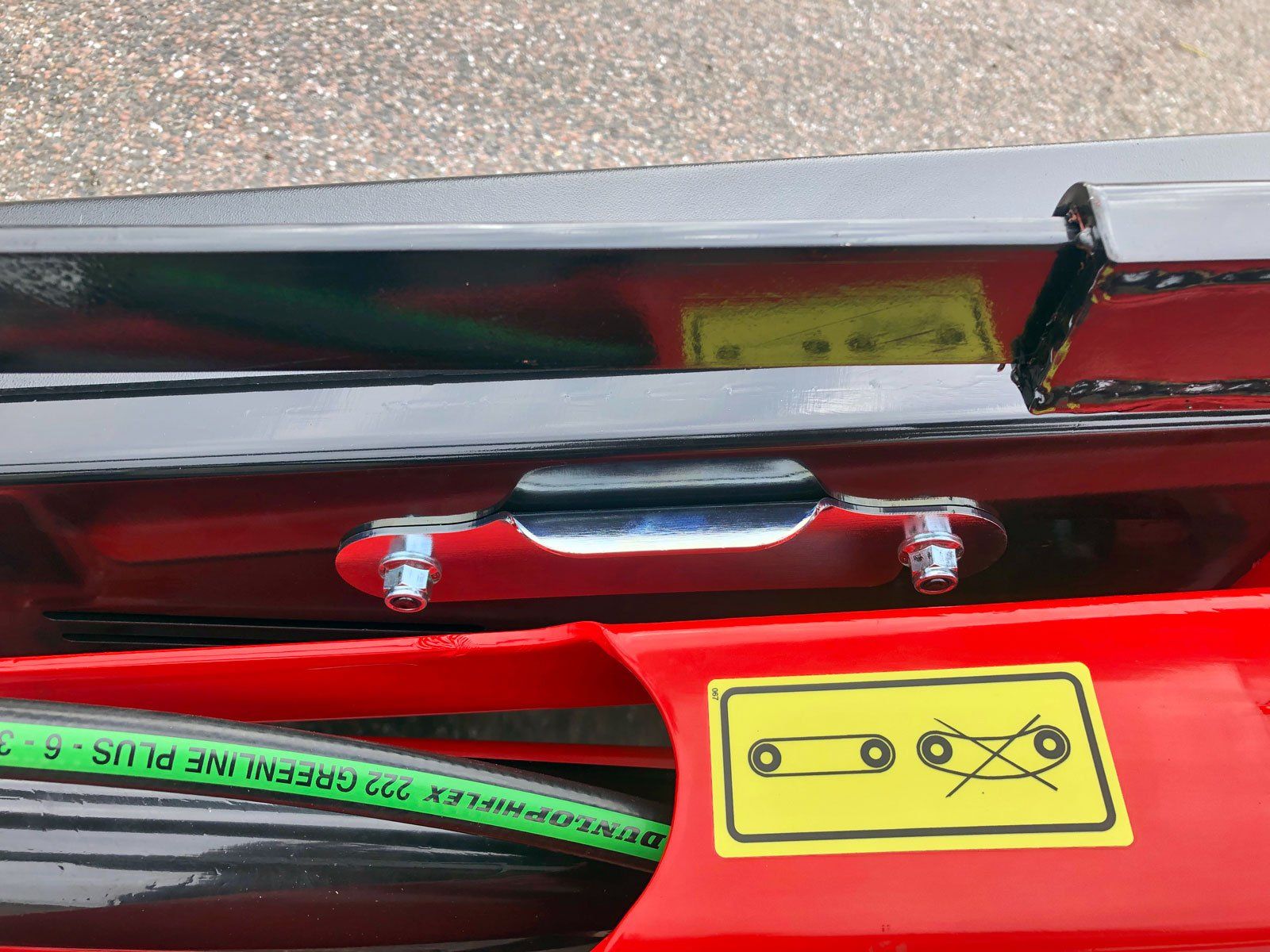

Service hole

The v-belt guard is fitted with a service hole, where the hatch can be easily opened to access the belts.
Button

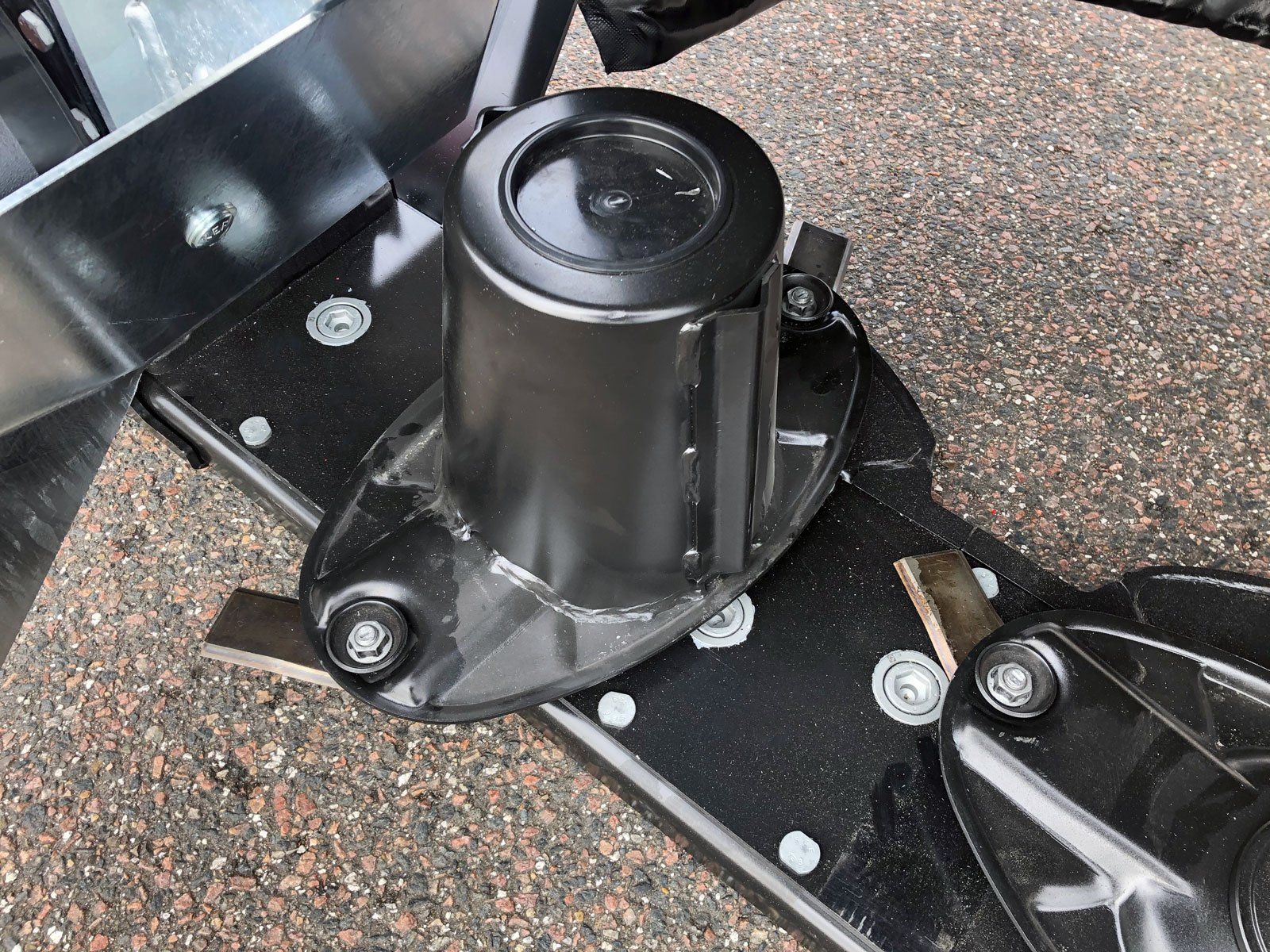

Disc with a cap

The cutter bar has 2 discs with a cap as standard, which ensures that the material comes in over the bar and folds the swath slightly, without affecting the flow over the cutter bar.
Button

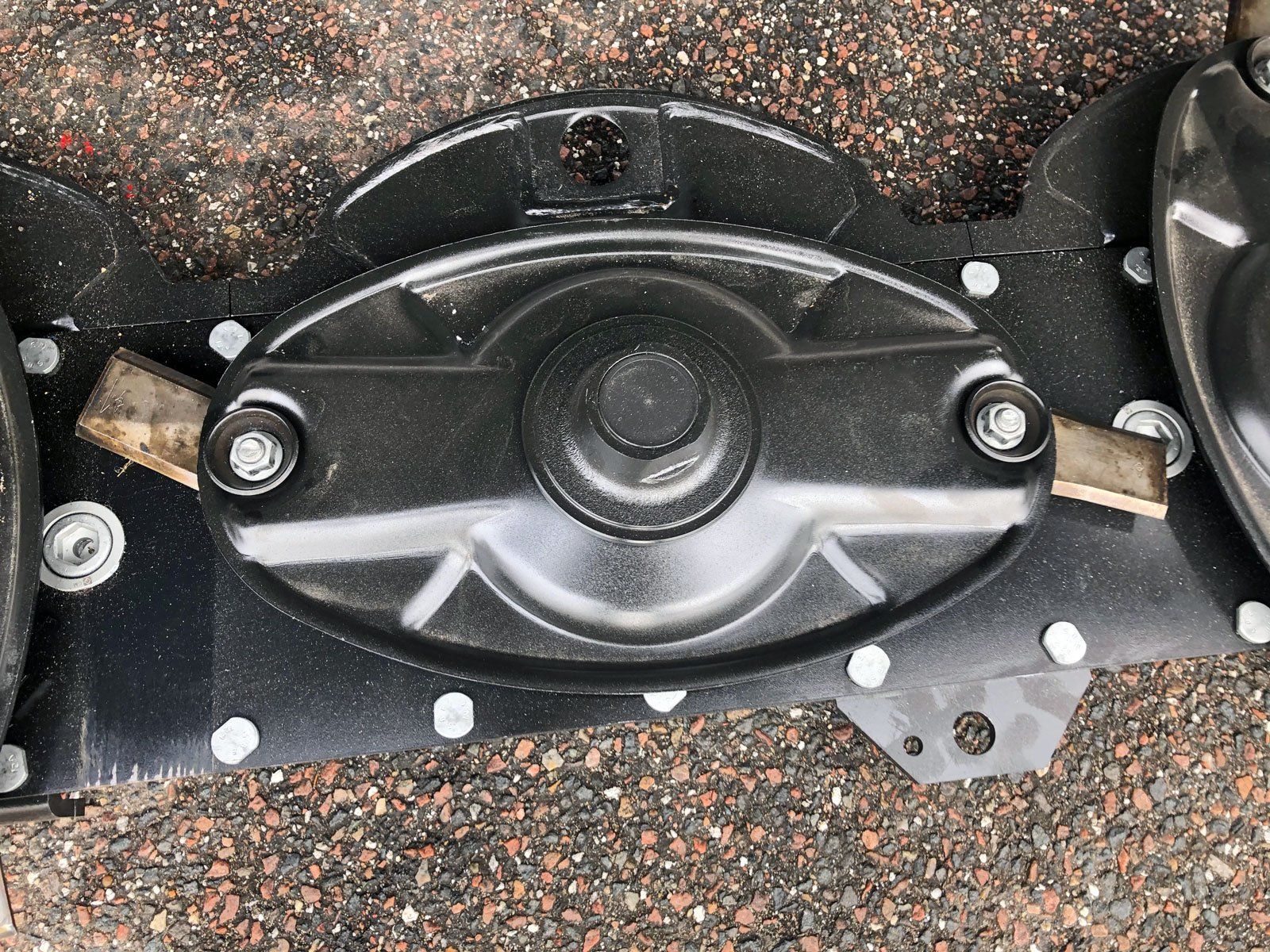

Disc

All the discs are made of moulded steel, which provides incredible strength, while the oval shape ensures a nice and even cut of the crop.
Button

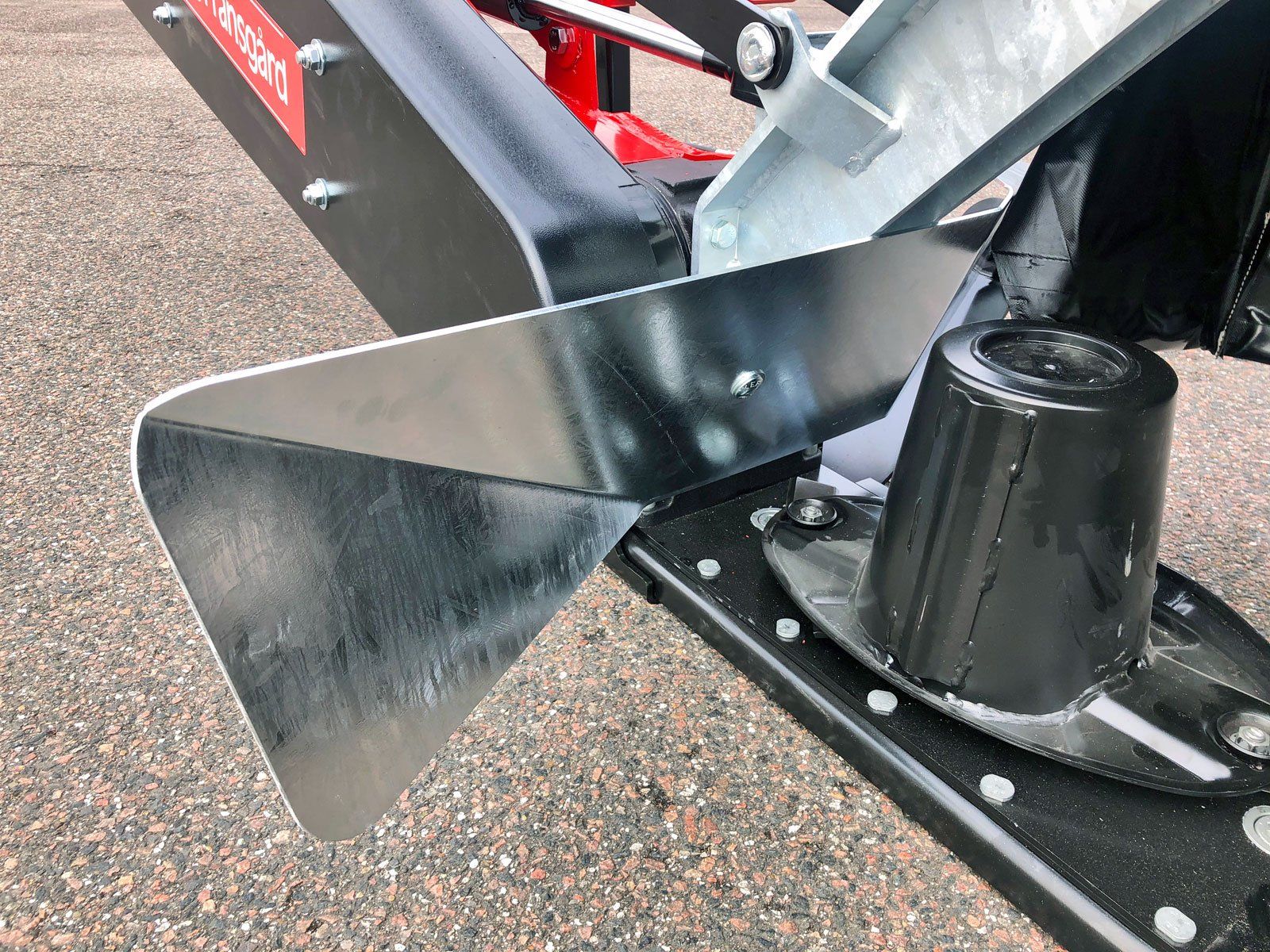

Swath collector, inside

The hot-dip galvanised swath guard ensures that the material does not get in behind the tractor.
Button

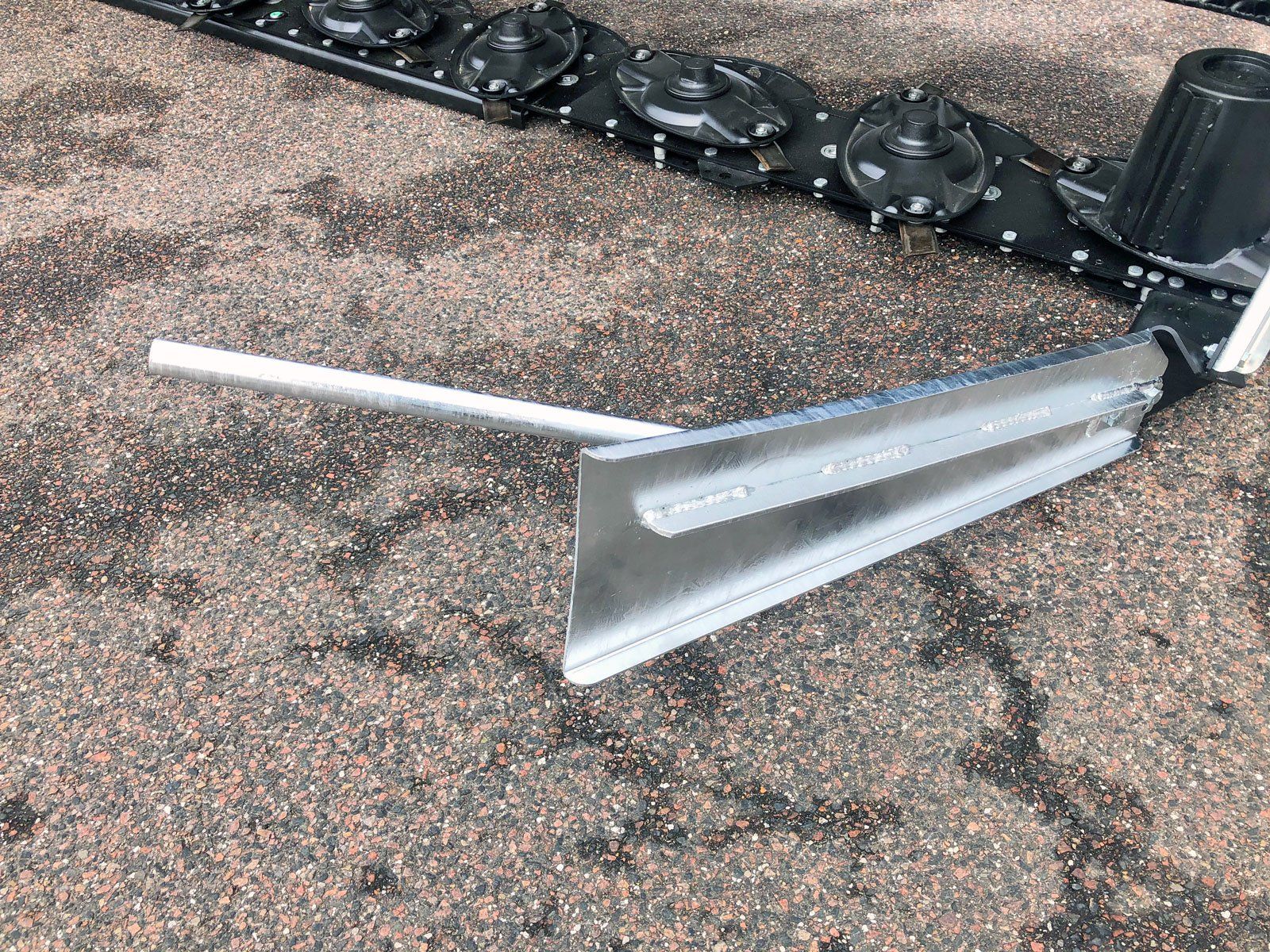

Swath collector

The right swath collector is hot-dip galvanised and ensures that the cut material does not get into the uncut crop.
Button

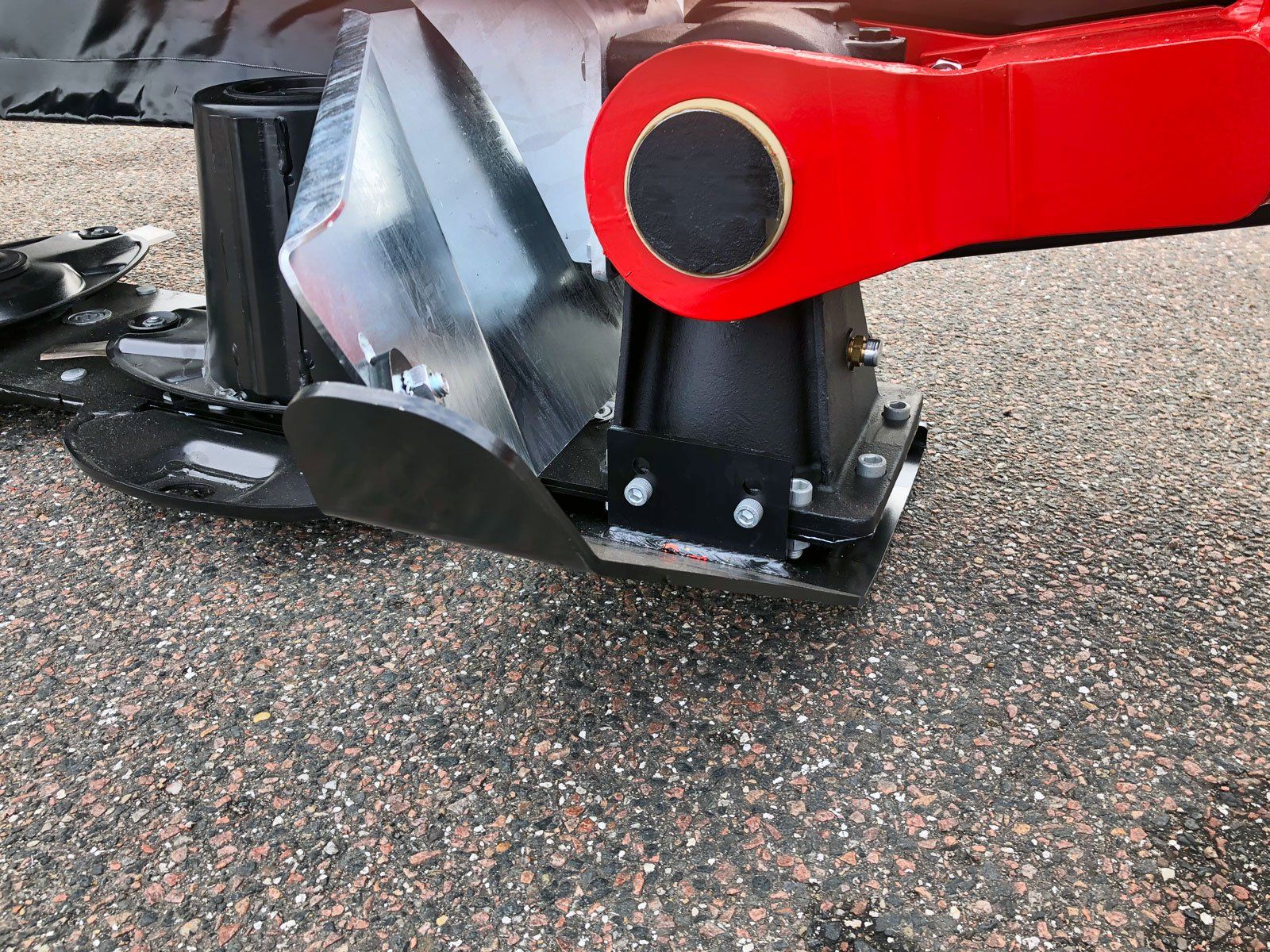

Wear shoe under the gearbox

The heavy-duty slide shoe mounted under the gearbox protects against stones and the like.
Button

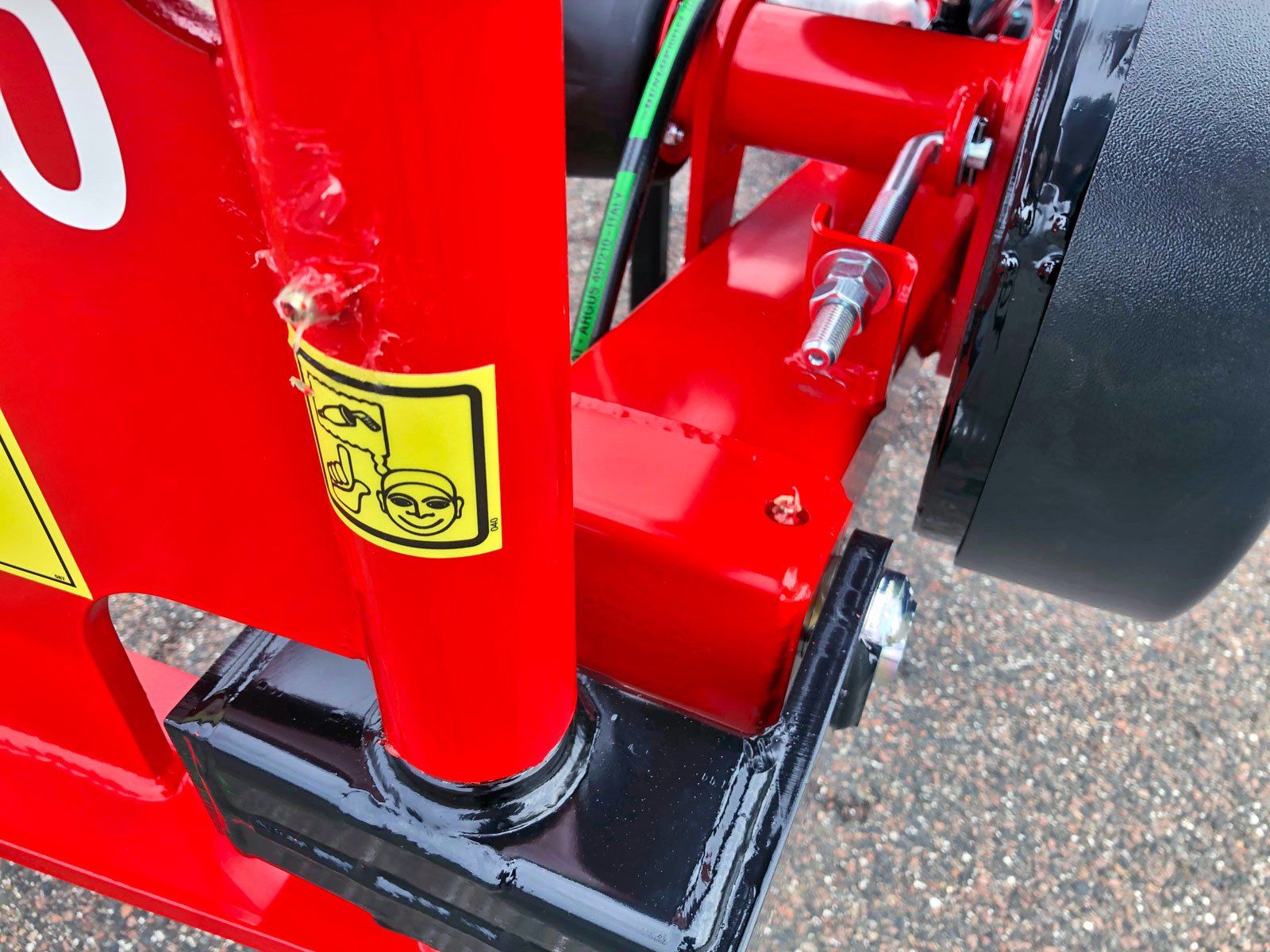

Lubrication nipple

The disc mower is fitted with many lubrication points, which are clearly marked with yellow labels.
Button

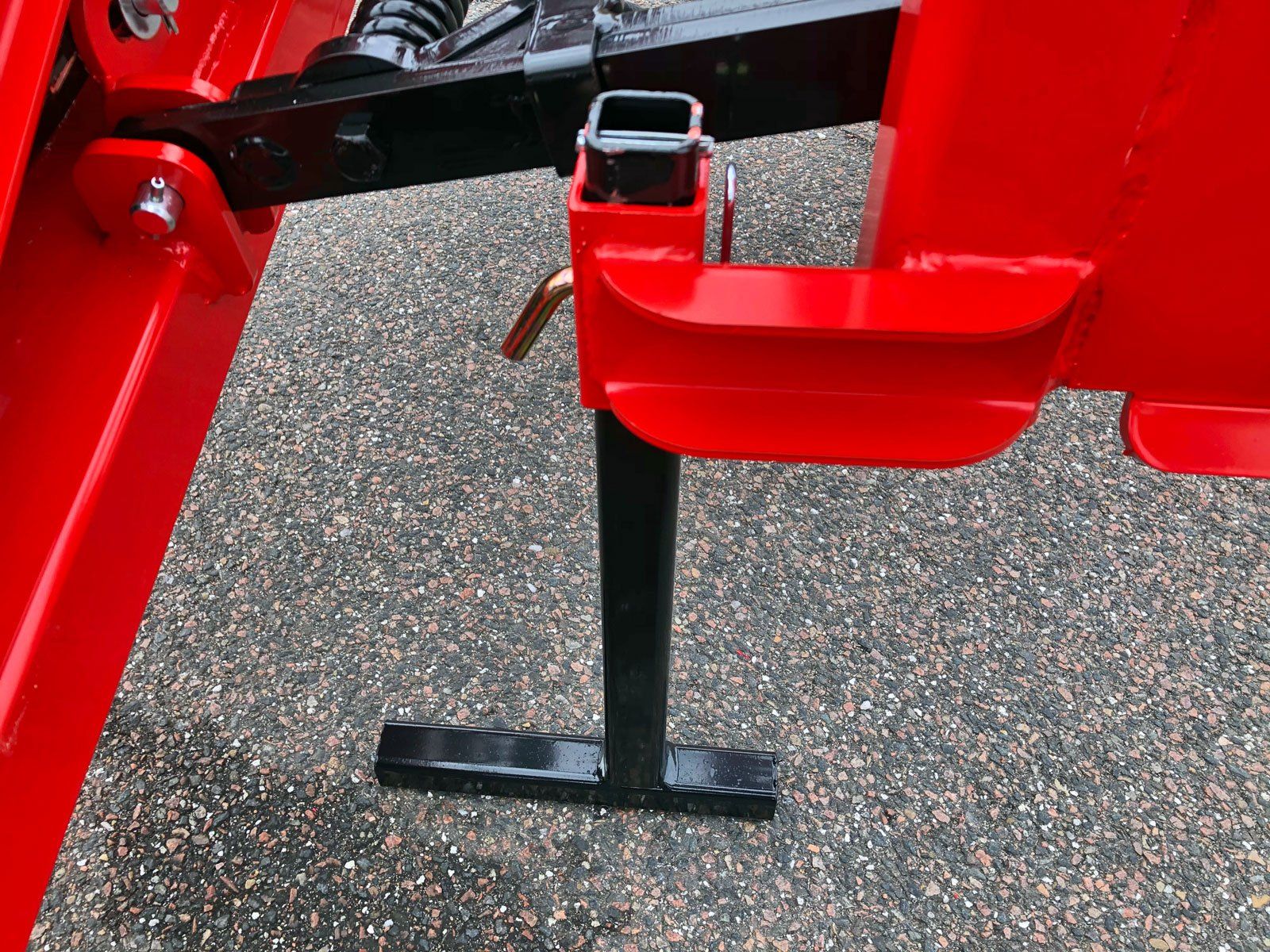

Support legs

The support leg ensures stable parking of the machine. The support leg is pushed up while working with the machine so that it is always accessible.
Button

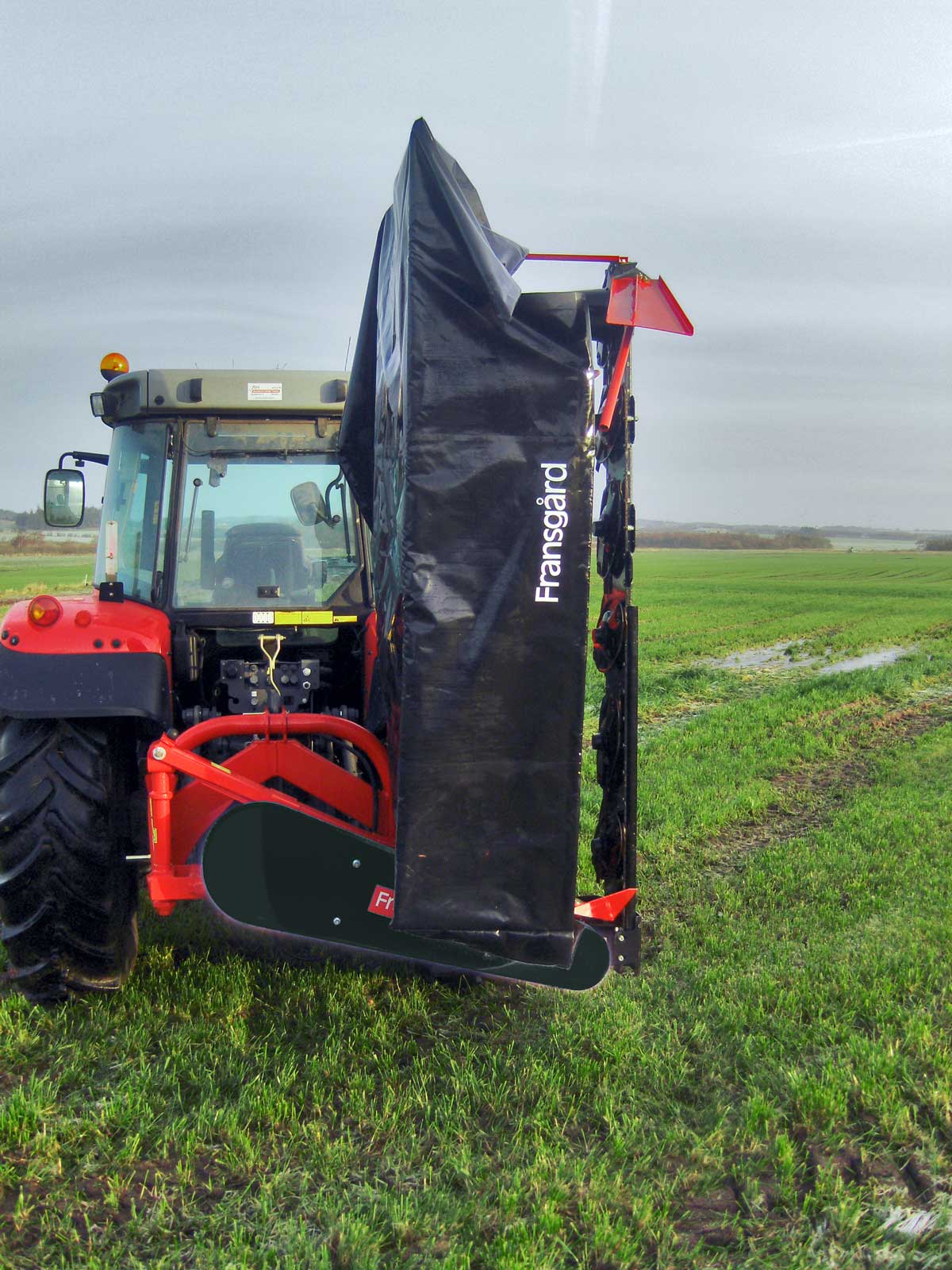

Transport

The disc mower is hydraulically set in the transport position by tilting the cutter bar up to vertical position. Transport chain included.
Button
Transport chain

The transport chain ensures that the cutter bar does not fall down during transport.
Button

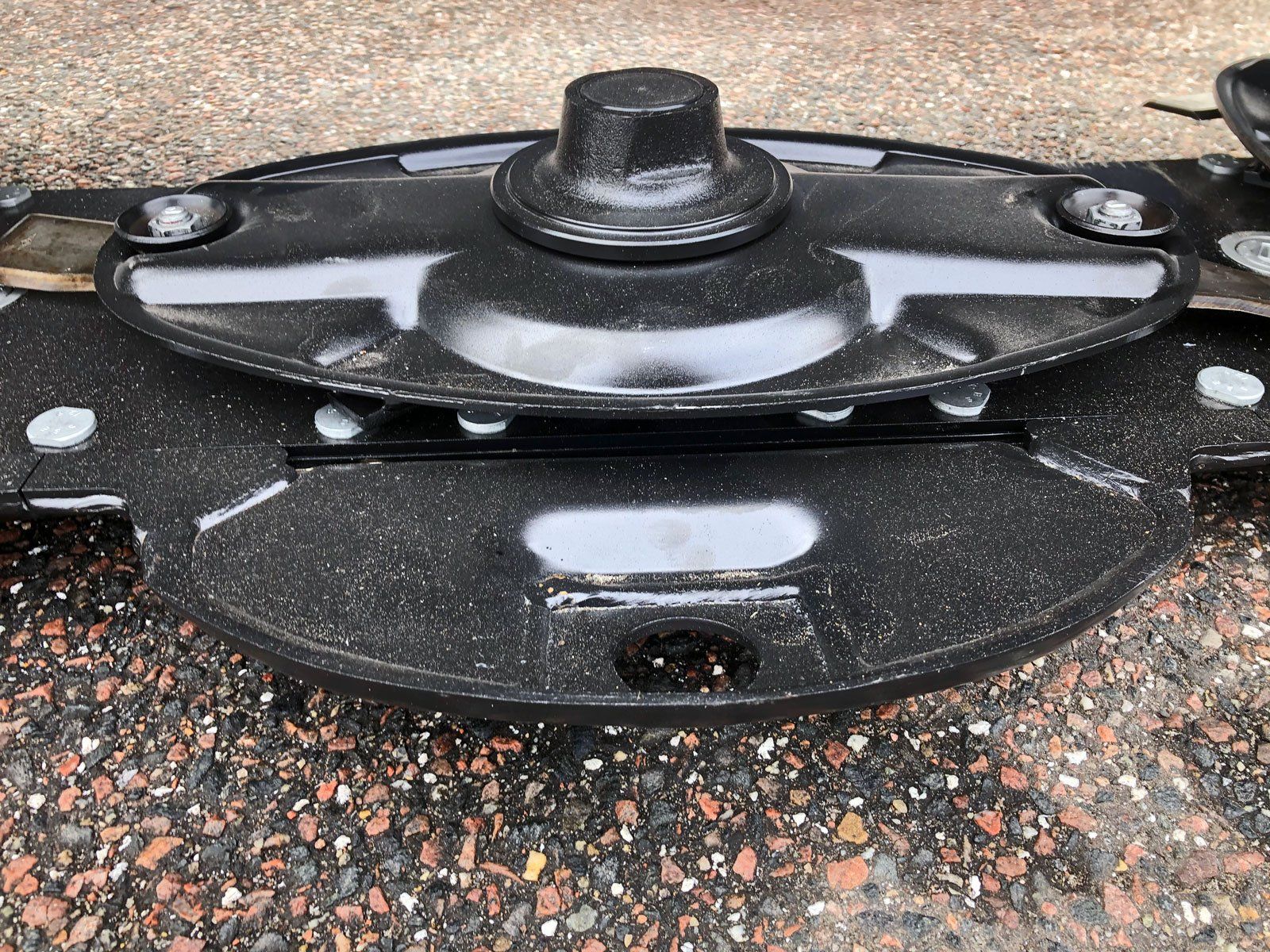

Wear shoe

There is a replaceable wear shoe under each disc, which protects against stones and other foreign objects. The wear shoe has a hole, so the blade can be replaced from this side too.
Button

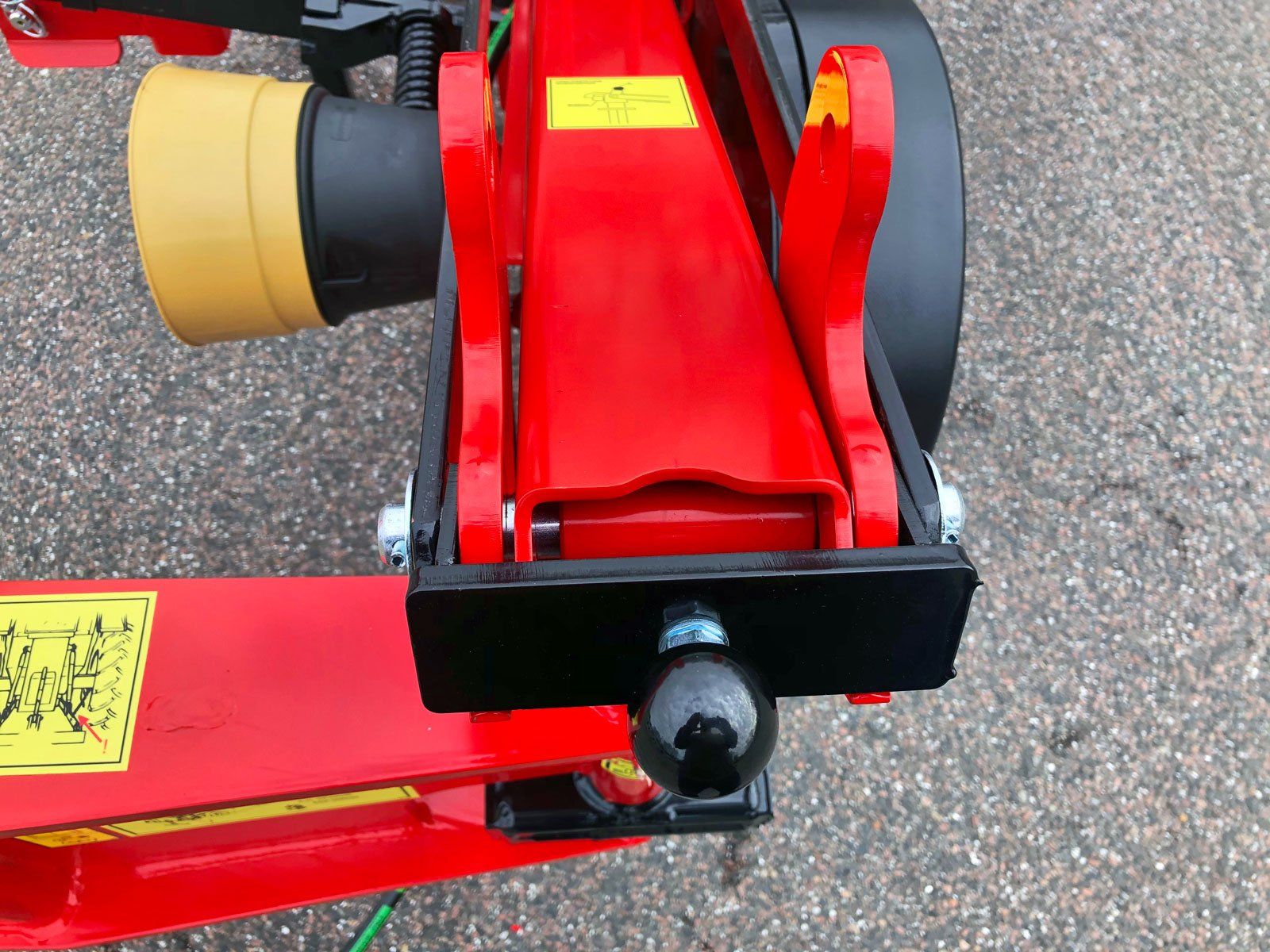

Transport lock

It is useful to lock the load spring on the main frame during transport via the small handle.
Button

Optional extras

Item No. 7130

Wear shoes to +4 cm stump height, so it will be a total of 11 cm. The wear shoes are mounted directly under the cutter bar with 2 bolts. Mounting:
2 pieces on DM-2050 + DM-2450
3 pieces on DM-2850 + DM-3250
Button
Item No. 7132

Wear shoes to +10 cm stump height, so it will be a total of 17 cm. The wear shoes are mounted directly under the cutter bar with 2 bolts. Mounting:
2 pieces on DM-2050 + DM-2450
3 pieces on DM-2850 + DM-3250
Button
Item No. 7134

Hydraulic cylinder for parallel lifting of the machine during work. Designed for the machine to be quickly and easily lifted up and down when turning the machine around.
