Wood Chipper PC-2700-PEH
Presentation
This tractor-mounted pellet wood Chipper can handle logs up to 27 cm in diameter. The two feed rollers are powered hydraulically from the tractor. The PC-2700-PEH is designed for manual feeding via the horizontal, heavy-duty infeed hopper.
A safety bar is positioned along the outer edge of the infeed hopper. When activated by pressure, it stops the feed rollers. For additional safety, two emergency stop buttons are located on each side of the hopper, allowing the machine to be stopped immediately in case of danger.
The machine’s heavy-duty main frame ensures stable and reliable chipping. Each feed roller is driven by its own hydraulic motor, and the feed speed can be continuously adjusted as required. Together with the rpm monitoring system, this ensures optimal adaptation to the current task.
Premium chip quality
With the pellet Wood Chipper, you can produce the Danish registered trademark PC-FLIS®, completely free from splinters and clumps, making it ideal for heating purposes.
By correctly adjusting the cutting height of the knives and selecting the appropriate screen hole size, PC-FLIS® can be adapted for numerous applications such as animal bedding, uniform landscaping mulch, replacement for wood pellets, and other tasks where chip quality must be entirely free from splinters and clumps.
Only chips produced on a PC PELLET WOOD CHIPPER may be called PC-FLIS®.
Technical Data
| Technical data: | PC-2700-PEH |
|---|---|
| Type: | Pellet woodchipper |
| Max. log diameter: | Ø 27 cm |
| PTO speed: | 540 / 1,000 rpm |
| Power requirement at 540 rpm: | Max. 60 kW / 80 hp |
| Power requirement at 1,000 rpm: | Max. 112 kW / 150 hp |
| Main shaft spline: | 1 3/4” x Z6 |
| Weight: | 1,600 kg |
| Mounting: | 3-point linkage on tractor |
| Hydraulics: | From tractor |
| Number of feed rollers: | 2 |
| Feed roller torque: | Up to 1,096 Nm |
| Total rotor weight: | Approx. 380 kg |
| Capacity*: | 30 m³ per hour |
| Crane mounting option: | No |
| RPM monitoring system: | Yes, standard |
| * Capacity depends on knife setting, available horsepower, wood type, and rotor speed. |
Details
Optional Equipment

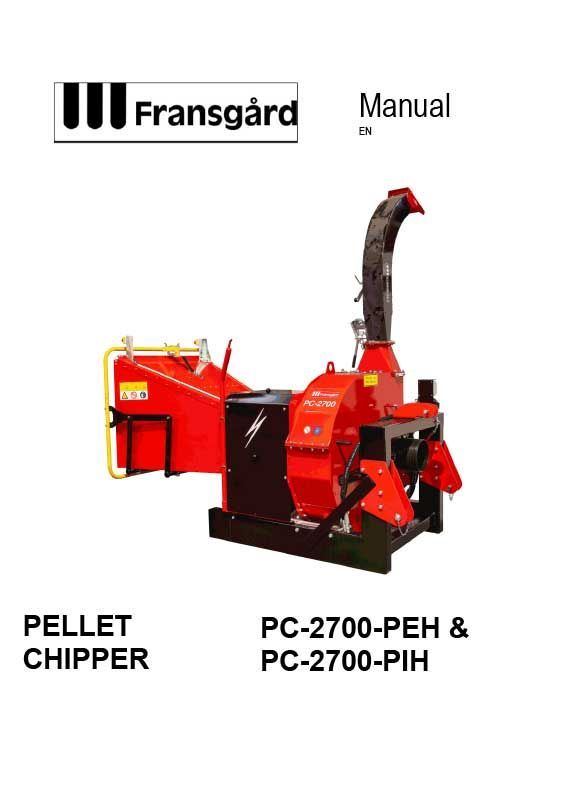

Download PDF-files
