Winch HW-3019

Presentation

The HW-3019 is a hydraulically driven winch that can be mounted and operated from many different machines that do not have a power take-off, such as a Unimog and Bobcat. The winch can be mounted both front and rear, which increases flexibility.

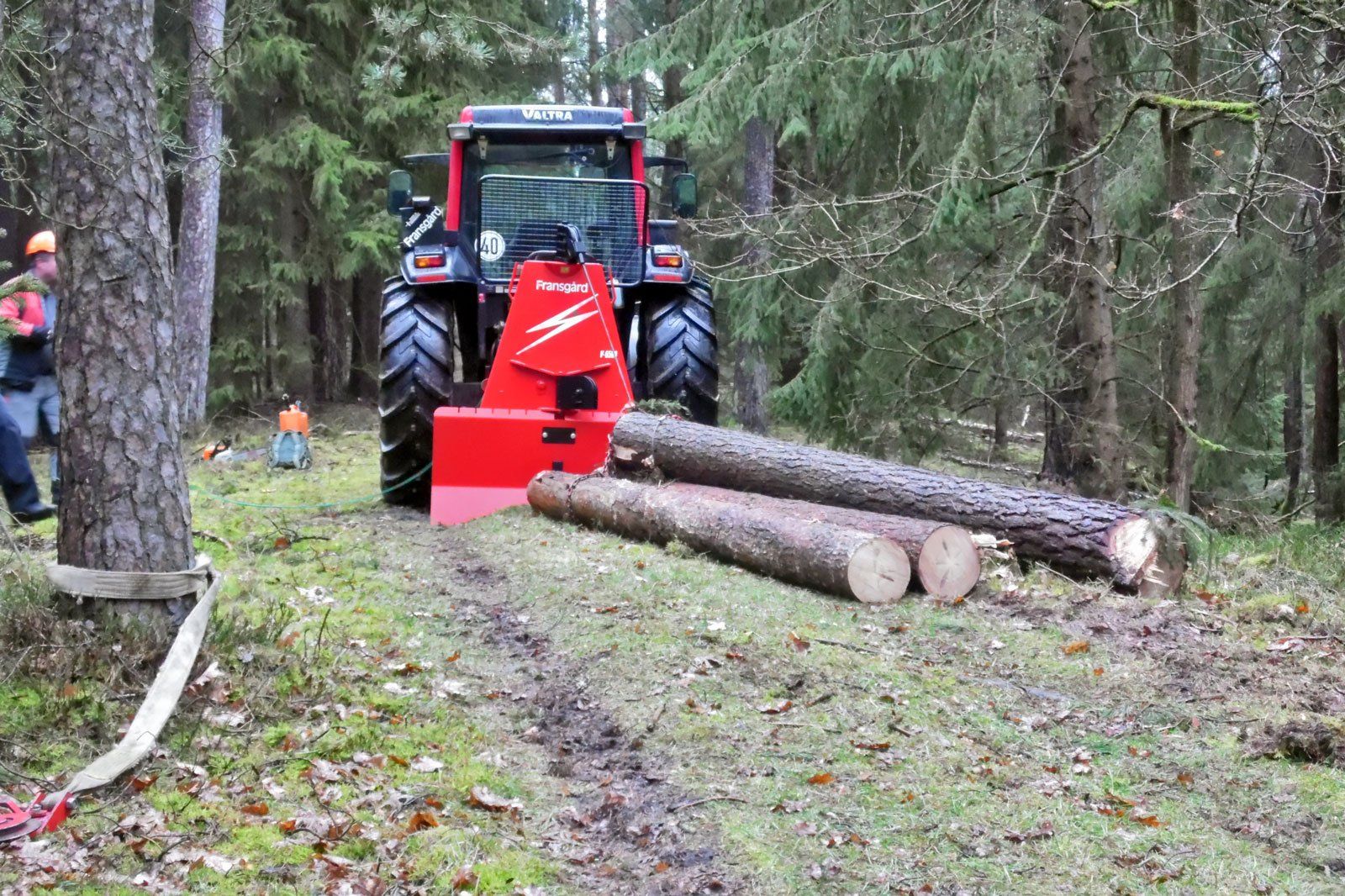

It is suitable for companies that regularly need to move trees quickly, for example, in the event of forest fall after a storm, to ensure road access, or simply for light forest maintenance.

Solid, flexible and strong model

The HW-3019 has a tractive force of 3 tonnes. It is fitted with both cast iron top and bottom rollers and double ball bearings. Belt brake is standard and the winch is operated via cable control or radio control.

The winch can be mounted with 3-point suspension or other types of suspension depending on the machine it is to be mounted on. It comes without hoses for the hydraulic motor, as these are supplied and individually adapted to the machine in question by the local workshop.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Technical data:	HW-3019
Tractive force	3 Tonnes
Wire capacity	8 mm x 40 m
Retraction speed (160 cc hydr. engine)	0.5 - 1.2 m/s
Weight	177 kg
Clutch	Friction
Brake	Band brake
Motive power	Hydraulic engine
Mounting	Front or rear mounting , 3-point or similar.
Working pressure Max.	170 bar
Capacity hydraulic pump	40-60 l/min

Details:

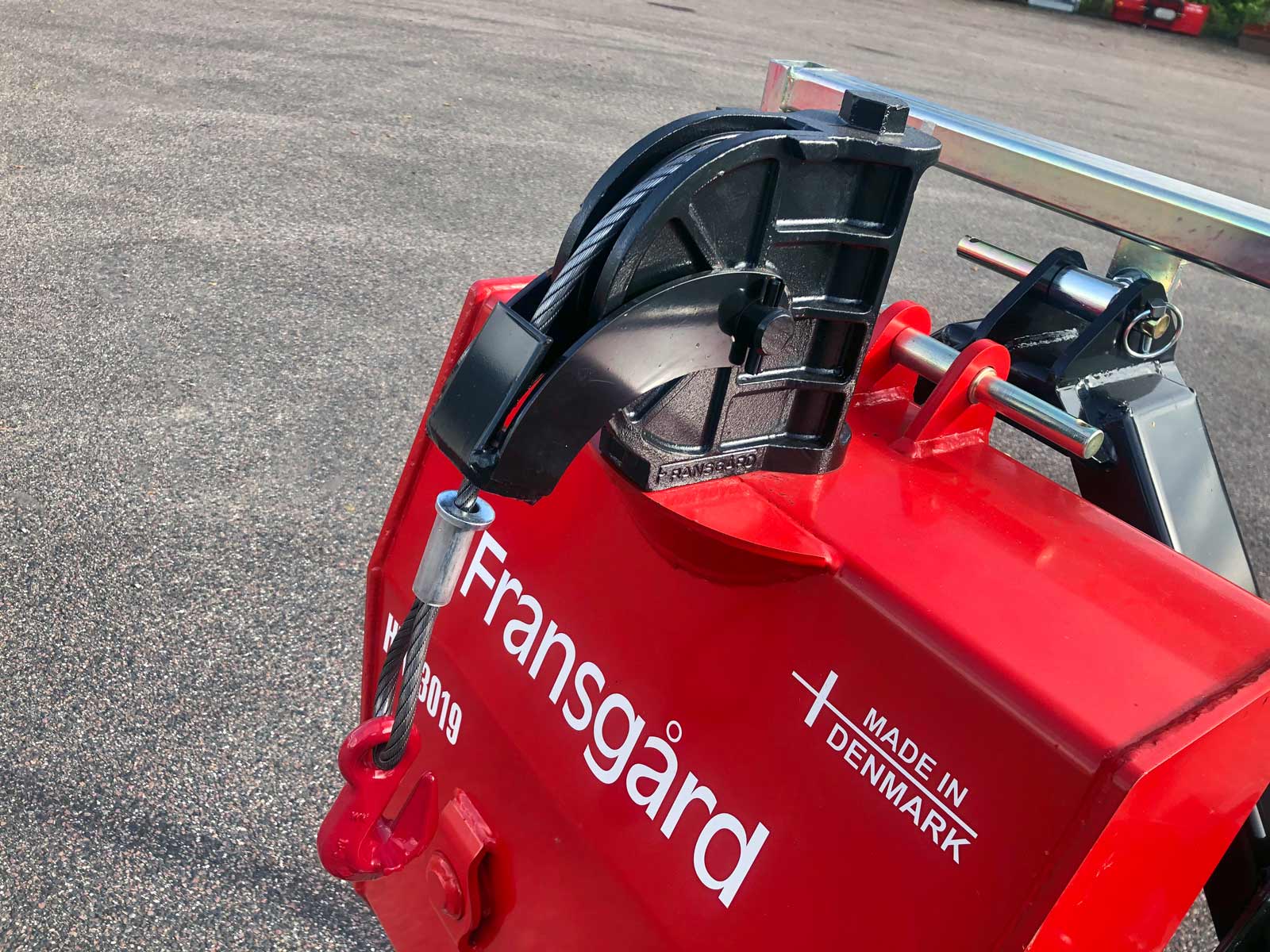

Support plate top roller

The moulded top roller box rests on a support plate, which ensures stable wire retraction, even under heavy loads. The support plate can be greased so that the top roller turns freely from side to side.
Button

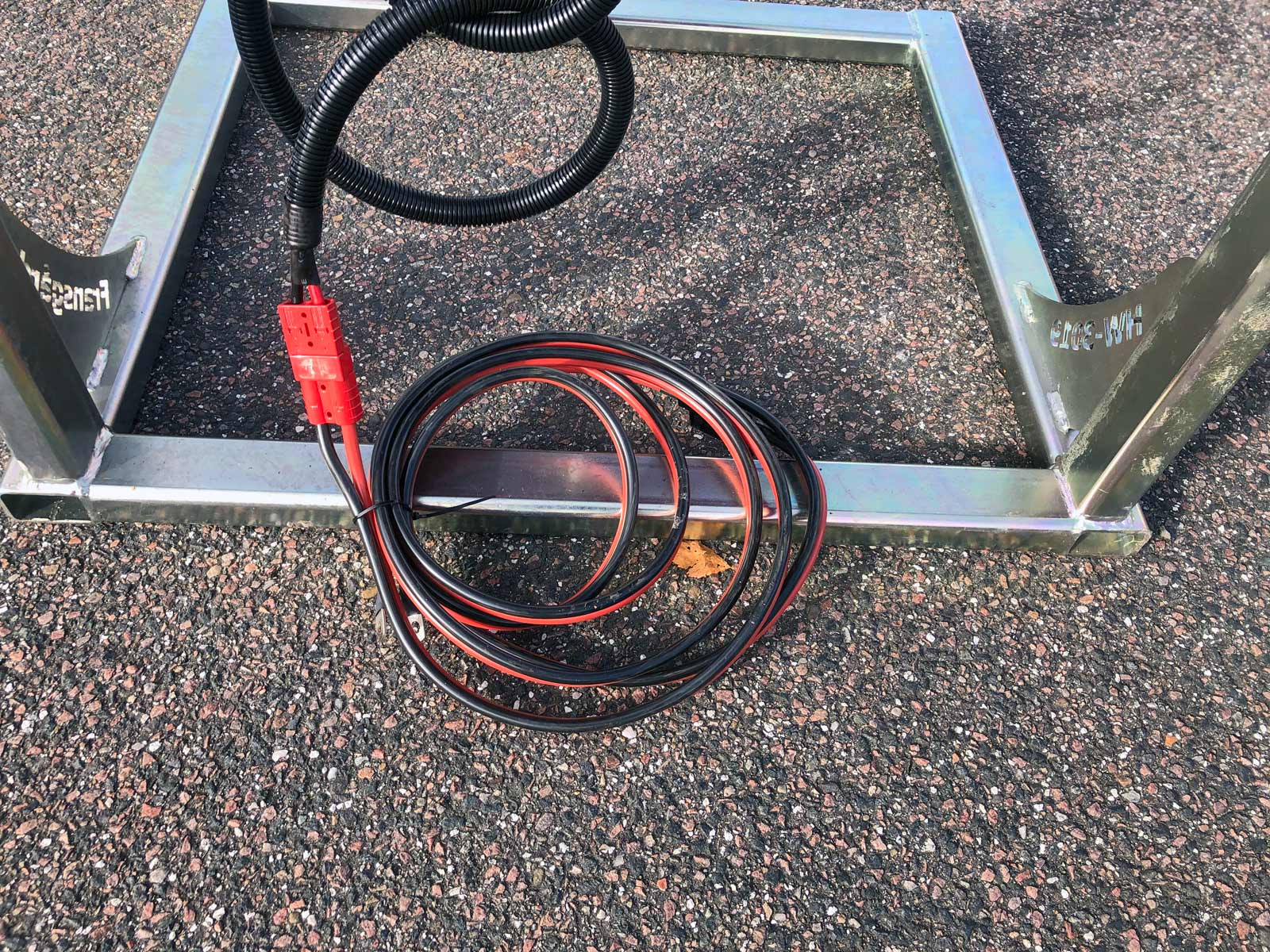

Battery cable

4 metre long battery cable with 80 Amp fuse. Mounted directly on the tractor battery.
Button
Drive chain

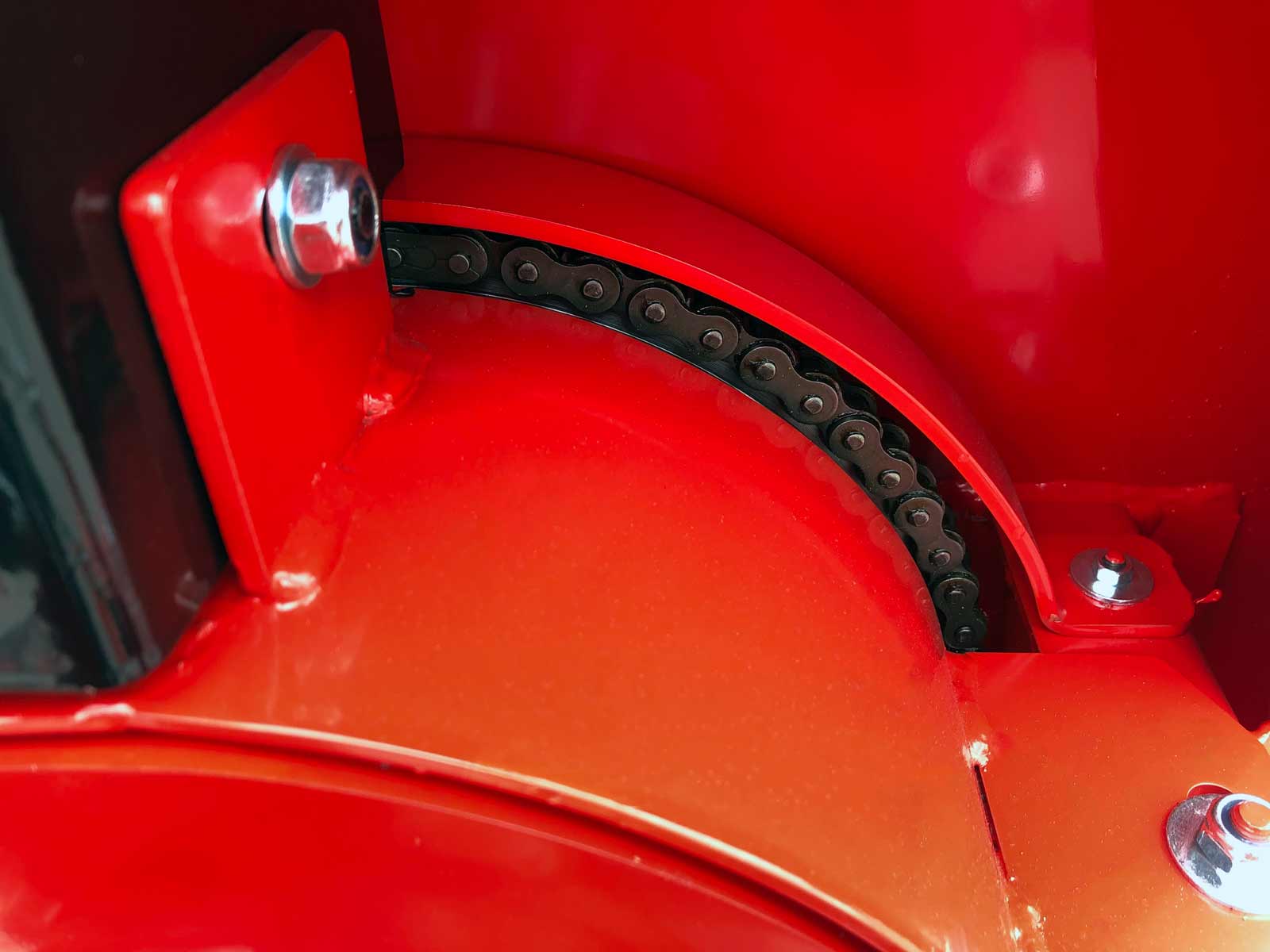

The extra reinforced drive chain ensures long life and minimal wear on the chain wheels, as well as fewer breakdowns. The chain is lightly lubricated from the outside with chain spray or grease. It is important not to use oil, as it will run down the clutch lining, which is riveted to the large gear wheel.
Button

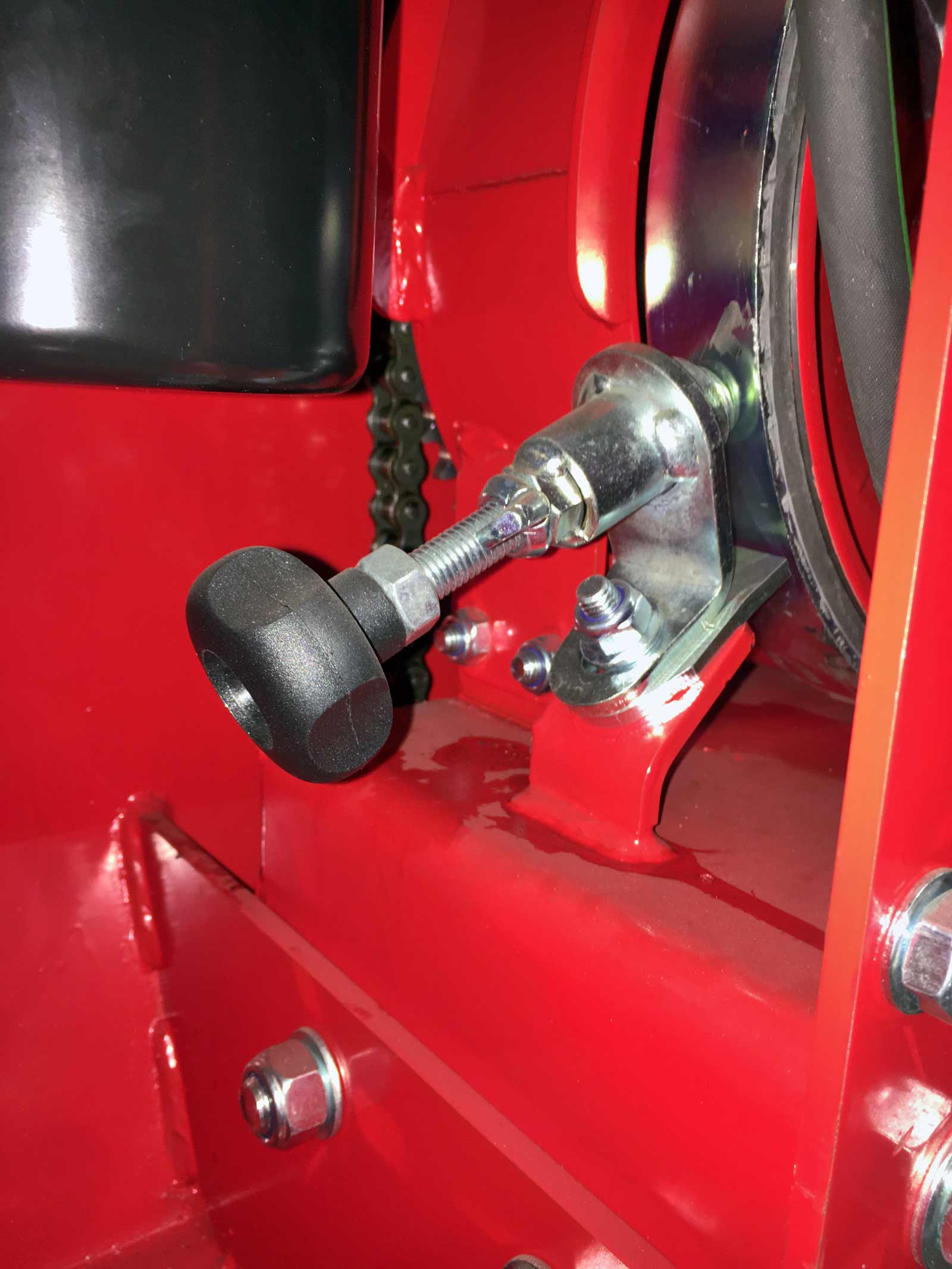

Freewheel brake

The wire drum is fitted with a spring-loaded freewheel brake, which ensures that the wire drum stops rotating as soon as the extraction of the wire is stopped. This avoids loose wire inside the wire drum.
Button

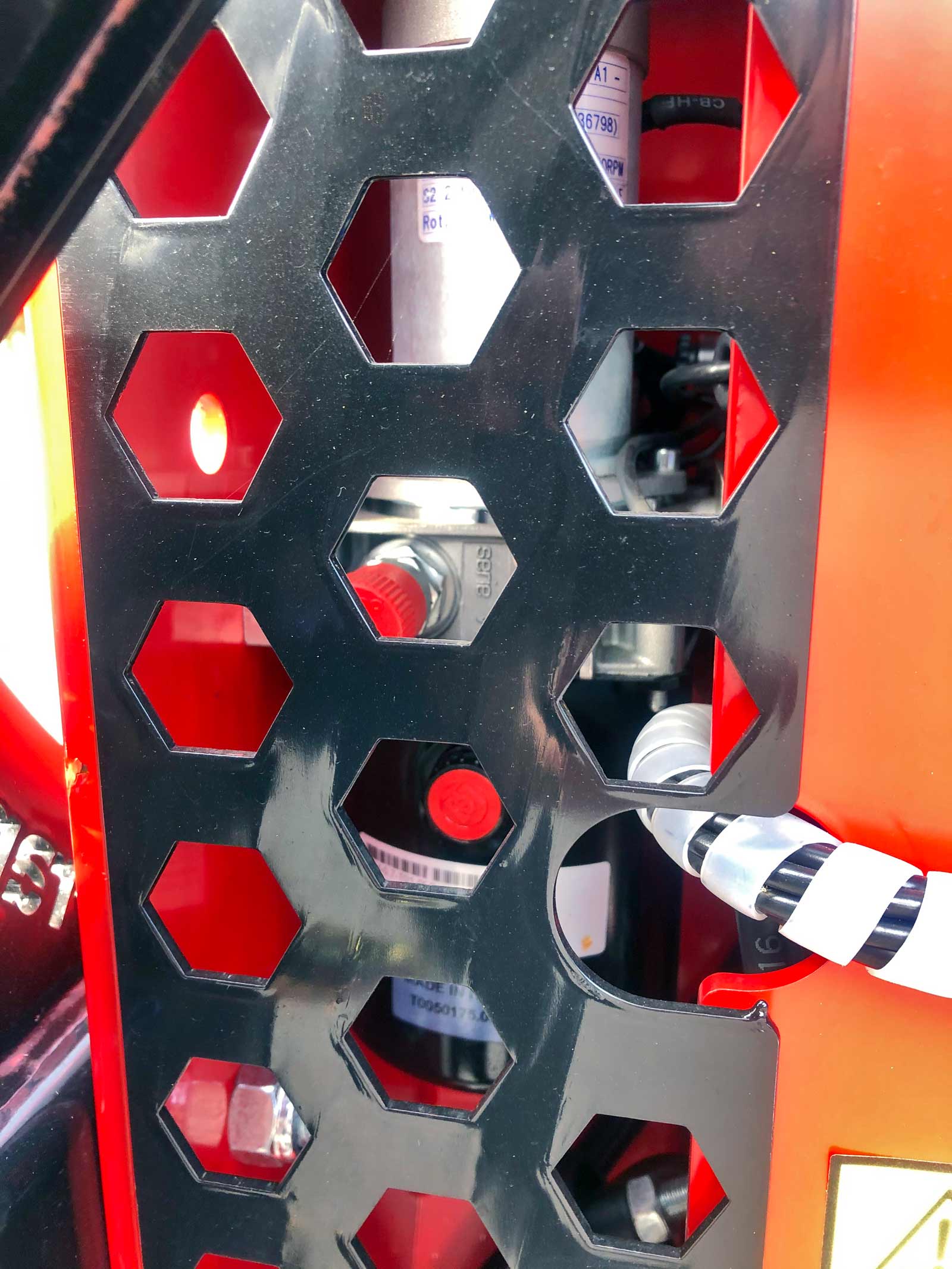

Electric-hydraulic control

The winch has an electric-hydraulic control system with its own oil supply for operating the brake and clutch cylinders. It only requires 12V power from the tractor.
Button

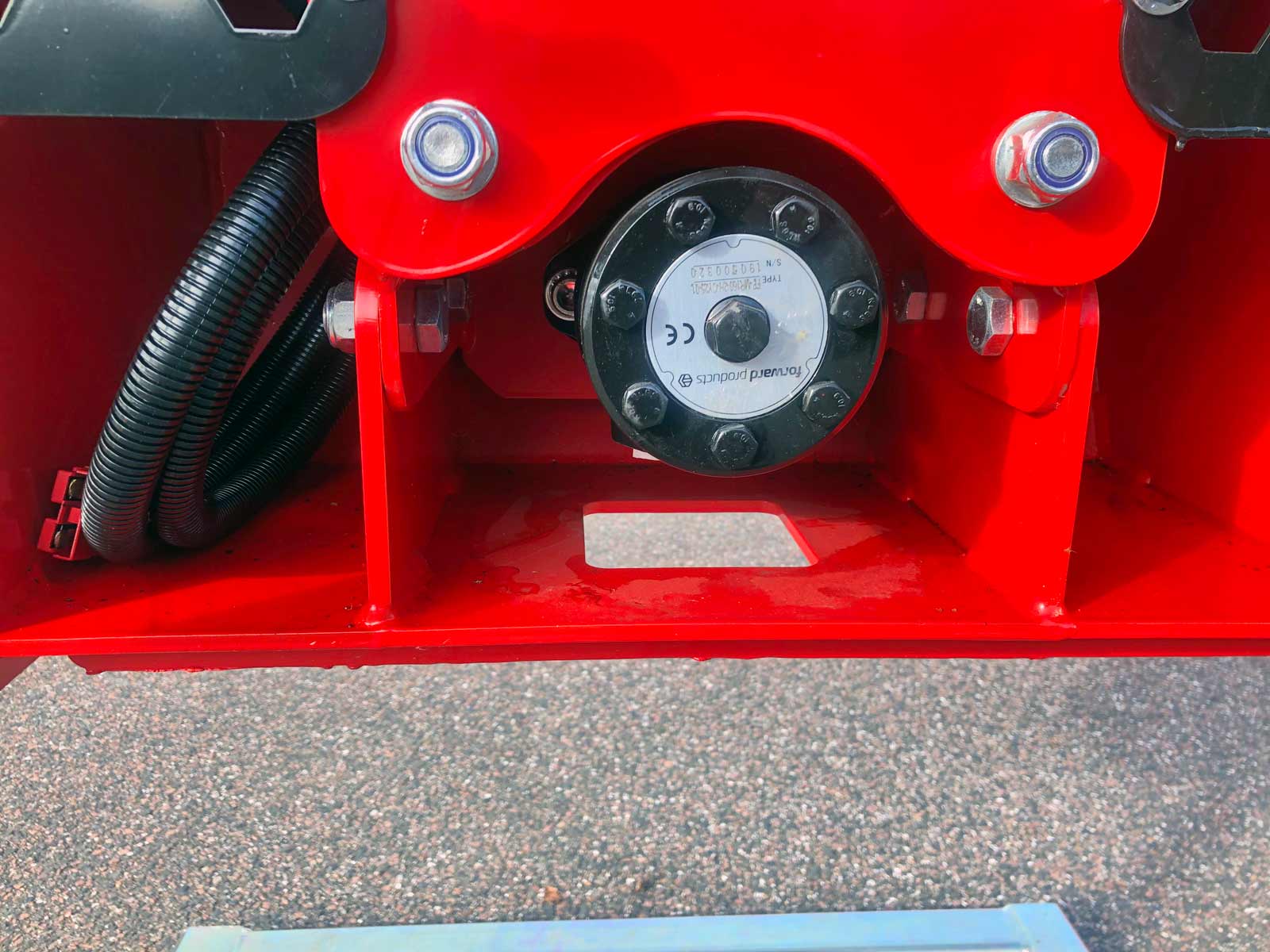

Oil engine

The winch is driven by the powerful oil engine, which requires 40-60 l/min. It is well protected inside the frame of the machine. The winch comes without hydraulic hoses for the oil engine, which are individually adapted to each machine.
Button
Shielding

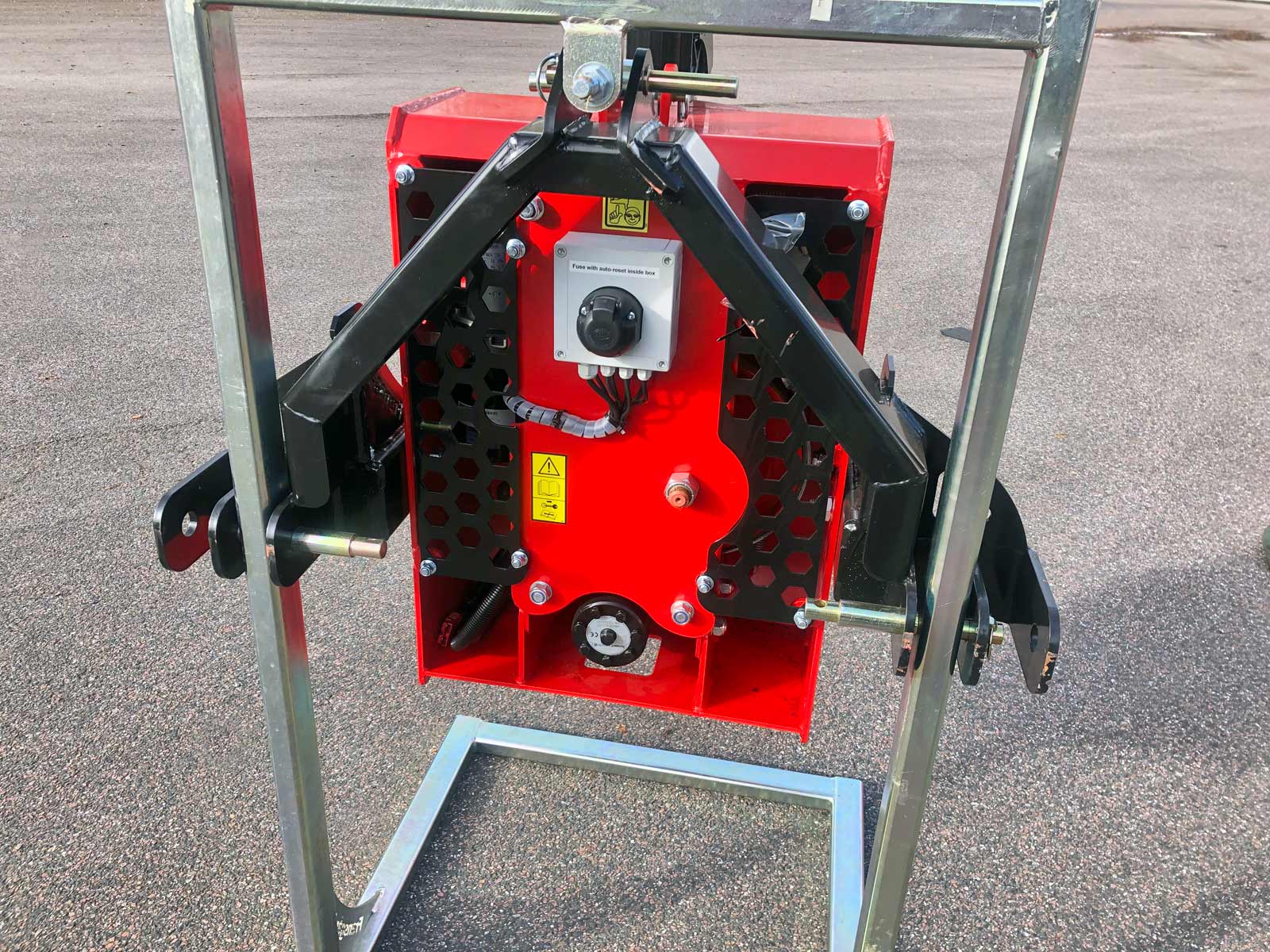

The compact winch is well shielded so that branches and other foreign objects do not get in and ruin the machinery. The shield can be easily removed when the machine needs servicing.
Button

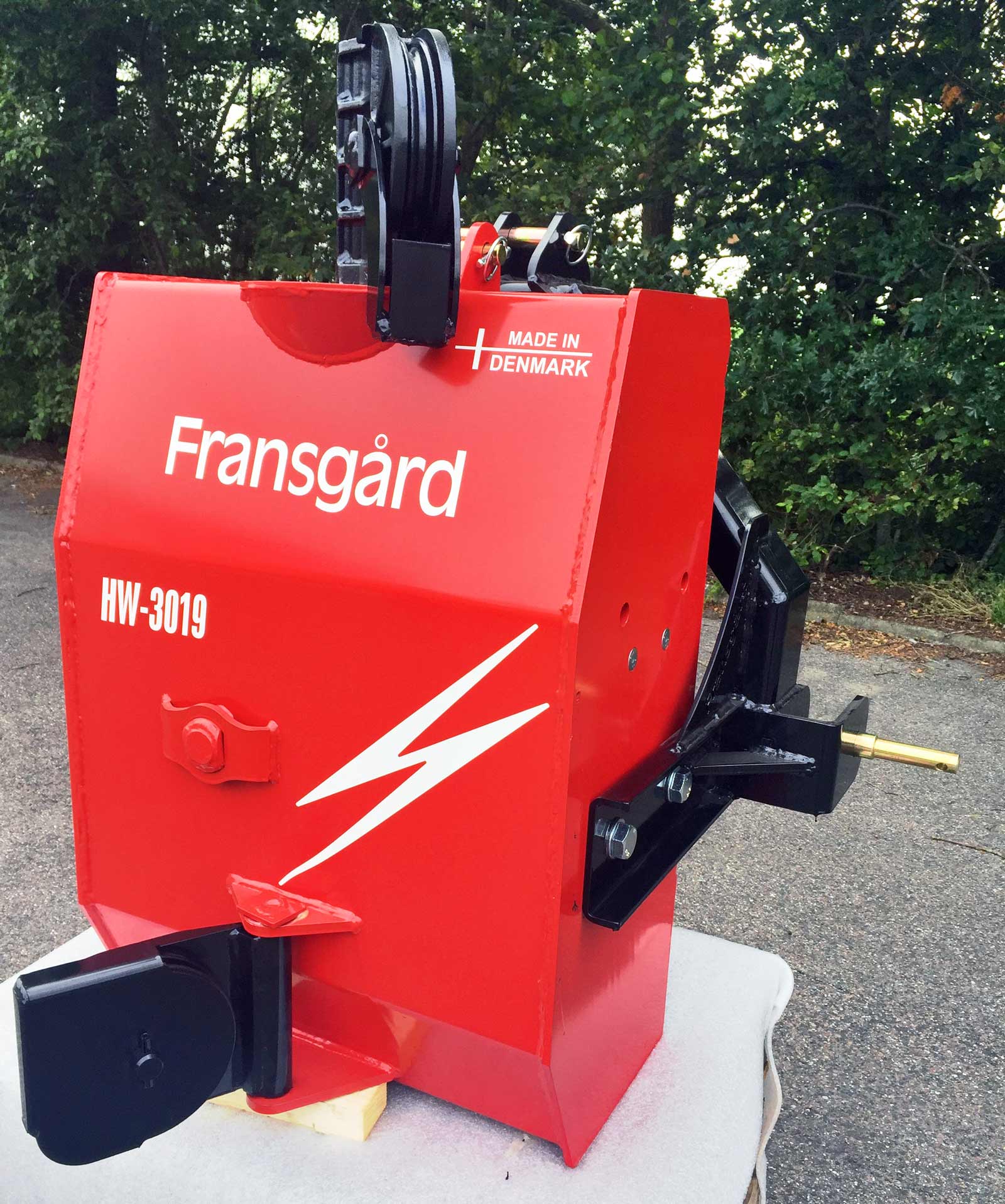

Main frame

The compact winch is built on a sturdy steel frame, which is made of Domex 420 steel.
Button

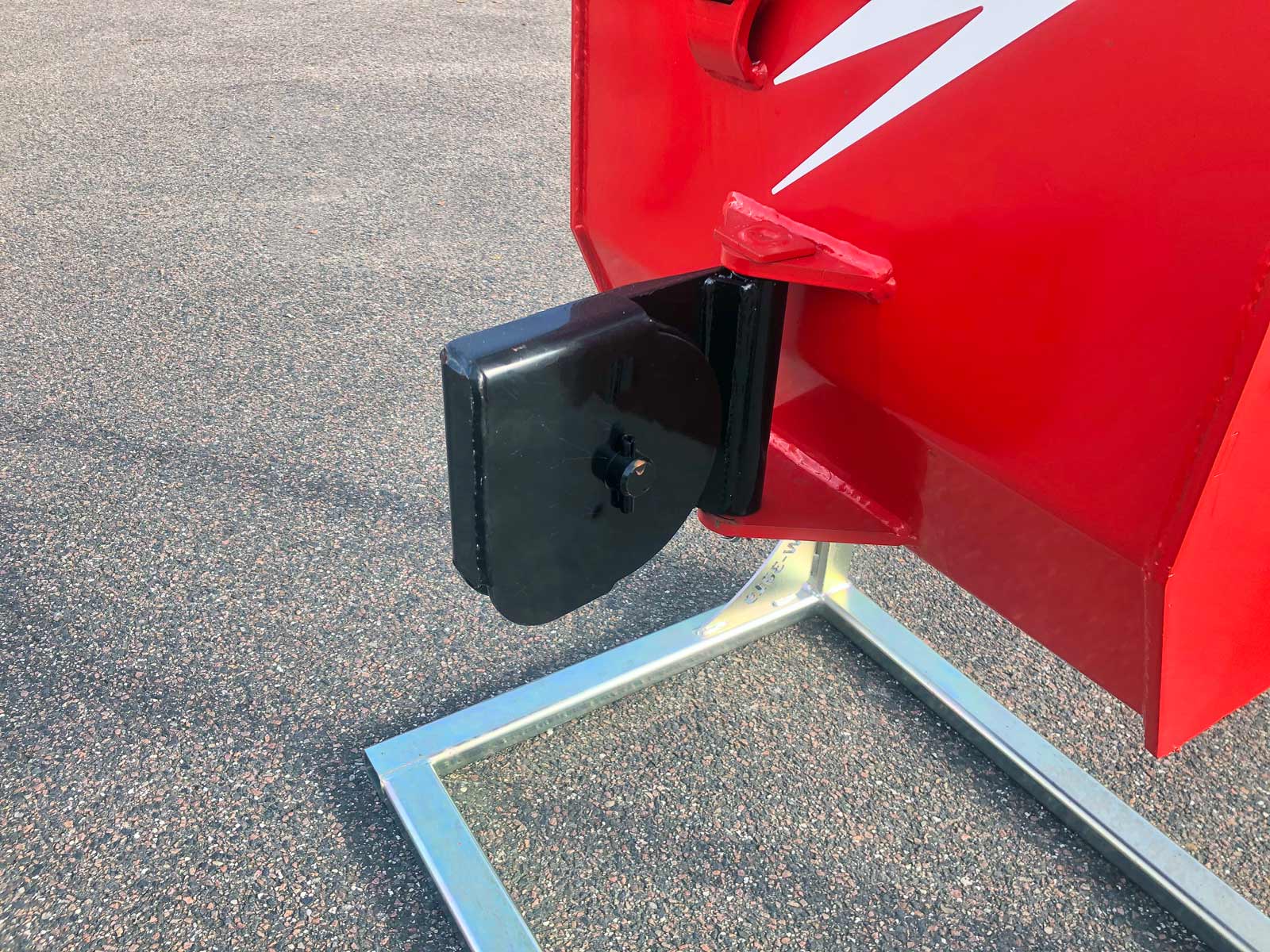

Bottom roller

The pivoting bottom roller on the winch provides greater safety when retracting from an oblique angle by moving the centre of gravity further down. This minimises the risk of the machine being lifted and also allows a smaller tractor to be used.
Button

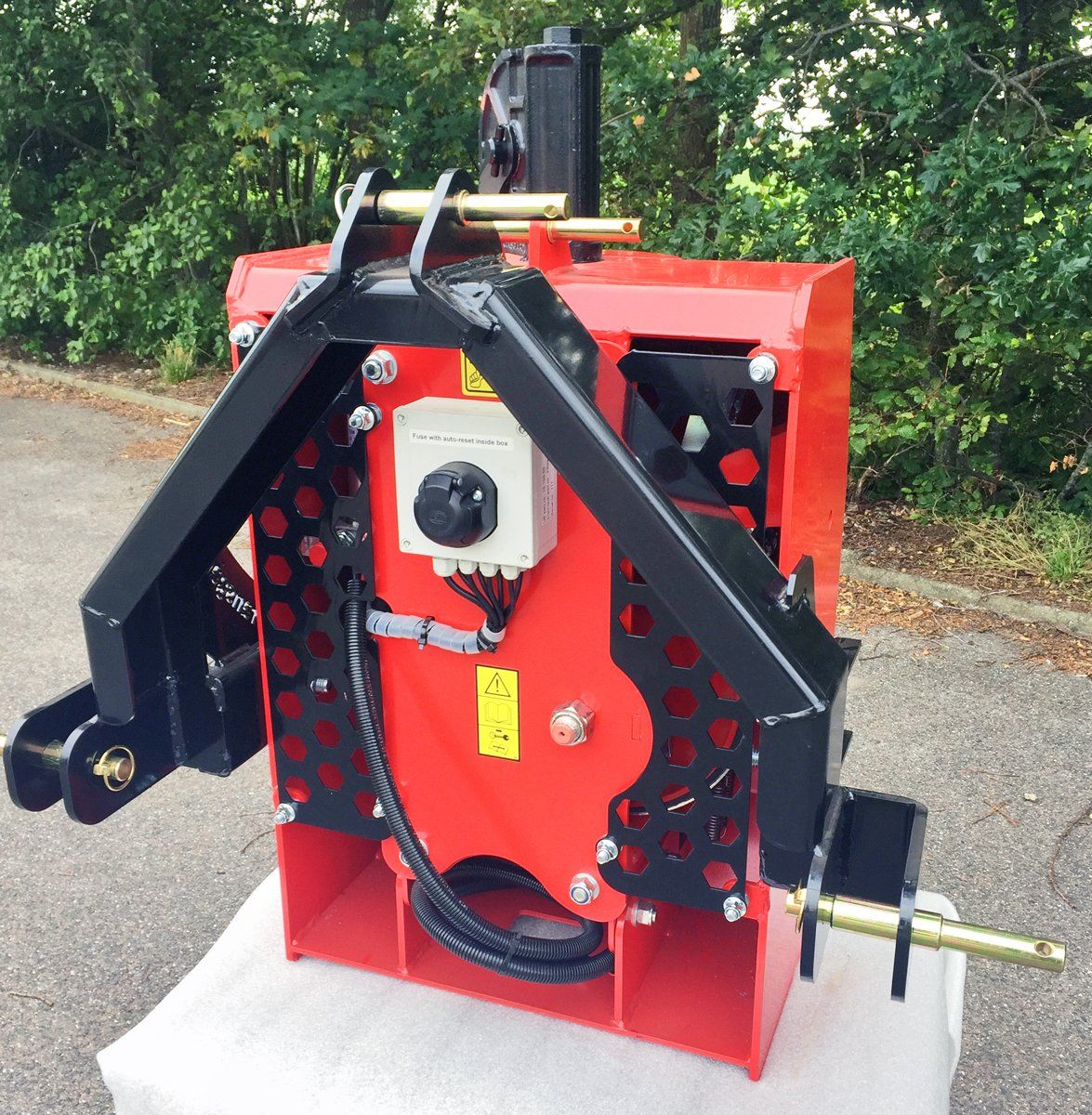

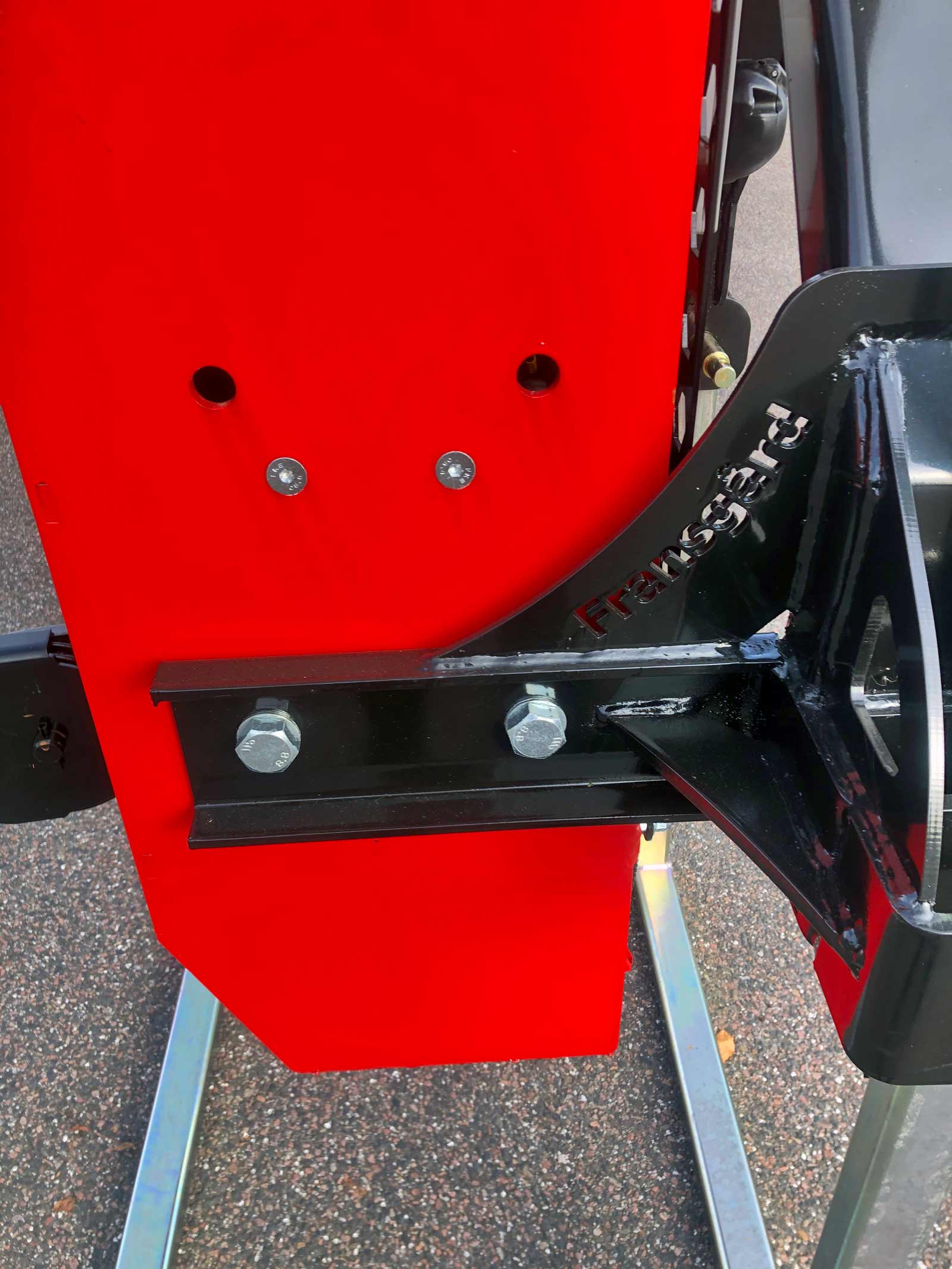

Holes for mounting

The HW winch has as standard 4 holes on each side of the main frame for direct mounting on various tool carriers or mounting of 3-point suspension item no. 6420
Button

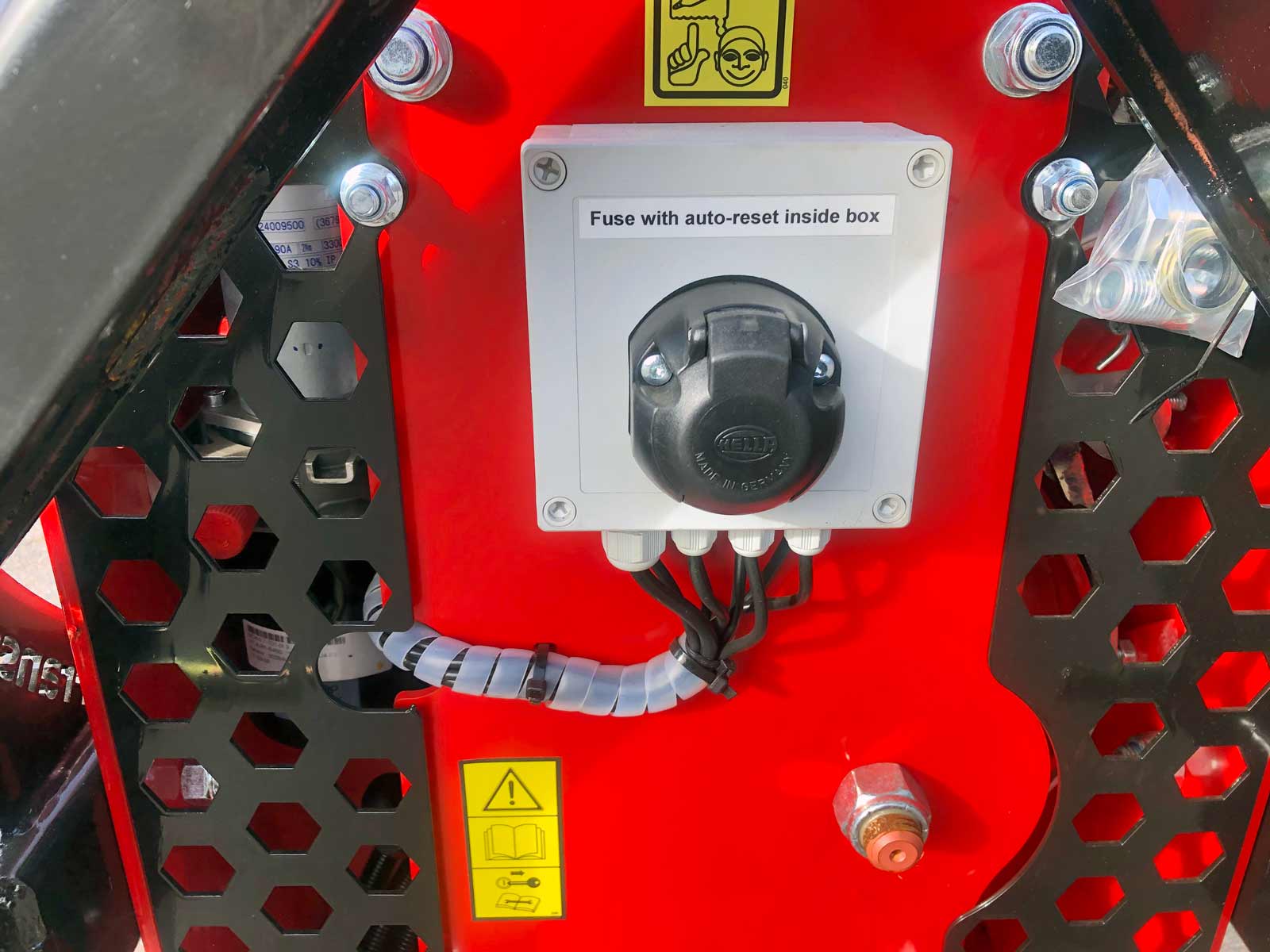

Connector for control

7-pin connector for mounting cable control or radio control. The winch must be operated with cable control item no. 1591 or radio control item no. 1604.
Button

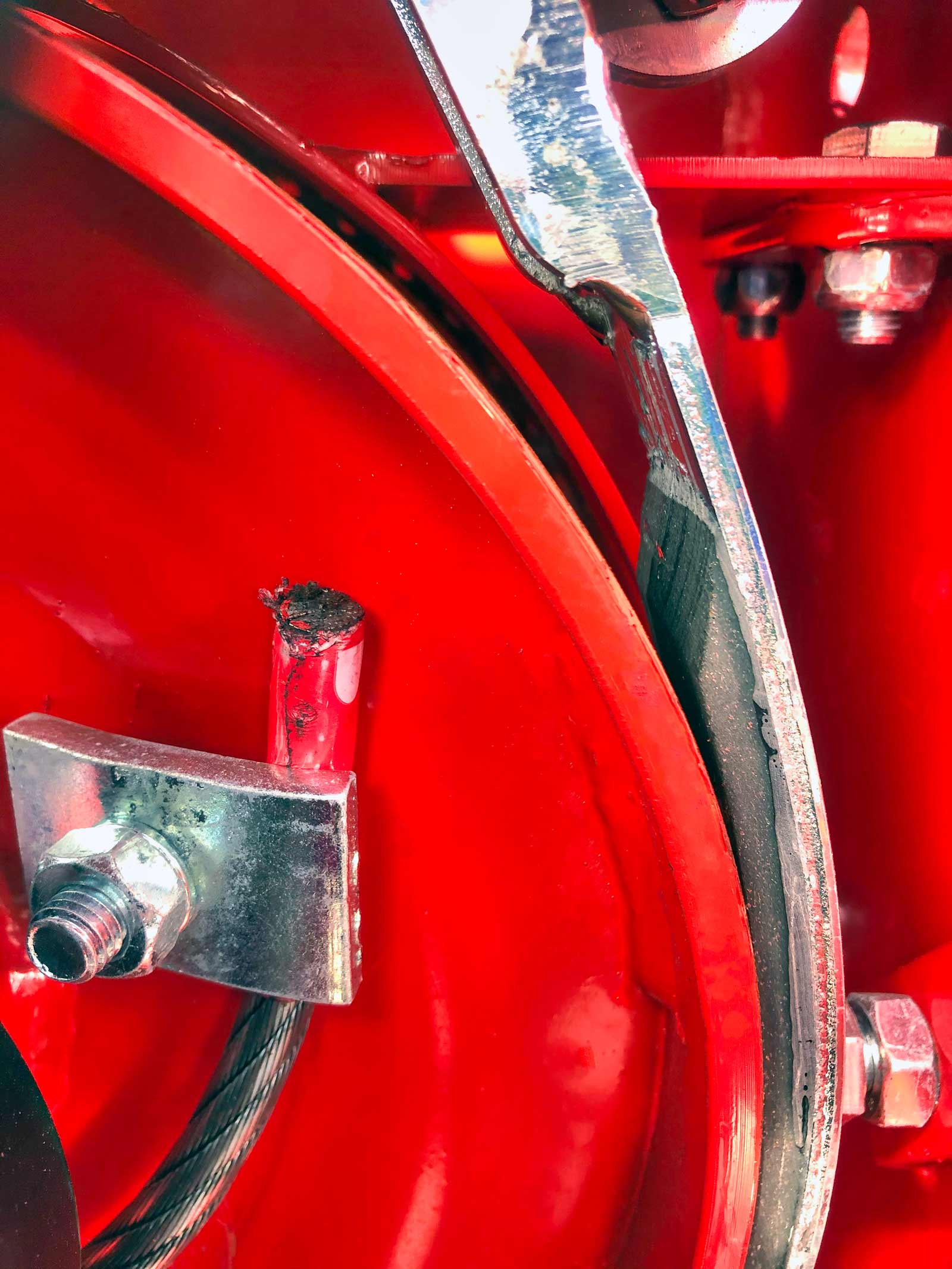

Locking bracket for wire

The end of the wire is fixed to the drum with the locking bracket. It is designed in such a way that the wire goes free if it accidentally runs back during rewinding especially on steep slopes.
Button

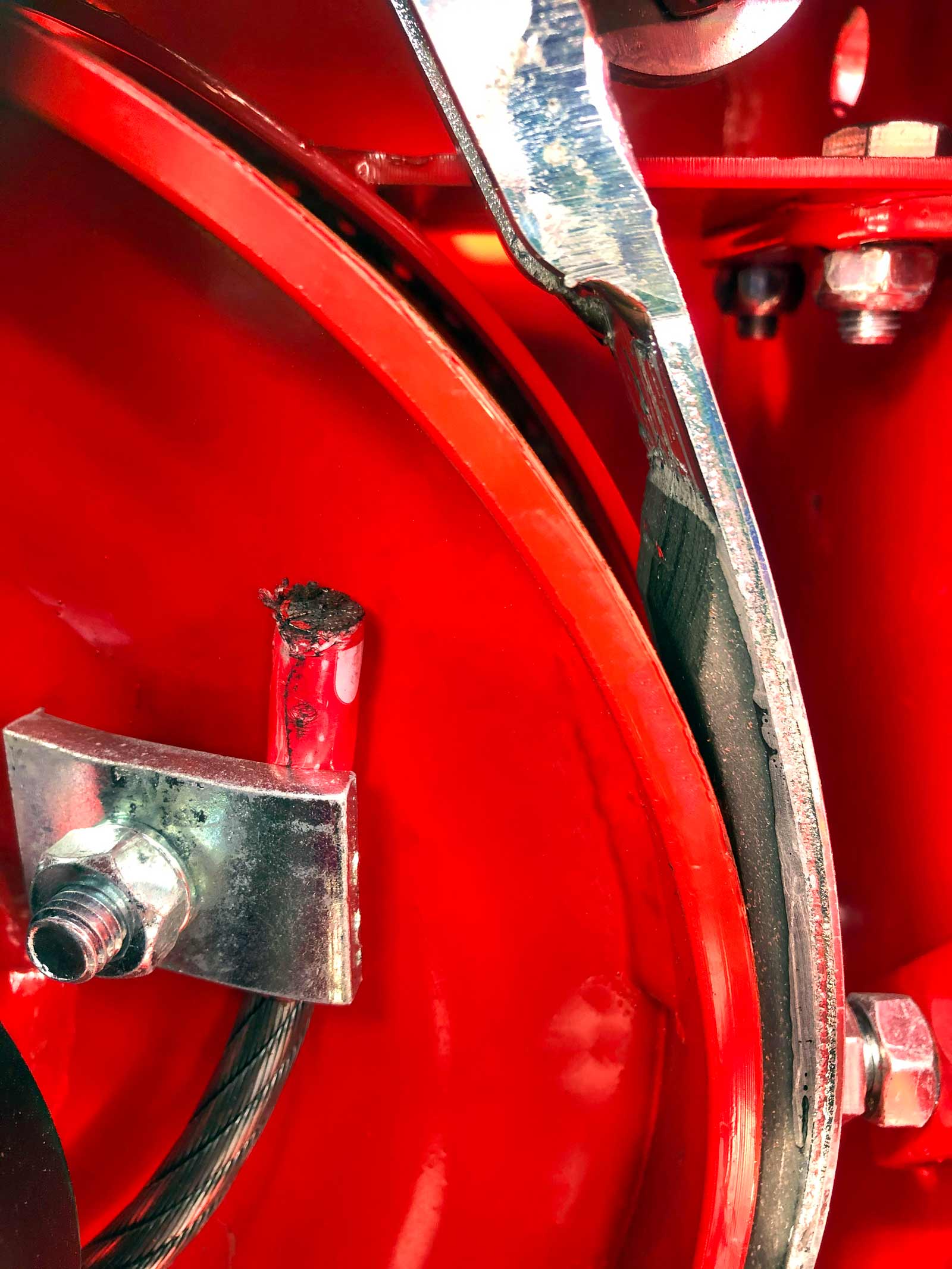

Belt brake

The winch has a belt brake around the drum as standard. This ensures that the wire is always braked when you stop the winding and thus does not run back.
Button

Optional extras

Item No. 1561

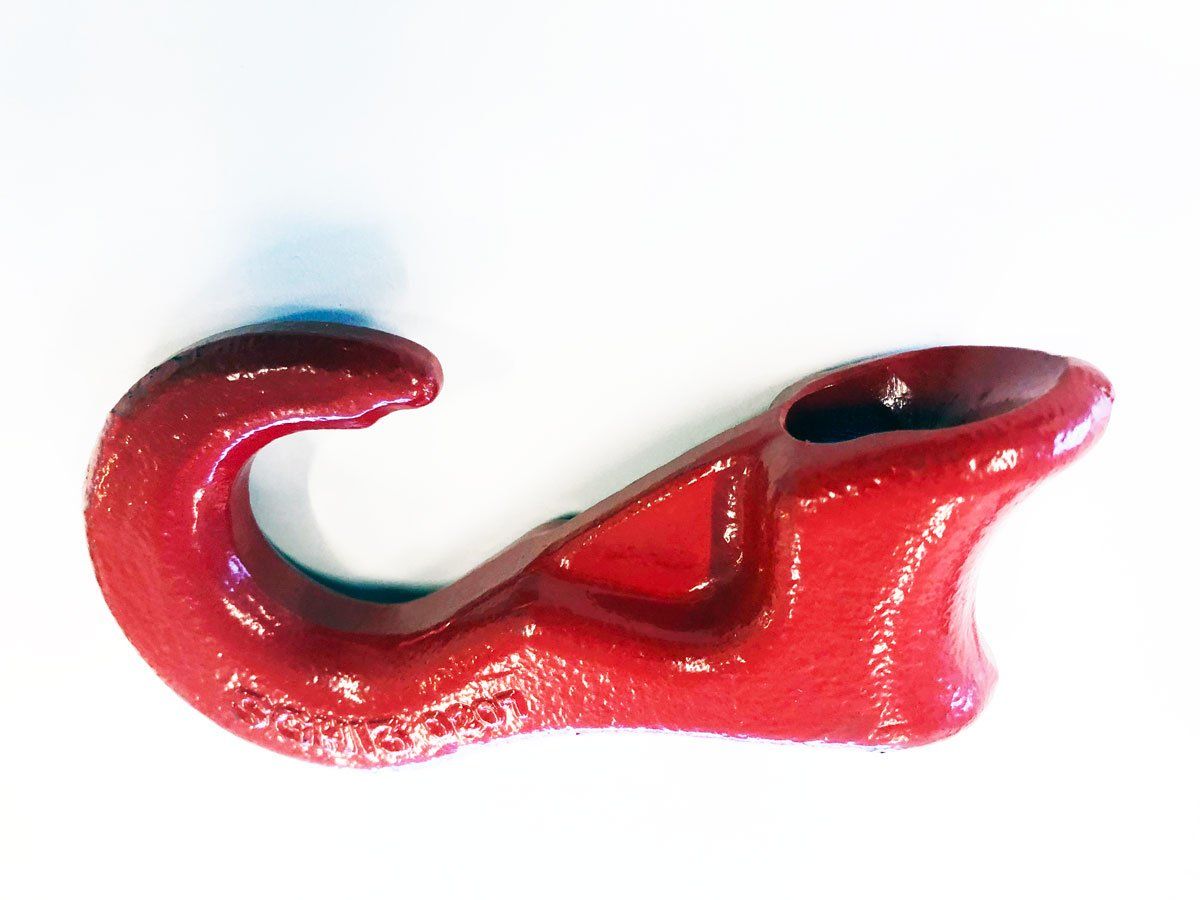

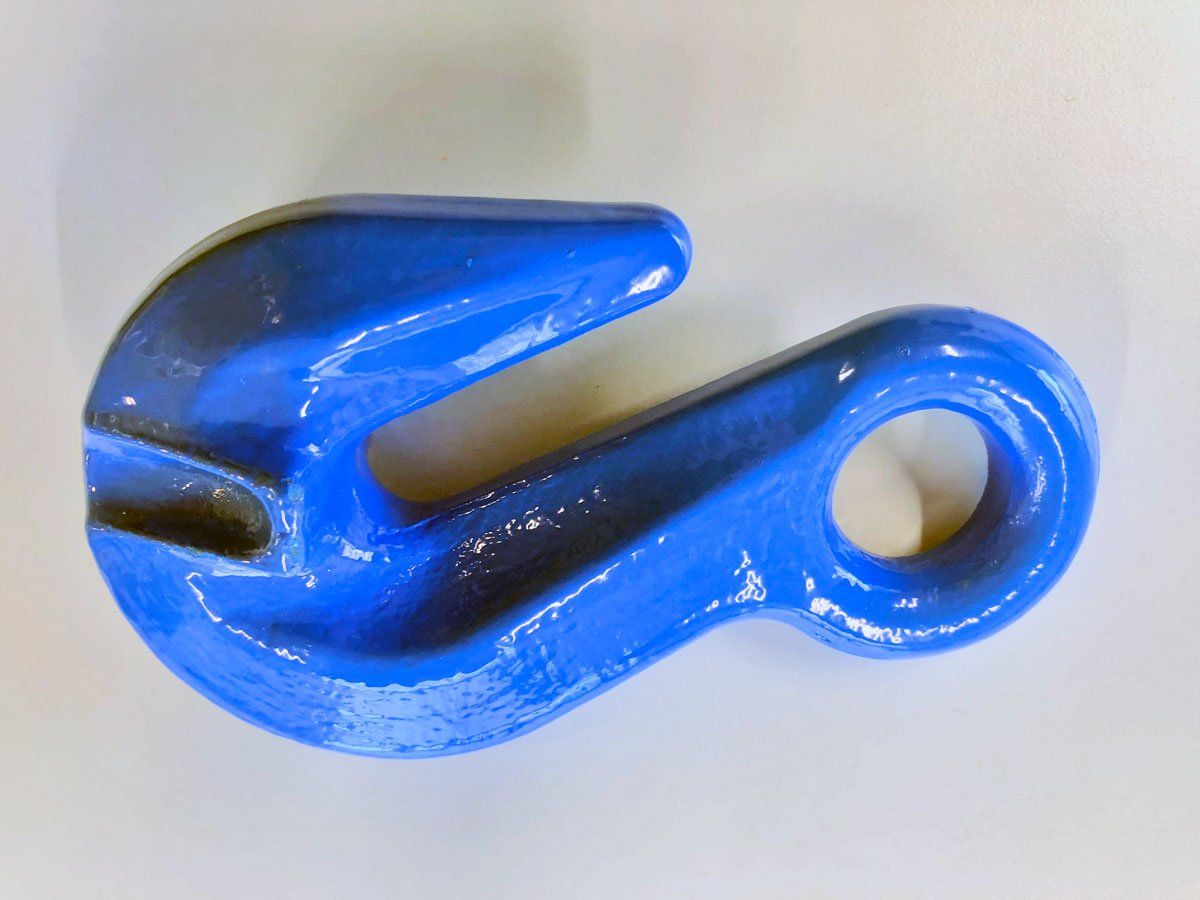

Sliding hook for 9-13 mm wire
Button
Item No. 1562

End hook for 8-11 mm wire
Button

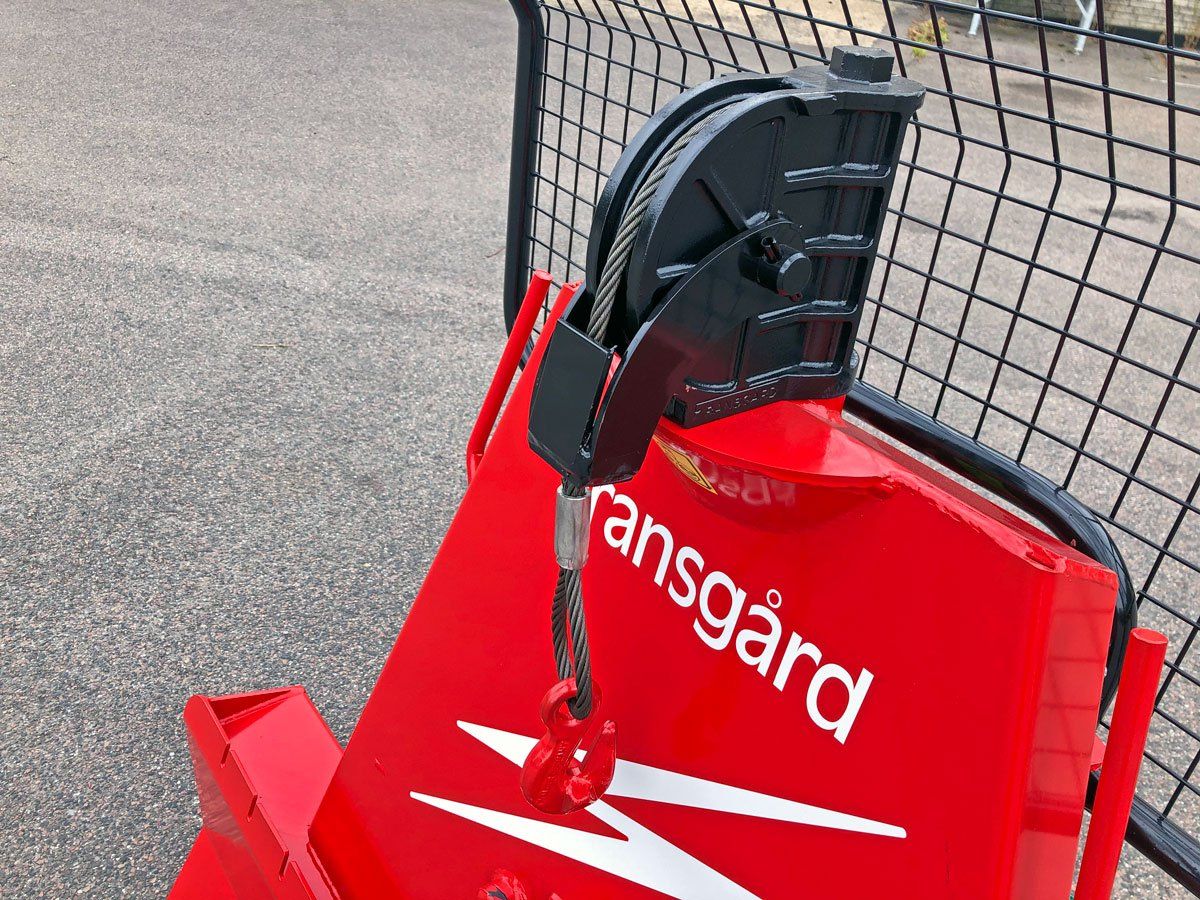

Item No. 1570

Factory installation of wire on the winch.
Button
Item No. 1582

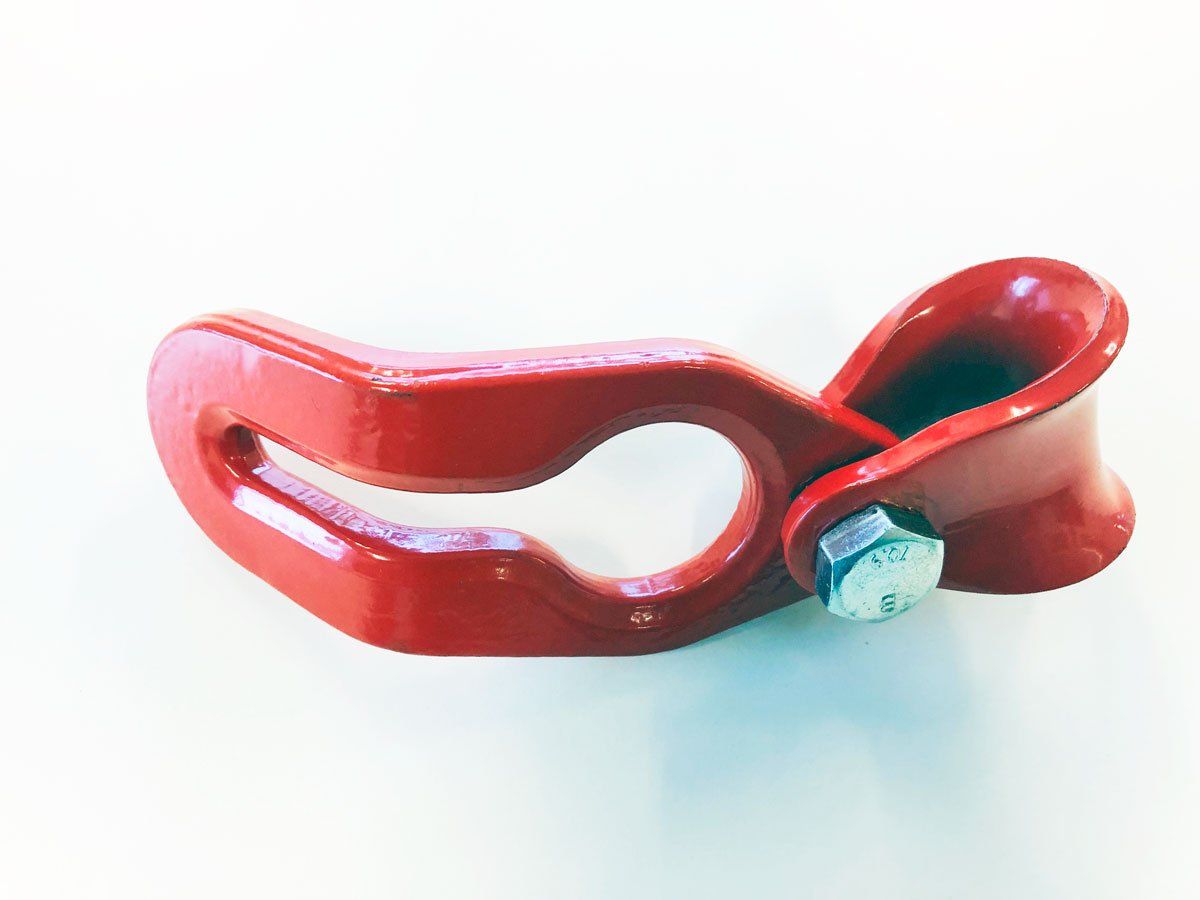

Slider for 8-14 mm wire with a chain drop for 7-8 mm chain
Button
Item No. 1584

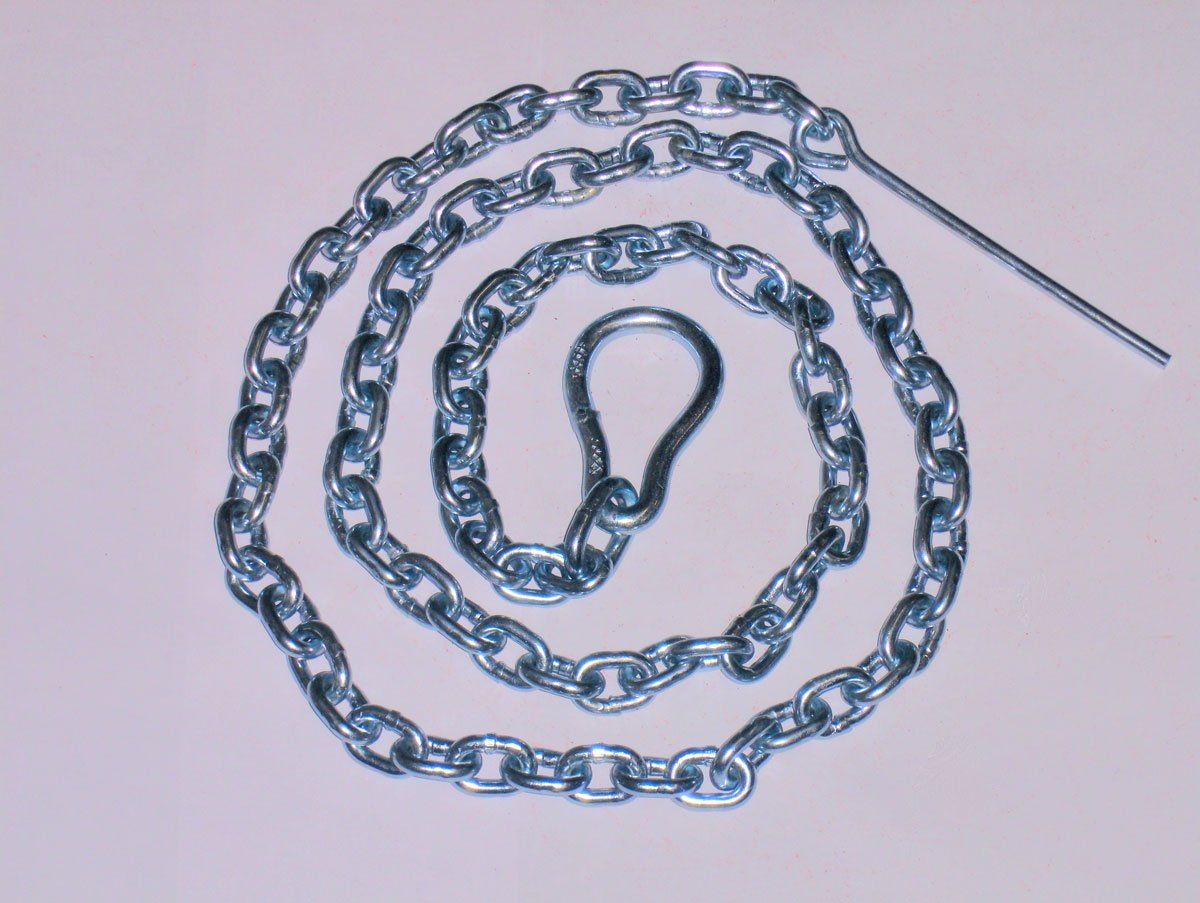

2 m x 7 mm chain with locking eye and pin
Button
Item No. 1586

2 m x 7 mm chain with C-hook and pin
Button
Item No. 1588

3 m x 7 mm chain with C-hook and pin
Button
Item No. 1591

Cable control for operating the brake and clutch on the winch. The controller has a 7 metre cable and an emergency stop button.
Button
Item No. 1592

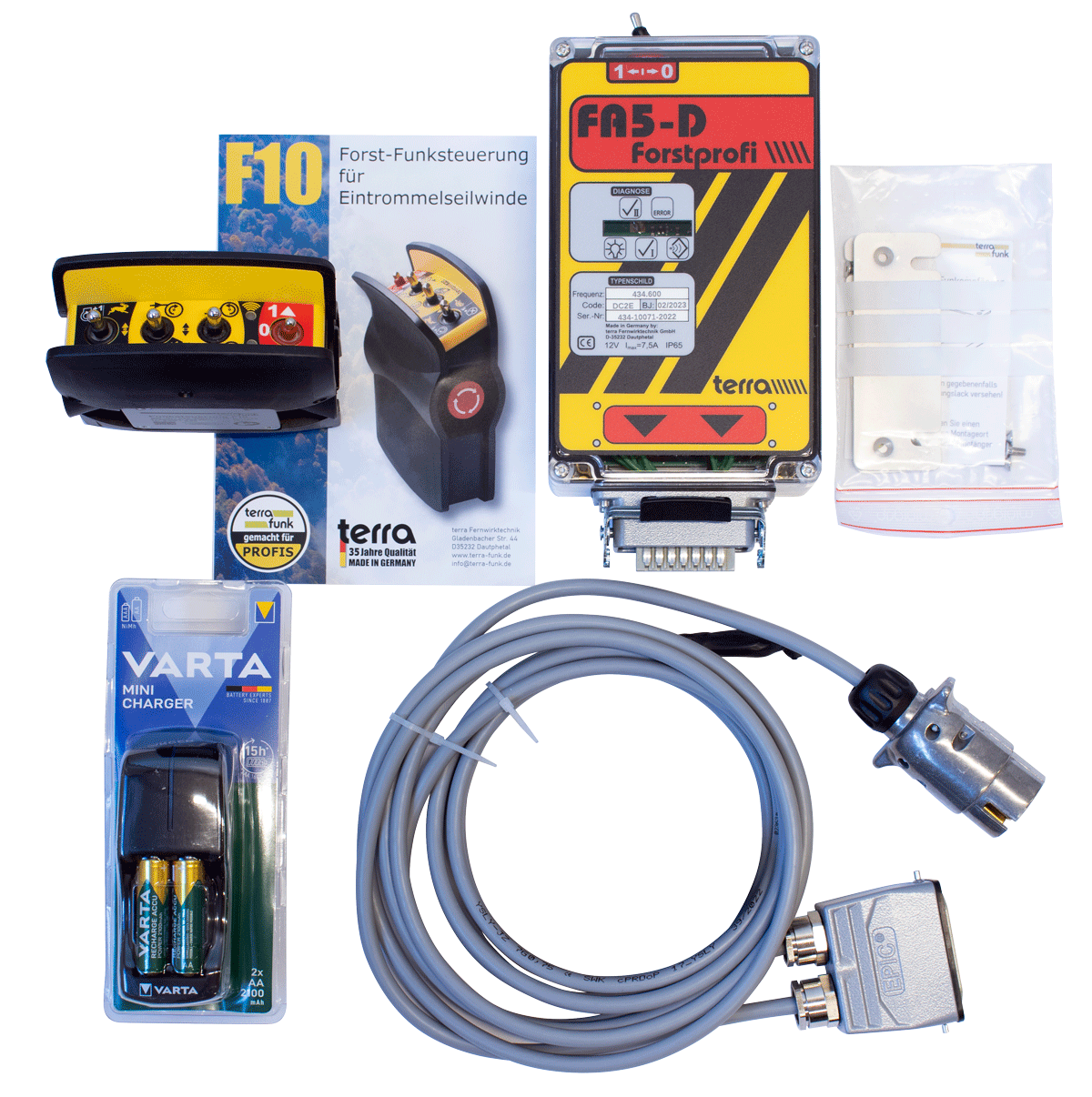

Telenot radio control for wireless operation of brake and clutch on the winch. The hand transmitter is built in an aluminium frame with hard plastic on the outside, which makes it highly resistant to impact and moisture. The handheld transmitter uses rechargeable AA batteries that are charged in the included charger. Belt and holder included.
Button

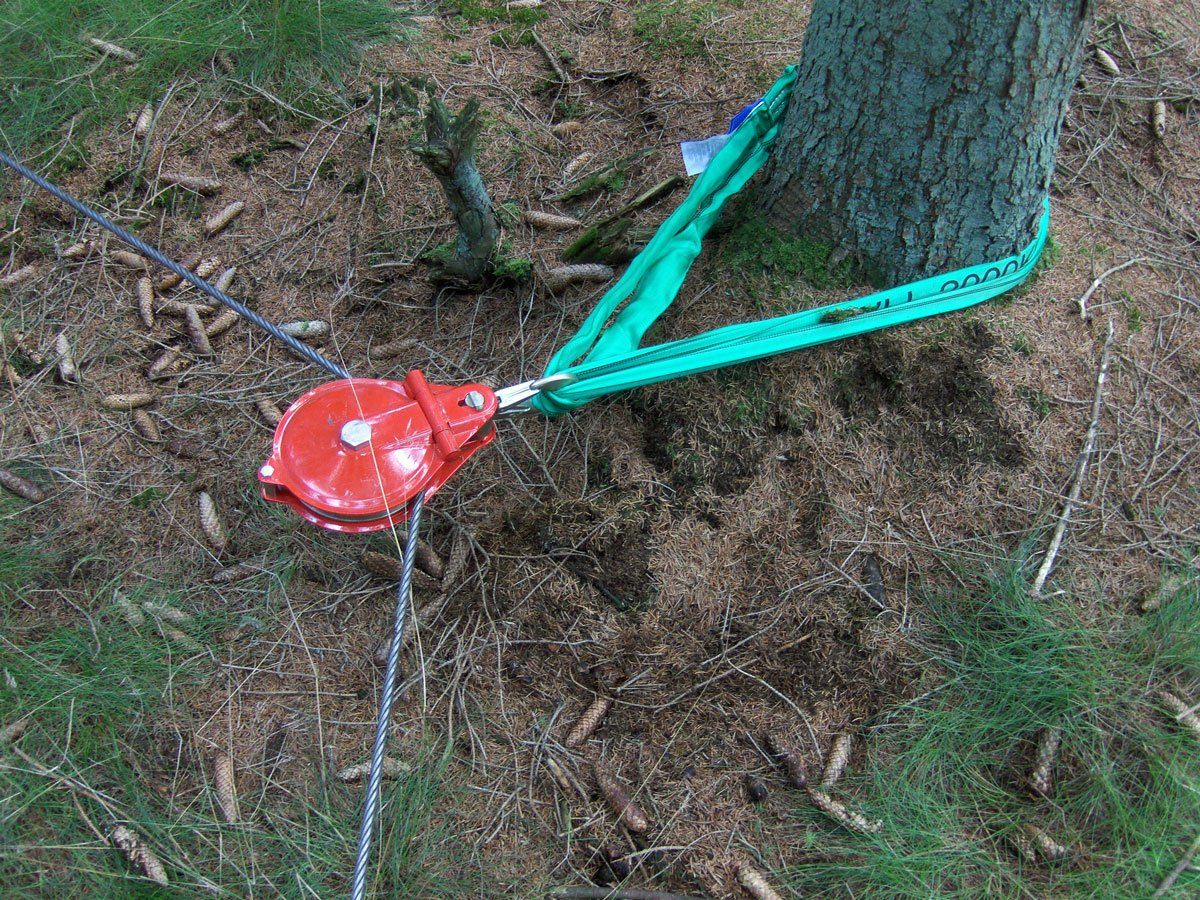

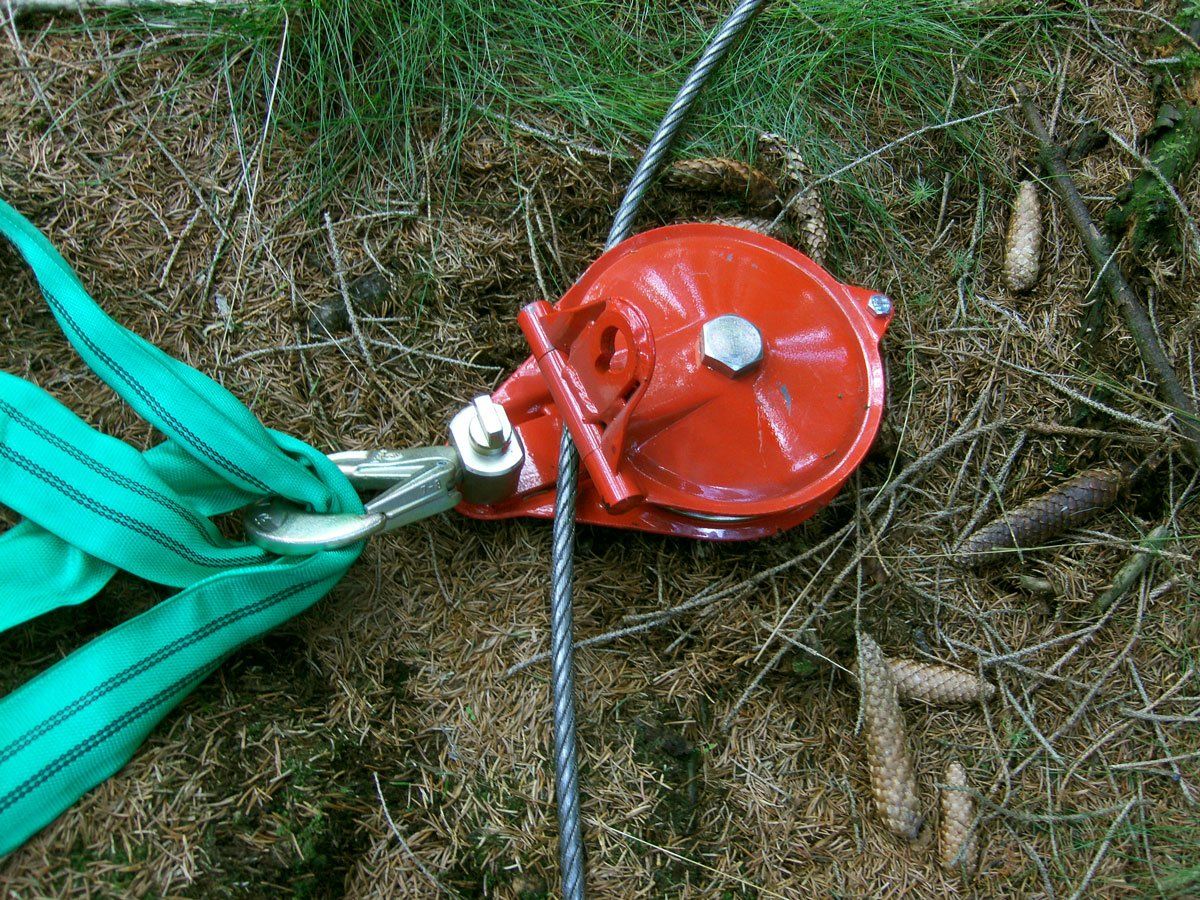

Item No. 1595

Remote roller/throwing block for 8-14 mm wire and tractive force up to 4 tonnes.
Button
Operation of item no. 1595

For use on sloping and angled retractions.
Closed roller so the wire does not jump off. Weight 6 kg.
Button
Item No. 1597

Elca radio control for wireless operation of the brake and clutch on the winch. The hand-held transmitter is made of hard plastic that is welded together, making it highly resistant to moisture. The battery is charged in the included charger. The battery cannot be replaced. Belt and holder included.
Button
Item No. 1601

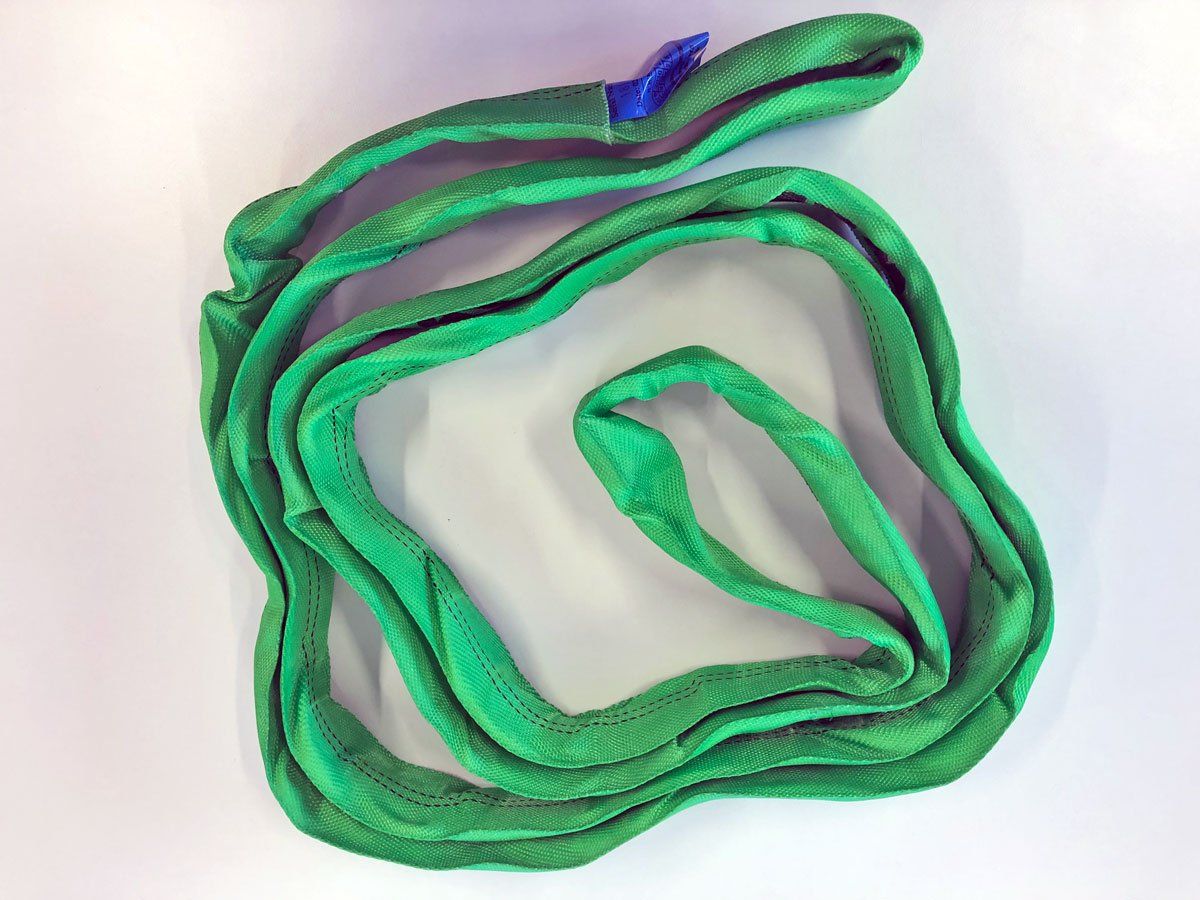

Loading sling 2 m with a breaking strength of 4 tonnes (recommended for item no. 1595)
For fitting around standing trees to avoid damaging the bark.

Button
Item No. 6420

3-point suspension cat I/II is bolted to the winch.
Button
Item no. 8-14 mm* 30-120 m

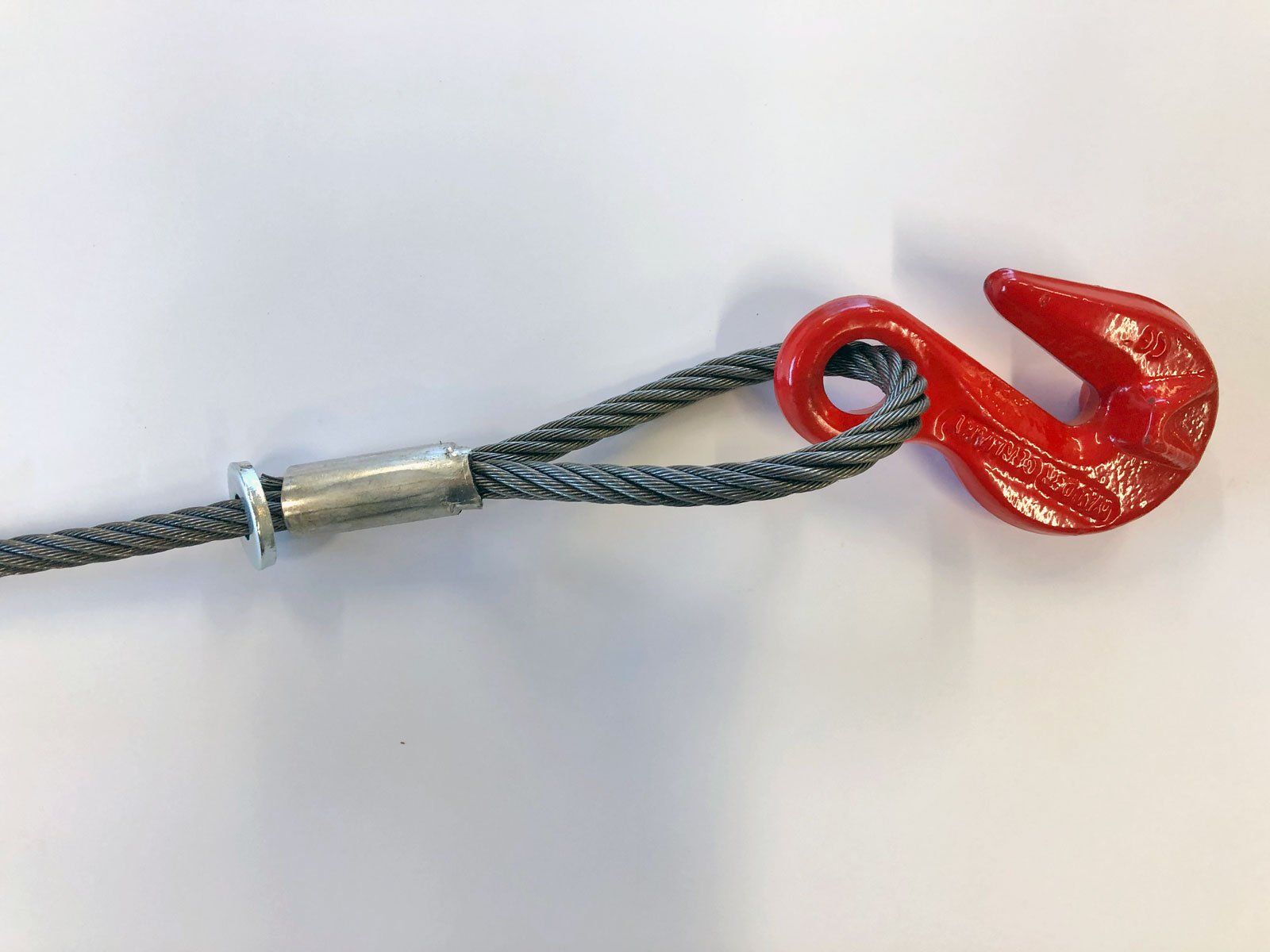

Steel wire incl. end hook and stop washer.
Quality 6x26WS+IWRC with steel core.
When ordering, please state thickness in mm + length in metres.
Button
Item No. P8-14 mm* 30-120 m

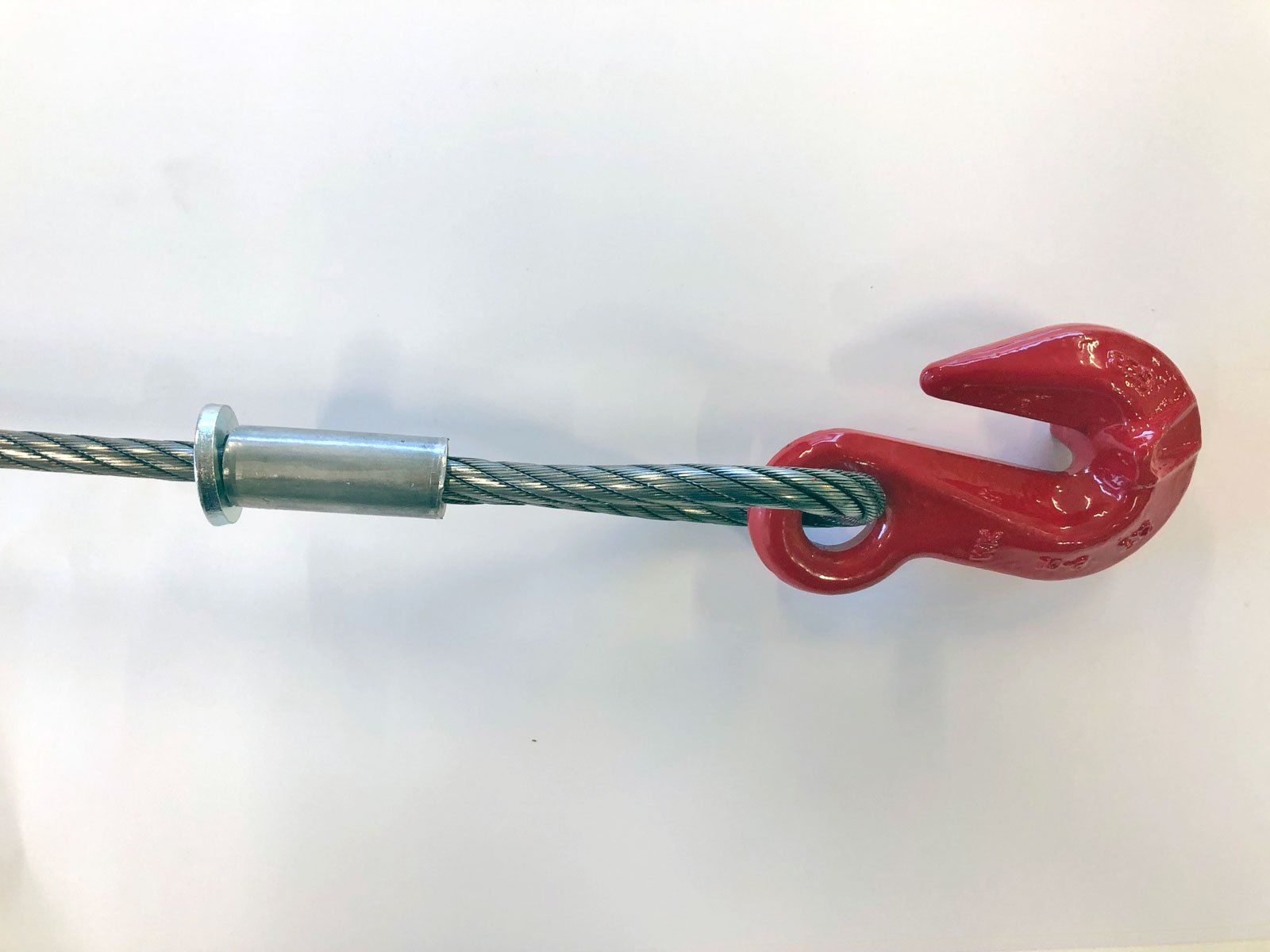

Steel wire compressed incl. end hook and stop washer.
Quality 6x25F+IWRC with steel core.
Fully round and more durable, does not get squashed flat on the drum.
When ordering, please state P + thickness in mm + length in metres.
Button
