Leveller GT-300AUS

Presentation

The towed model has the same unique and proven construction as the GT-DKH version.

The construction provides a very smooth working process and good possibilities to make a slope on the road so that rainwater always runs away from the road.

Extra long and wide machine

The GT-300AUS sets new standards for professional levellers with its long distance of 5.4 m between the eye hook and the large rear wheels. The machine has horizontal adjustment of the blade up to 20° to each side and the option of hydraulic offset adjustment (optional extra) to both sides, so the tractor can stay on the road.

As an optional extra, the blade can be extended by 25 cm on each side, making a total width of 350 cm.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Model:	GT-300AUS
Working width:	300 cm
Blade height:	70 cm
Total length	5.9 m
Offset adjustment, mechanical right/left:	60 cm
Hydraulic oscillation of the blade:	60°
Hydraulic horizontal adjustment:	20°/20°
Hydraulic connectors	3 double
Wear steel in Hardox 500:	Standard
Wheels	Standard
Snow blade, right:	Possible
Side plates:	Possible
Weight:	1270 kg
Tractor performance	Max. 180 HP

Details:

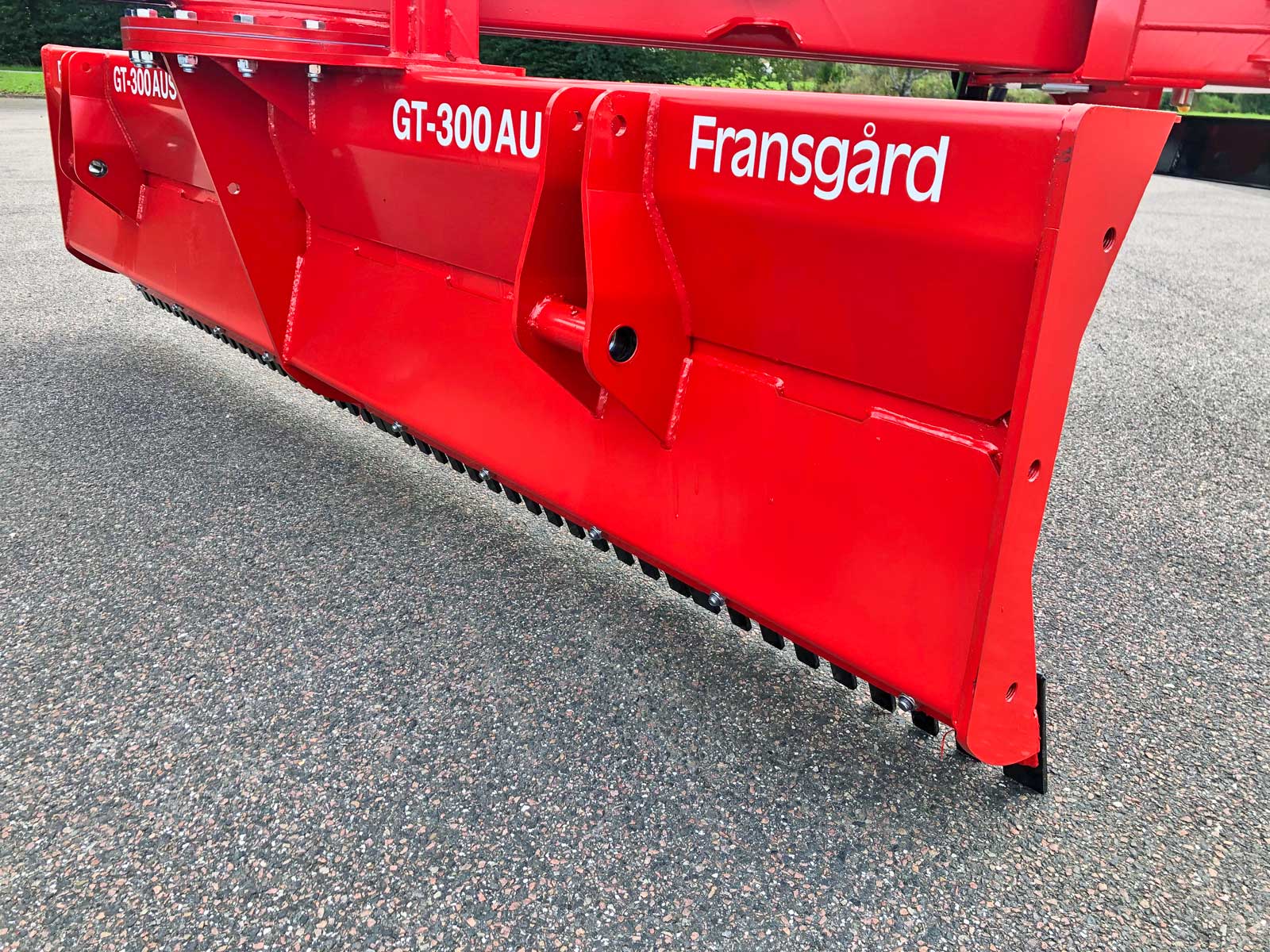

Blade rear

Strong blade with reinforcements both at the top and at the back of the blade.
The lower reinforcement at the rear is designed so that you can reverse with the leveller without turning the blade, and you will be able to reverse over any excess material that the leveller will press and distribute into the road, for example, when you come to an asphalt road.
Button
Cylinder for horizontal

As standard, the wheel suspension has a hydraulic cylinder for adjusting the horizontal cutting angle. You can set it up to 20 degrees both to the right and left side.
Button

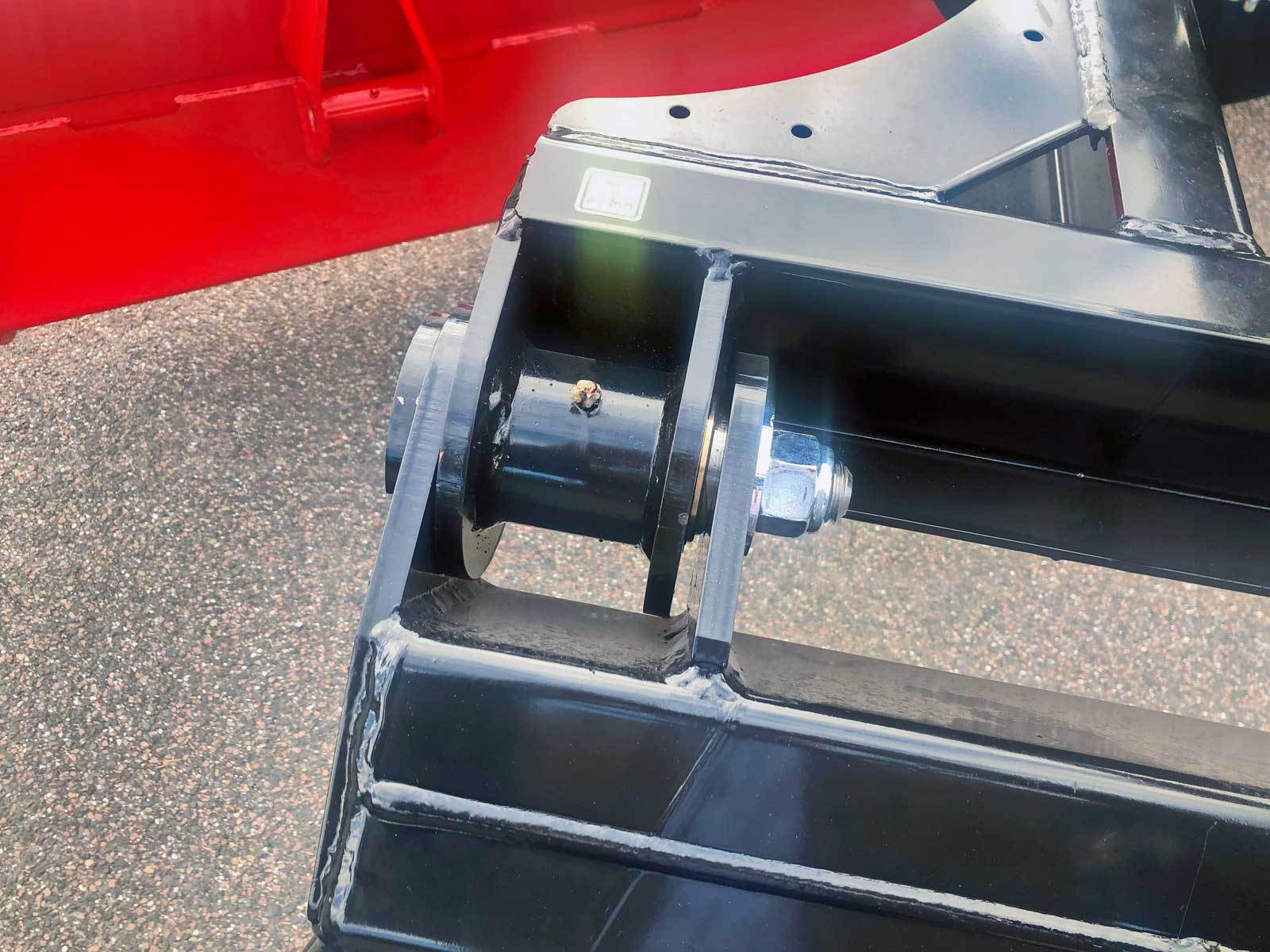

Bolt wheel set

The bolts in the wheel set, which are greasable and have brass bushings, ensure a long service life and minimal maintenance costs.
Button

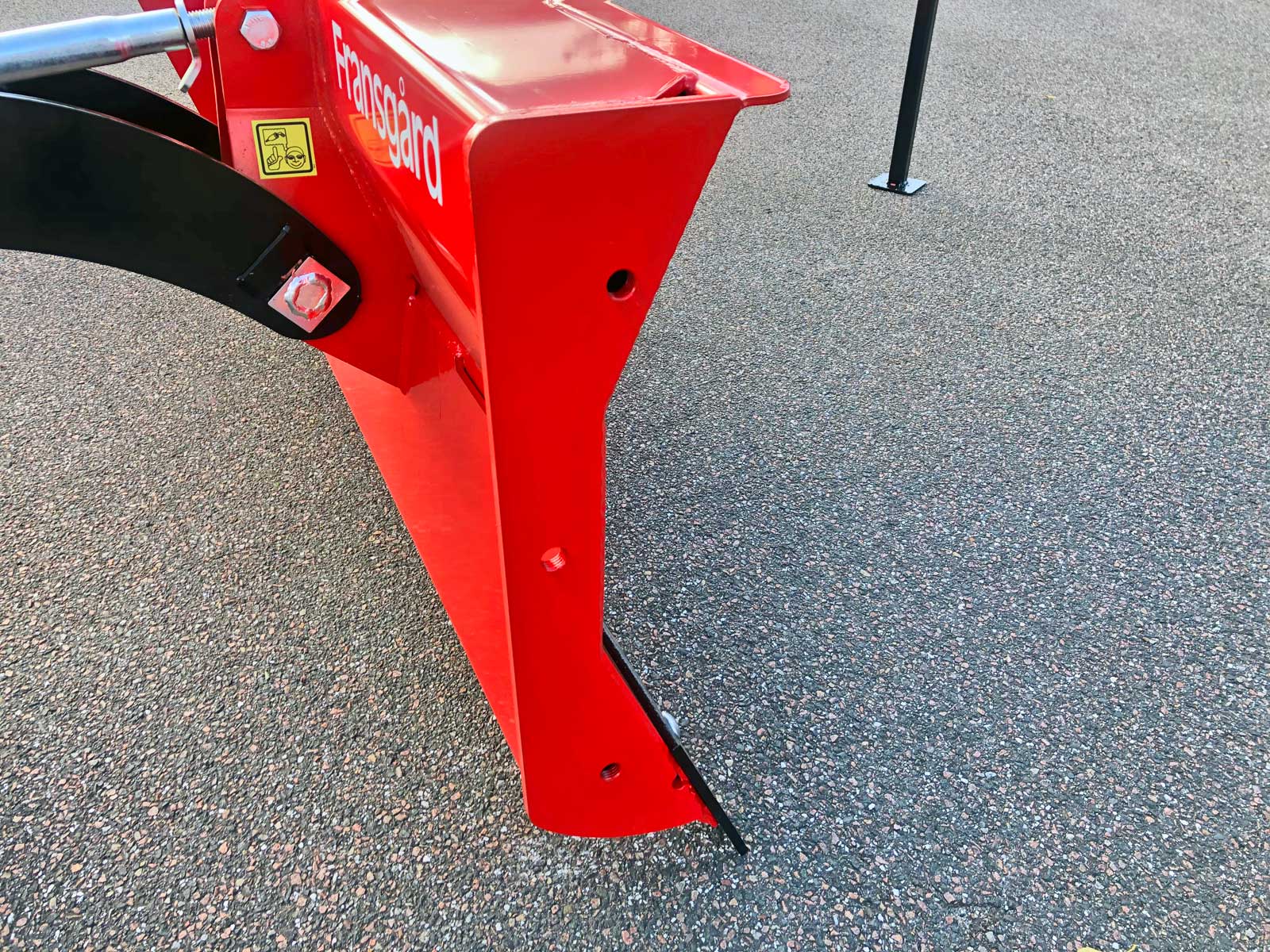

Blades

Reinforced ends on the blade of the leveller, which are also prepared for mounting the side flap, snow blade and blade extension kit.
Button

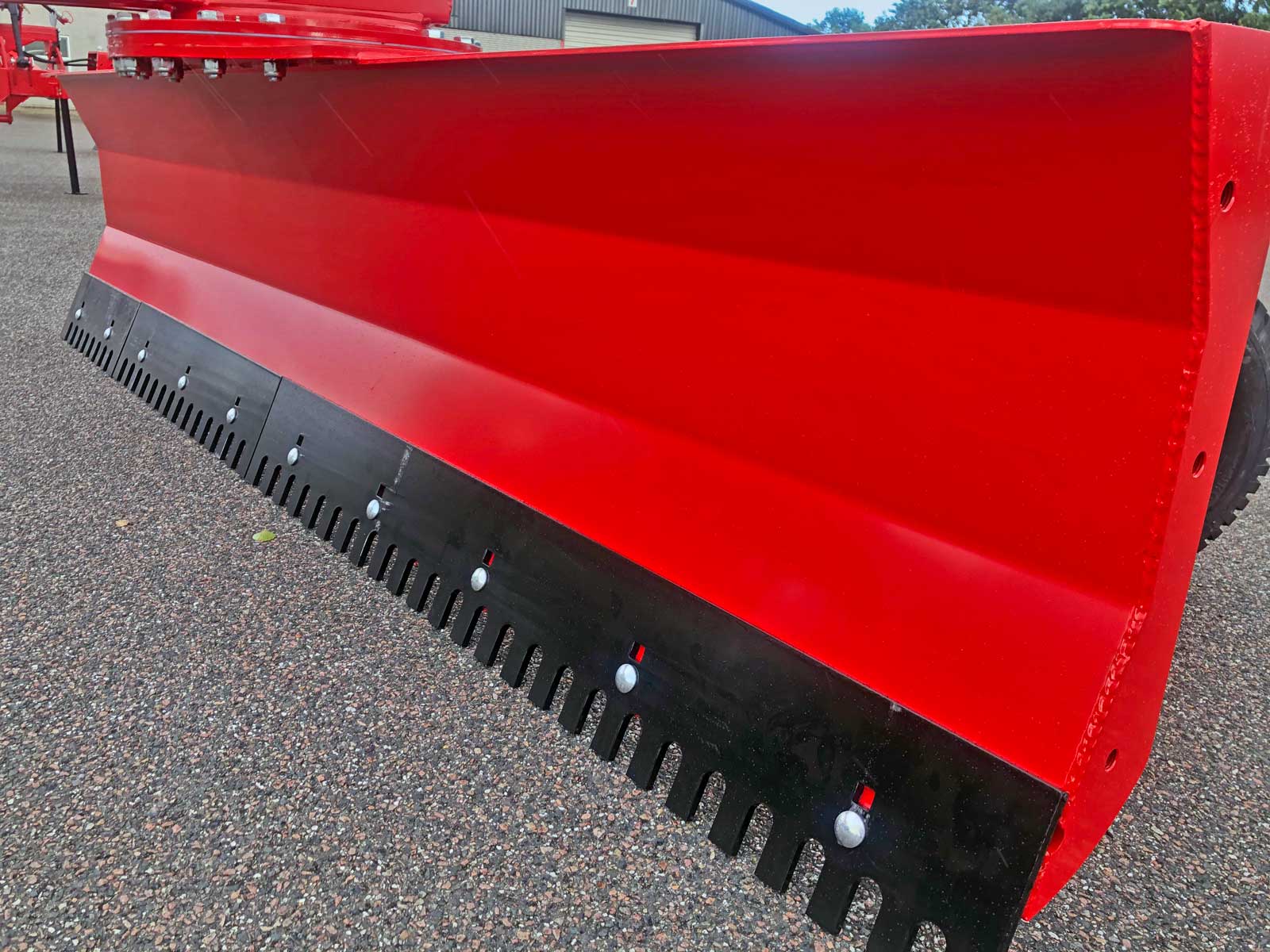

Wearing steel mounted

Reversible wear steel bolts on with 16mm steel bolts grade 12.9.
Button

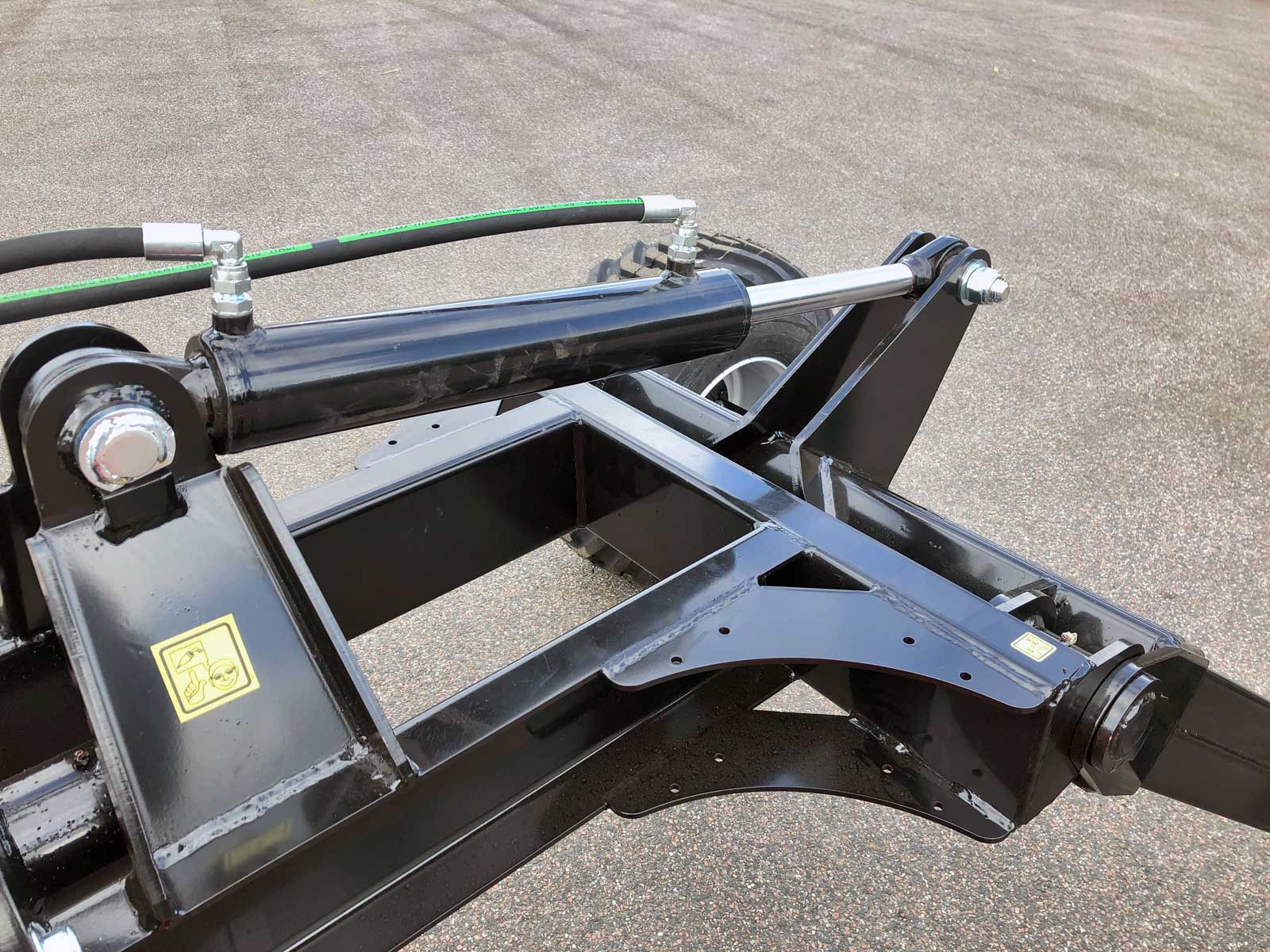

Cylinder for wheels

Hydraulic cylinder for height adjustment of the wheels provides stepless adjustment and quick changeover for transport.
Button

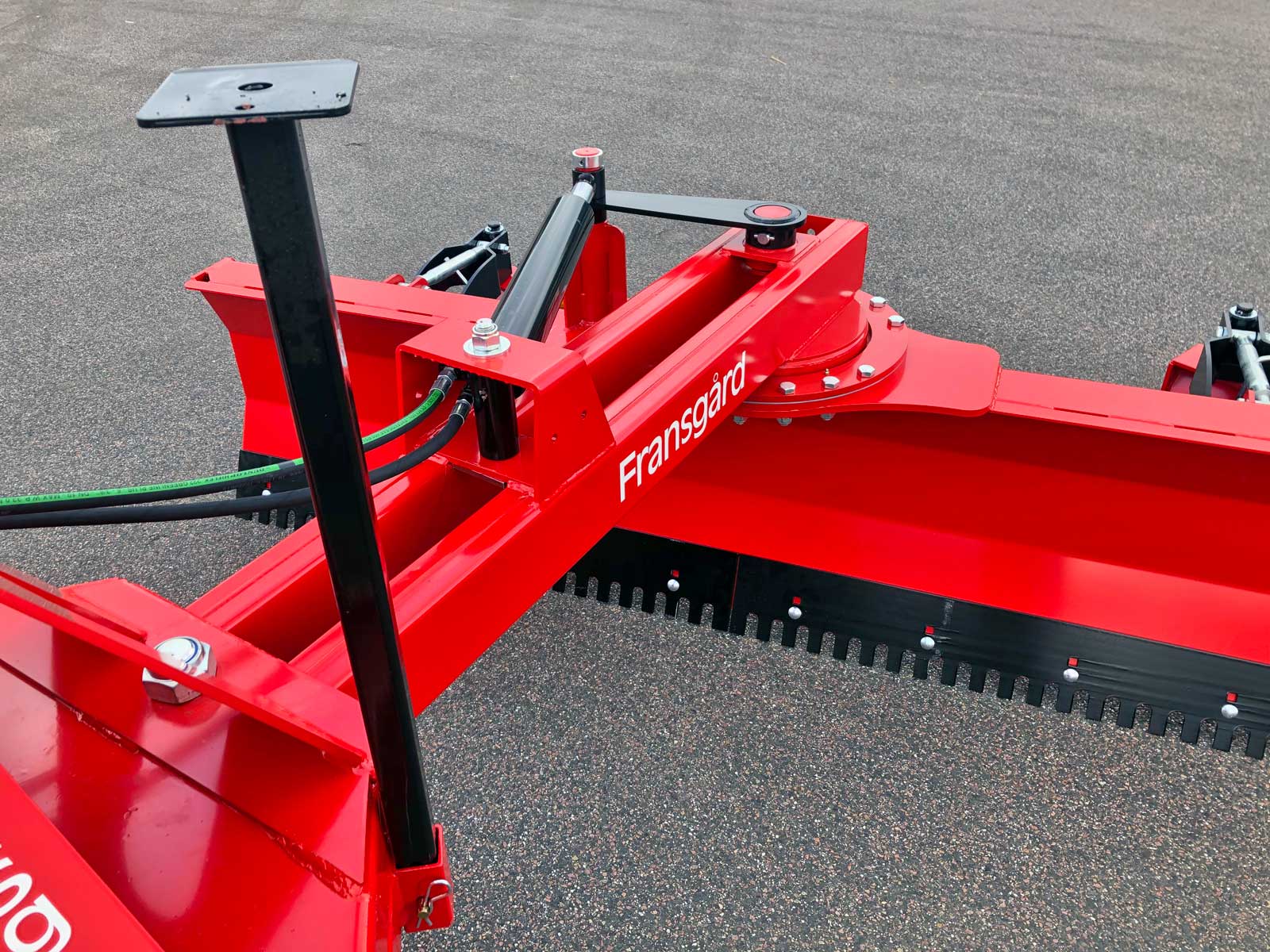

Support legs

Support legs are easily placed in the holder, so you always have them with you when you need to park the leveller again.
Button

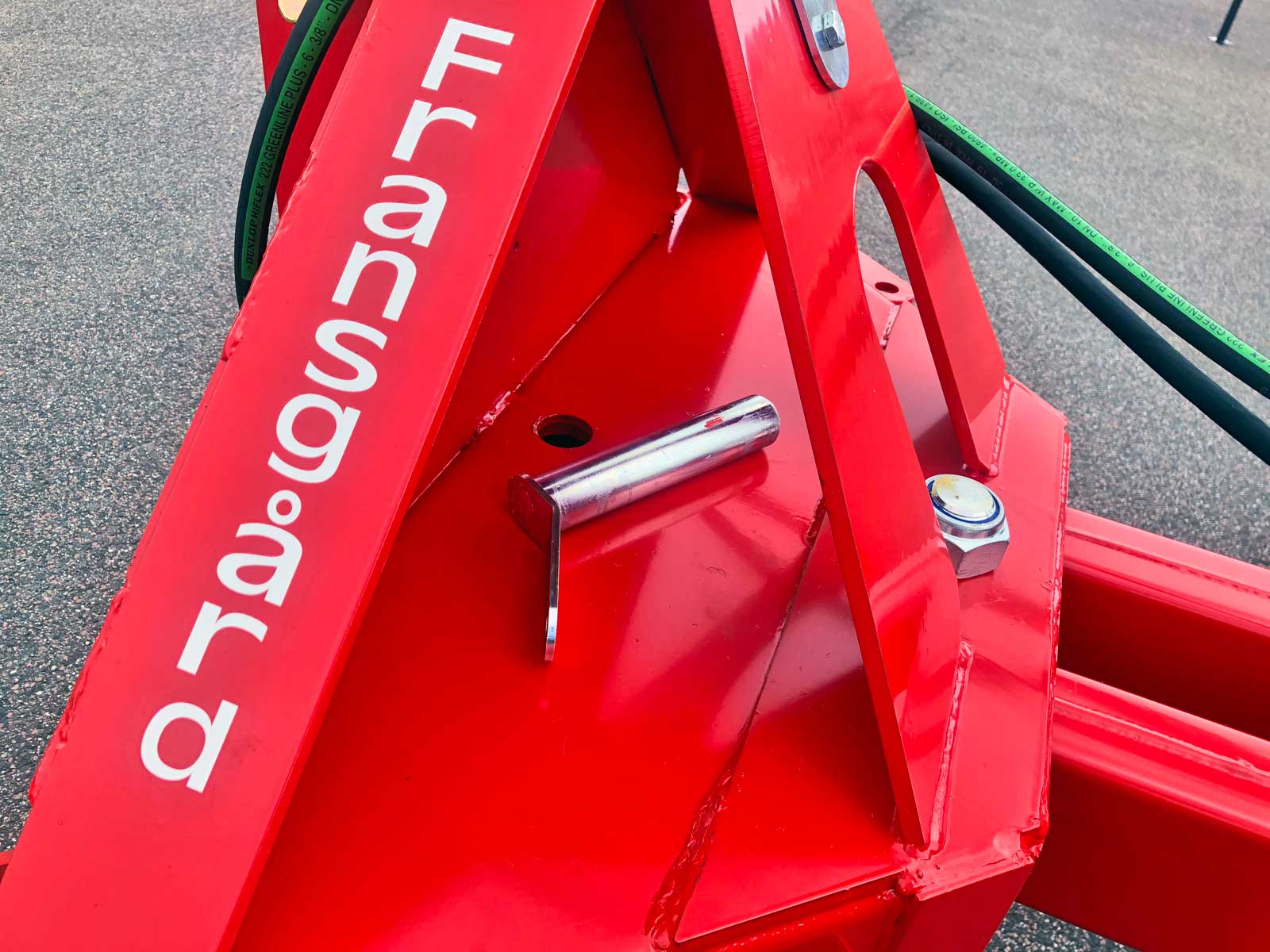

Bolt for offset adjustment

The leveller can be mechanically offset adjusted to the right or left side.
The locking bolt is mounted without using tools. All locking bolts are galvanised.
Button
Main axle boom

The blade and the hydraulic cylinder on the boom are assembled with a strong 75 mm main bolt.
Button

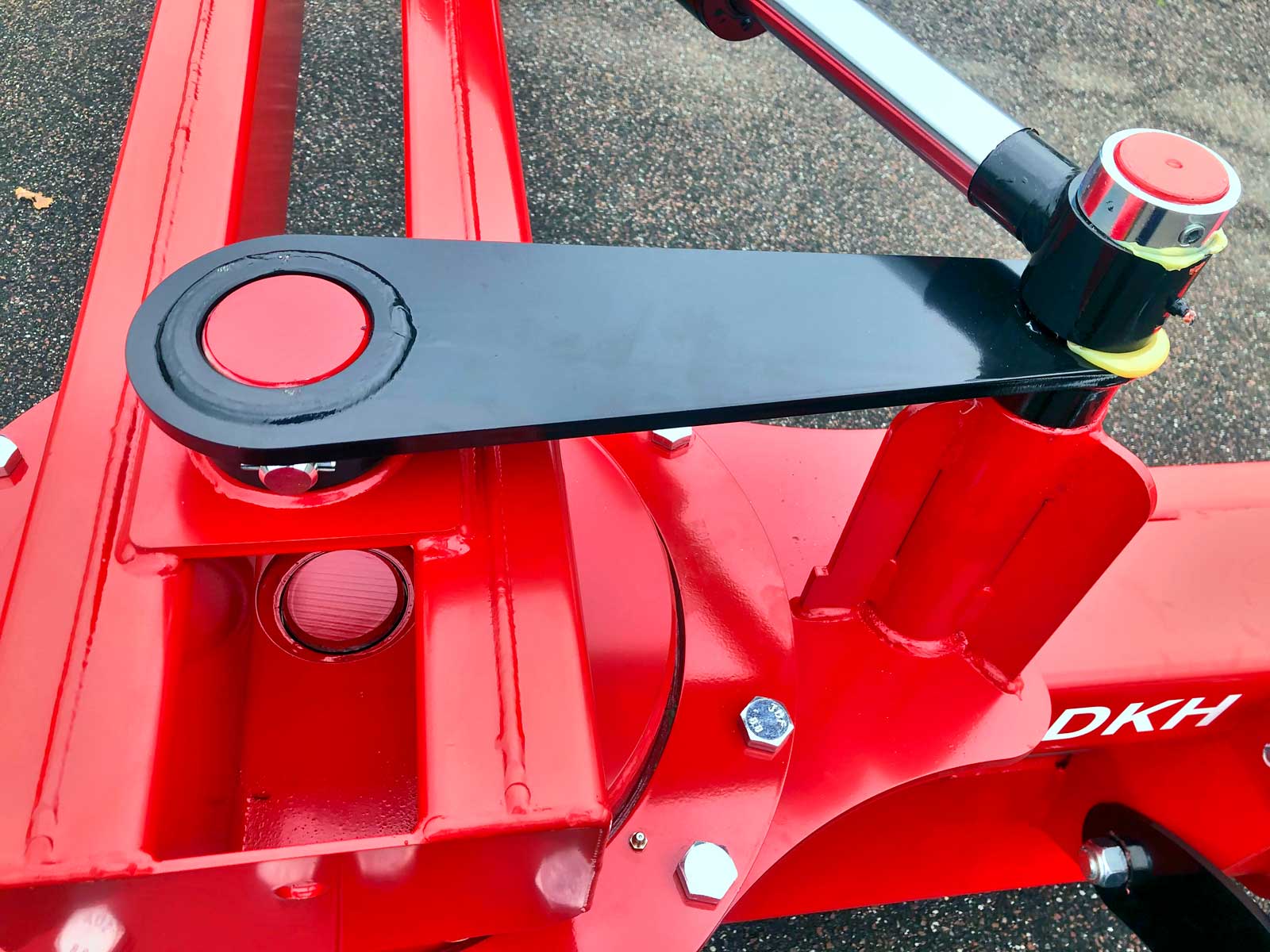

Turntable

The heavy-duty turntable on the blade is bolted together and has a replaceable PETP plastic wear disc and lubrication nipples to avoid wear in the turntable.
Button

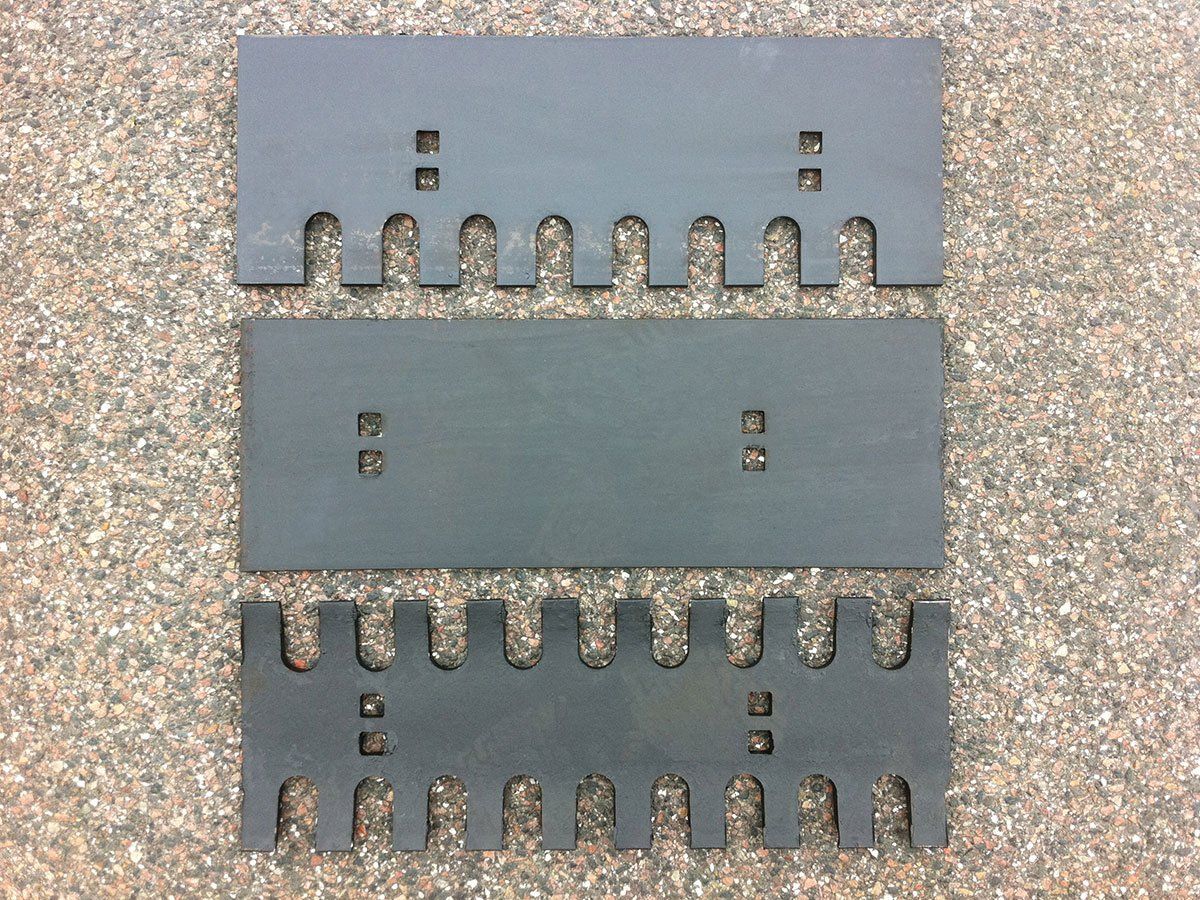

Wearing steel all

The leveller is fitted as standard with reversible smooth/toothed wear steel. You can have your leveller delivered with a smooth or toothed wear steel at no extra cost if this is specified when ordering the leveller. The leveller can also be fitted later with one of the other types of wear steel.
Button

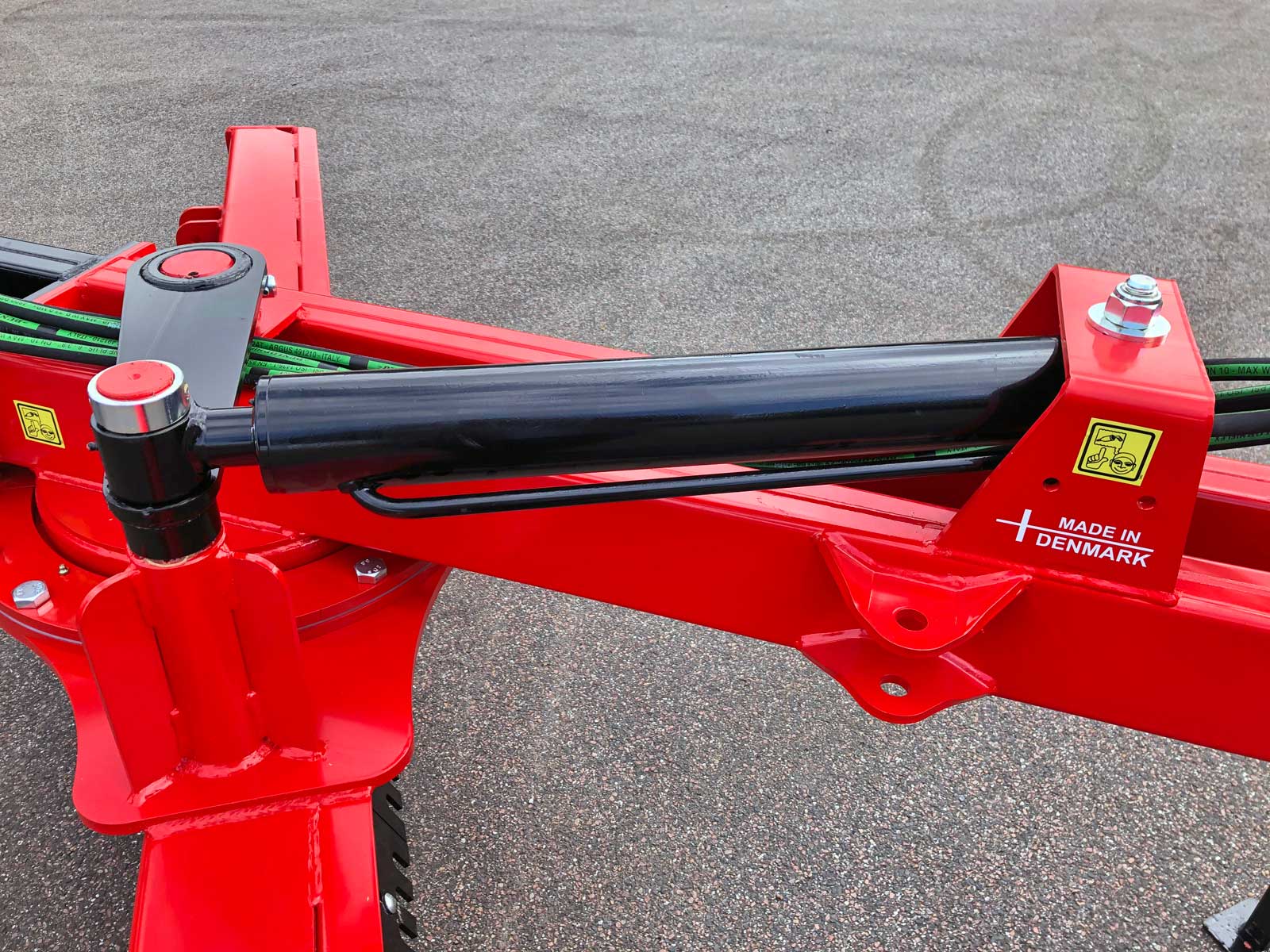

Blade cylinder

A strong blade cylinder with 45 mm stick ensures that the blade is kept stable.
The cylinder is well protected on top of the boom.
Button

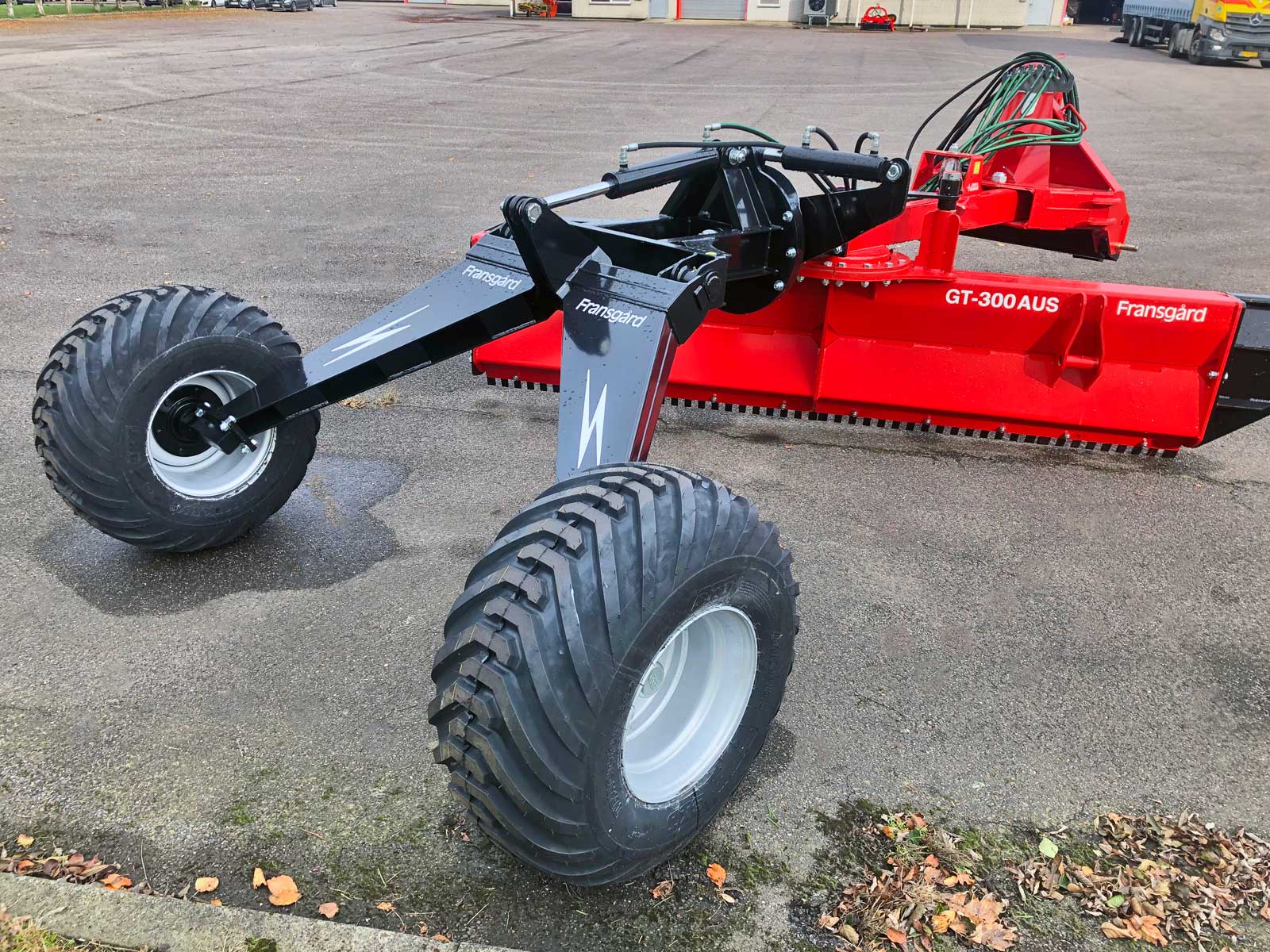

Wheels

Large wheels, 2 metres behind the blade, ensure a stable and smooth workflow.
Button

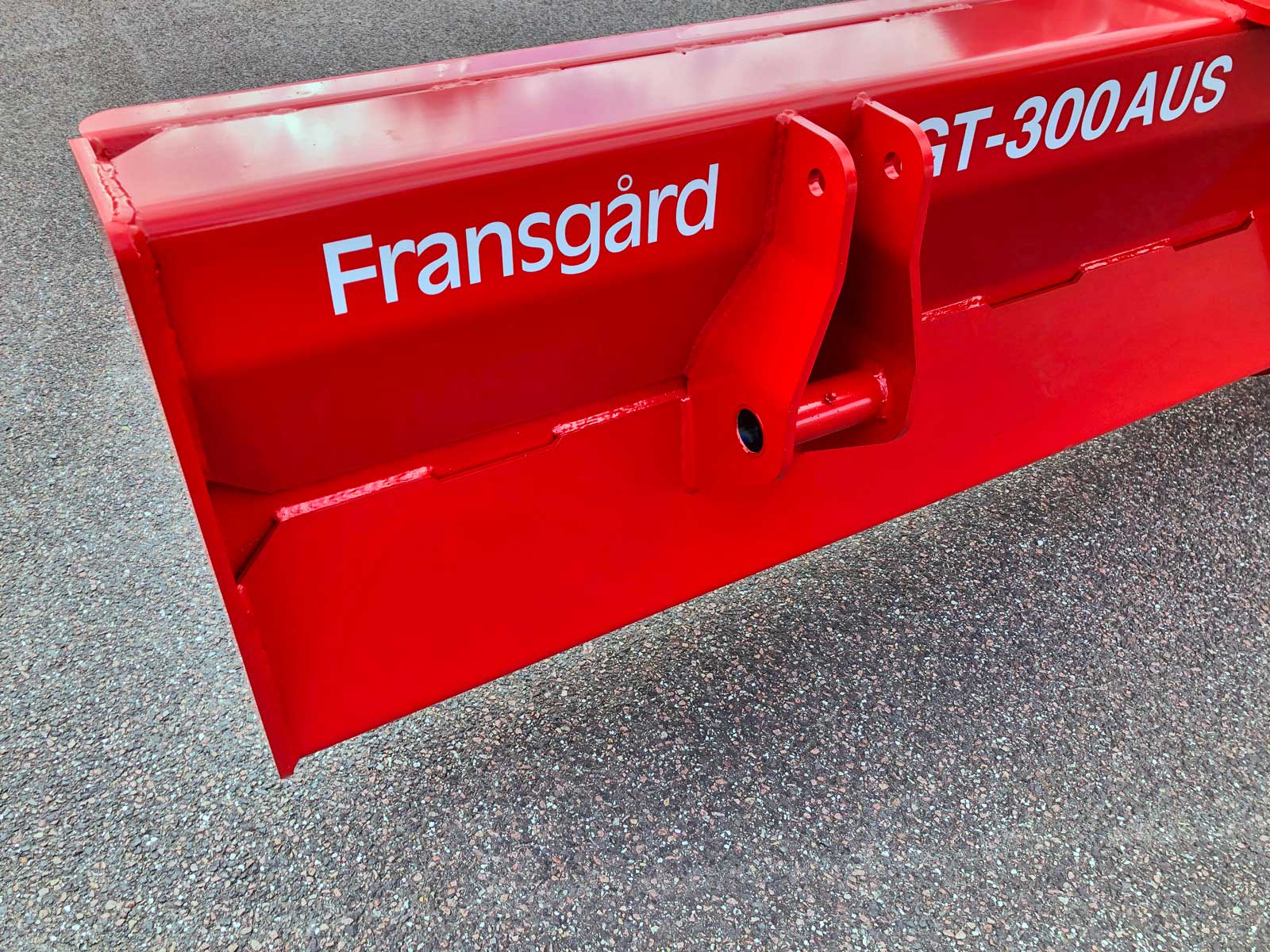

Wheel bracket on the blade

The blade of the GT-AUS is ready for mounting wheels if you want to convert the leveller to a 3-point mounted version.
Button

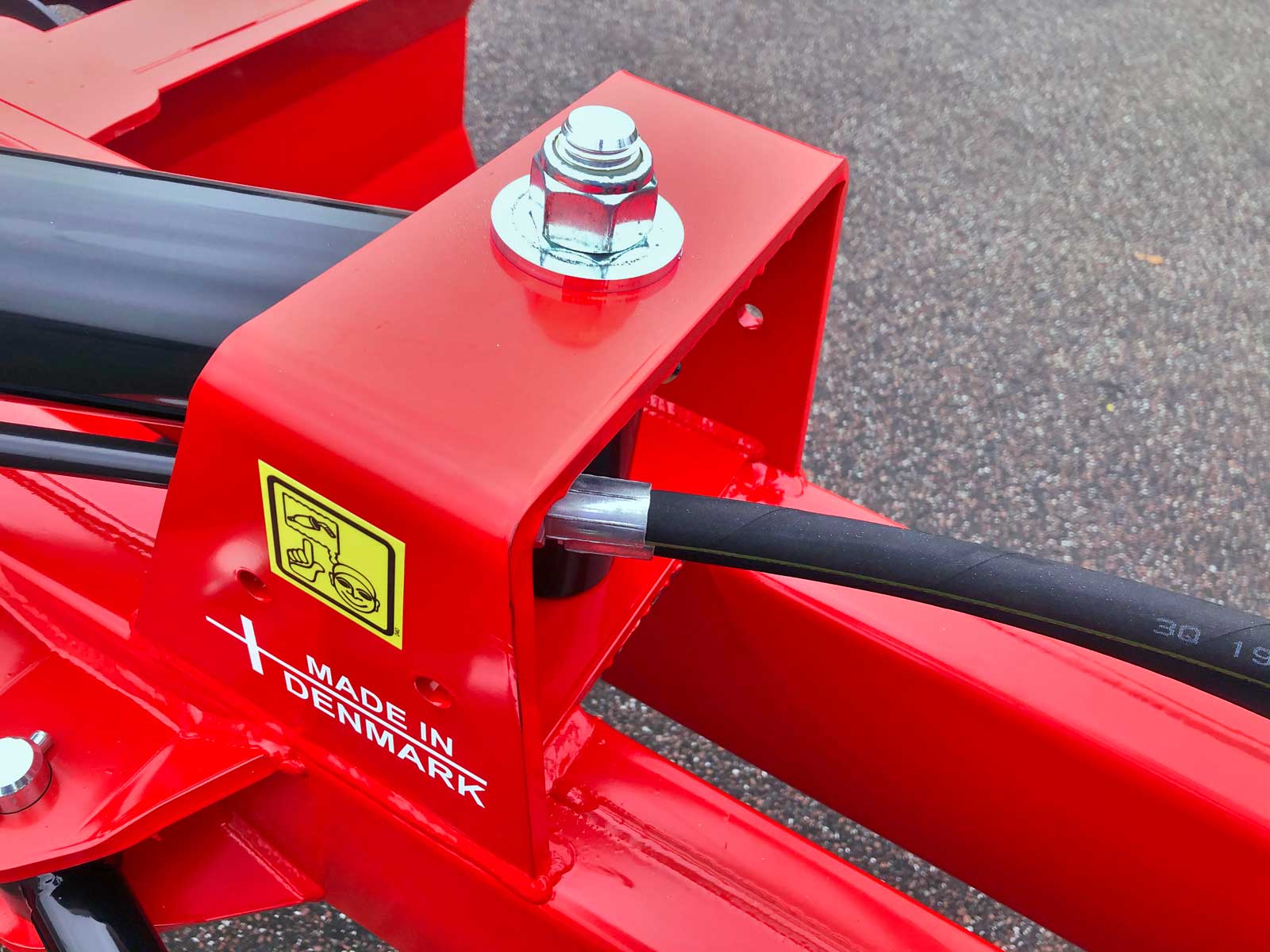

Cylinder attachment

Heavy duty cylinder hinge in special steel provides stable operation and long life.
Button

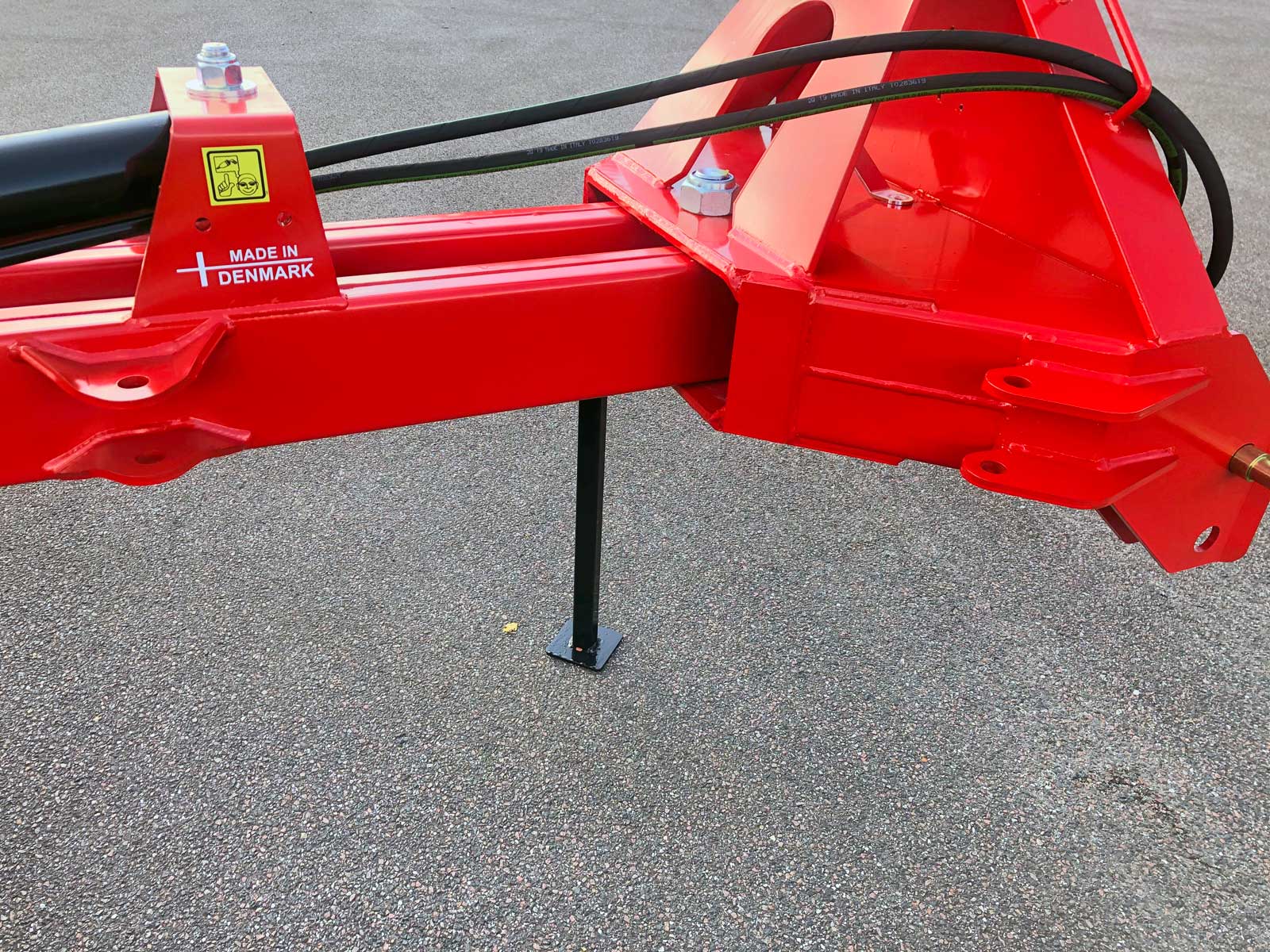

Fittings for Hydr. Offset adjustment

The leveller is prepared for the installation of hydraulic offset adjustment item no. 2528
Button

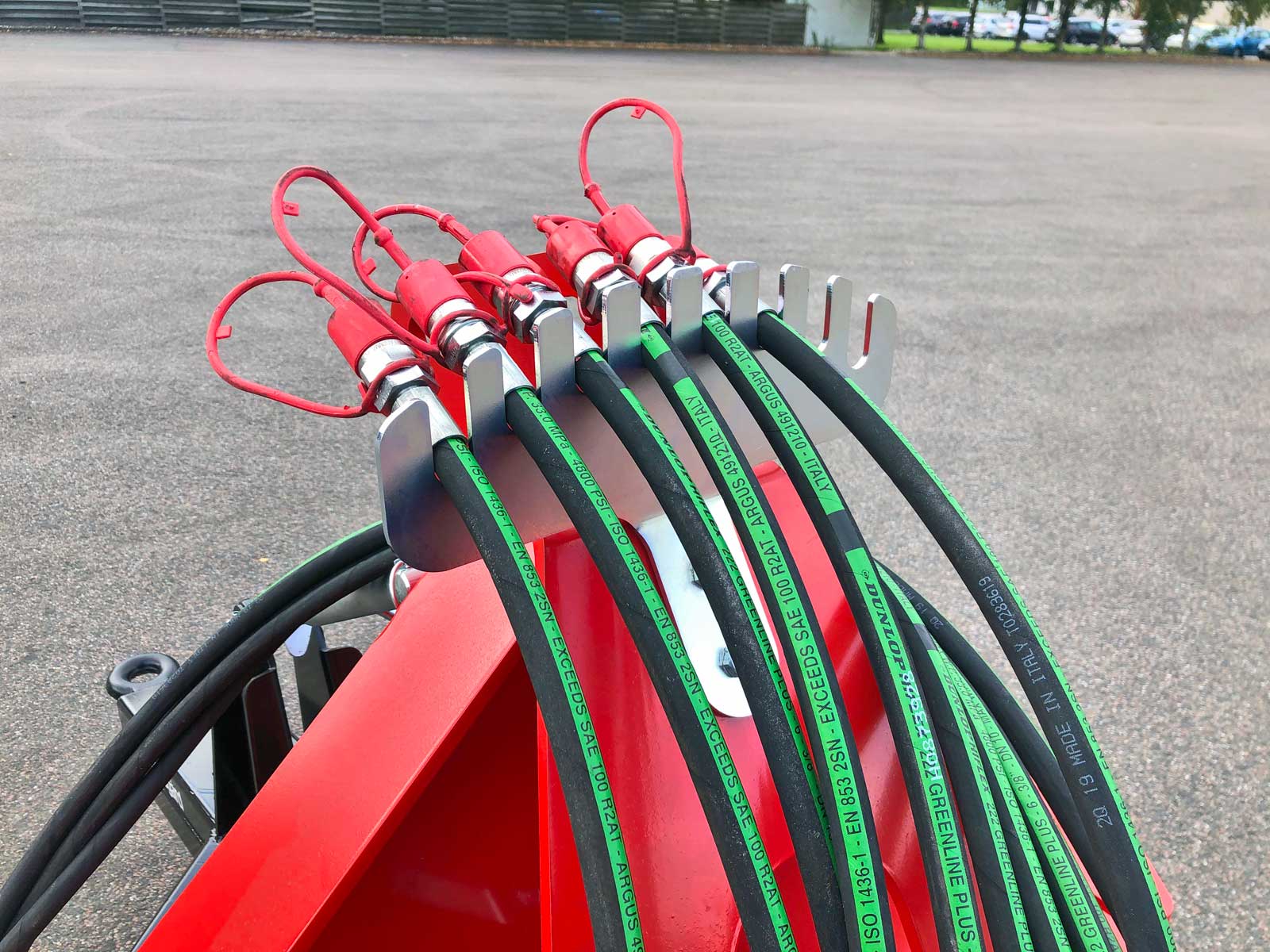

Hydraulic hose holder

The leveller is fitted with a holder for the hydraulic hoses as standard.
Button

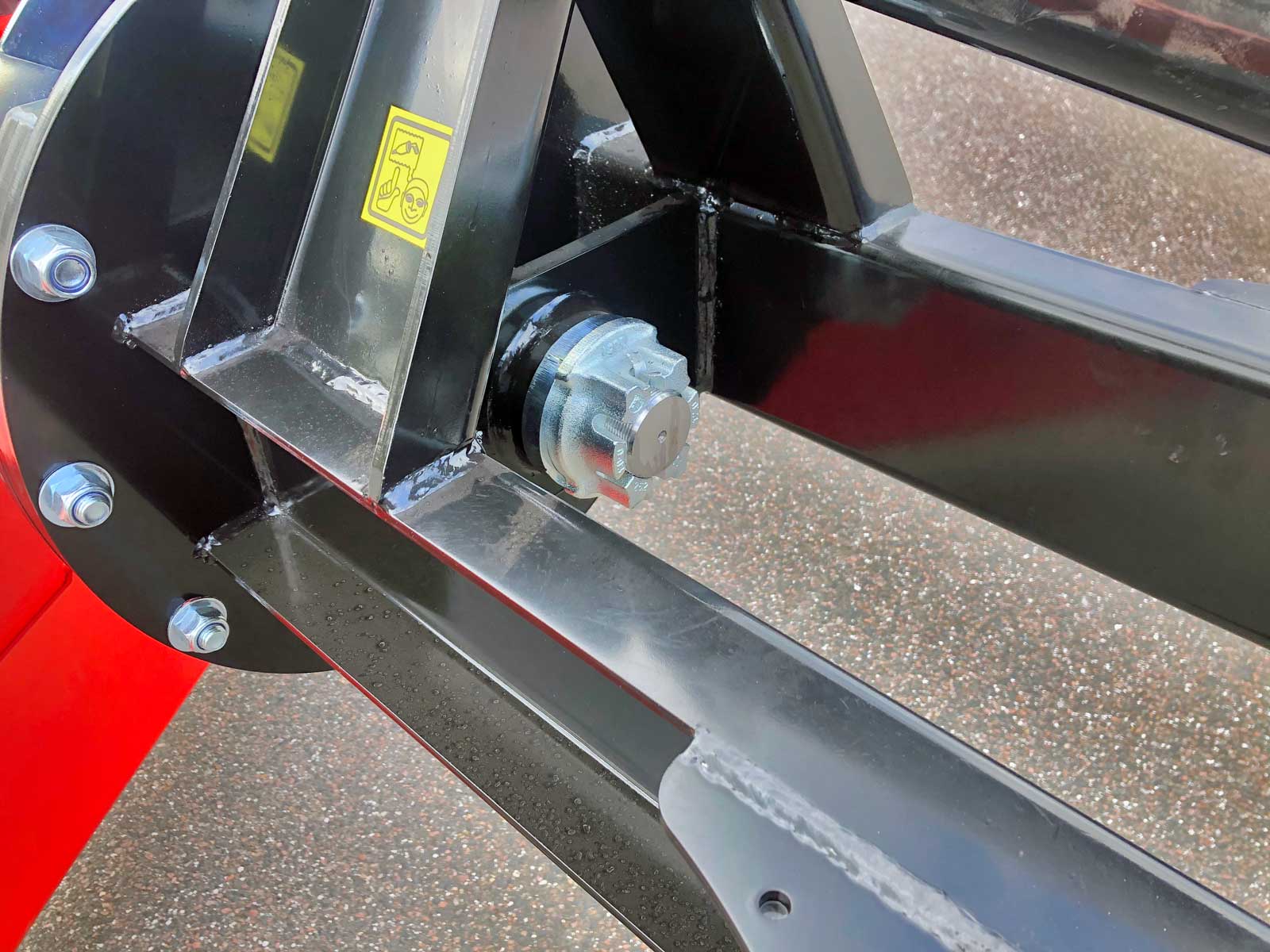

Main bolt, wheel bracket

The wheel set of the GT-AUS revolves around a heavy-duty main axle made of special steel.
Button

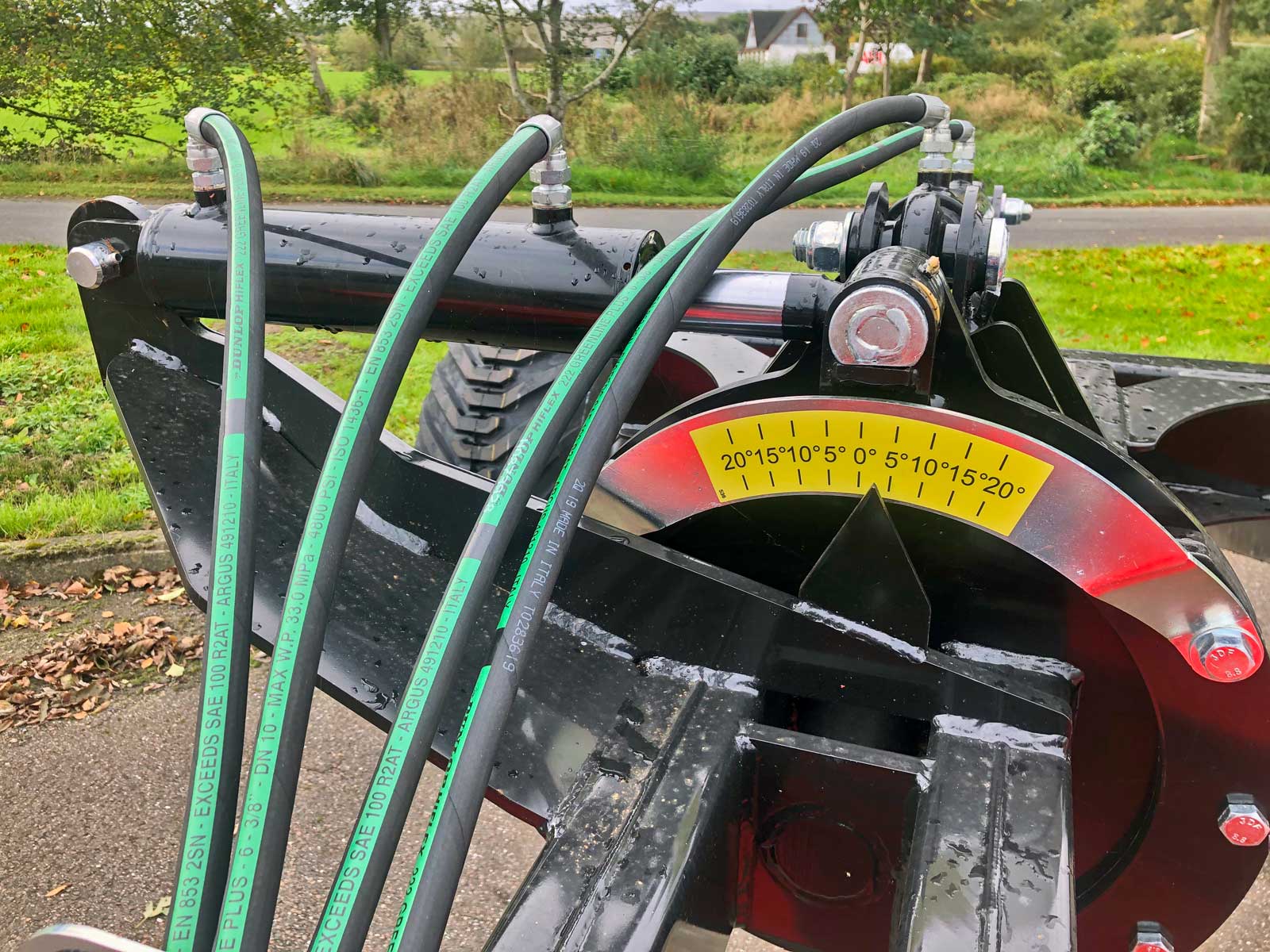

Degreemeter

The leveller is fitted with a degreemeter, which is clearly visible from inside the tractor.
Button
As GT-DK

The towbar and wheel set can be removed and the leveller can be used as a 3-point suspension attachment. The wheel set is an optional extra, item no. 26622complete.
Button

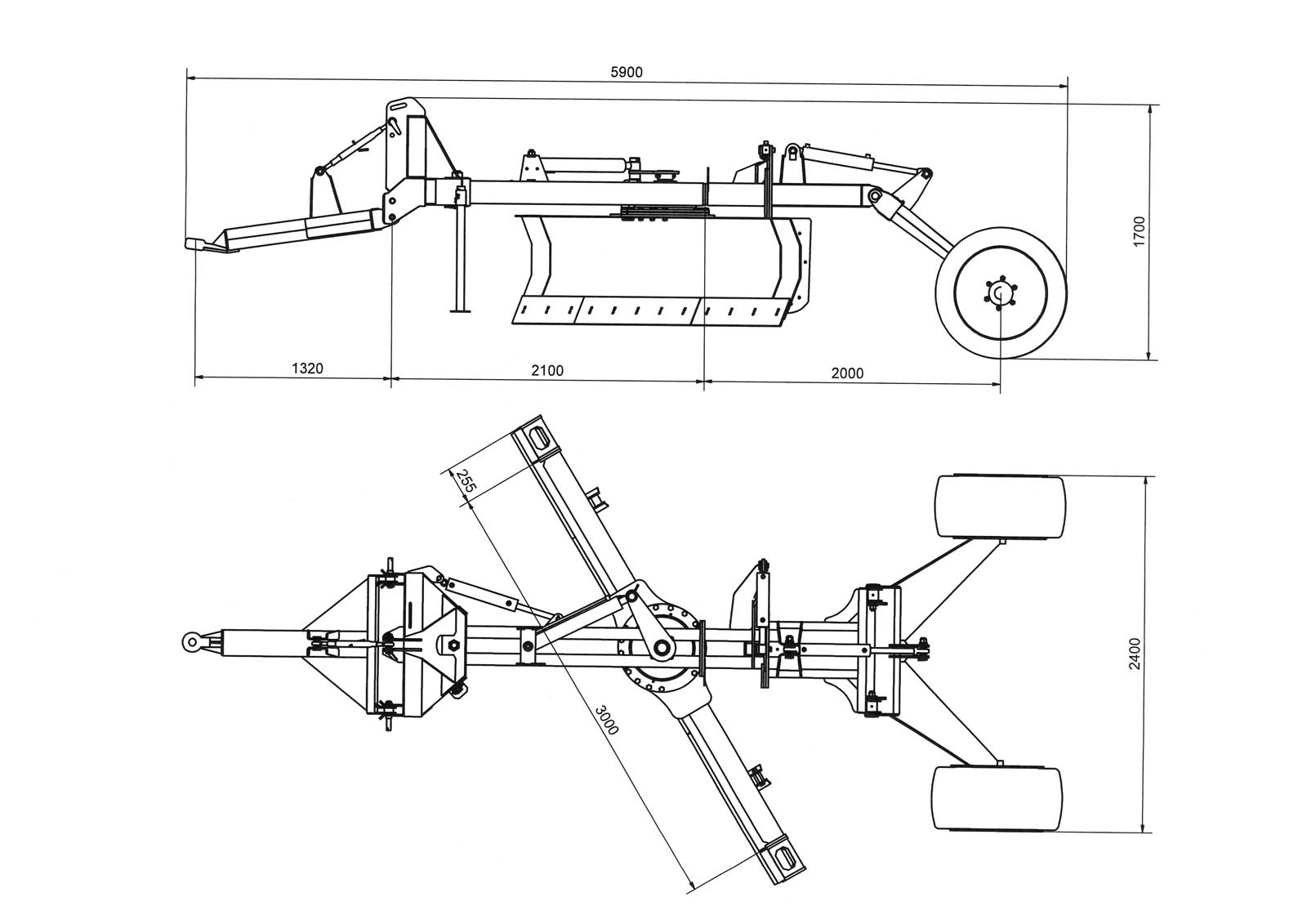

Dimension sketch

Dimension sketch of the GT-AUS towed leveller.
Button

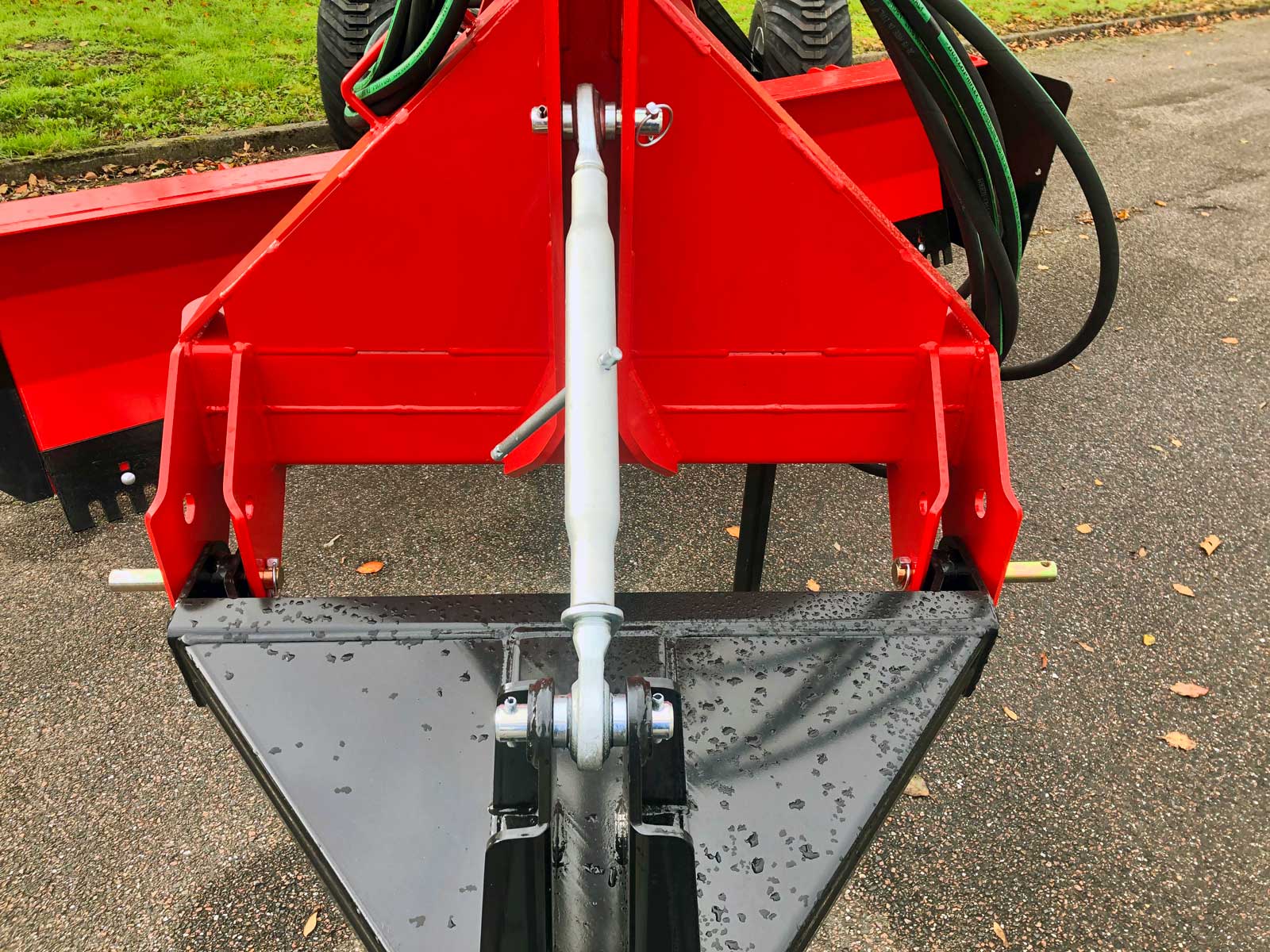

Towbar mounted

The towbar on the GT-AUS is fitted with lifting bolts for quick removal.
Button

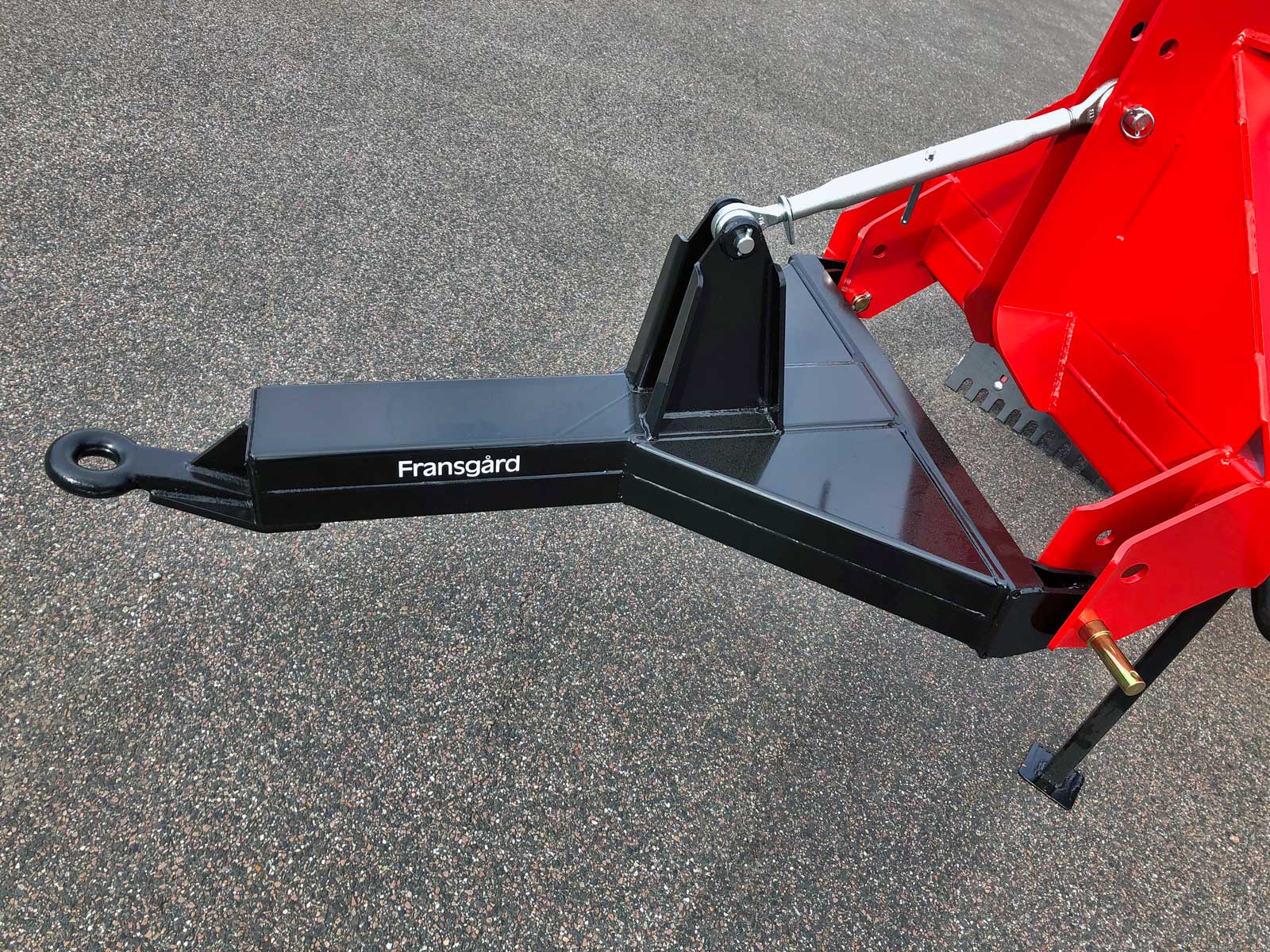

Towbar

The towbar is stepless adjustable in height via a spindle and has a standard 50 mm towing eye.
Button

Optional extras

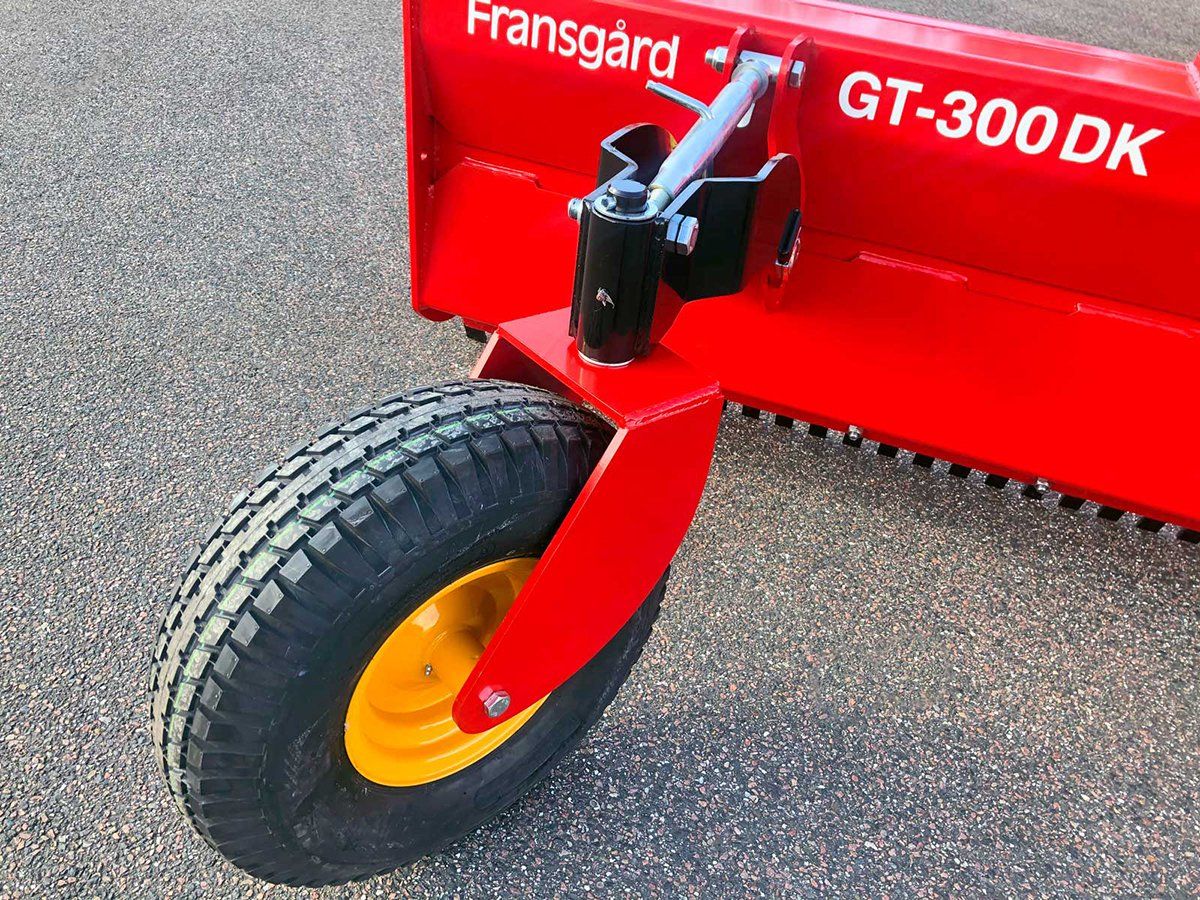

Item No. 26622 complete

Wheel set complete with spindle and rotatable 360 degrees. Can be fitted if you want to use the leveller as a 3-point suspension solution.
Button

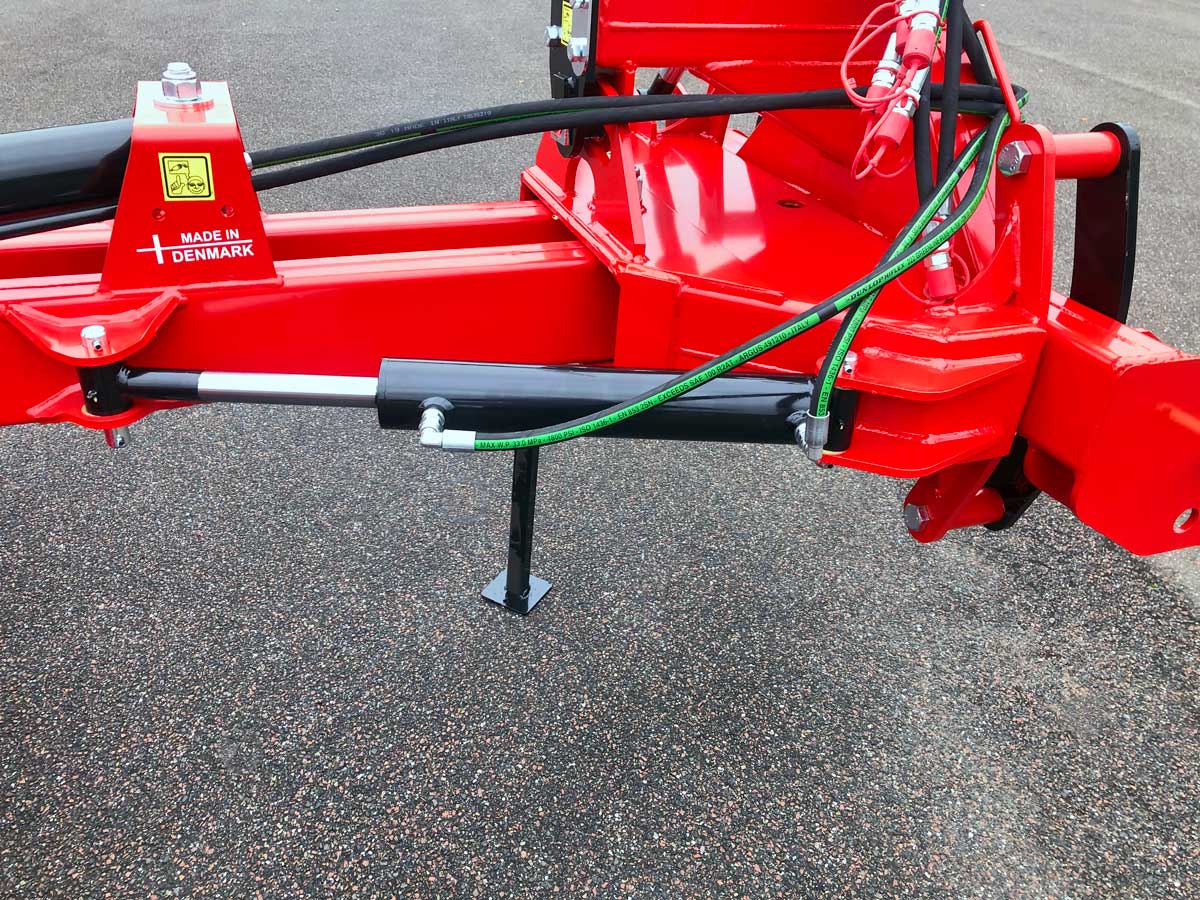

Item No. 2528

Hydraulic offset adjustment can shift the blade up to 55 cm to the right or left side, so you don't have to drive with the tractor wheel in the ditch, for example. The hydraulic cylinder allows the blade to have offset adjustment exactly to the required distance if space is at a premium.
Button

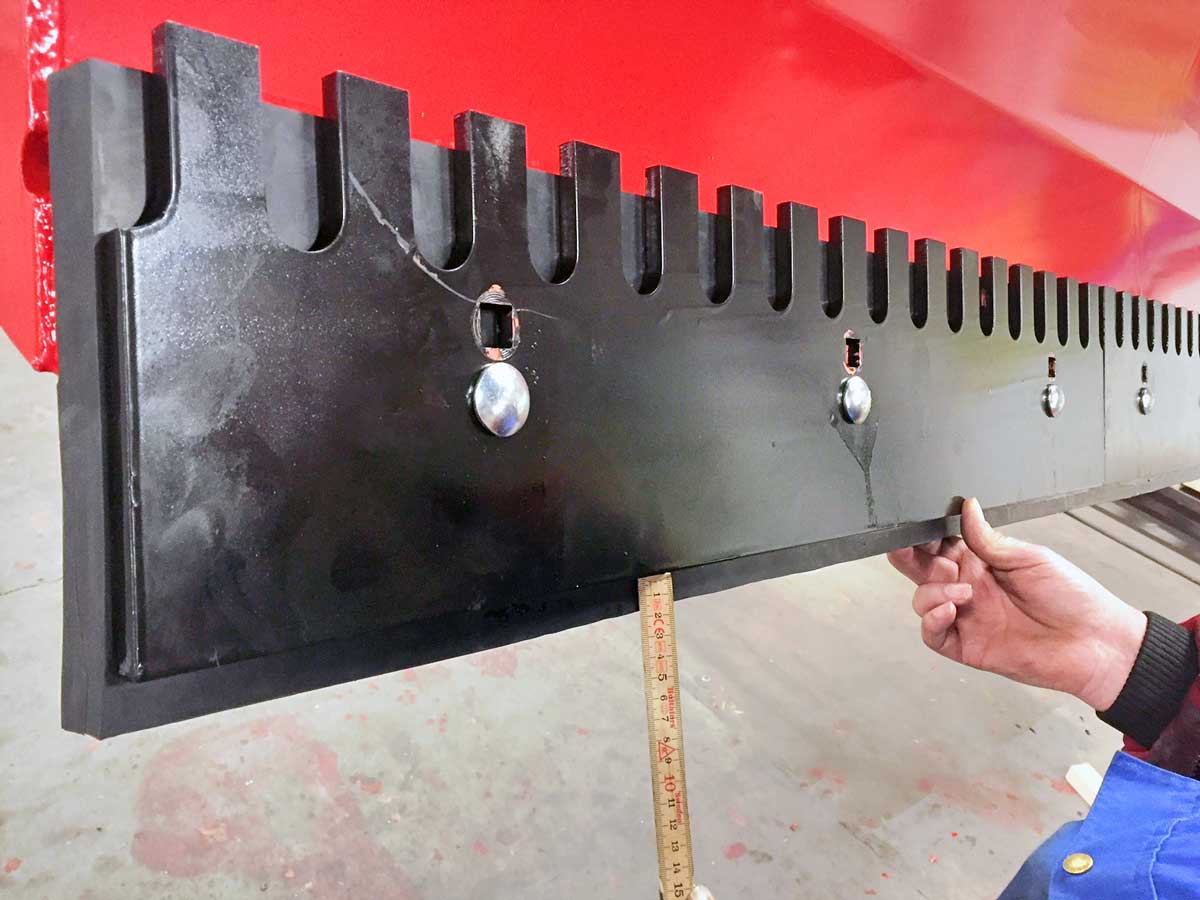

Item No. 2517-2520

Rubber blade for mounting on all Fransgård models of levellers. The rubber blade is mounted behind the existing wear steel, which acts as a backstop on the rubber blade, it should be mounted 2-3 cm lower than the wear steel and can be continuously moved downwards as it wears down. You drill the holes in the rubber blade yourself and mount it with the bolts provided.
Button

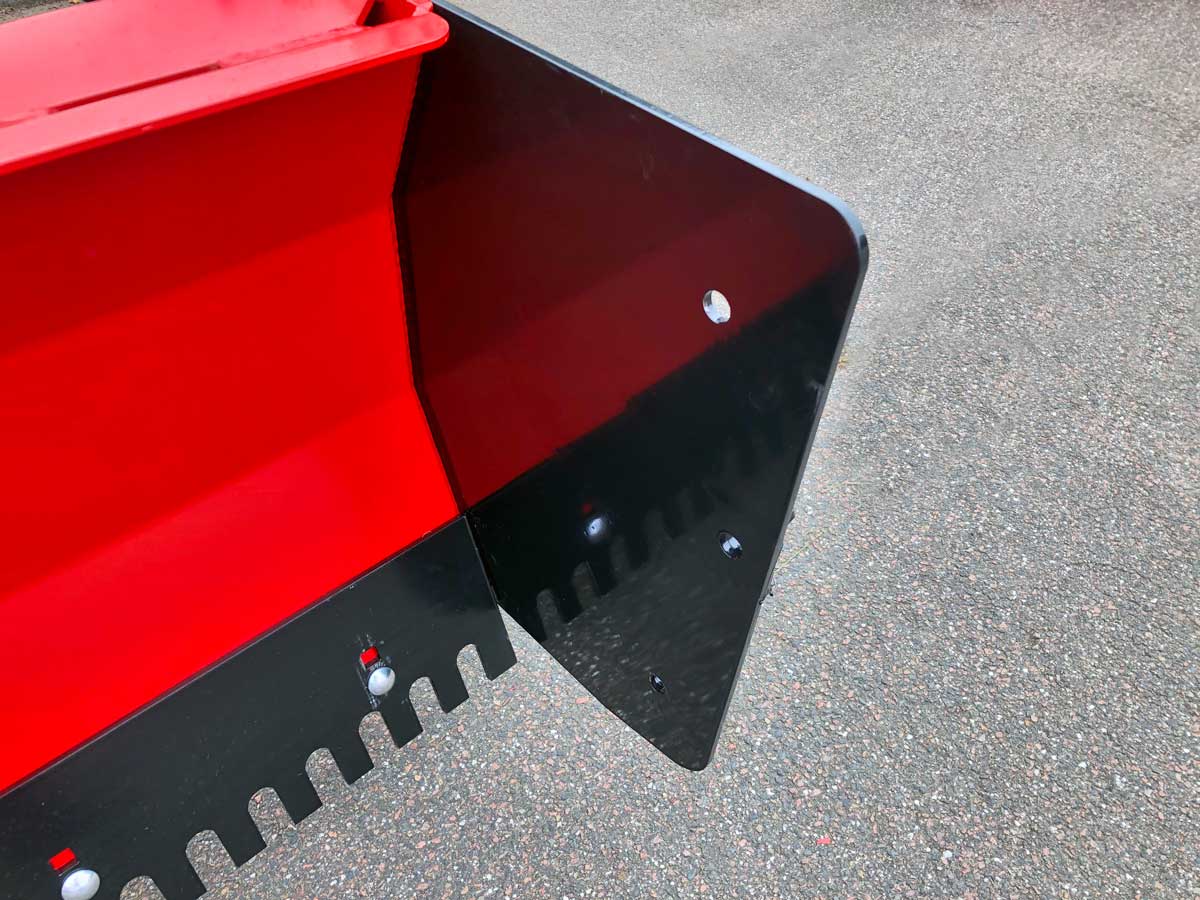

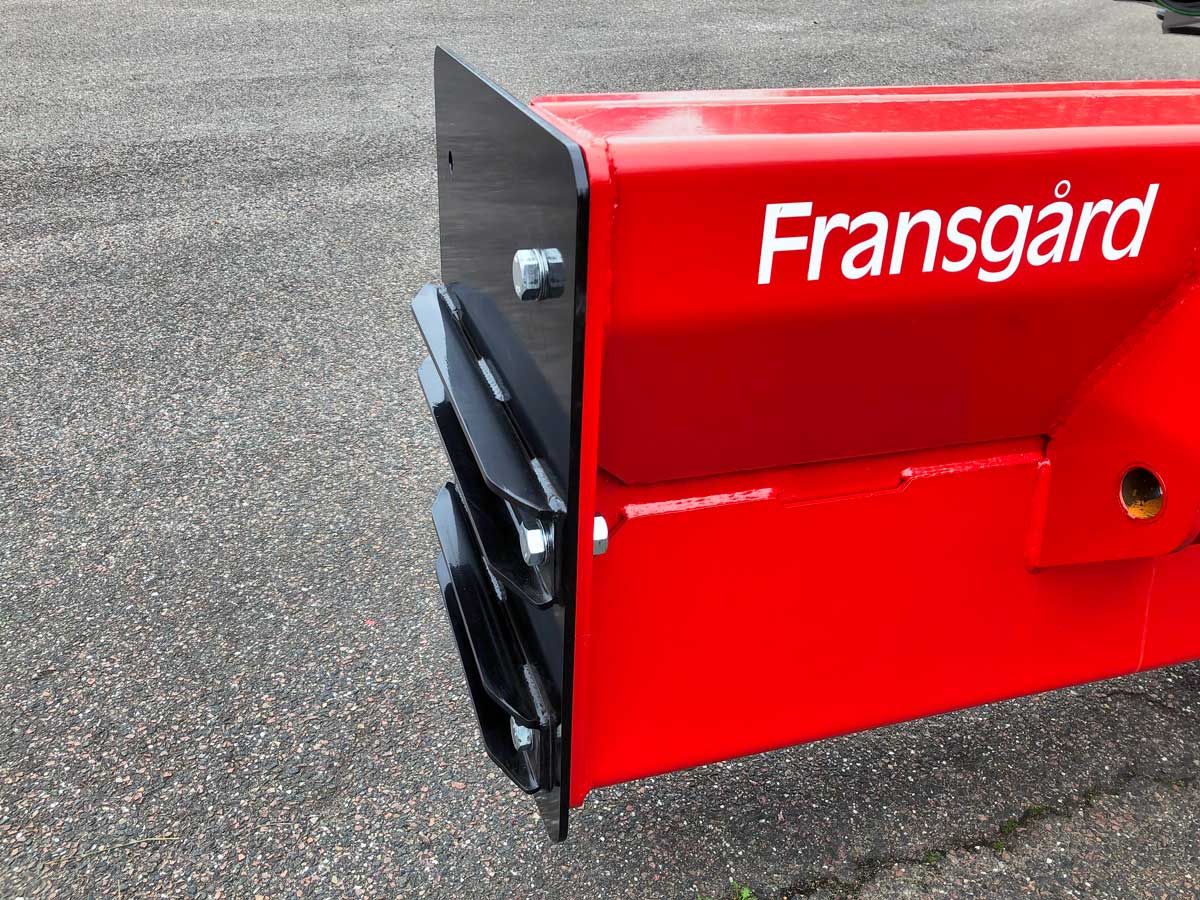

Item No. 2530

Side flap to hold the material. Can be mounted on both the right and left side.
Button
Item No. 2530

All Fransgård's newer levellers are ready for mounting side flaps and are easily mounted with the 3 bolts provided.
Button

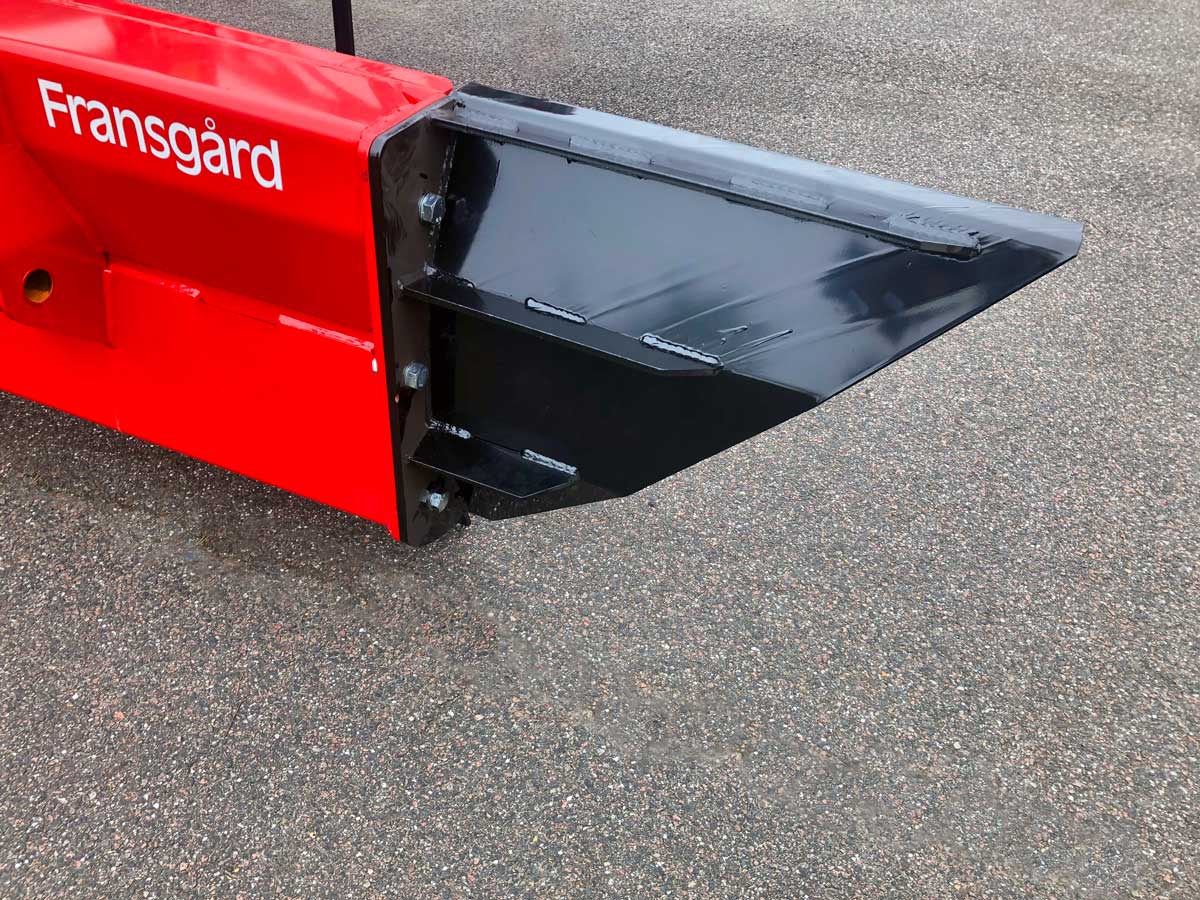

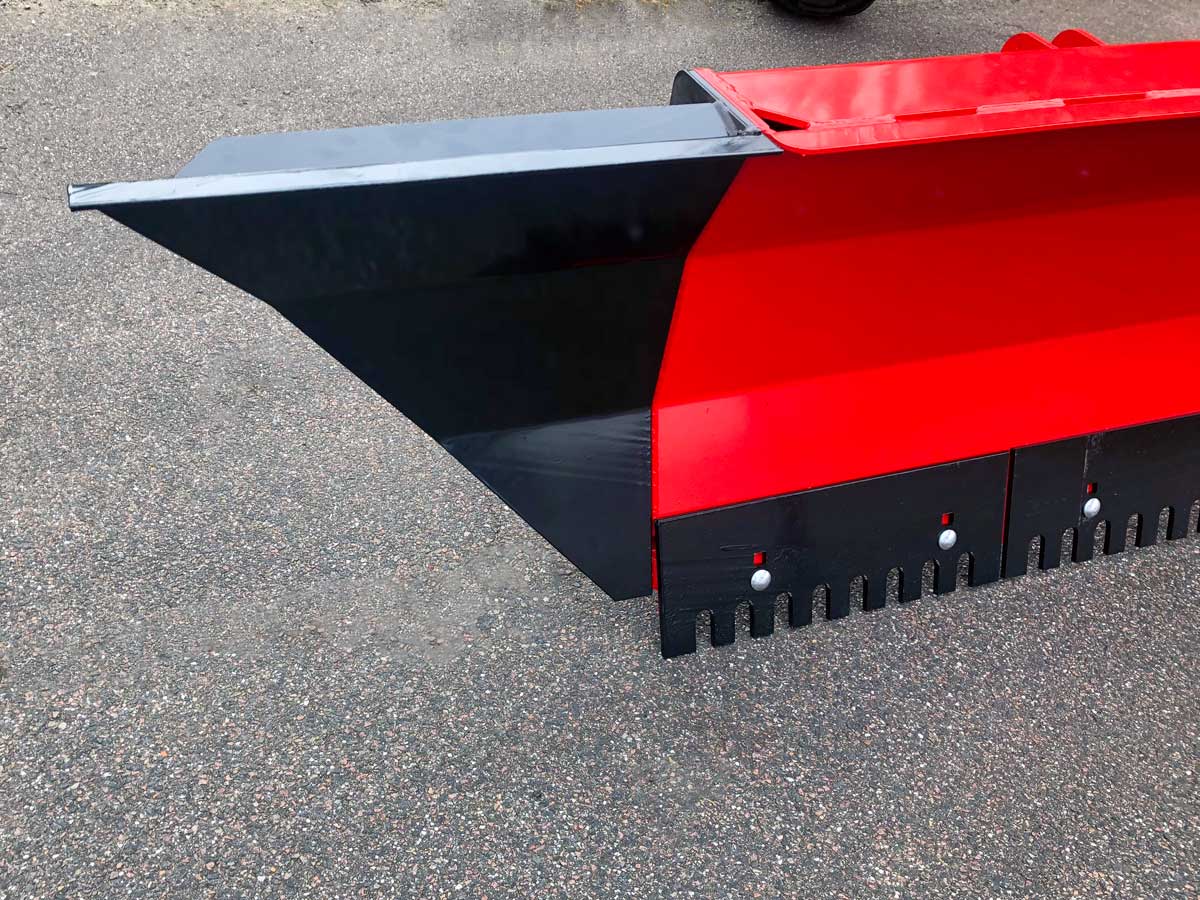

Item No. 2546

Snow blade for the right side, cut the snow edge diagonally so that it does not collapse and in behind the tractor where you have just driven.
Button
Item No. 2546

All Fransgård's newer levellers are ready for mounting snow blades and are easily mounted with the 3 bolts provided.
Button

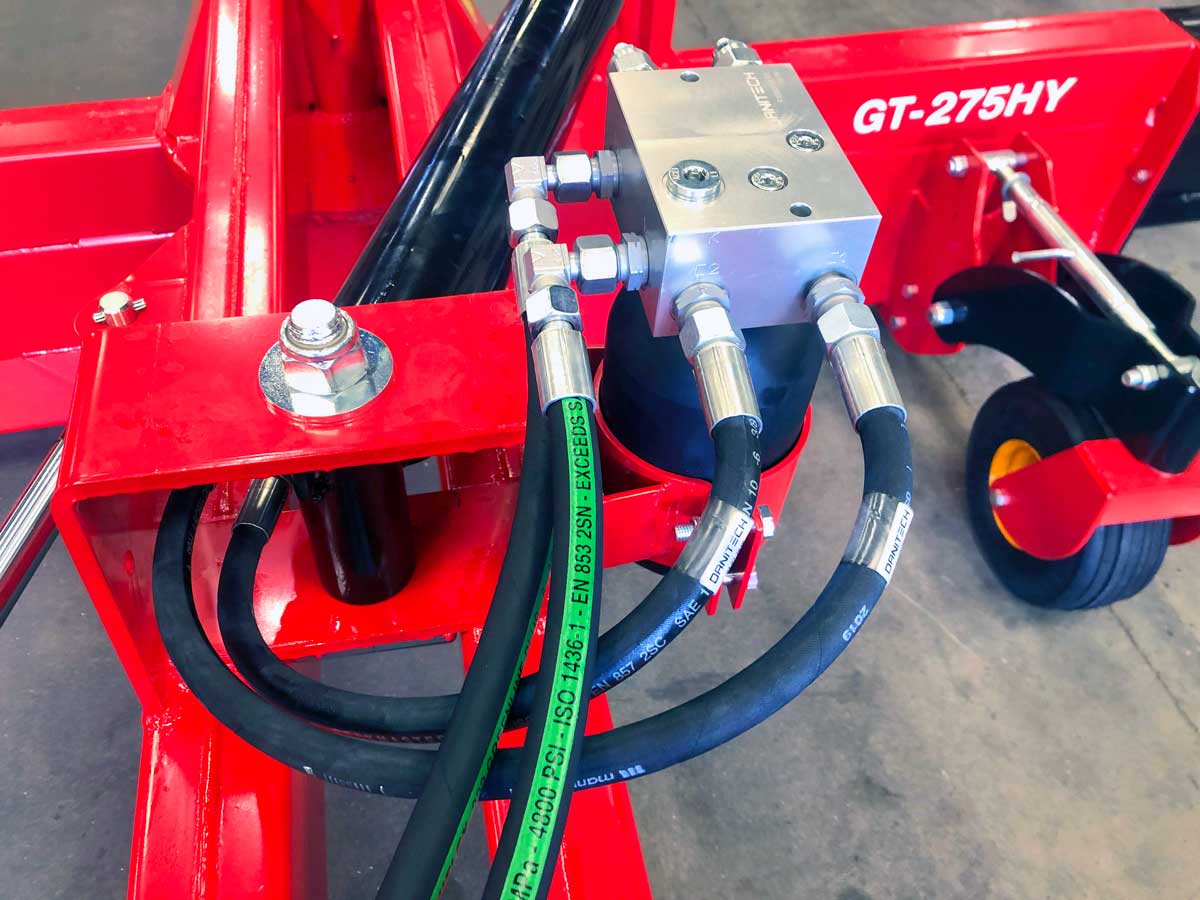

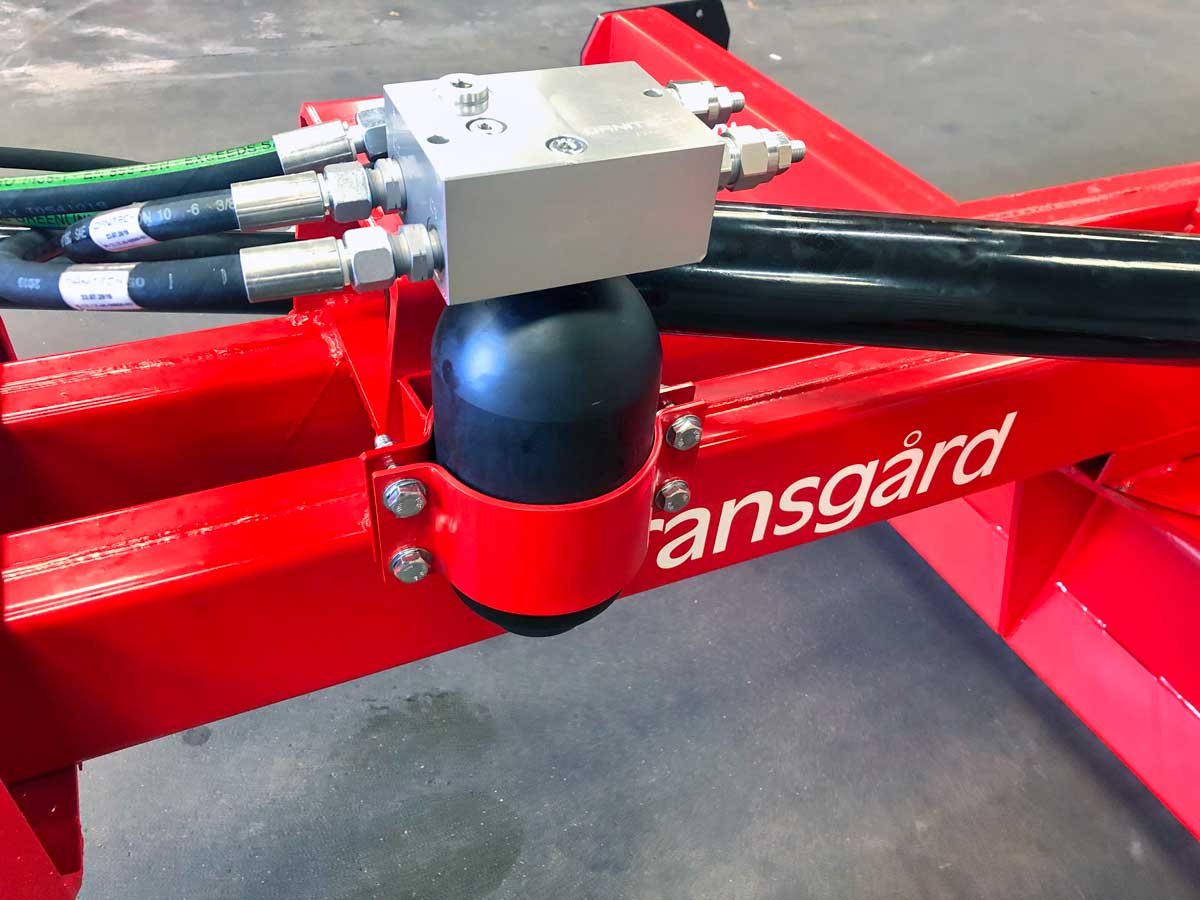

Item No. 2543

Shock valve with an accumulator for mounting on the blade cylinder of all Fransgård hydraulic levellers.
Button
Item No. 2543

The shock valve will relieve the cylinder and the leveller when hitting objects and minor impacts, in both the right and left side of the blade. Supplied as a complete set with assembly instructions.
Button

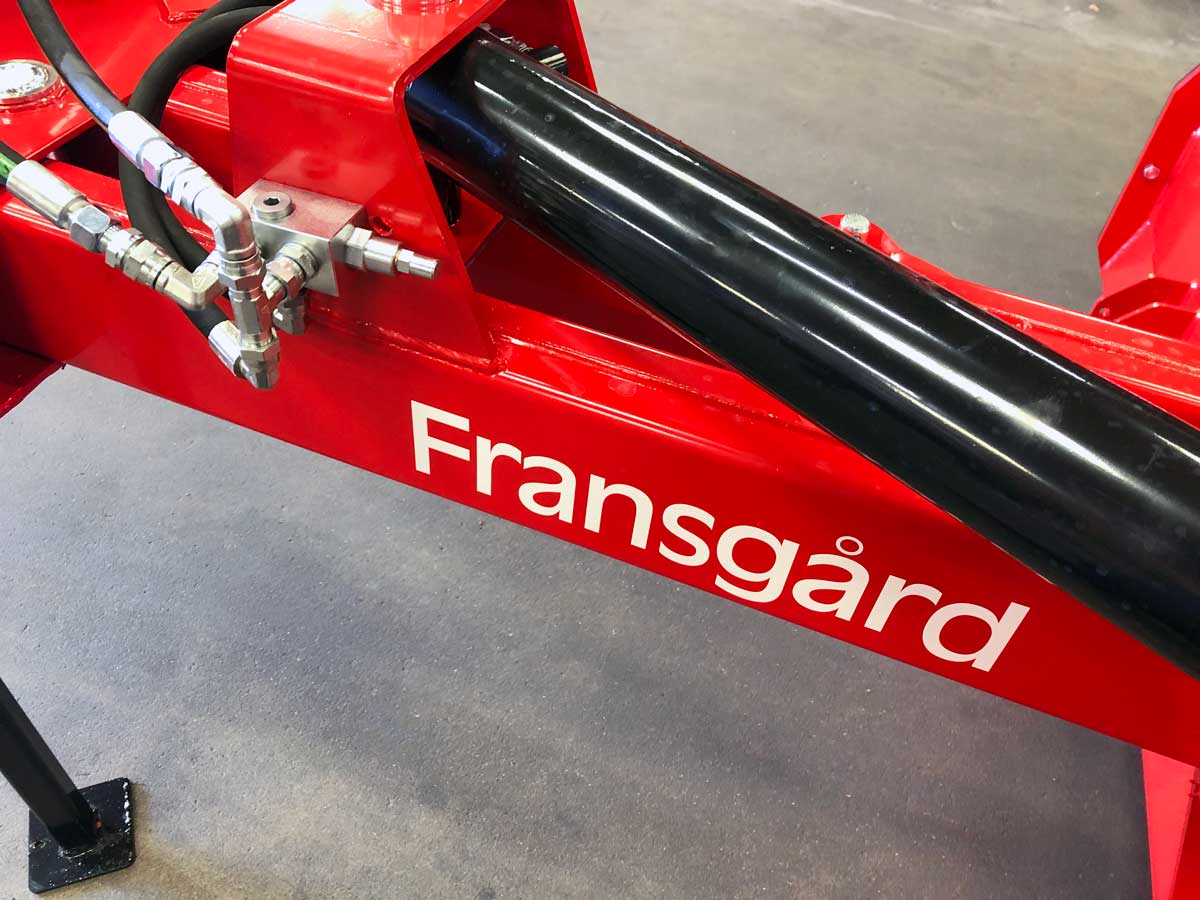

Item No. 2544

Shock valve for mounting on the blade cylinder of all Fransgård hydraulic levellers.
The shock valve will relieve the cylinder and the leveller when hitting objects and minor impacts, in both the right and left side of the blade. Supplied as a complete set with assembly instructions.

Button
Item No. 2550

Extension set 2 x 25 cm for the blade incl. wear steel.
Button
Item No. 2550

It is bolted to the blade, after which the total width of the blade is 350 cm.
Button

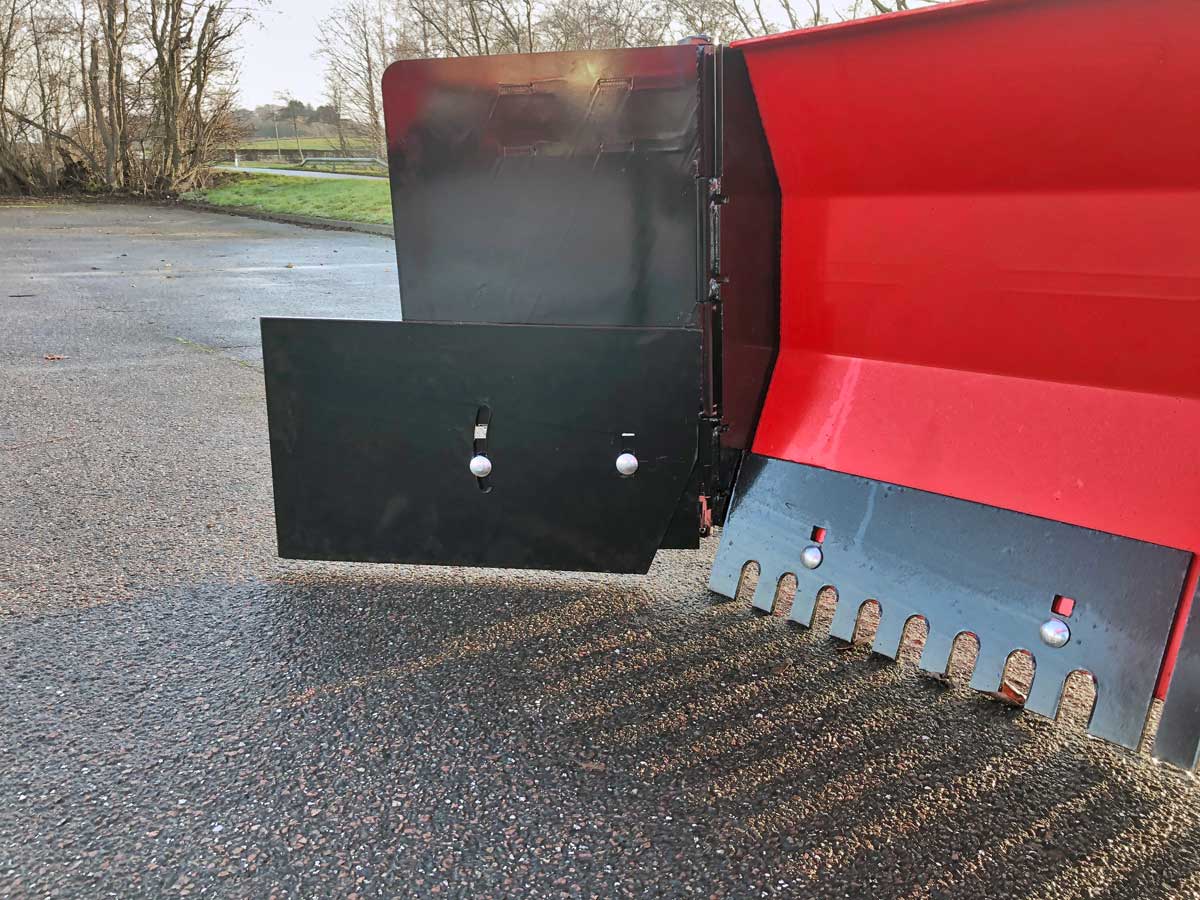

Item No. 2549

Adjustable side flap with mechanical adjustment so the side plate is always perpendicular to the direction of travel.
Button
Item No. 2549

The side flap has adjustable wear steel.
Button

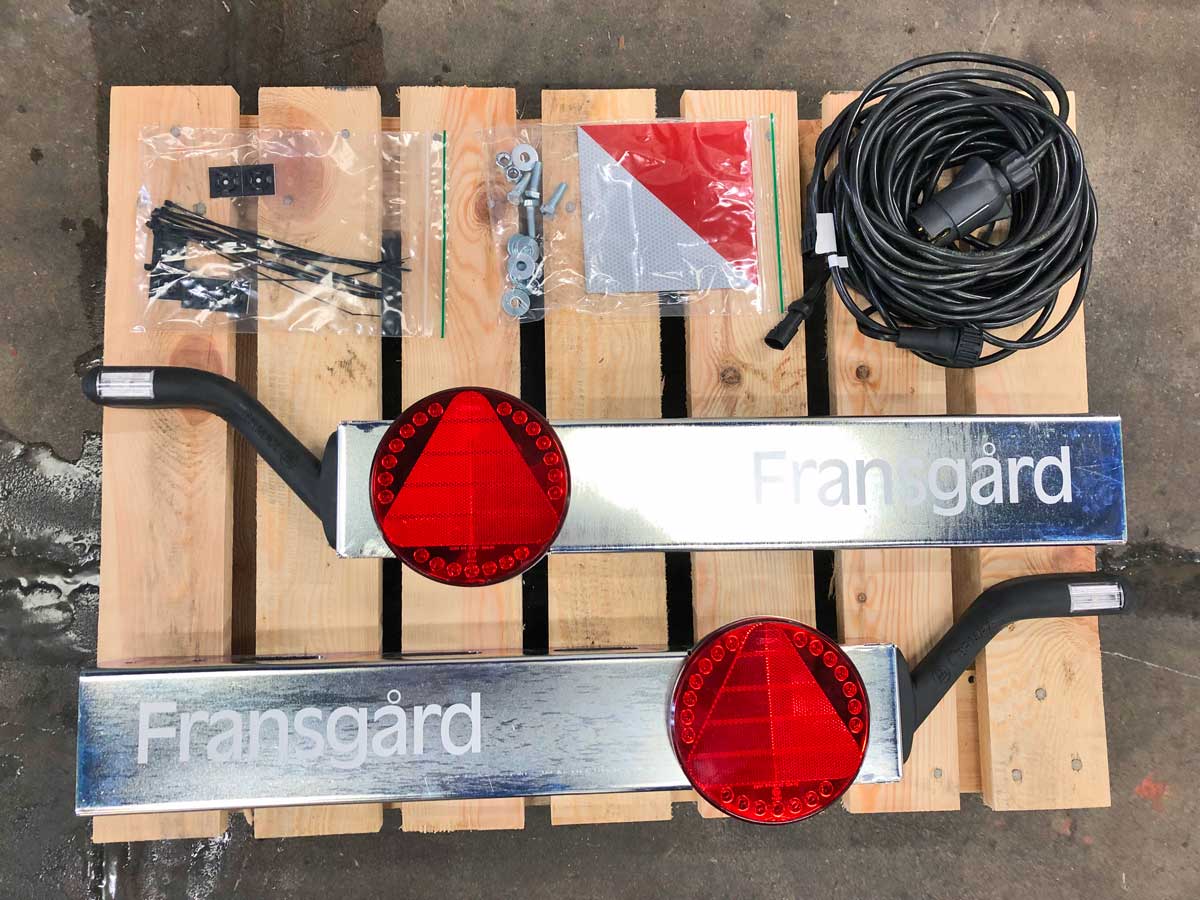

Item No. 2551

Light kit w/reflectors for retrofitting. LED light with integrated reflector, light, brake light and indicator.
Button

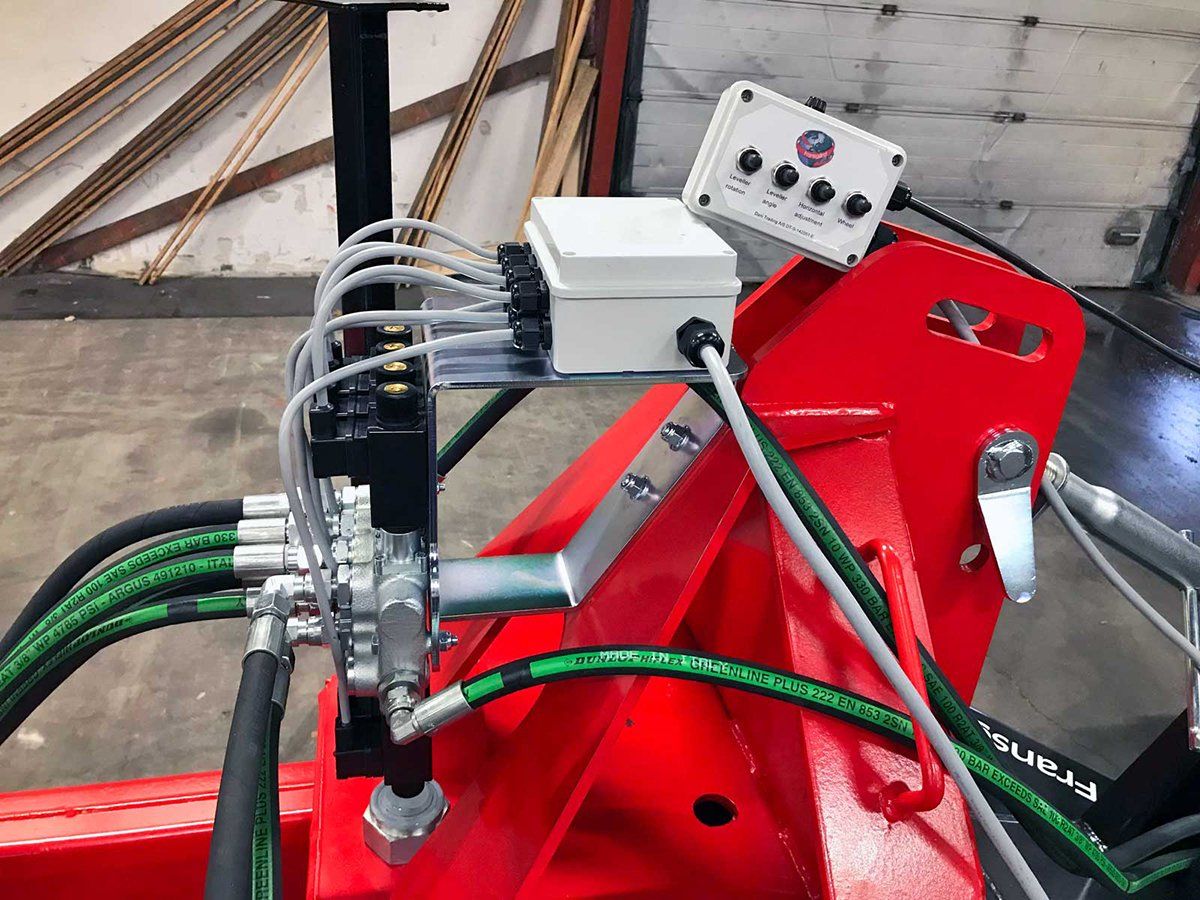

Item No. 2539

EL-Hydraulic control of the hydraulics of the leveller with 4 functions. The control requires 12 volts and 1 double acting hydraulic connector.
Button
