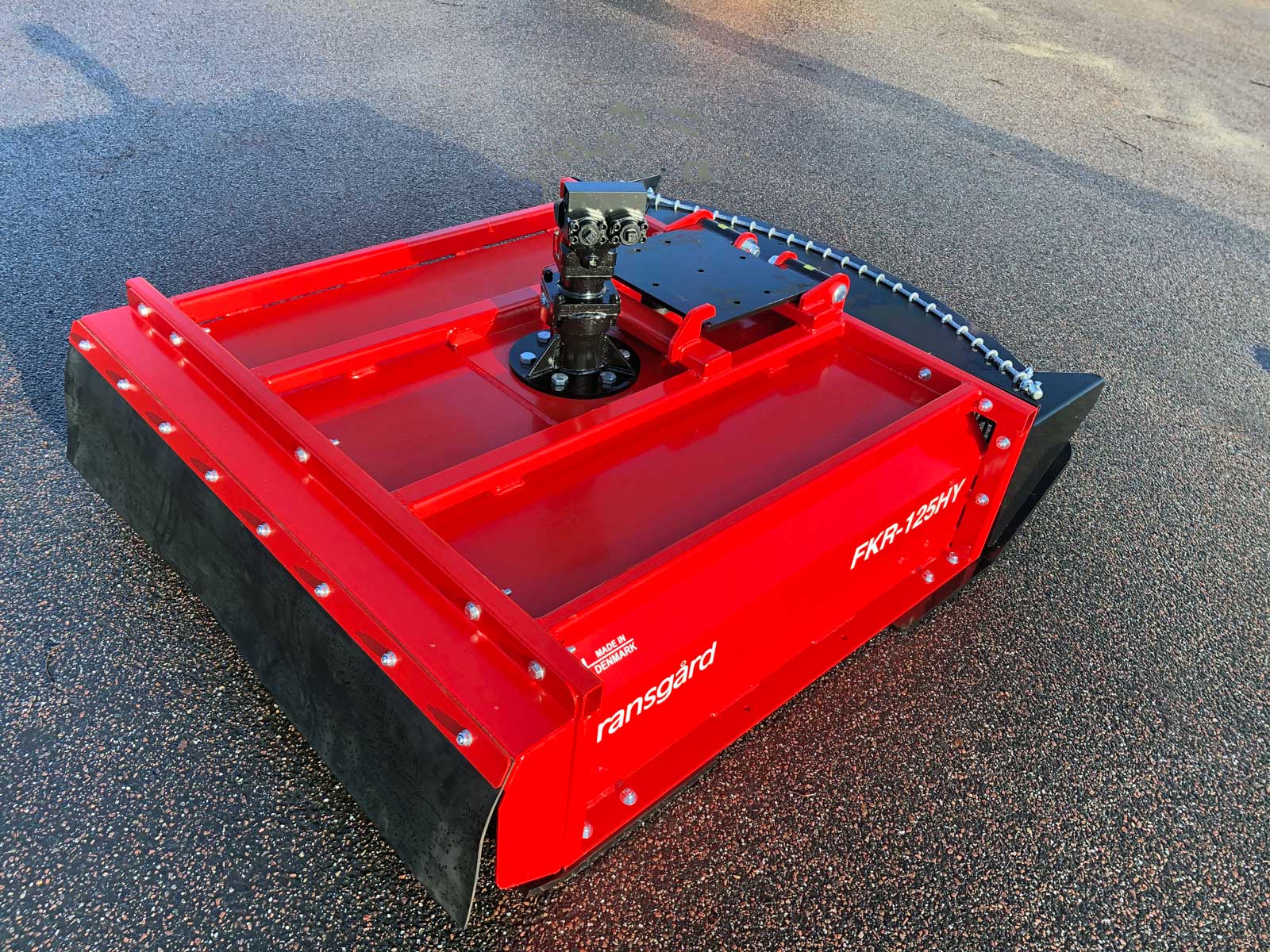

Chain Mower FKR-125HY

Presentation

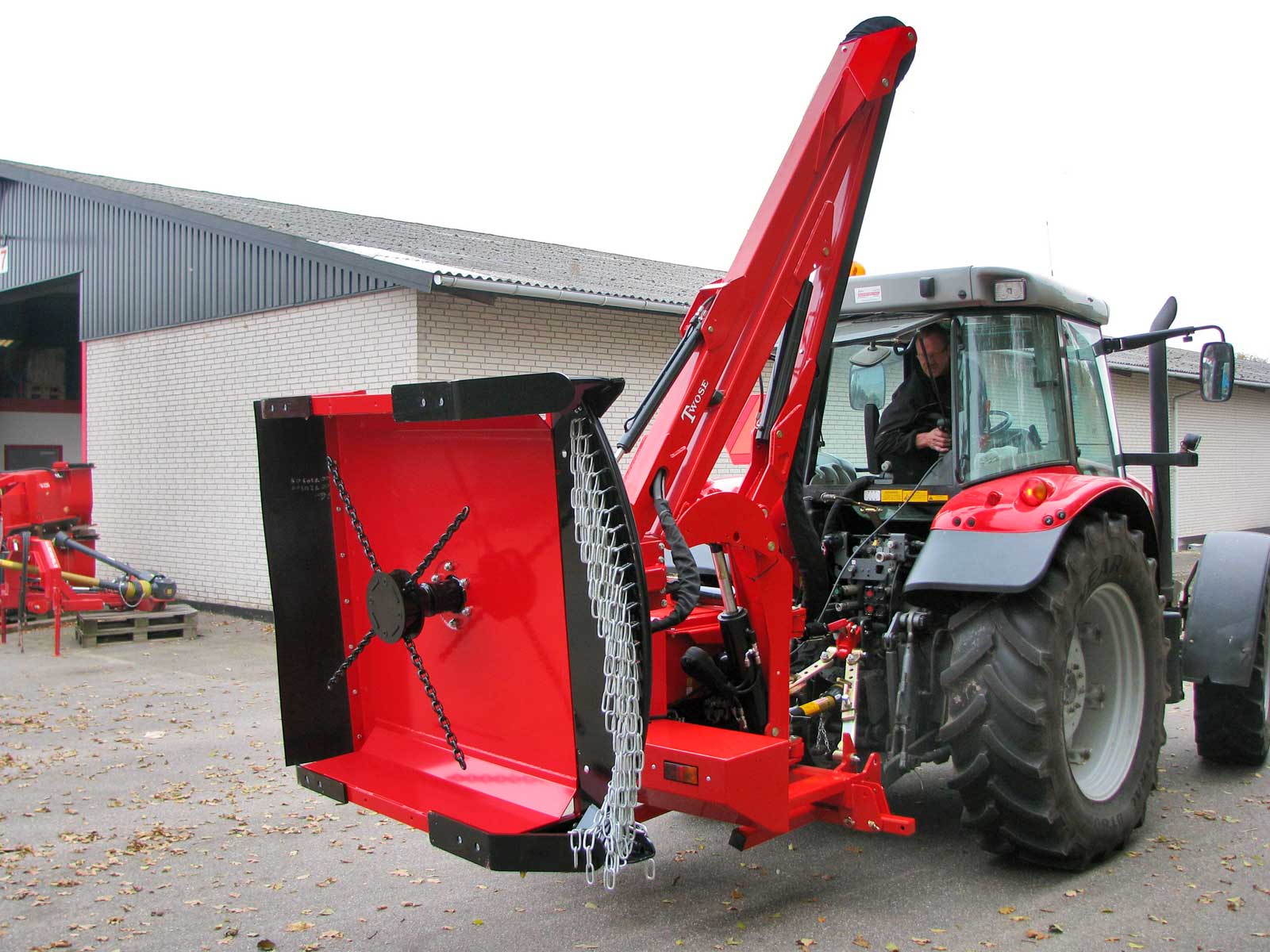

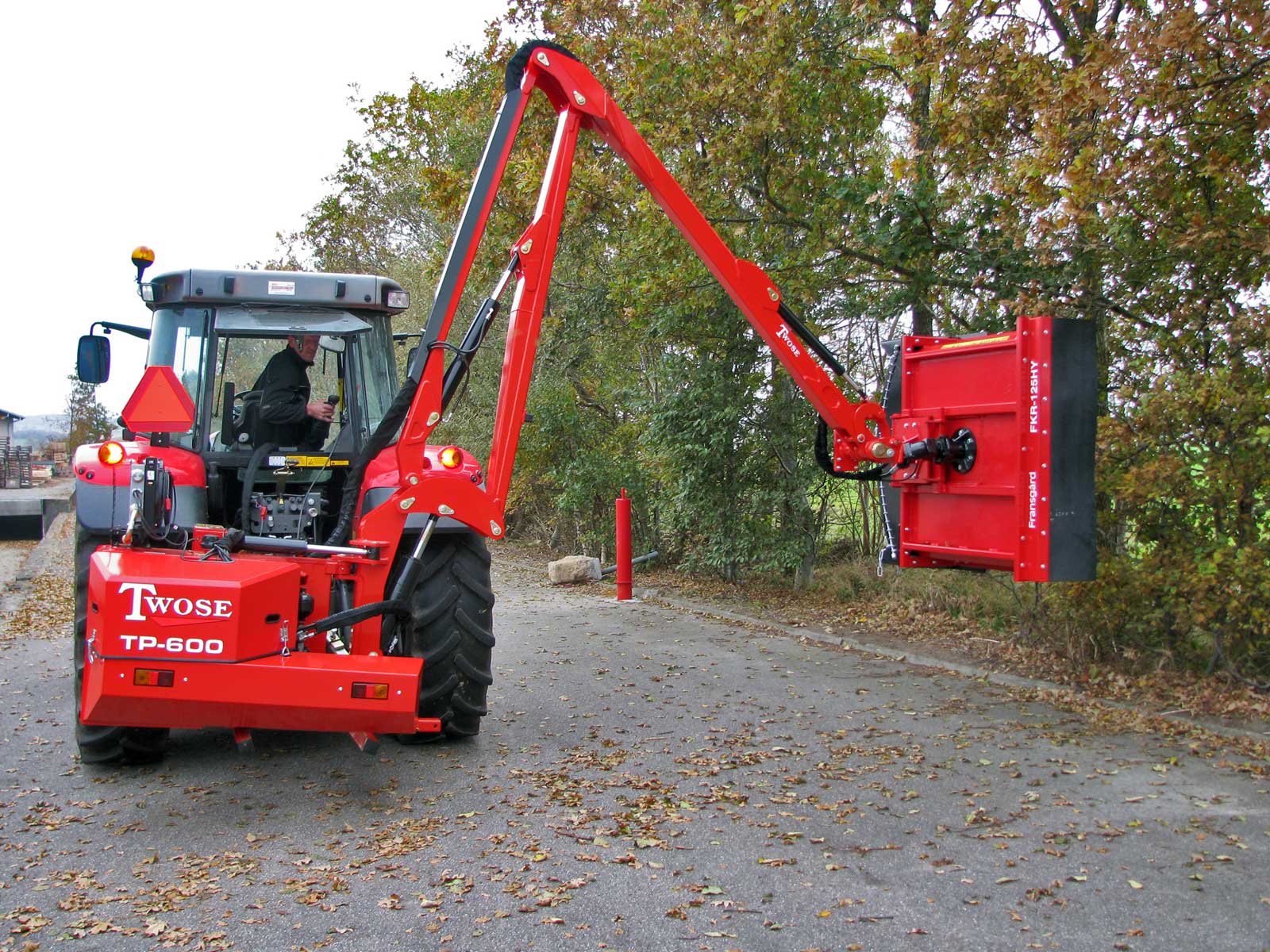

FKR-125HY is a hydraulically driven chain mower for mounting on a cutter bar, excavator, forestry machine or similar. The chain mower is mounted with 2 or 4 steel chains (quality G100), which are very durable without being too hard, so they won't crack if they hit a stone or other hard material.

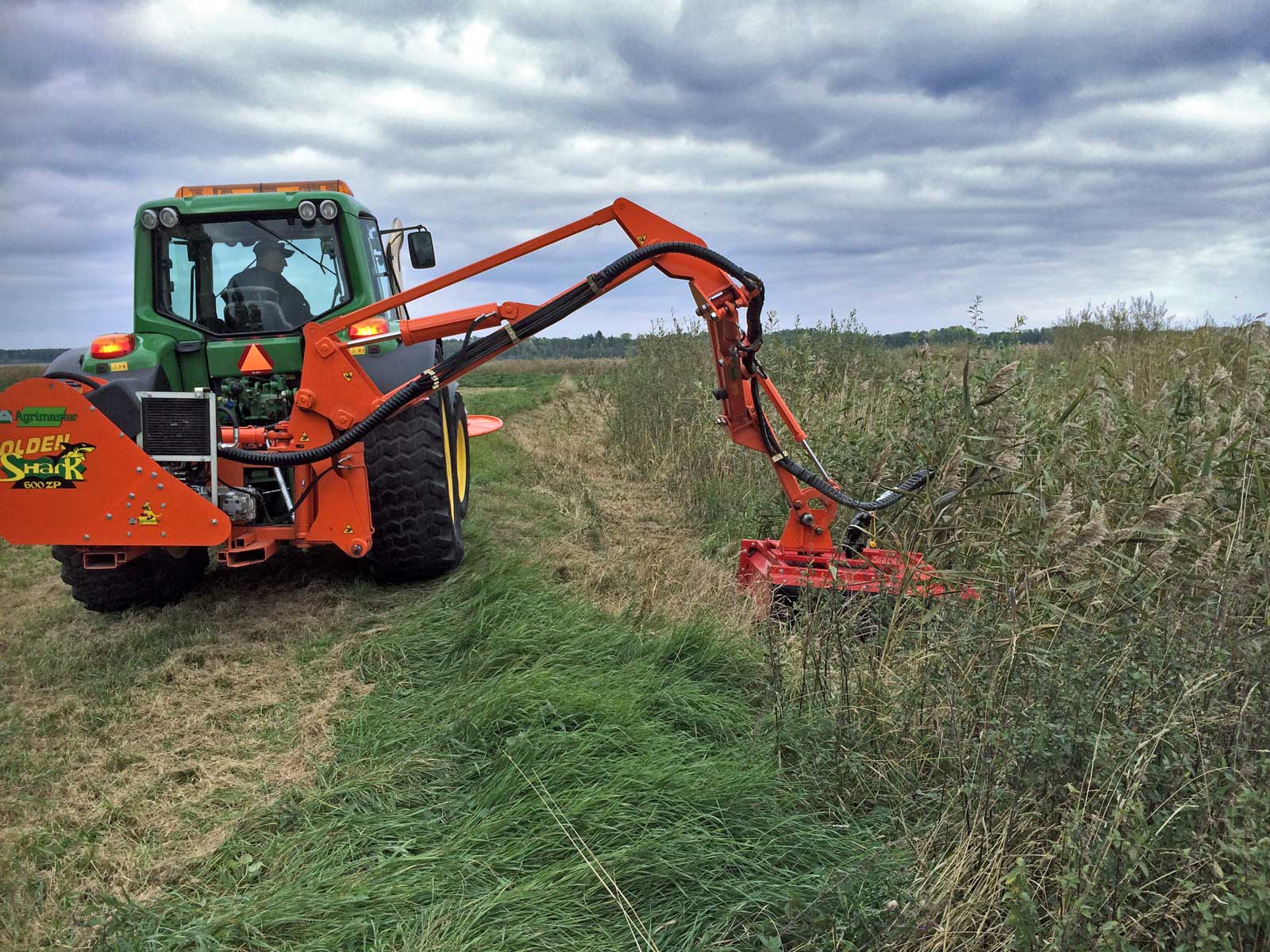

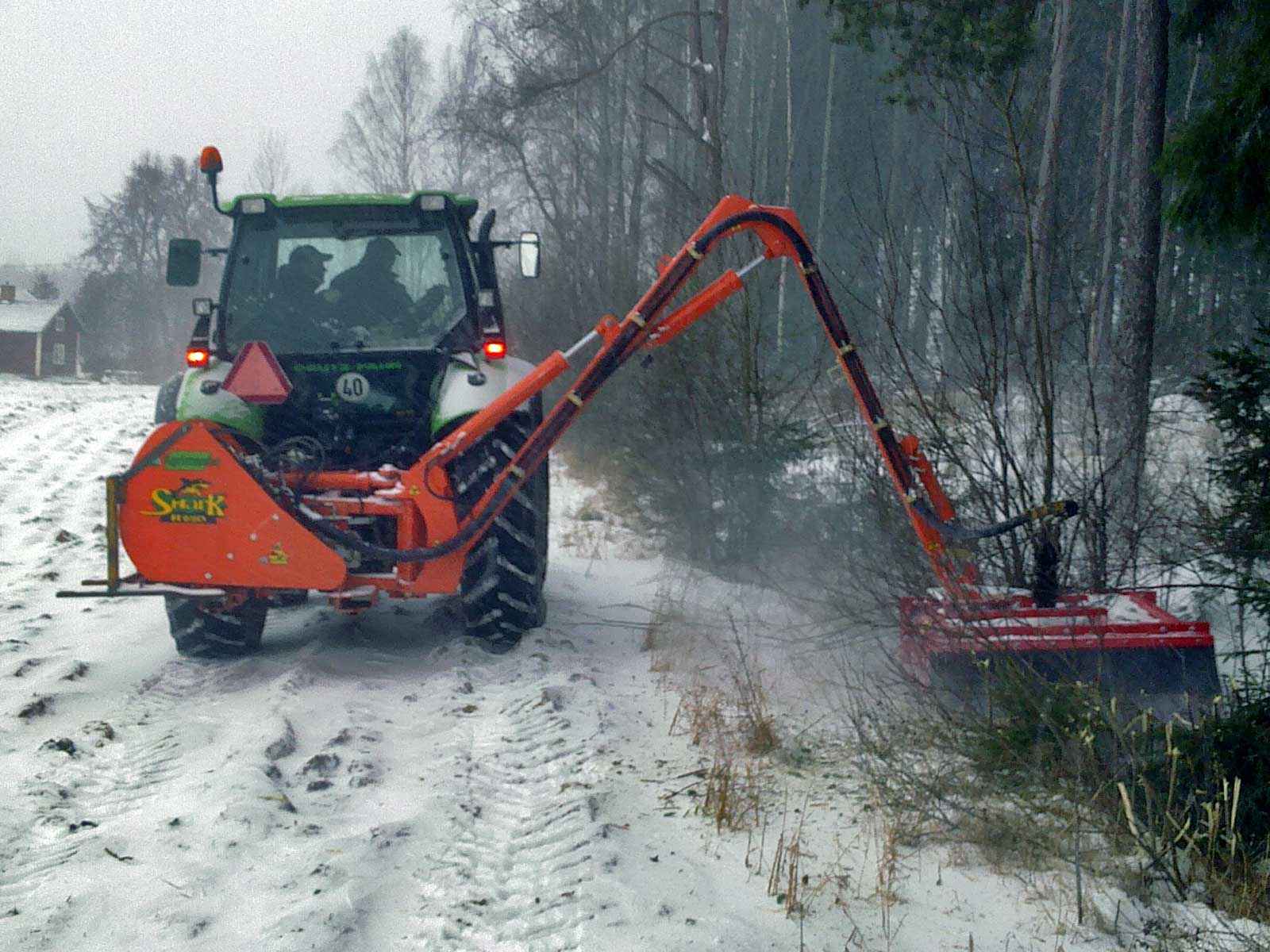

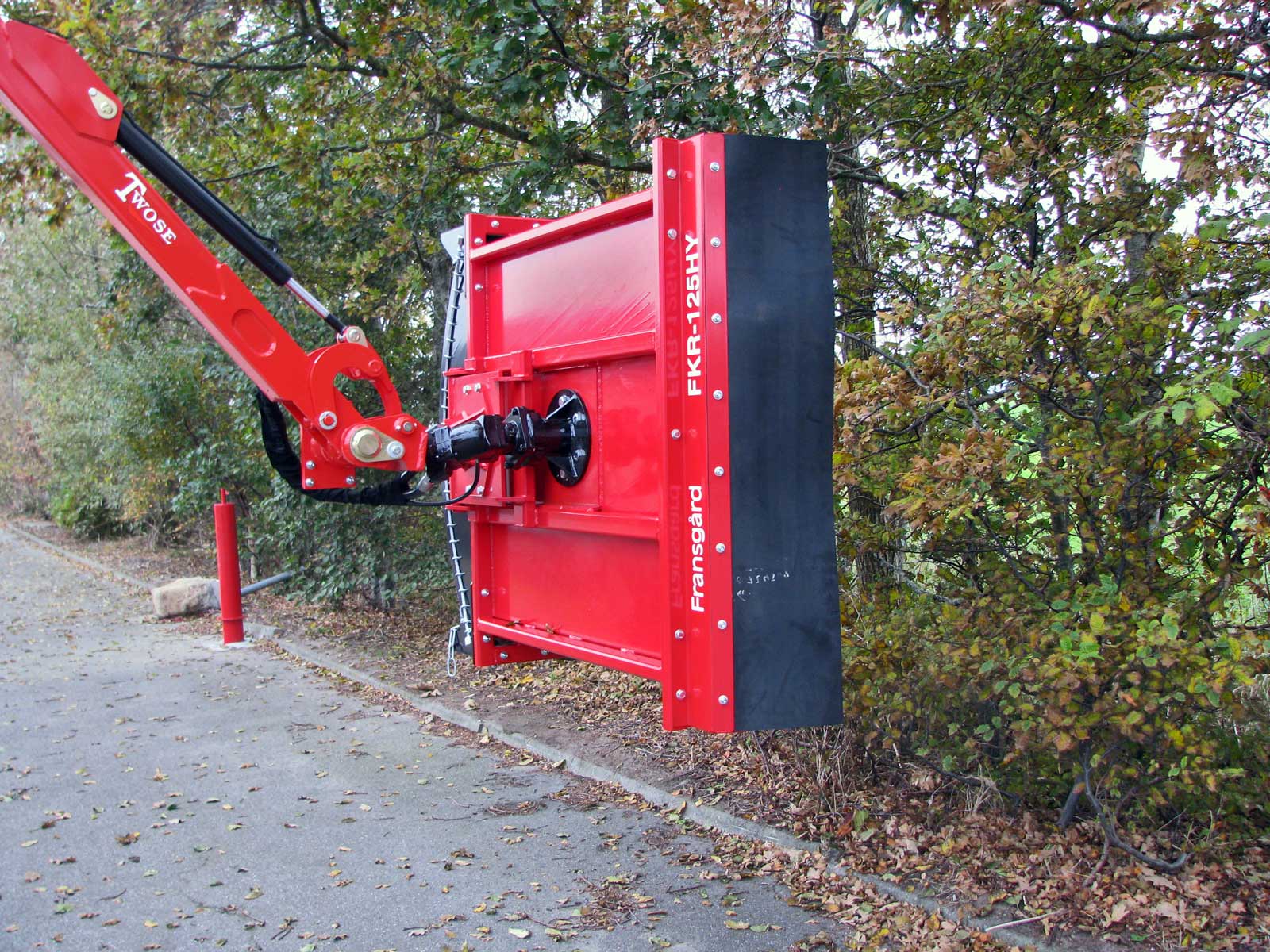

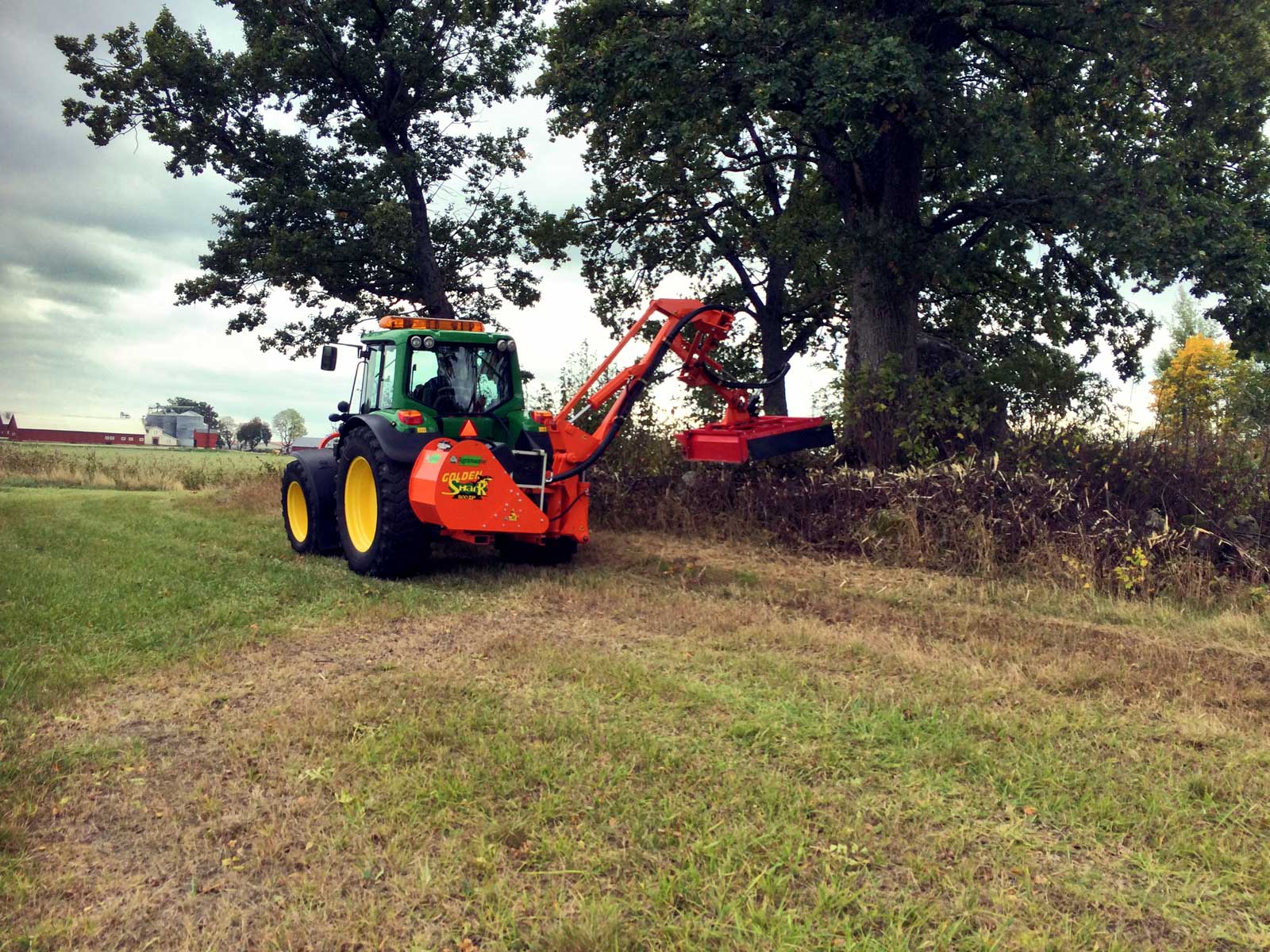

The FKR-125HY is very flexible and can work in many difficult positions and angles. With 1500 rpm, it is a suitable machine for clearing roadsides and scrub.

More powerful features

The heavy-duty wear shoes are made of Hardox 500, and the main frame is built of high-strength steel Domex 420. It is protected with a heavy-duty safety cover to minimise material spillage during operation. FKR-HY is available in 125 cm working width, but can be made to order in 150 cm working width.

The machine has a 64cc oil engine with a valve block for freewheel as standard and return hose to the tank. The FKR-125HY with its low dead weight of 340 kg can be used on smaller crane arms, but is so robustly built that it can also be used on excavators and similar machines. If you want a larger working width and have an arm with a large lifting capacity, you can use the FKR-150HY.

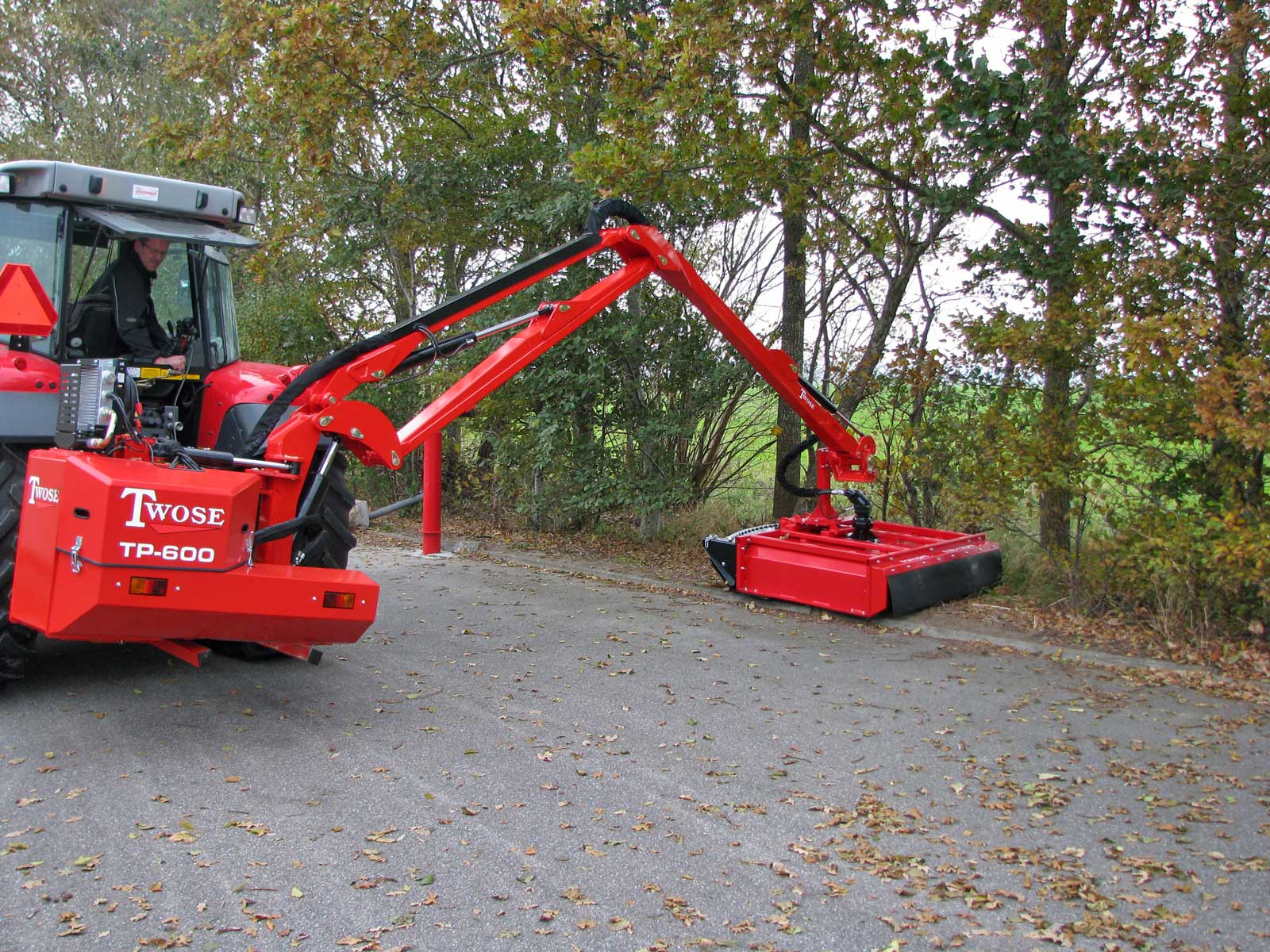

This mulcher model offers many possibilities and only the movement of the arm limits where the work can be done.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Model:	FKR-125HY
Working width	125 cm
Number of chains	2
Chain dimensions	10 or 13 mm
Chain quality	G100
Wear shoe	Std.
Power requirement (oil)	90L / 180 bar
Weight	340 kg

Details:

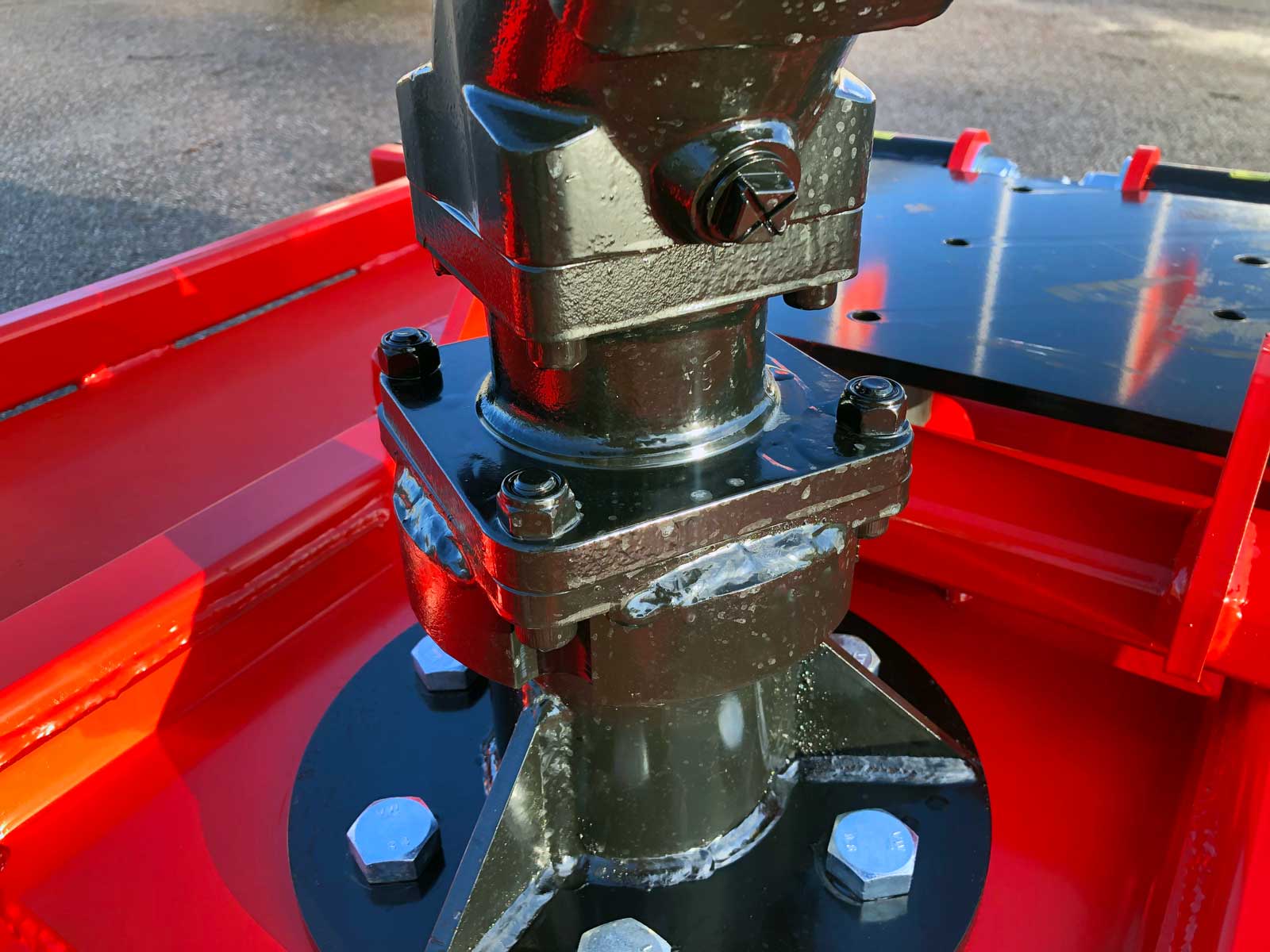

Flange for the Engine

The hydraulic motor is fitted with a stud for mounting the drain. The motor is mounted in a very strong flange housing.
Button

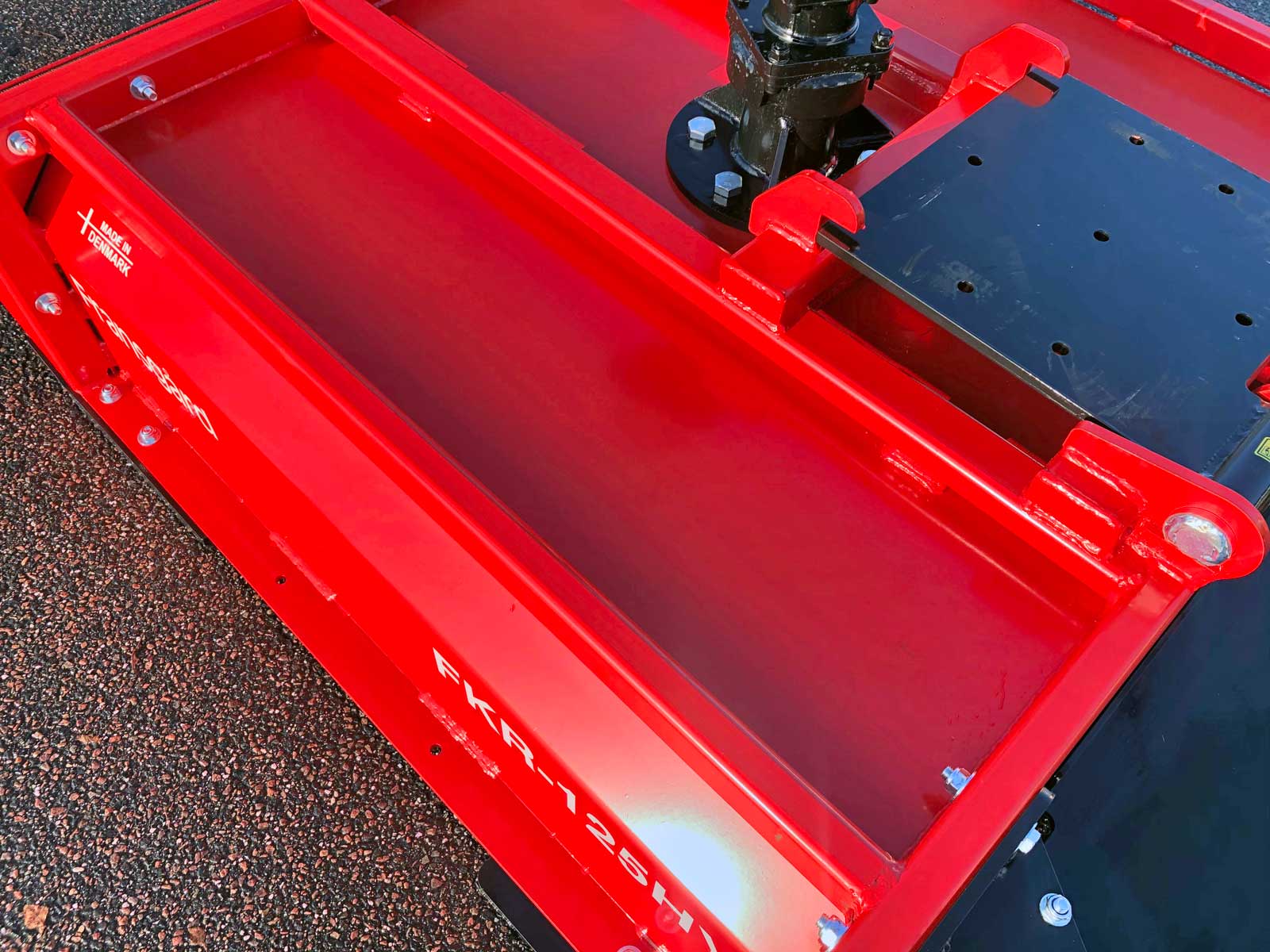

Reinforcement

The shield on the machine is built in 5mm Domex 420 steel plate with reinforcement of profile tubes on top.
Button

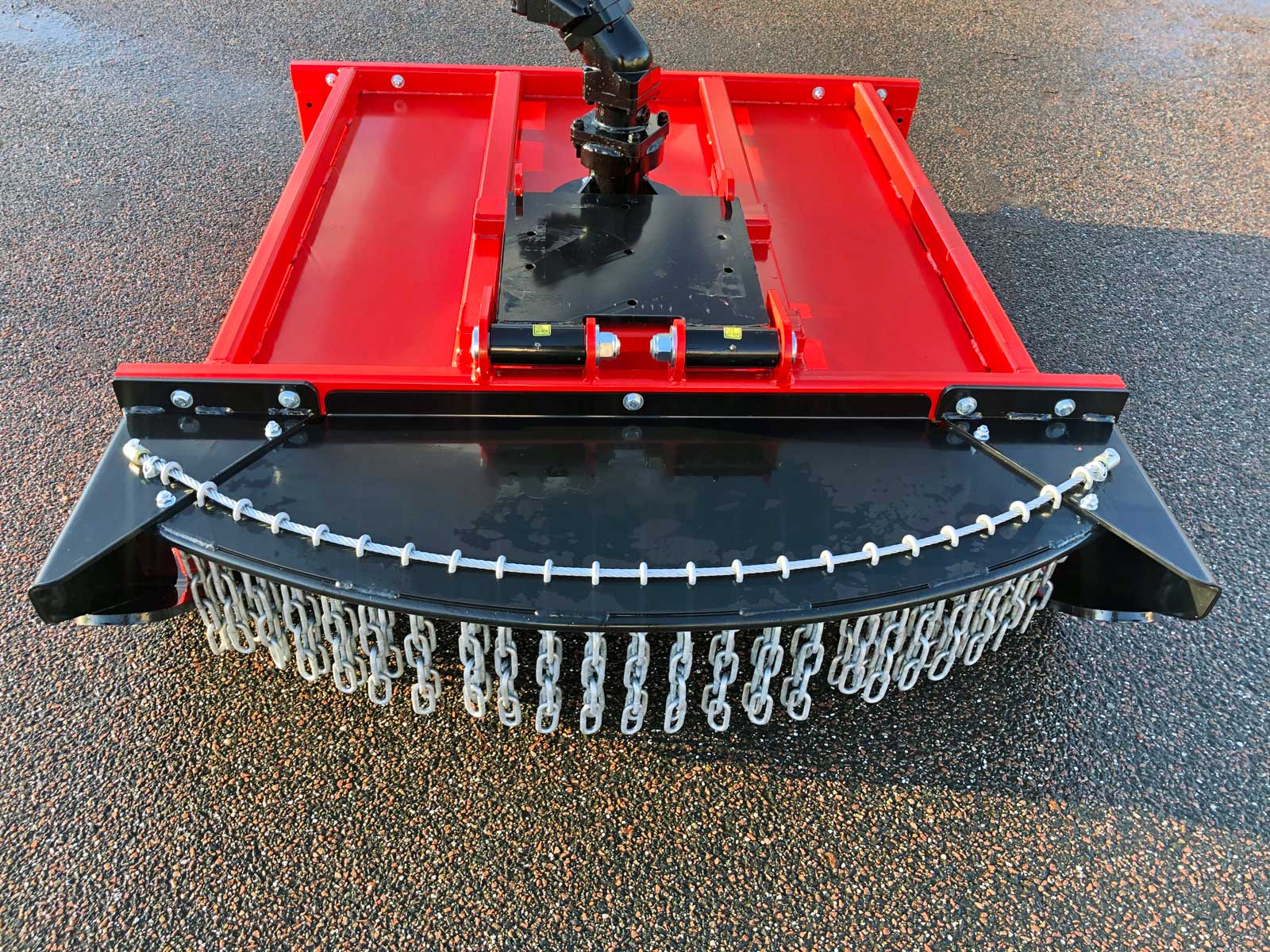

Front guard

Front guard with a chain fall between the 2 horns is an optional extra.
Button

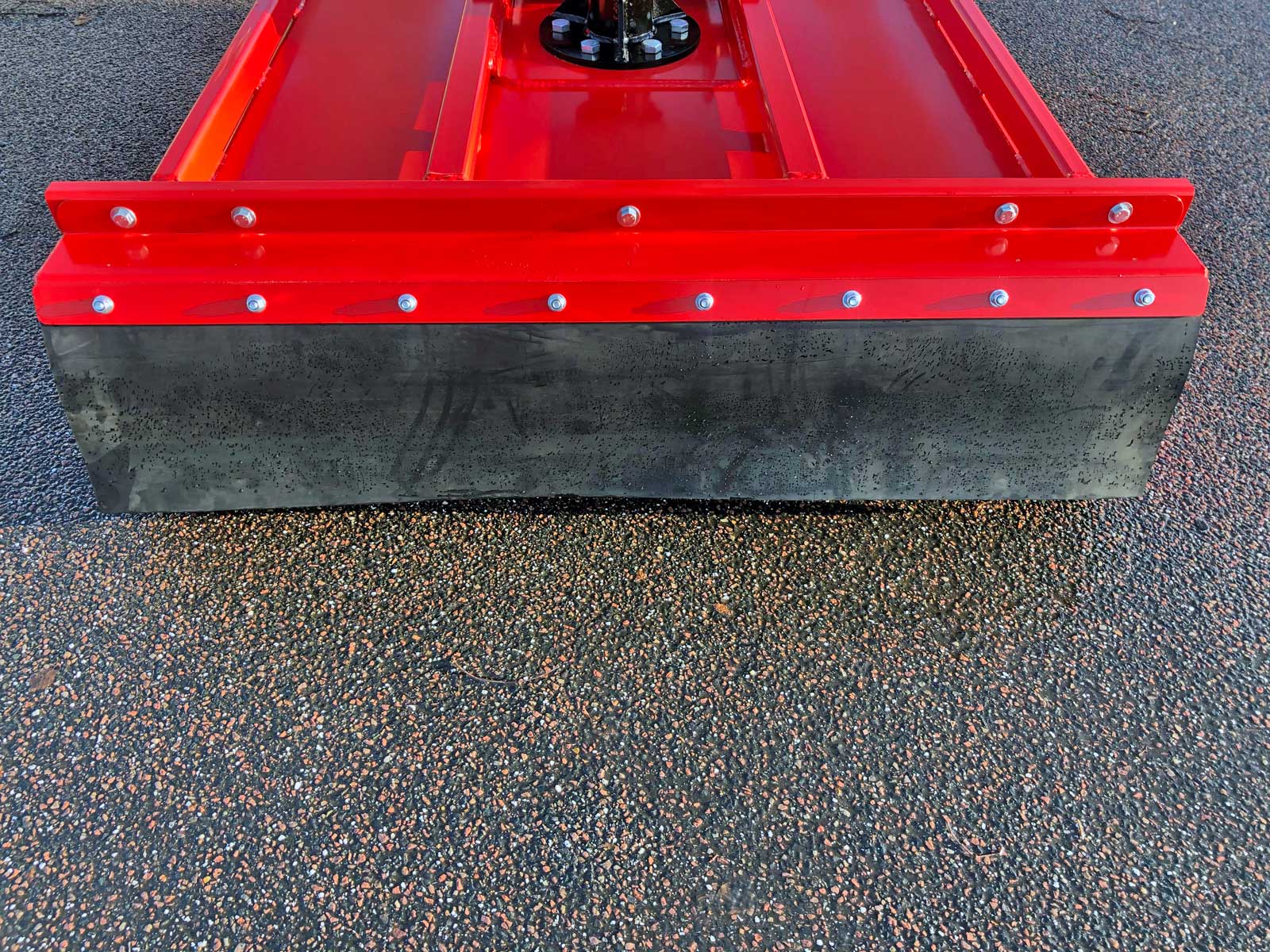

Rubber guard

Durable rubber cover mounted on the back, which helps to hold the material.
Button

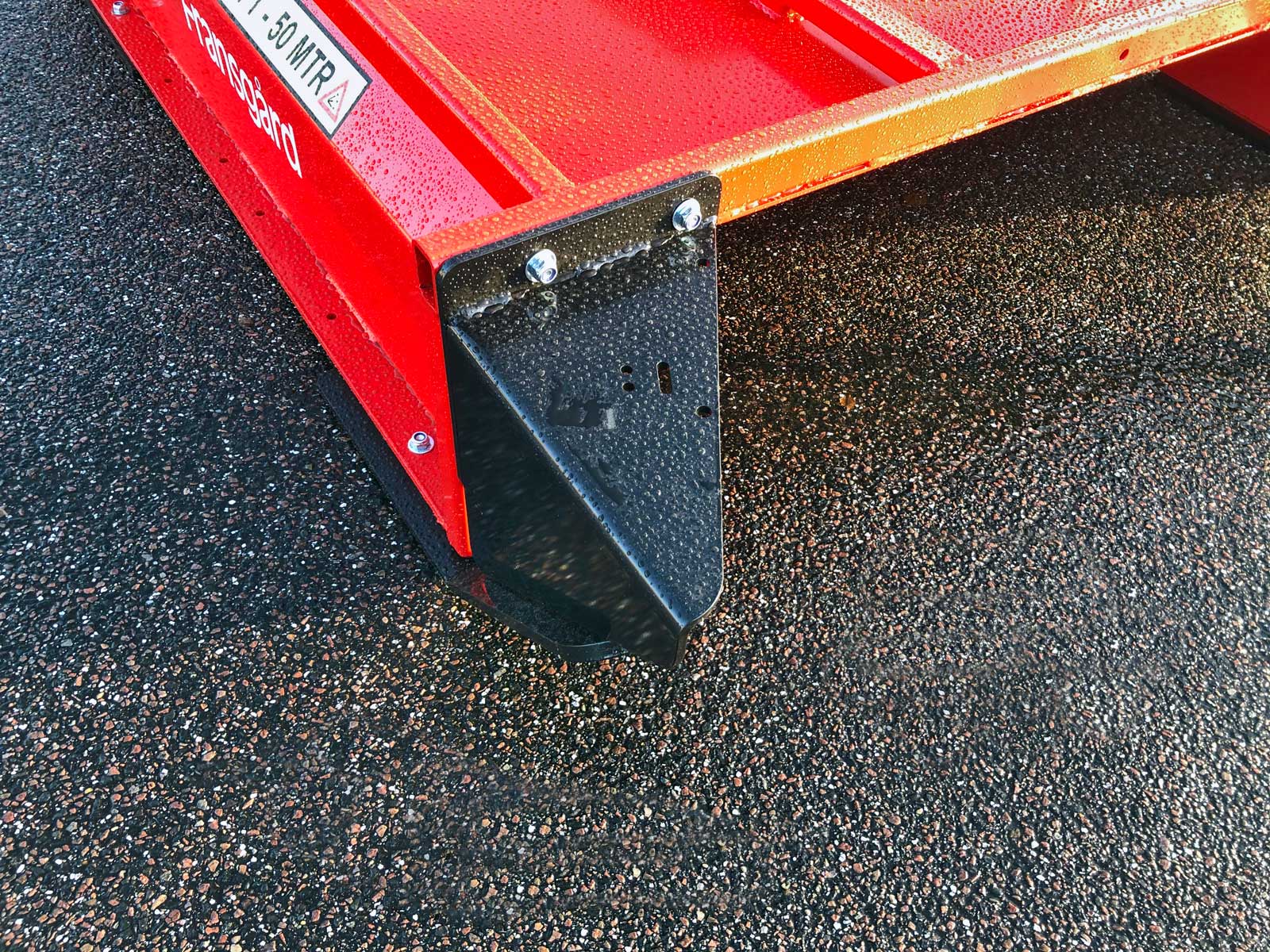

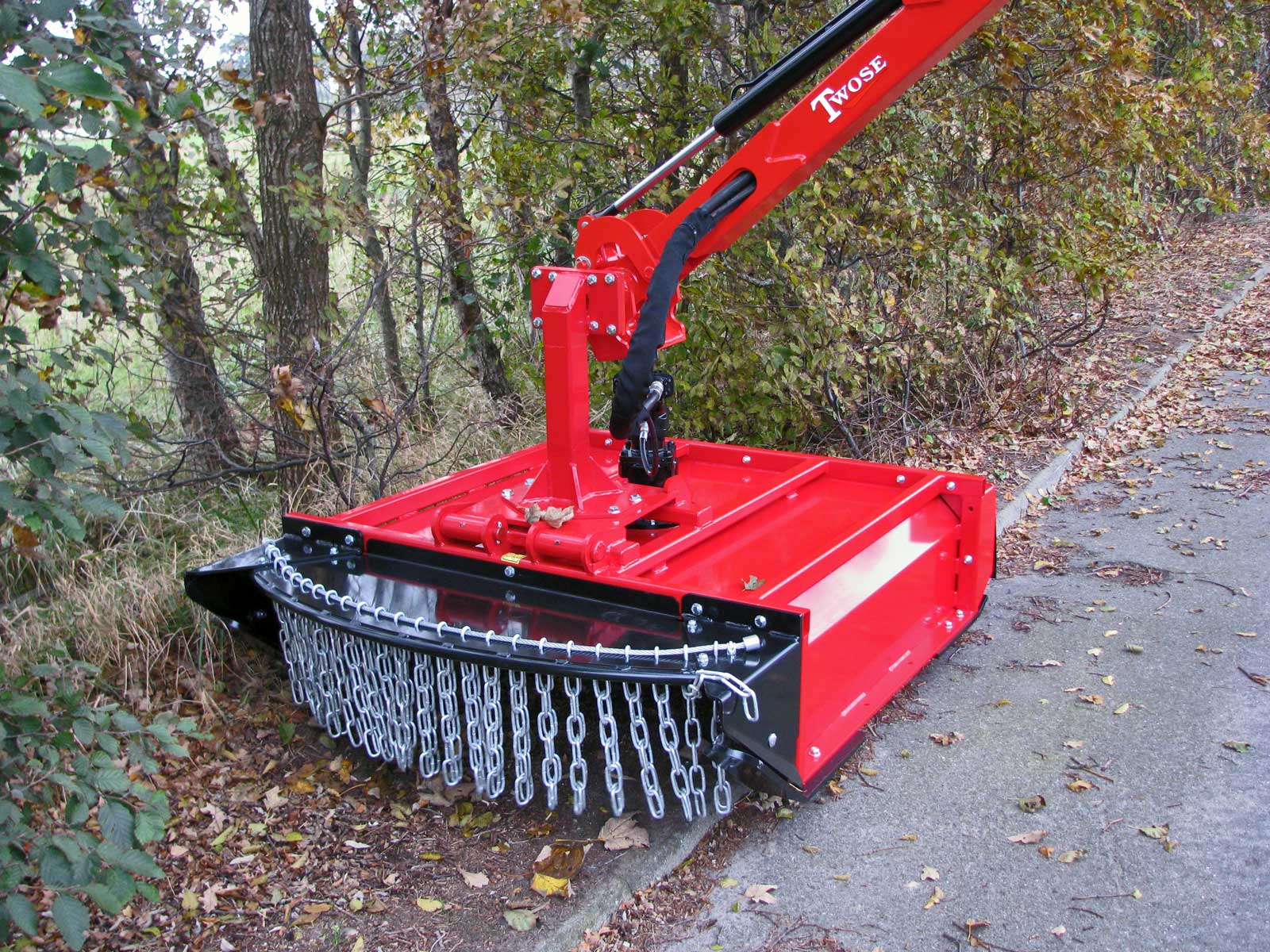

Horn

The powerful horns on each side of the front guide the material into the machine. The horn is prepared for mounting a chain fall.
Button

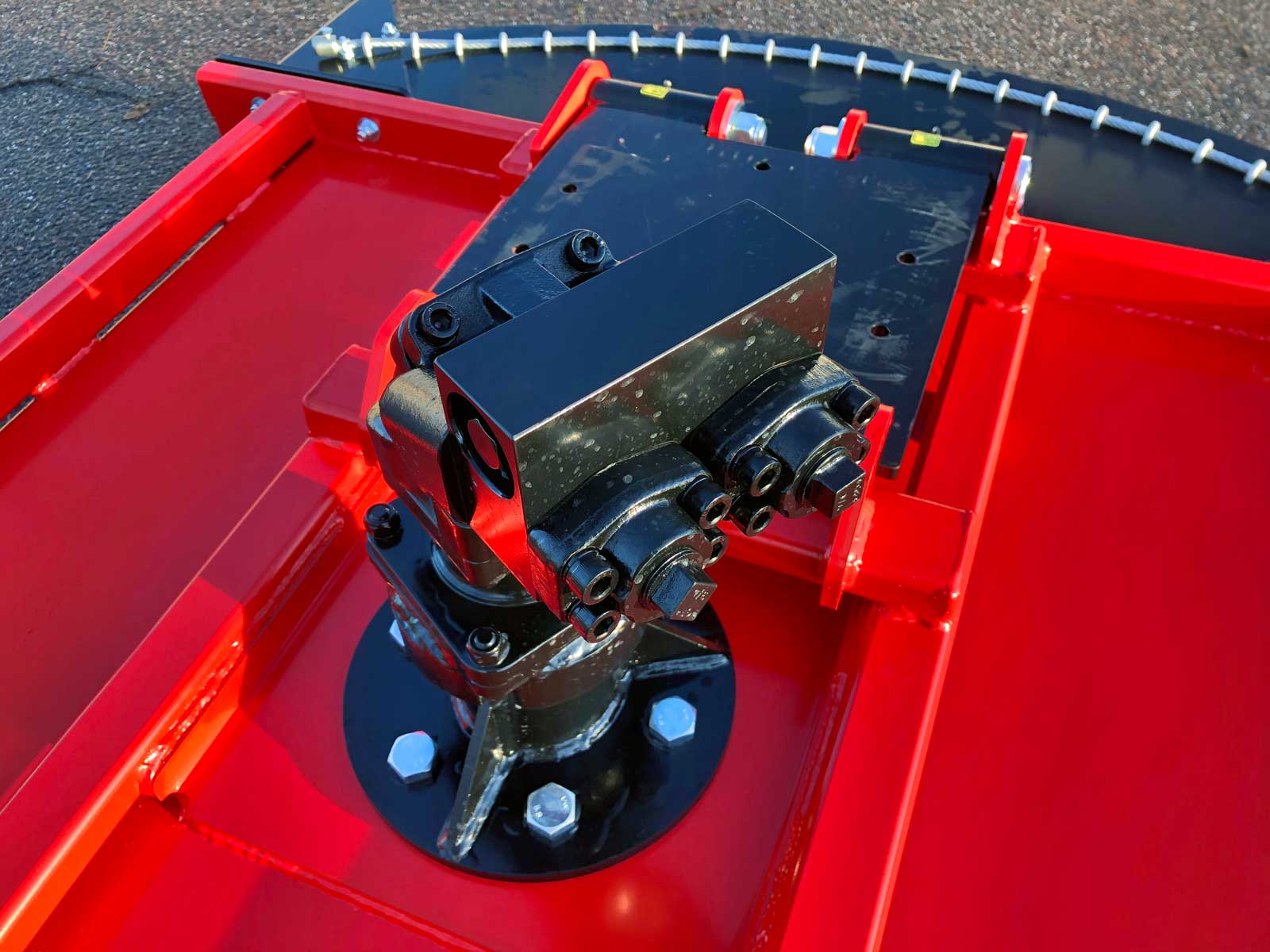

Non-return valve

The hydraulic motor is fitted with a non-return valve as standard, which ensures freewheel even with closed circuits on the supply machine. Fitted with port flanges, supplied without hoses.
Button

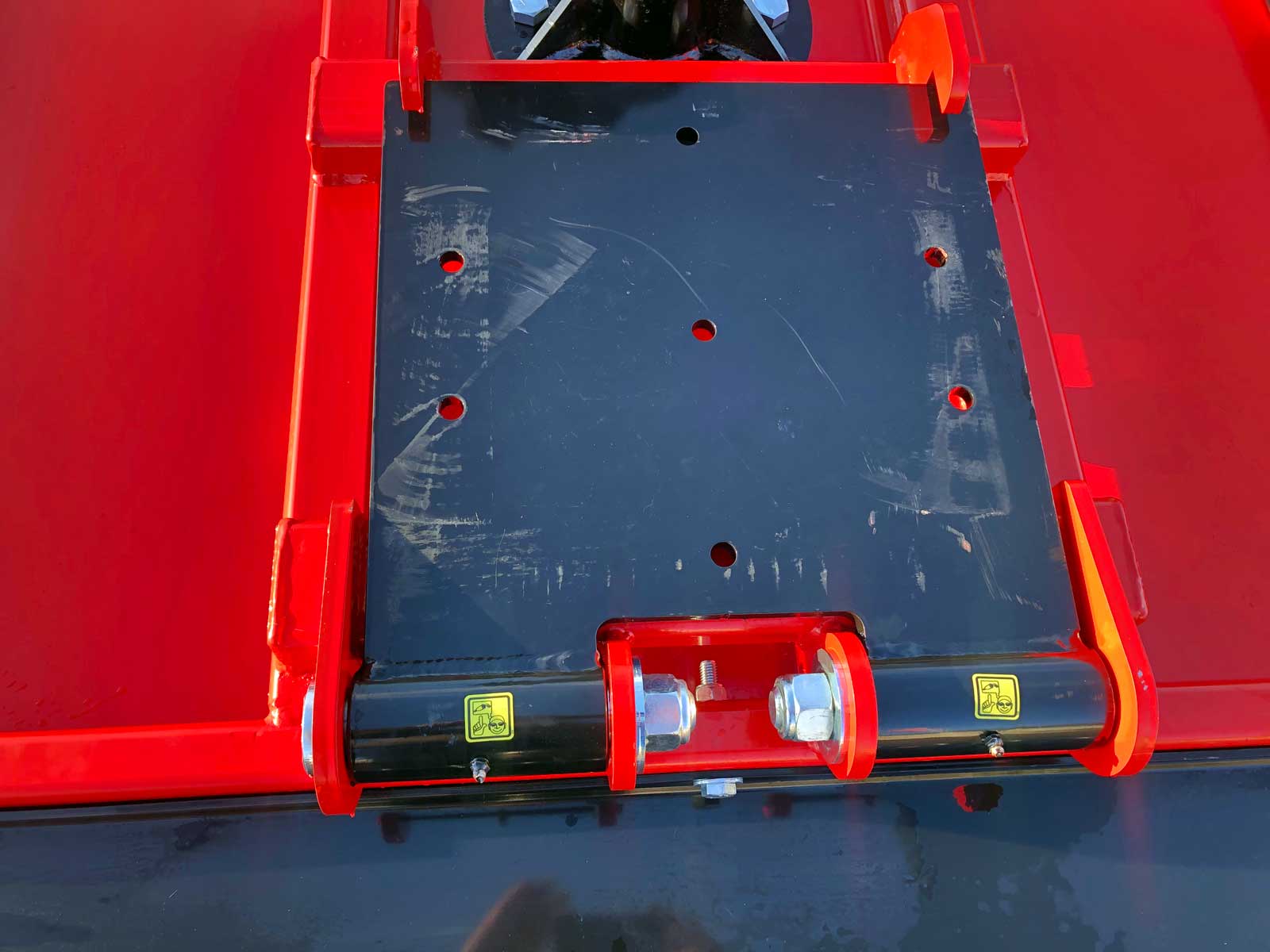

Mounting plate

The mounting plate is standard with 8 holes and a hinge hung up with the possibility of lubrication. The movable plate allows the machine to better follow the terrain.
Button

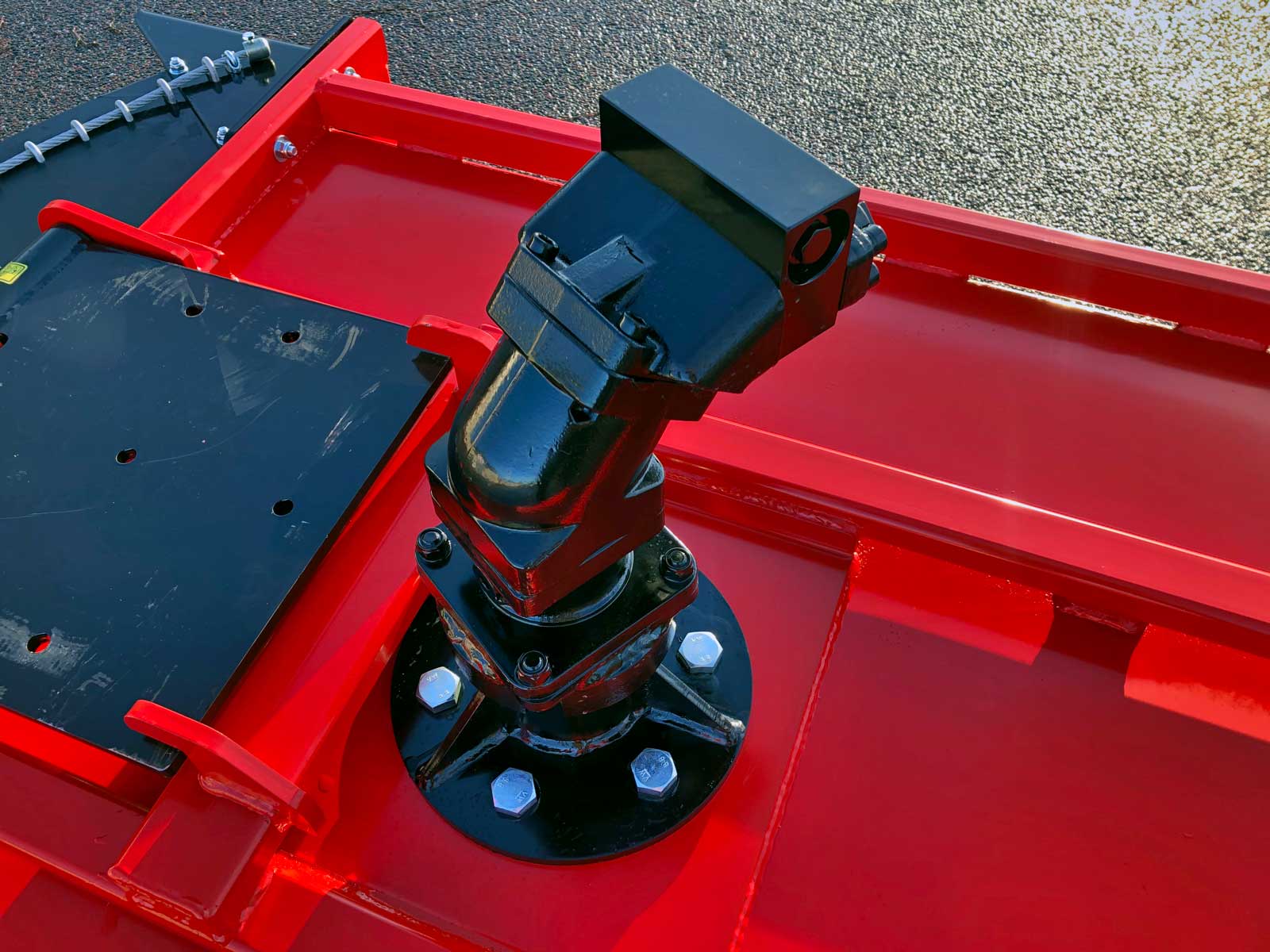

Oil engine

Machines are fitted with a 64 cc piston hydrualic engine, which requires minimum 90 l/min.
Button

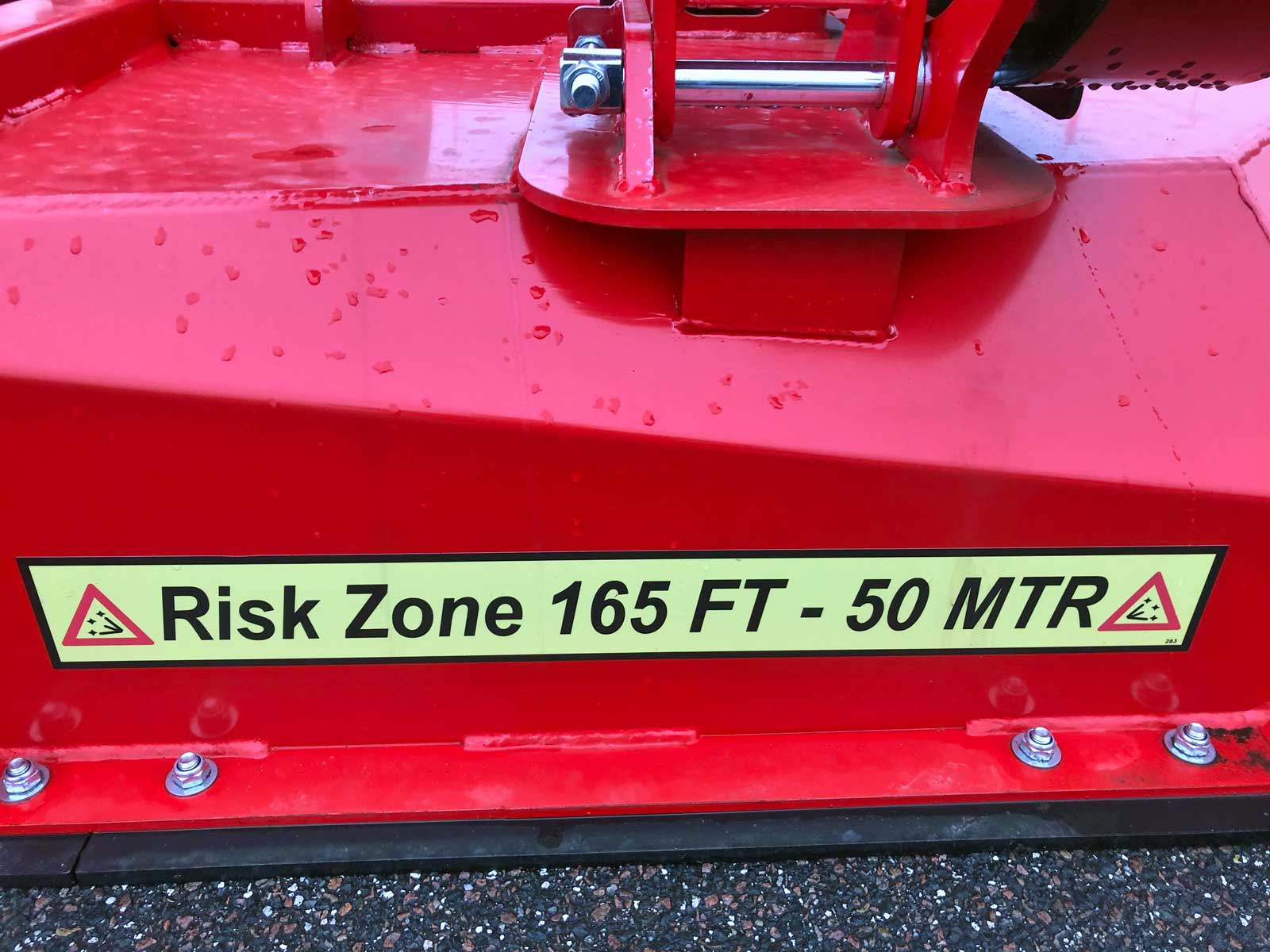

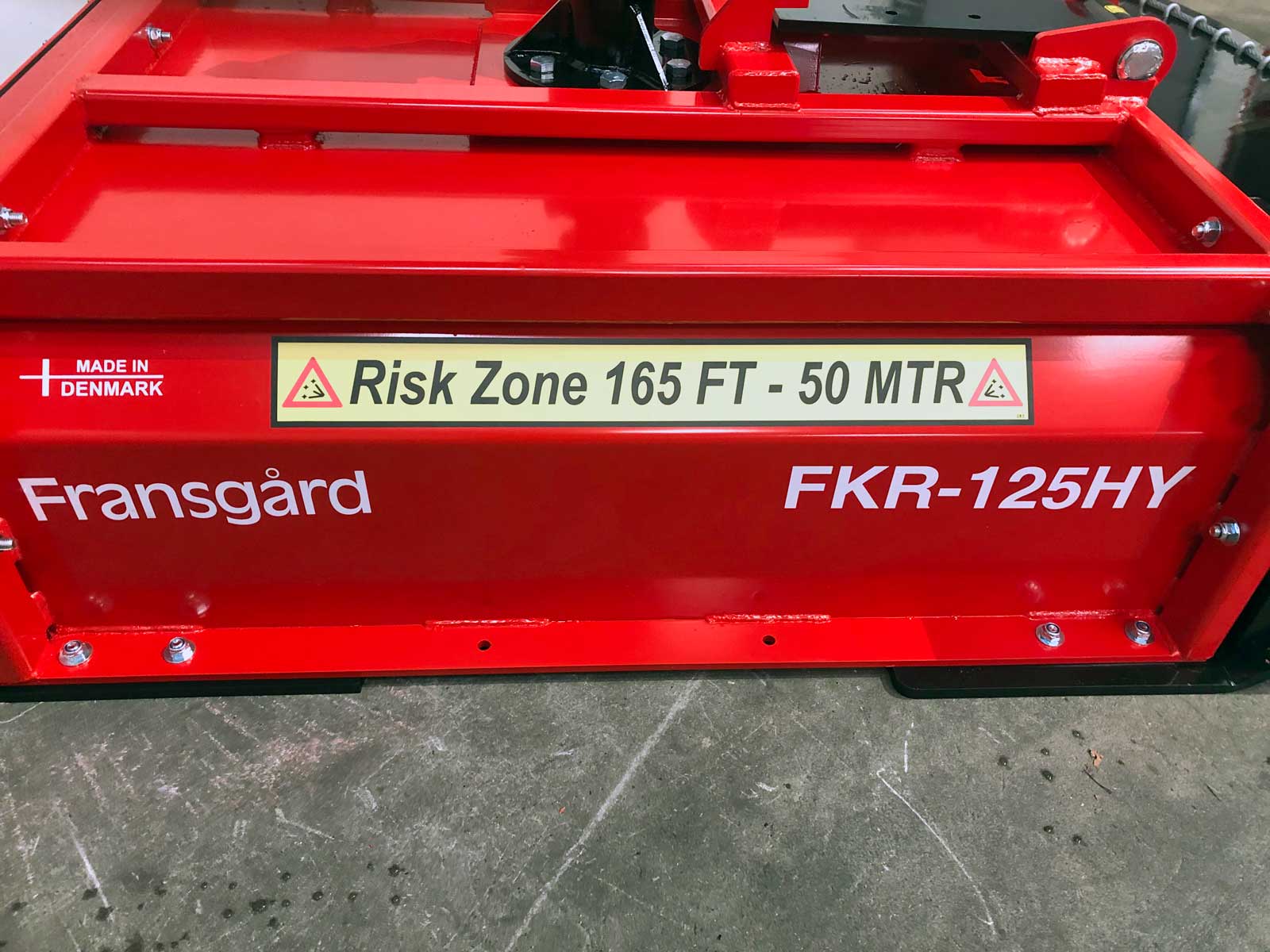

Safety label

The chain mower is clearly marked with large yellow safety warnings
Button

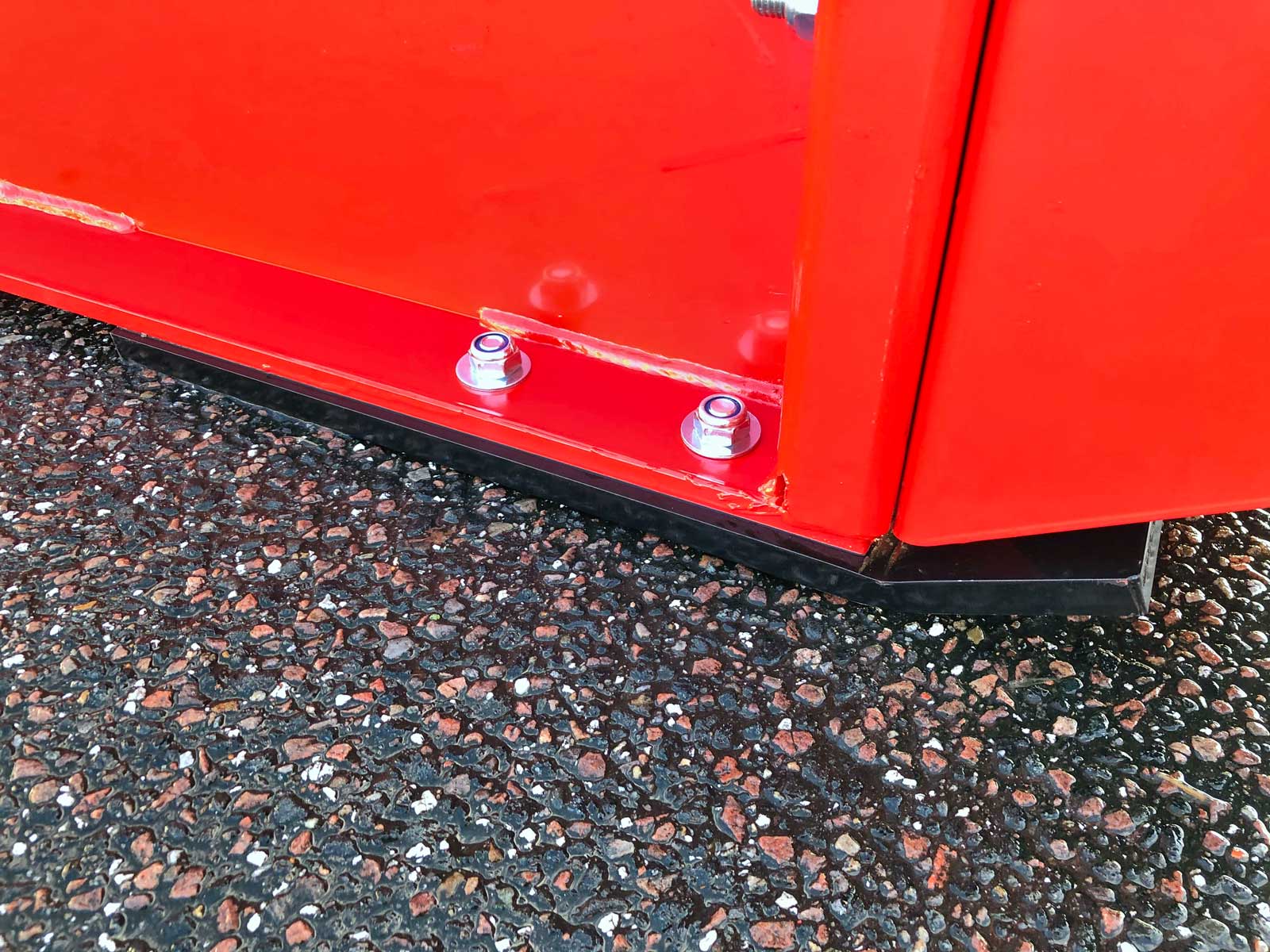

Wear shoe, rear

The FKR-125HY is fitted with Hardox-500 wear shoes as standard.
Button

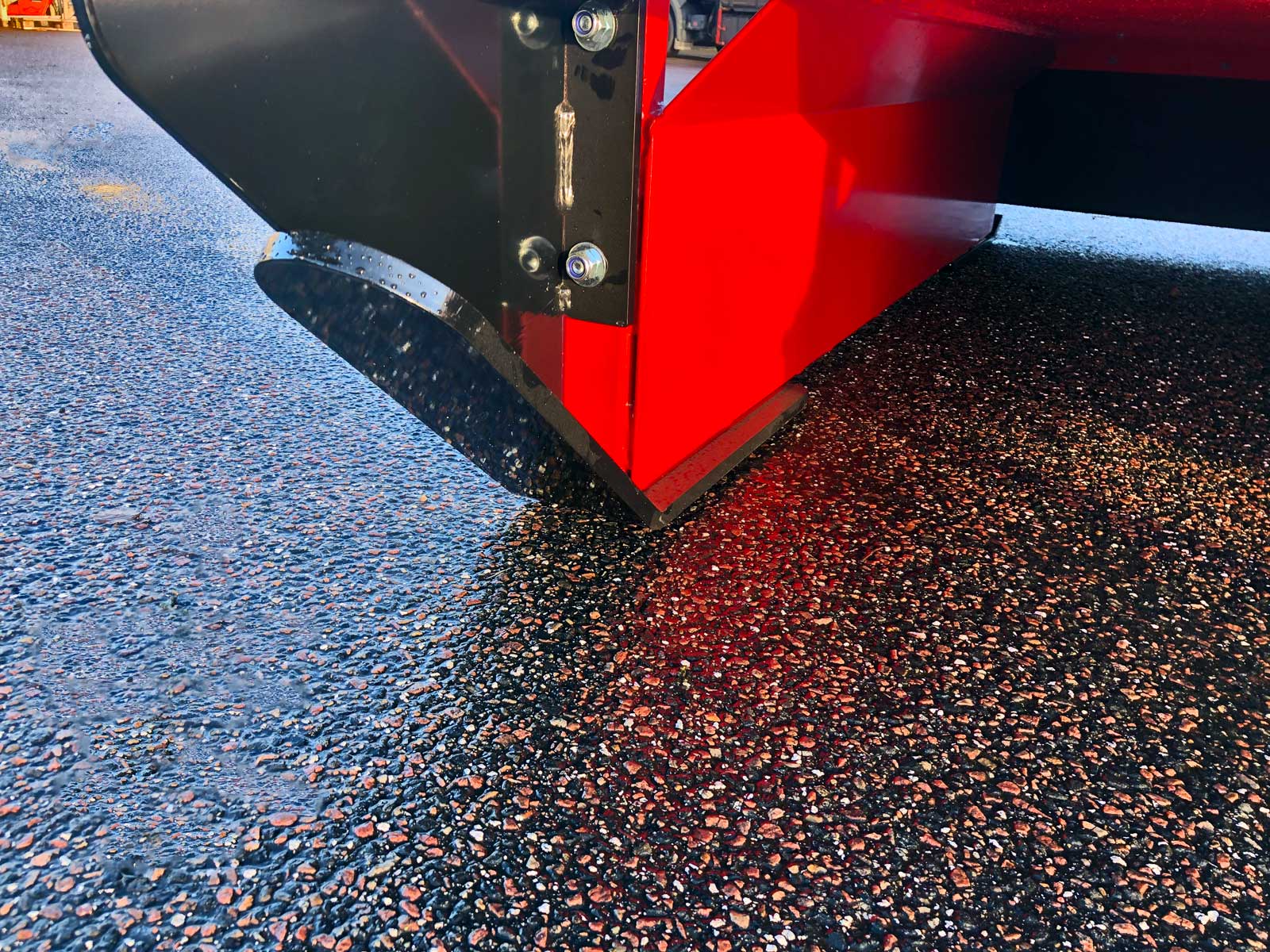

Wear shoe, front

Large and wide Hardox-500 front wear shoes are designed to slide easily over tree stumps, etc.
Button

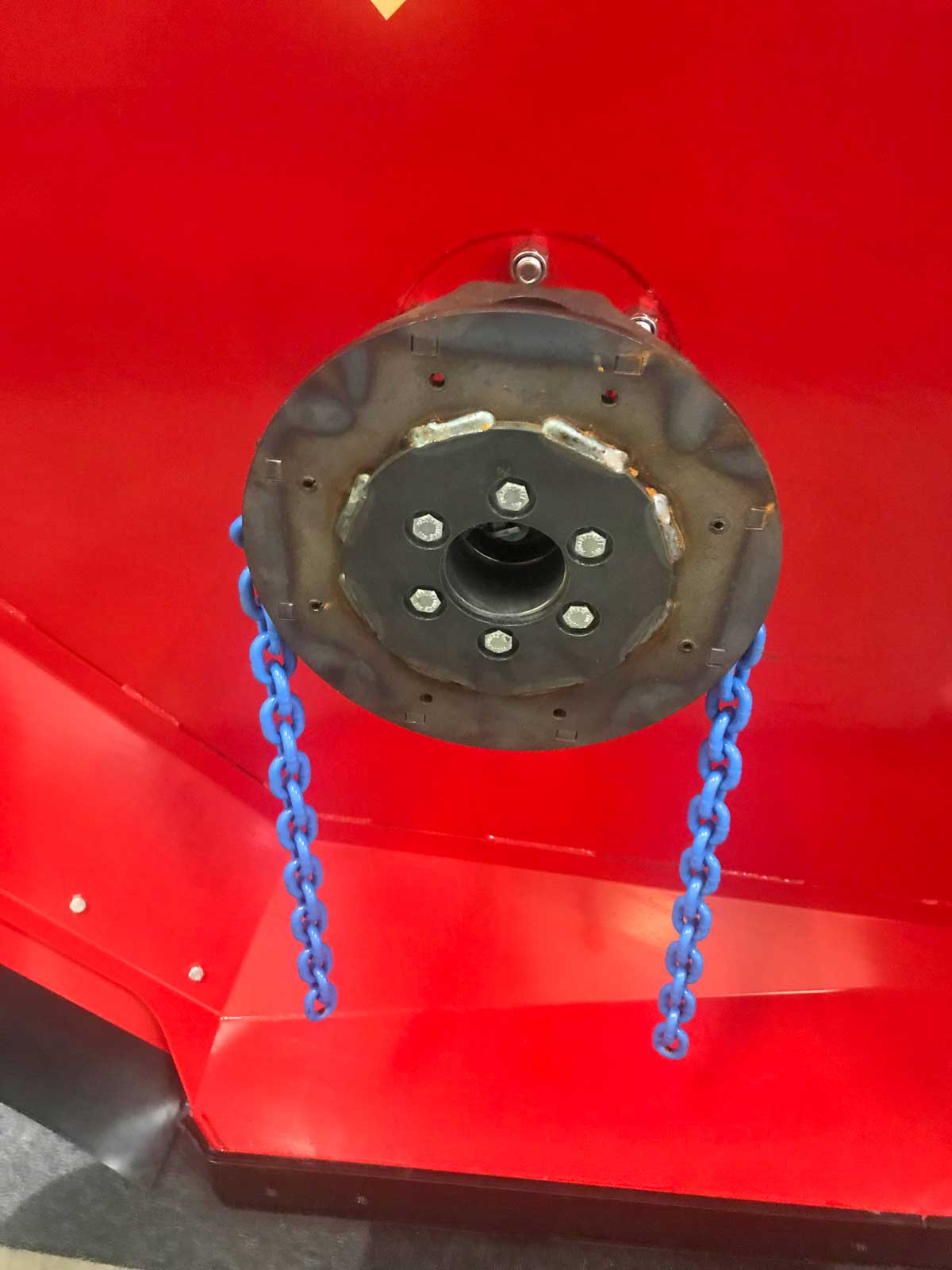

Chain head

All Fransgård chain mowers are fitted with 2 x 10 mm chains as standard. The chains are easily changed by knocking out the 2 pipe splitters.
Button

Optional extras:

Item No. 6111

Tow rails for mounting between front and rear wear shoes.
Button

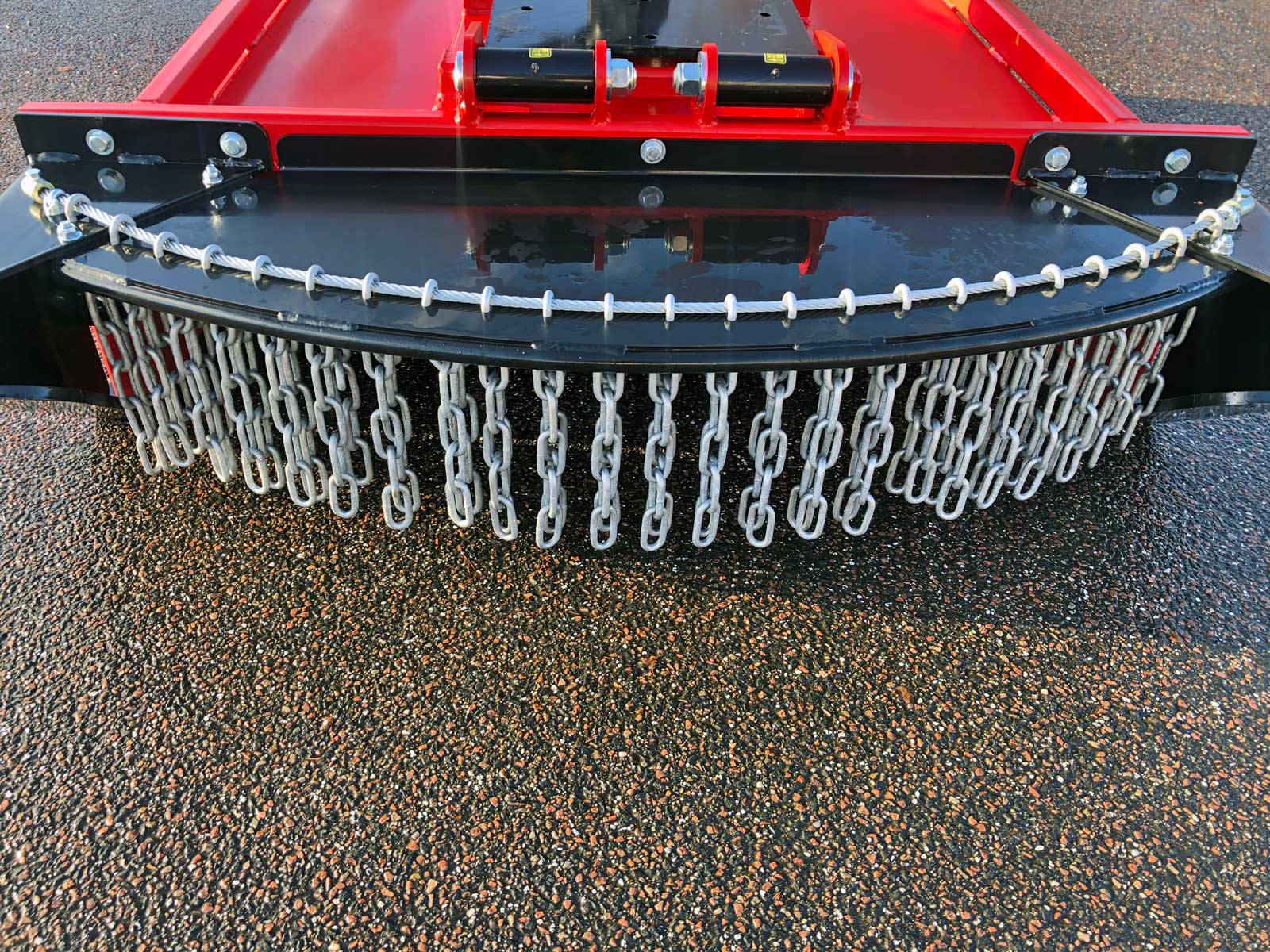

Item No. 6114

Protective guard with a chain fall for mounting between the 2 horns.
Prevent the material from being thrown out of the box.

Button
Item No. 6134

Chain kit 10 mm with bracket and splitter
Button

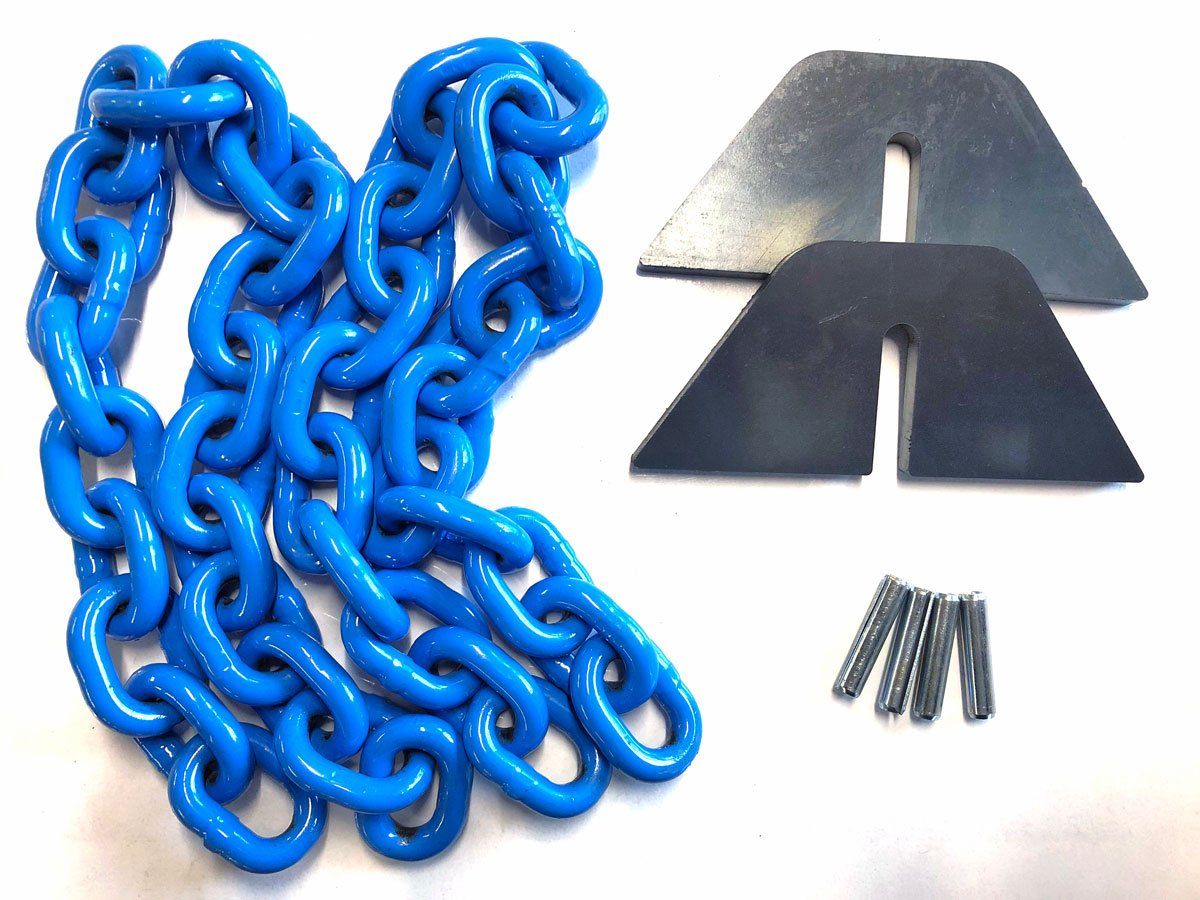

Item No. 6136

Chain kit 13 mm chain bracket and splitter.
Button

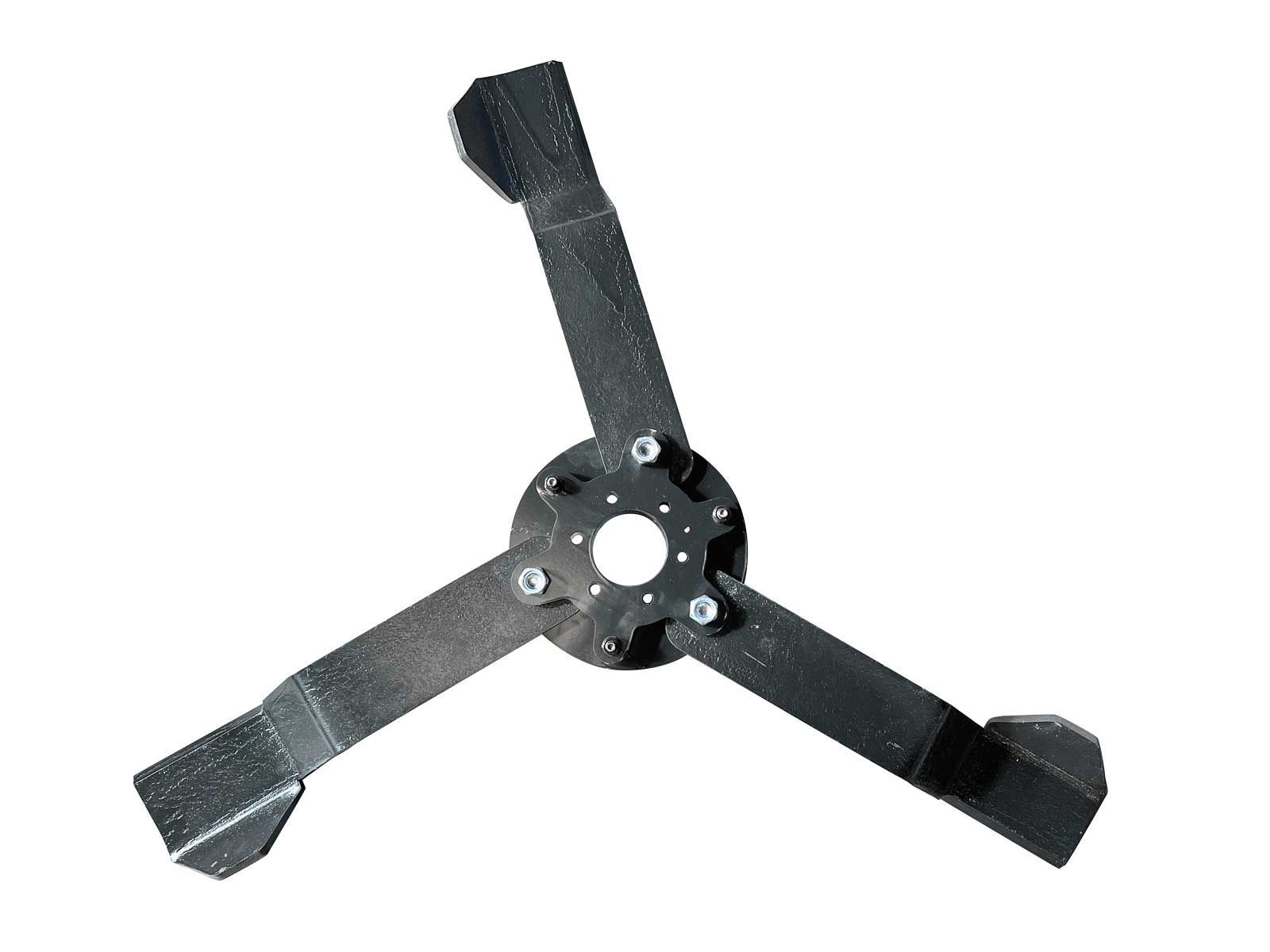

Item No. 6148

Knife set, 125 cm with 3 knives
