Chain Mower FKR-150

Presentation

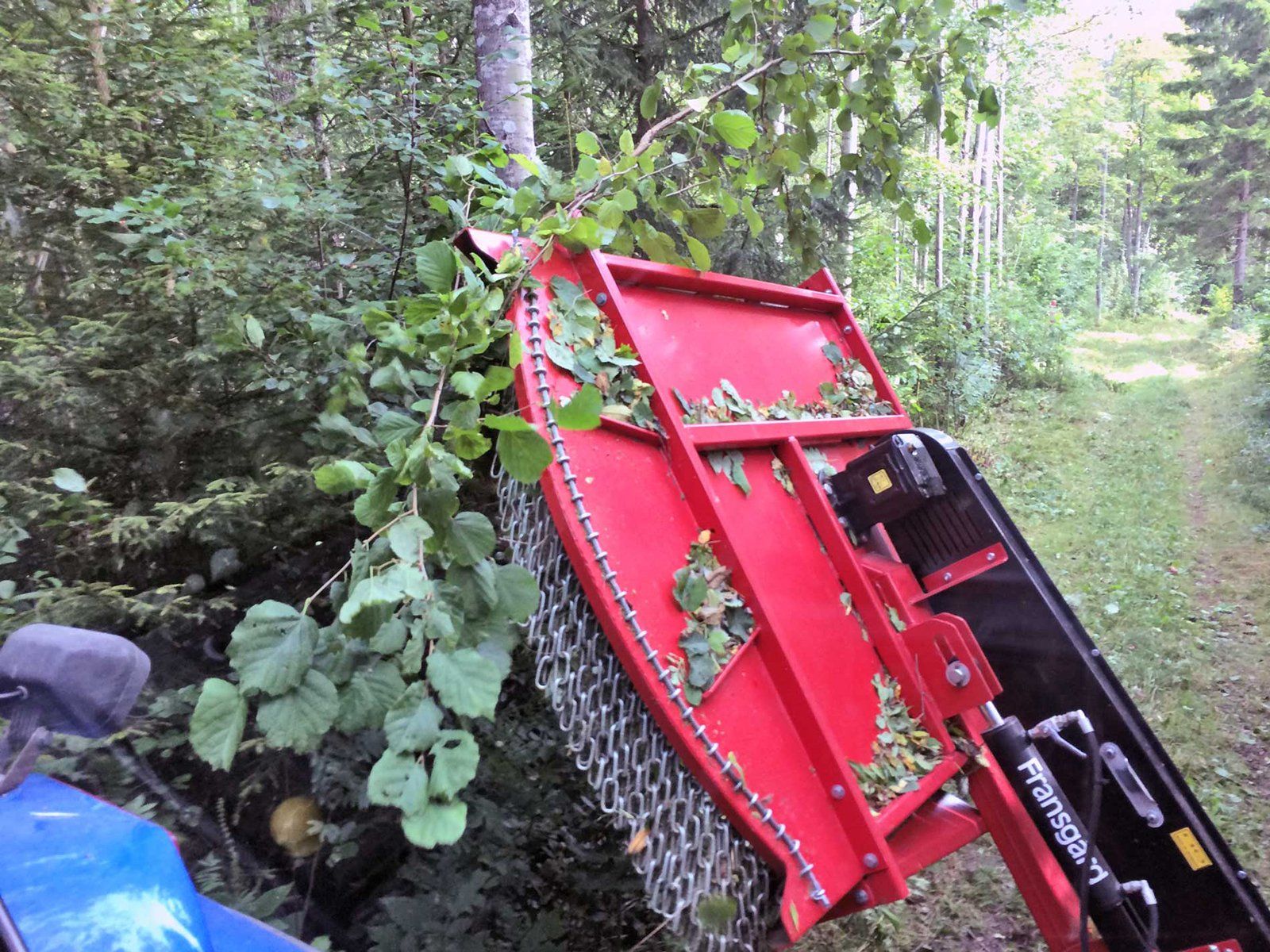

The FKR-150 chain mower is suitable for clearing forest roads, ditches, roadsides, etc. Despite its distance of 3.25 m from the centre of the tractor, it is a robust and flexible mulcher suitable for working on smaller forest roads and where space is at a premium. It also handles tasks such as ditches, roadside verges, watercourses and windbreaks from 1.5 m to 3.0 m in height.

The machine is very flexible with a working angle of 35° downwards and 90° upwards. The chain mower's working range is from 2.4 m to 3.4 m from the centre of the tractor. This makes Fransgård's FKR-150 the most flexible chain mower on the market for narrow forest roads.

The machine has very low operating and maintenance costs and therefore offers great benefits to the user.

High-quality technical solutions

The chain mower has 2 steel chains in G100 quality, which rotate at a speed of 1500 rpm. Power transmission is by belt drive with a three-track powerbelt. In addition to transmitting high power to the work, it absorbs vibrations coming from the chains.

The wear shoe is made of Hardox 500 and the main frame is made of Domex 420 high-strength steel. There is also a reinforced rubber cover fitted to the back.

The machine has a standard hydraulic offset adjustment of 100 cm and is driven by a PTO axle and a powerful 3-track powerbelt.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Technical data:

Model:	FKR-150
Working width	150 cm
Offset adjustment	100 cm
Working area	-35° / +90°
Number of chains	2
Chain dimensions	10 or 13 mm
Chain quality	G100
Hydraulic connectors	2 double
Wear shoe	Std.
Power take-off (PTO)	540 rpm.
Tractor weight	min. 4 tonnes
3-point suspension	Cat II/III
Weight	815 kg

Details:

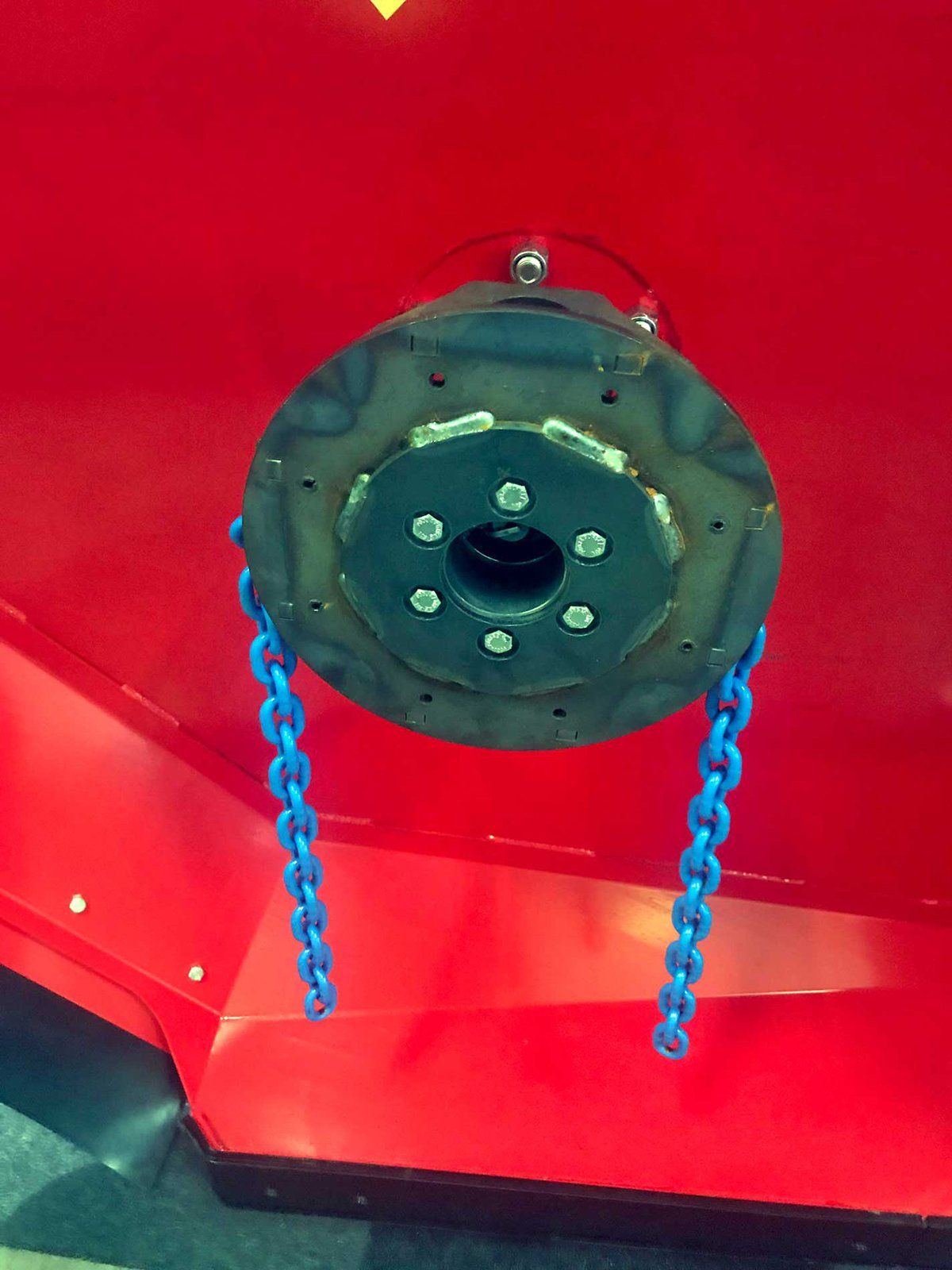

Chain head

All Fransgård chain mowers have 2 x 10 mm chains as standard. The chains are easily changed by knocking out the 2 pipe splitters.
Button

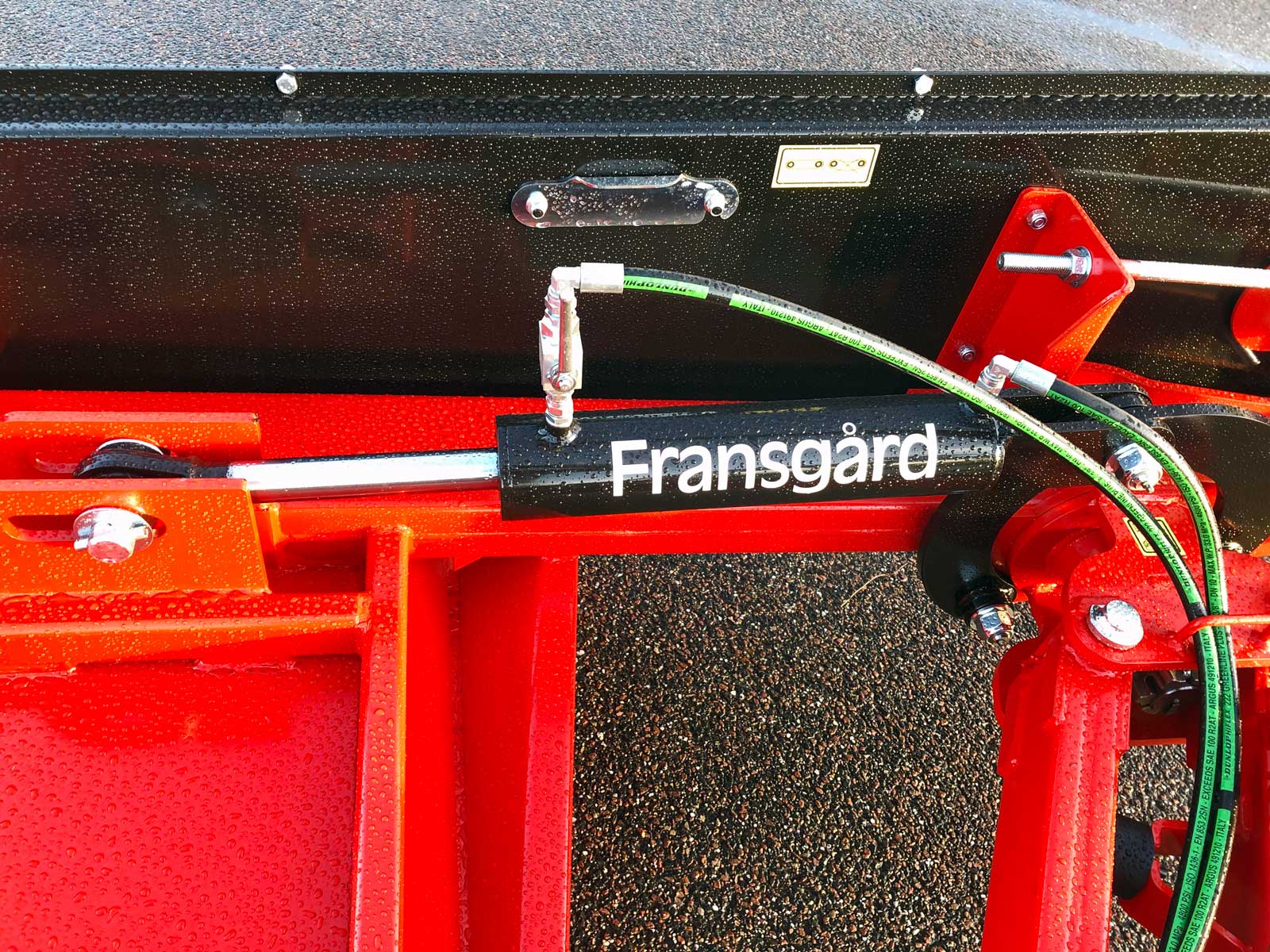

Cylinder

The powerful cylinder ensures optimal operation of the machine
Button

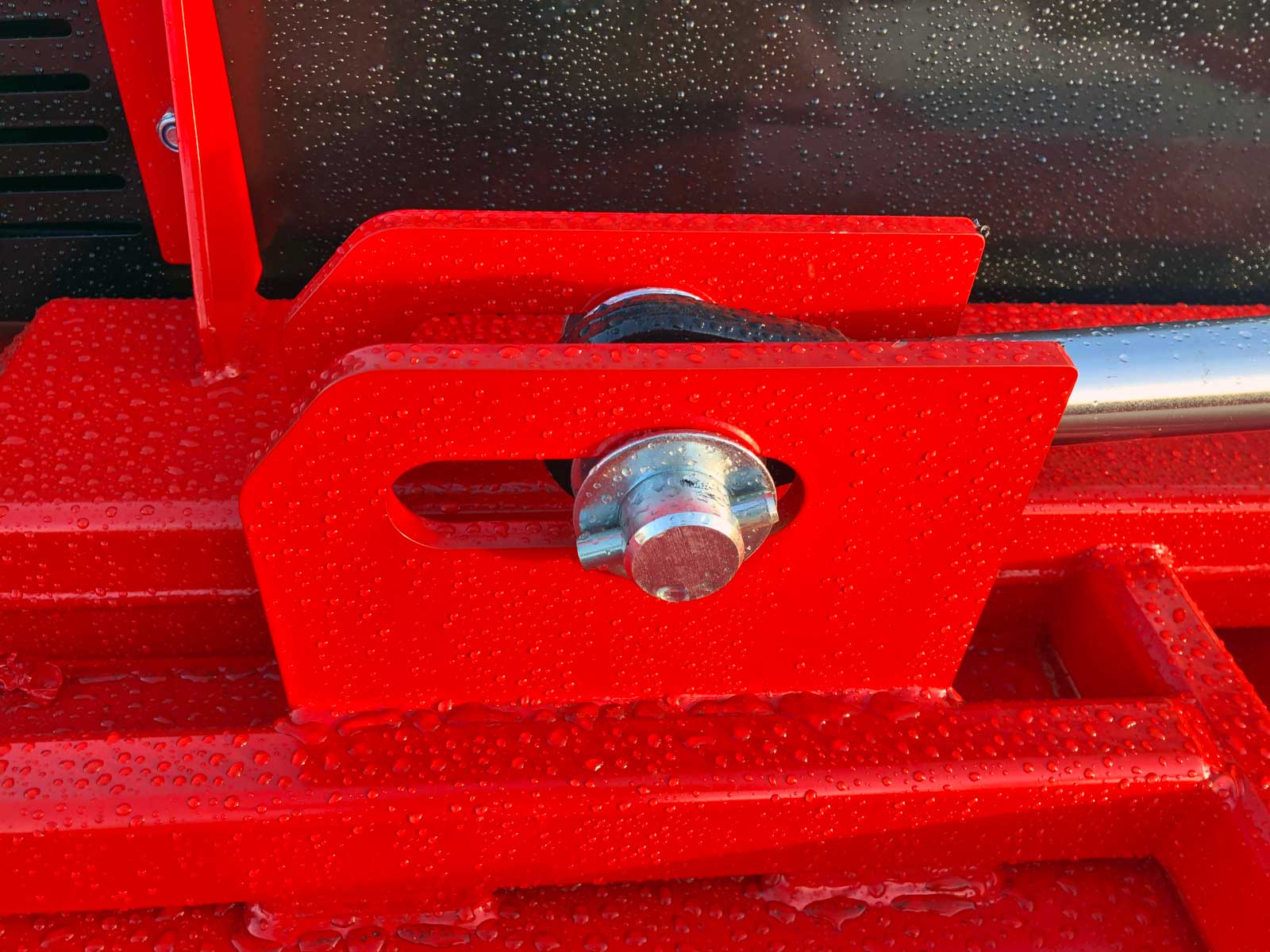

Cylinder attachment

The cylinder is mounted in an elongated hole so that the machine follows the terrain as closely as possible during work.
Button

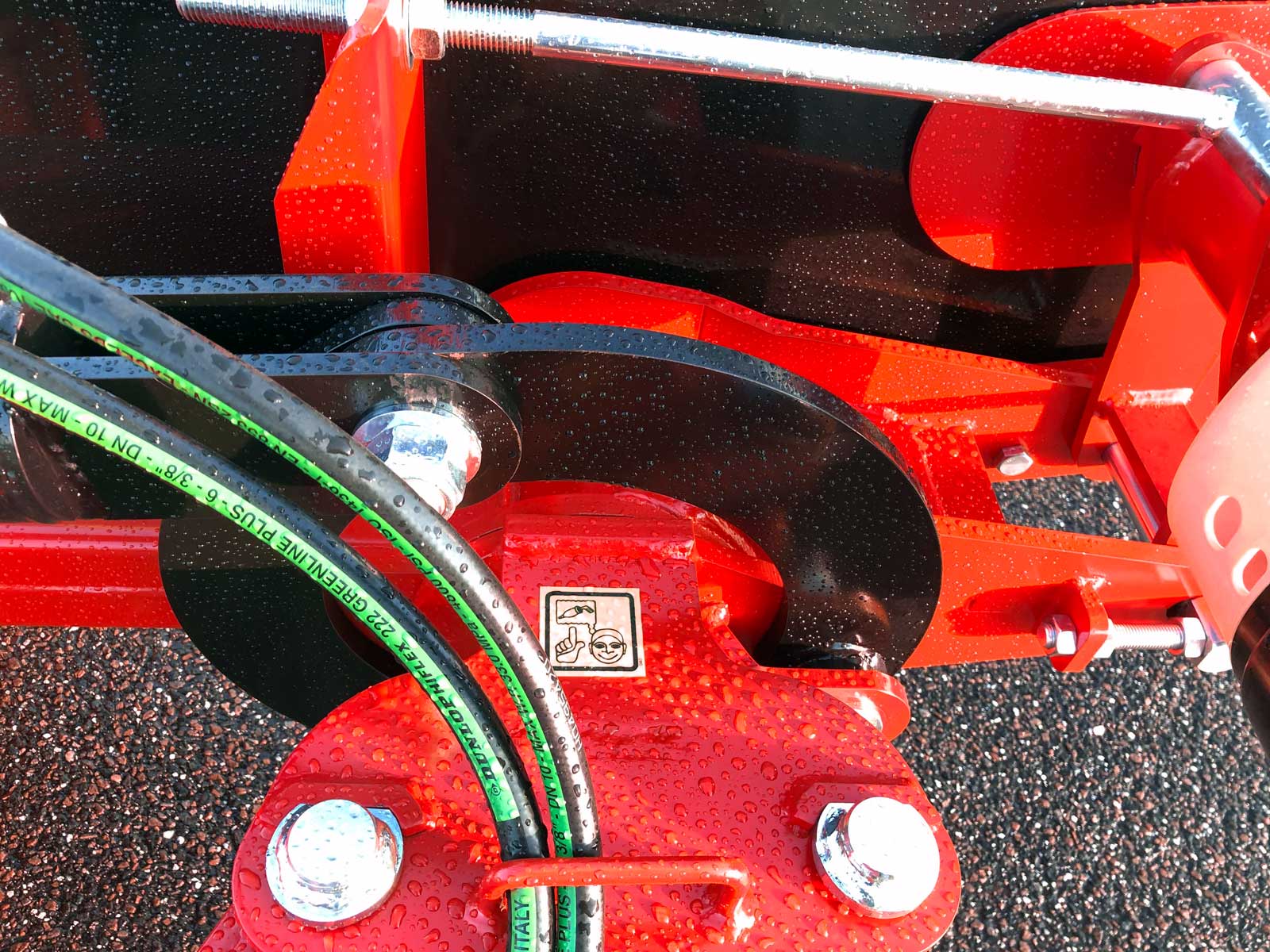

Swivel joint

The greasable swivel joint is mounted on a 75 mm axle and 2 half arches made of special steel and fitted with greasable bolts.
Button

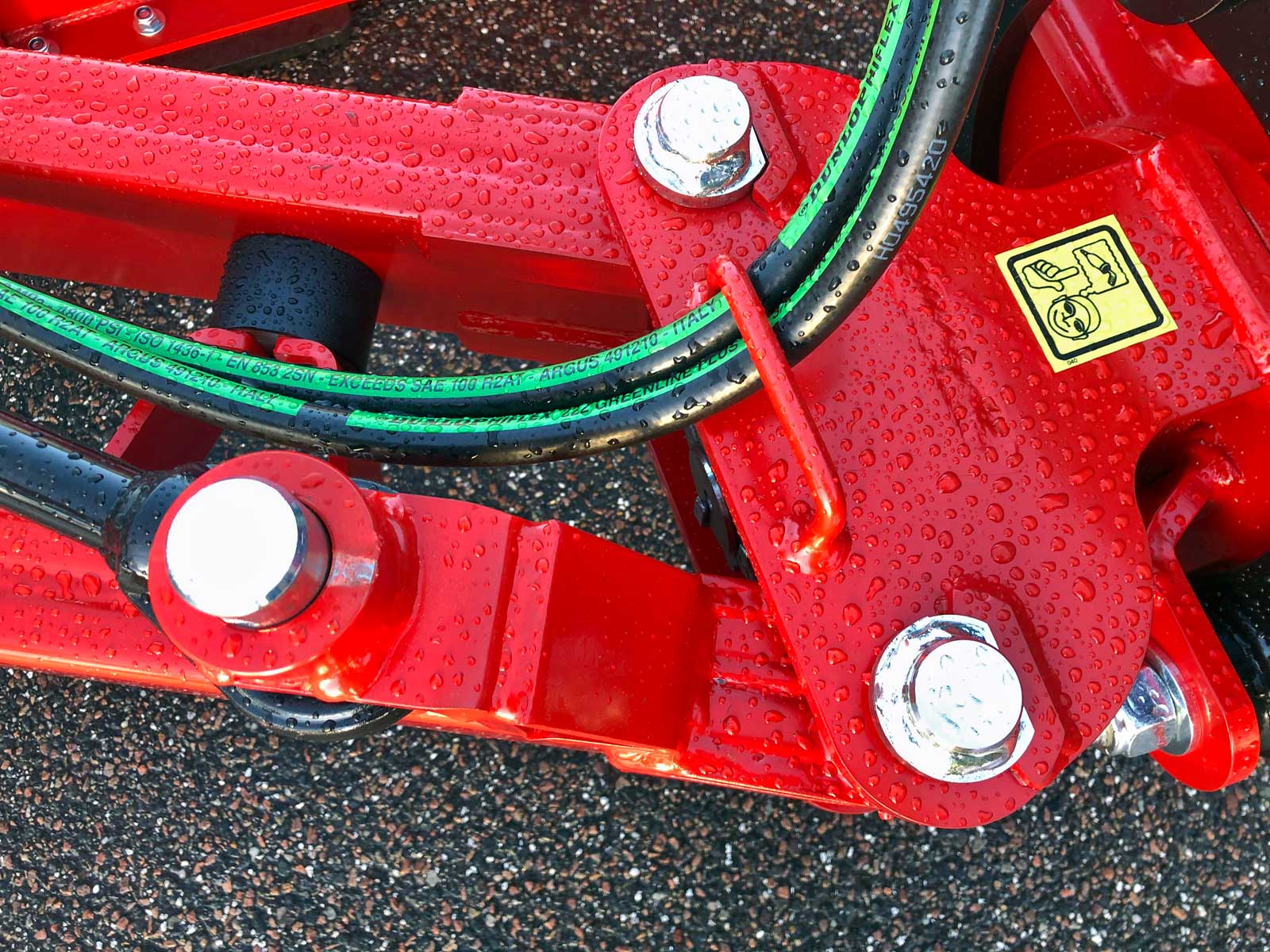

Galvanised bolts

All assembly bolts mounted on the FKR-150 are galvanised.
Button

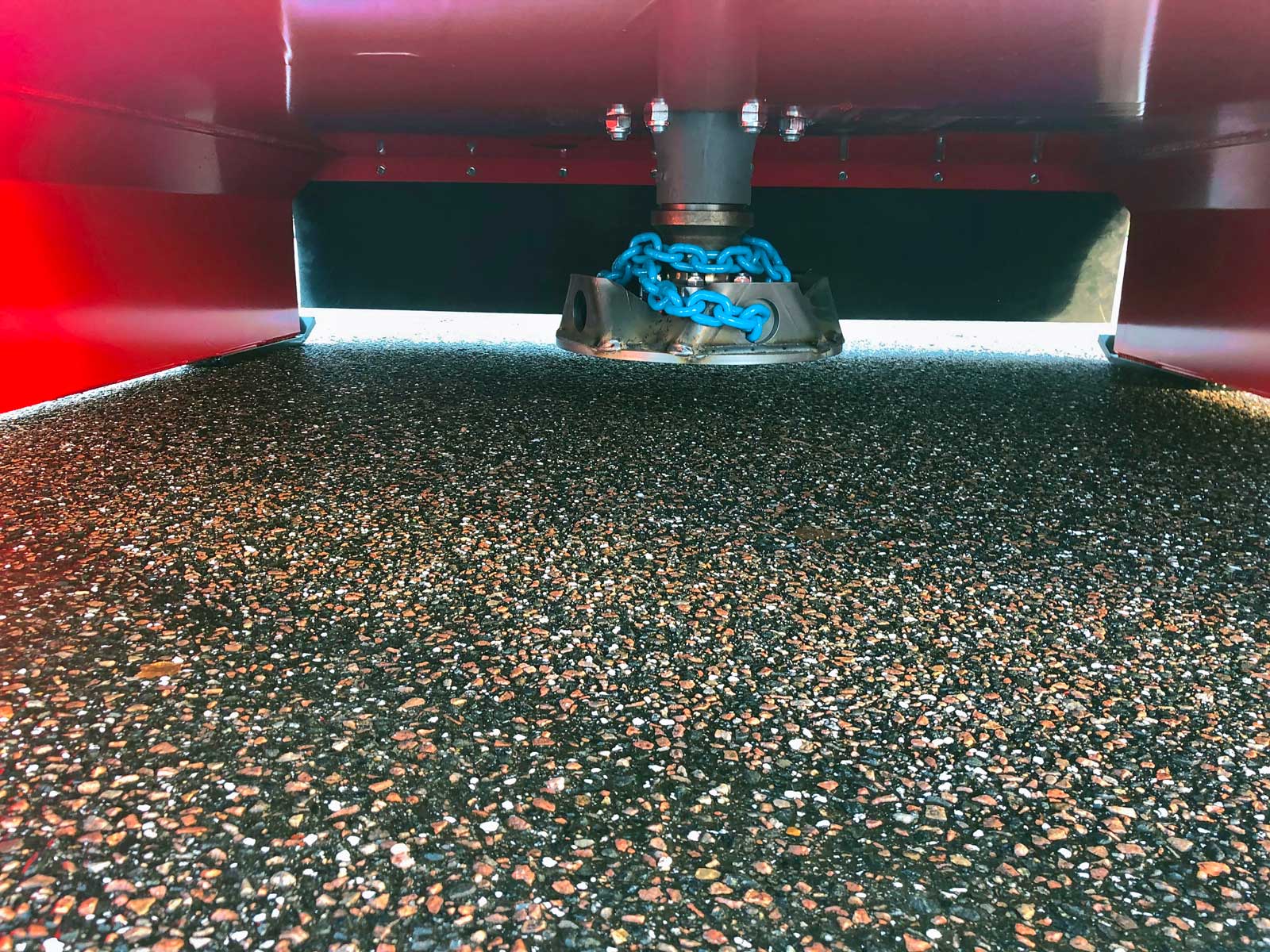

Gearbox chain head

The chain head is mounted with a steel hub on the gearbox axle, and the axle is well protected by the leg of the steel cast gearbox.
Button

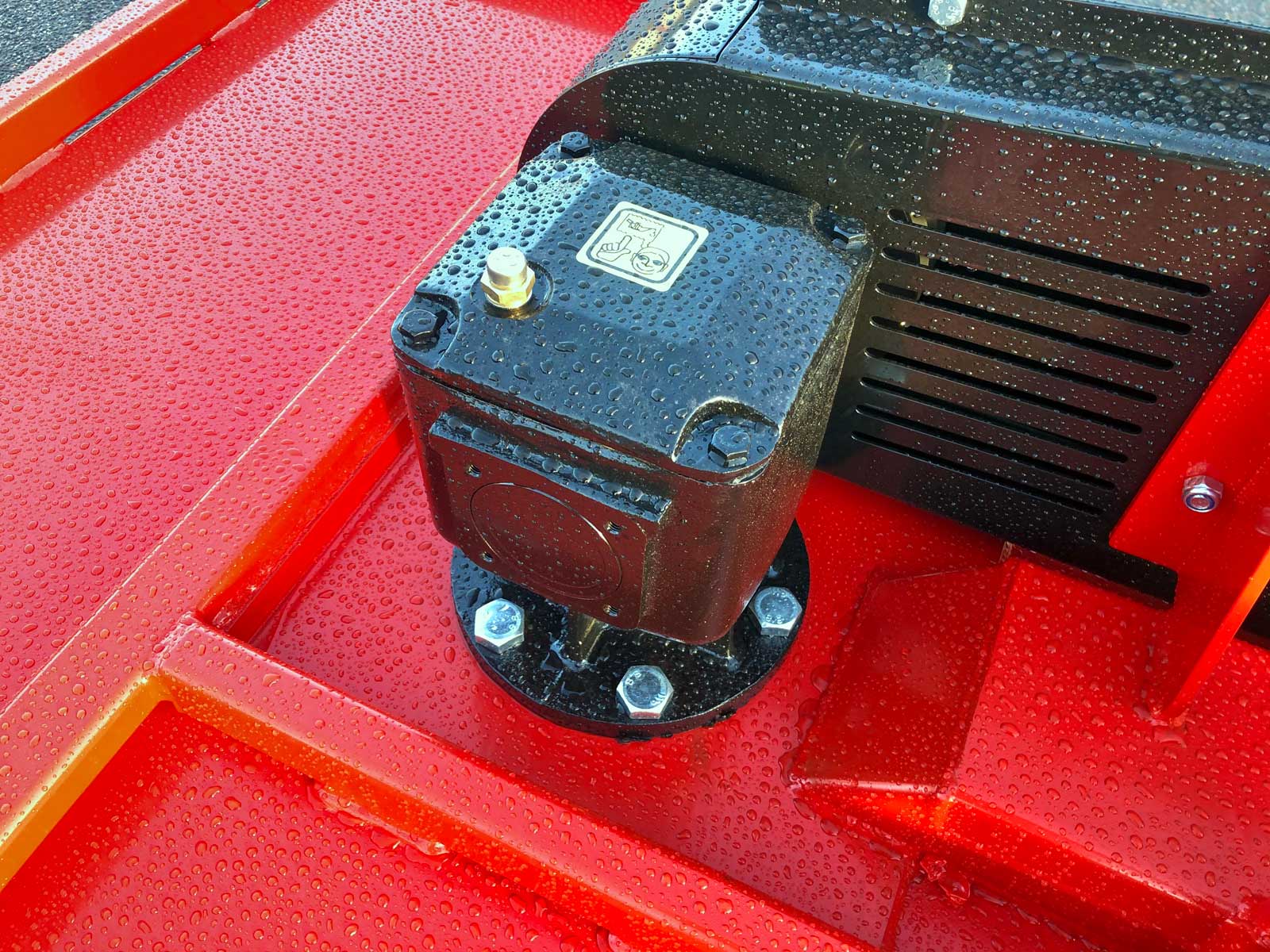

Gearbox

The gearbox, which is mounted on a reinforced mounting plate, is fitted with a raised vent as standard. The shield on the machine is built in 5 mm Domex 420 steel plate with reinforcement of profile tubes on top.
Button

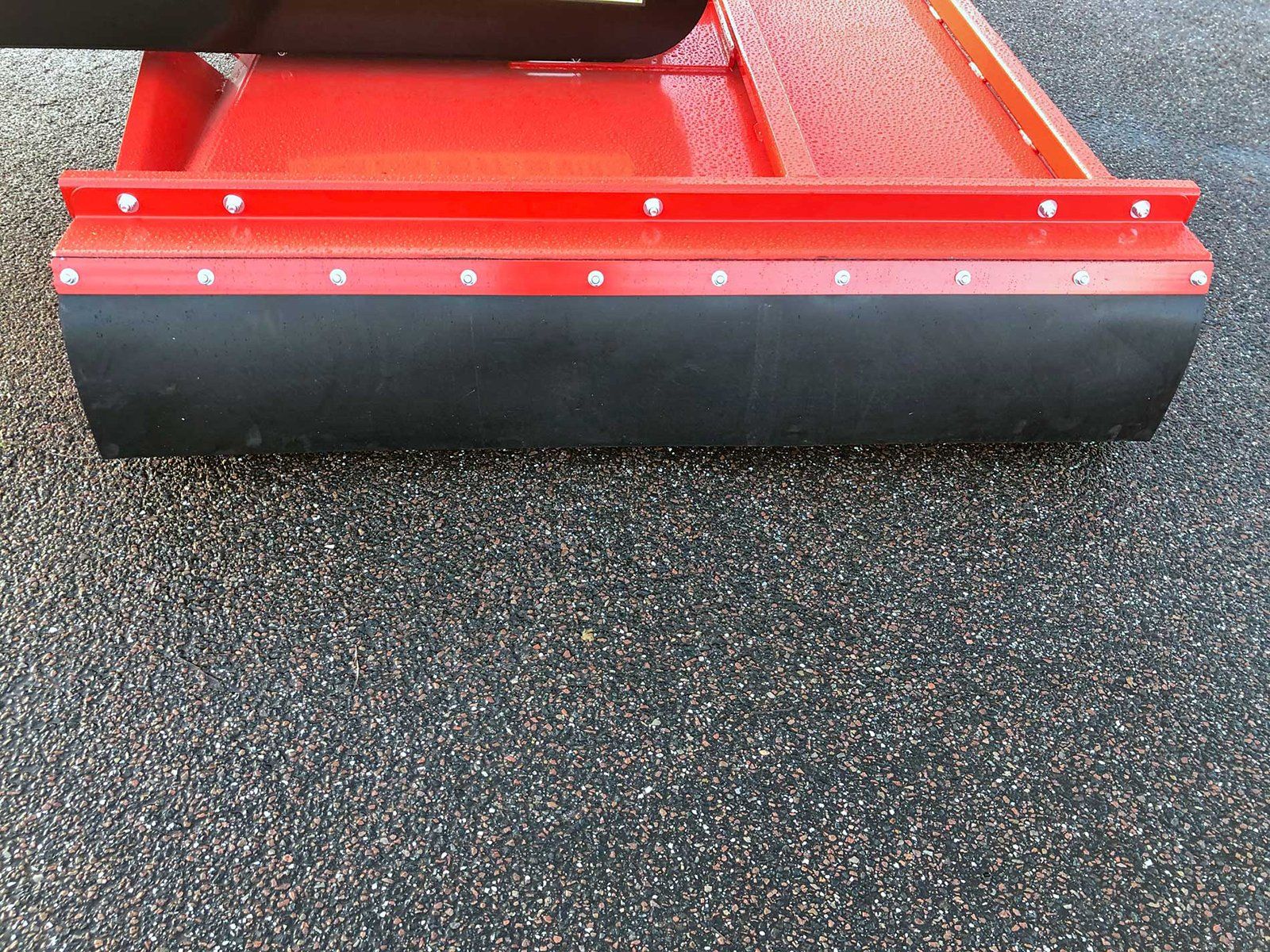

Rubber guard

Durable rubber cover mounted on the back, which helps to hold the material.
Button
Horn

The powerful horns on each side of the front guide the material into the machine. The horn is prepared for mounting a chain fall.
Button

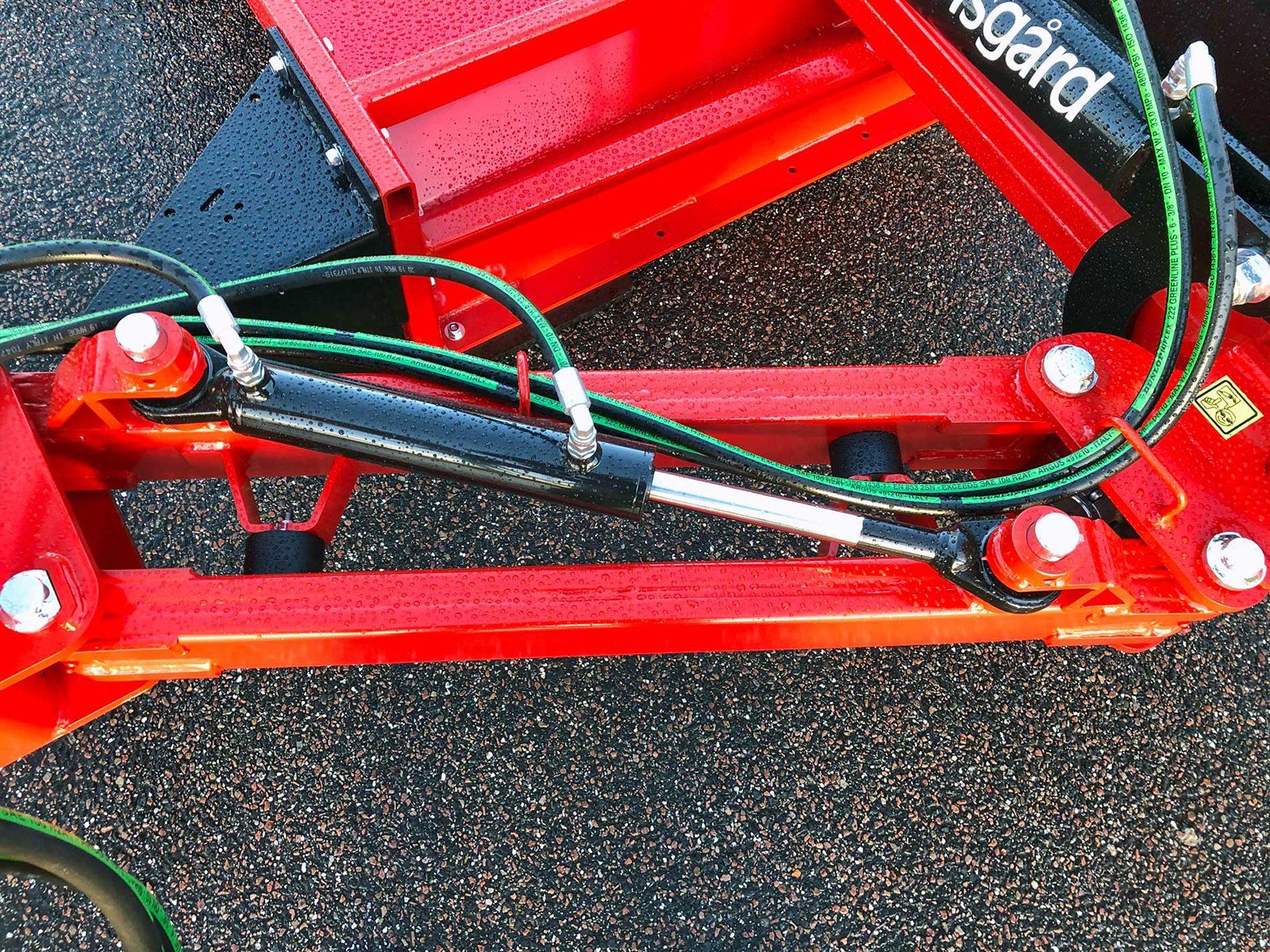

Hydraulic offset adjustment

The machine has hydraulic offset adjustment of up to 100 cm.
Button

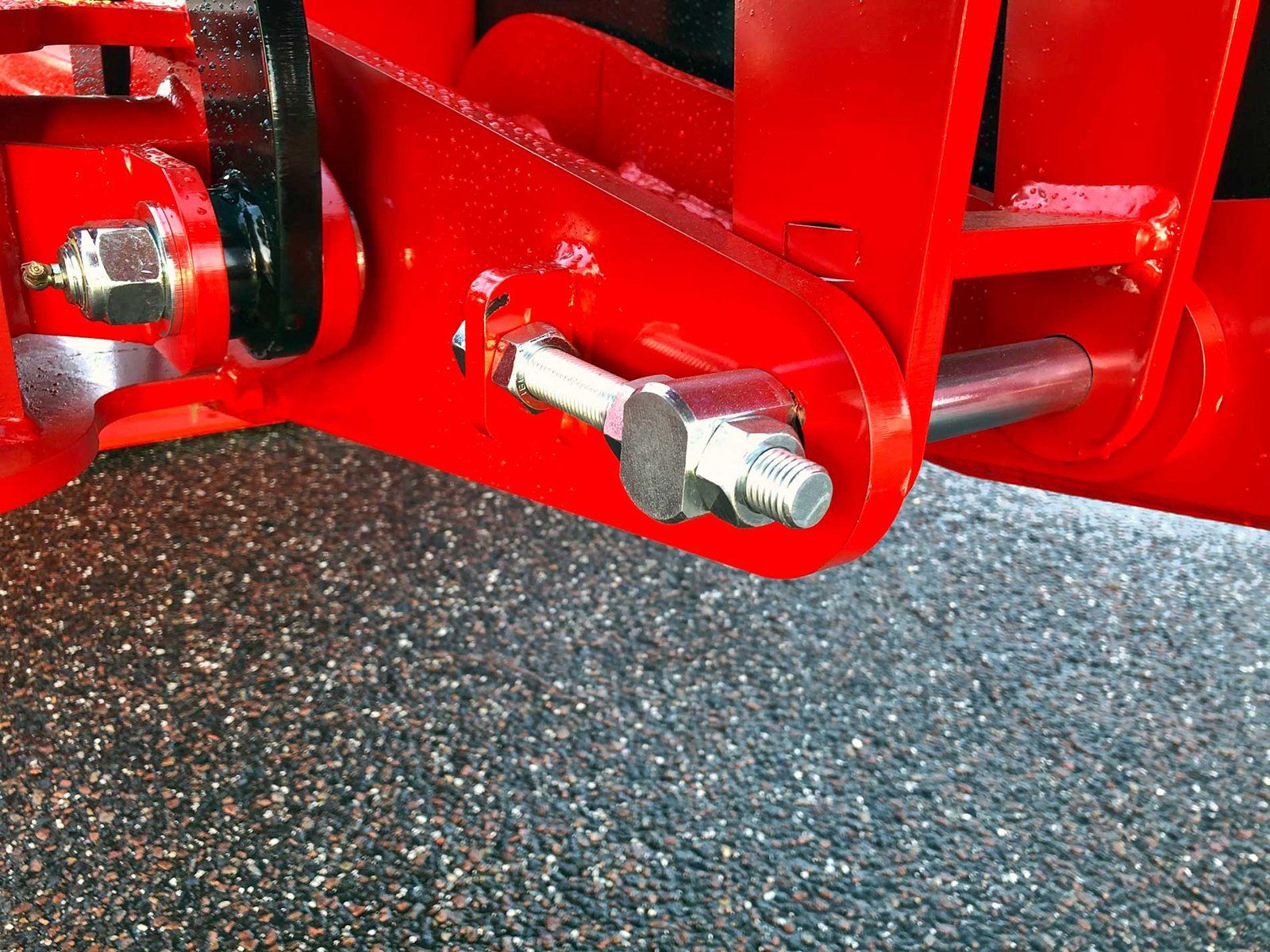

Adjustment bolt

The adjustment bolt for the large pulley ensures that you always have a 100% straight drive line on the power belt.
Button

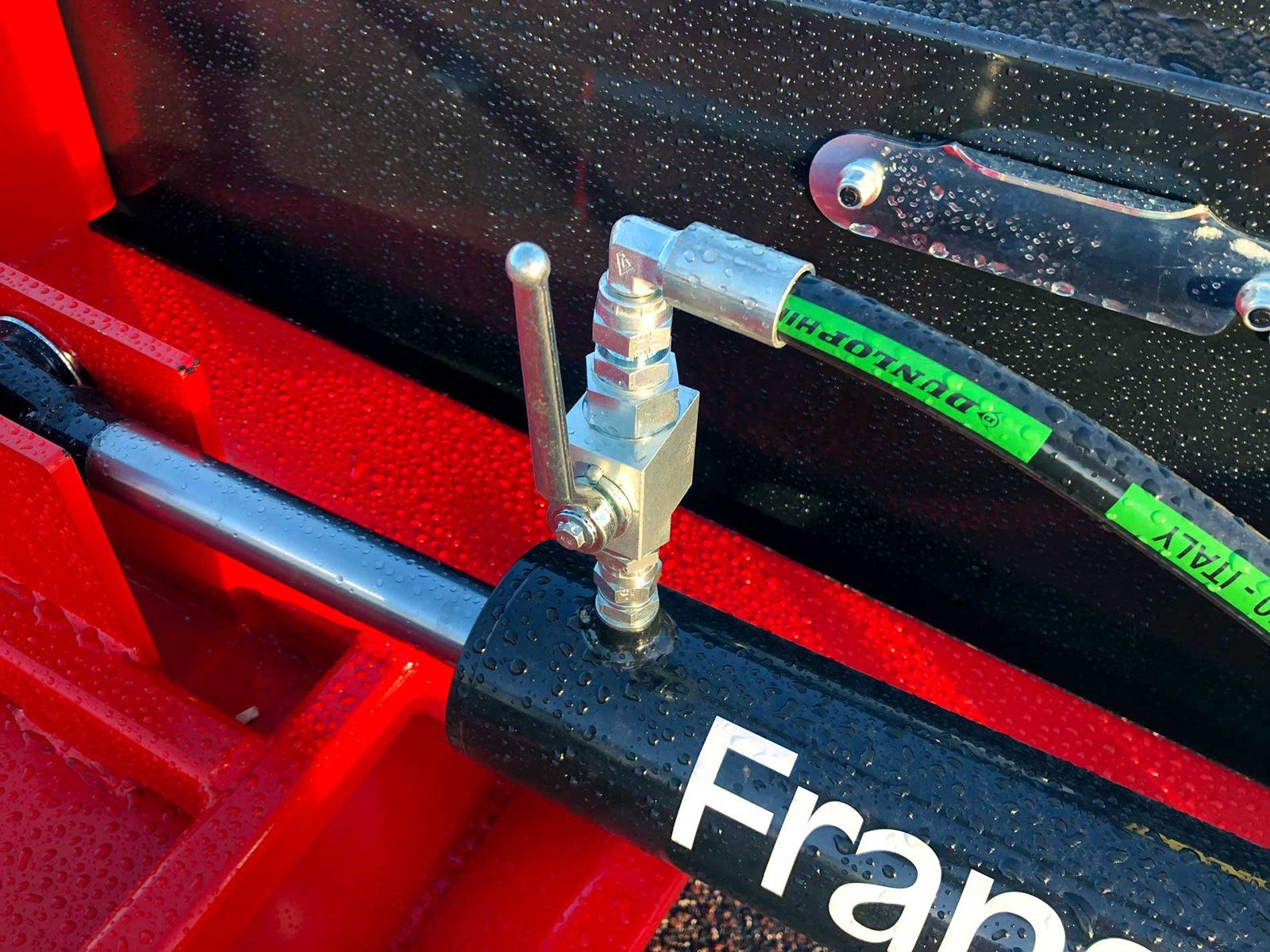

Locking valve

The tilting cylinder is fitted with a locking valve with a handle, which is activated during transport and ensures that the machine does not fold out.
Button

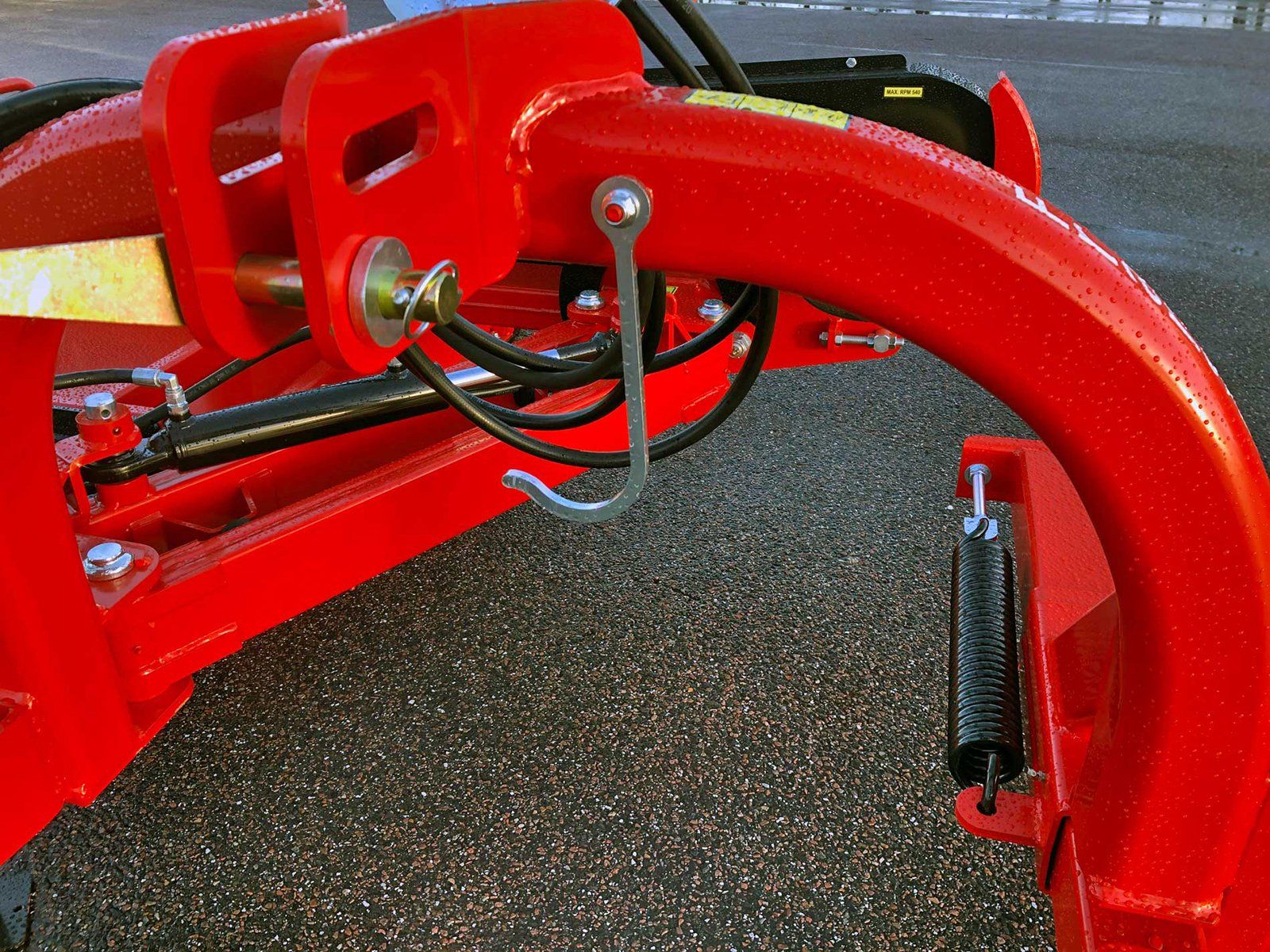

PTO hook

The 3-point suspension has a galvanised hook for the PTO axle when the machine is parked. The hook is easily turned away when the machine is working.
Button

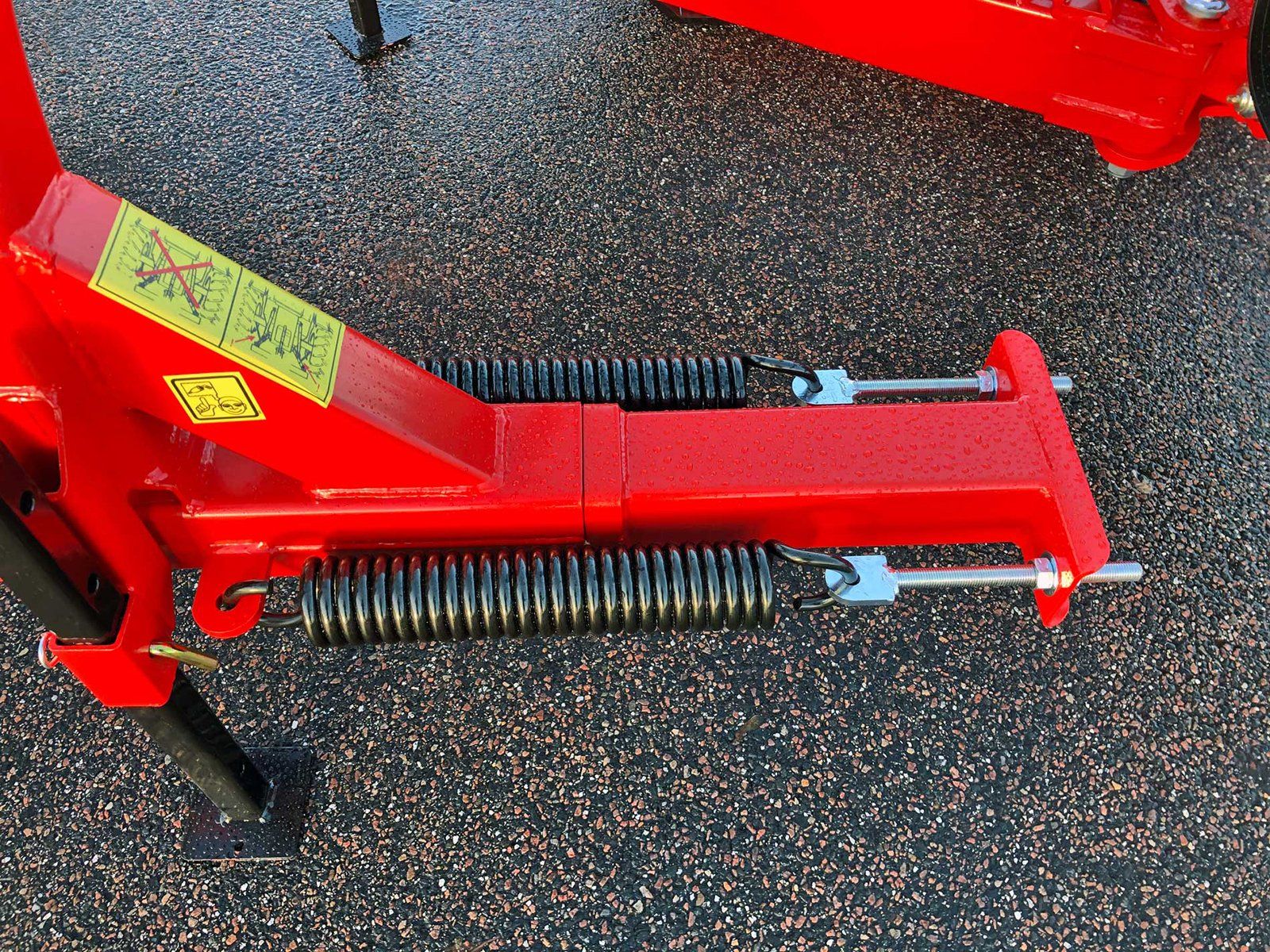

Collision protection

To relieve the machine from impact during work, the 3-point suspension has 2 springs that are released and pull the machine back into place.
Button

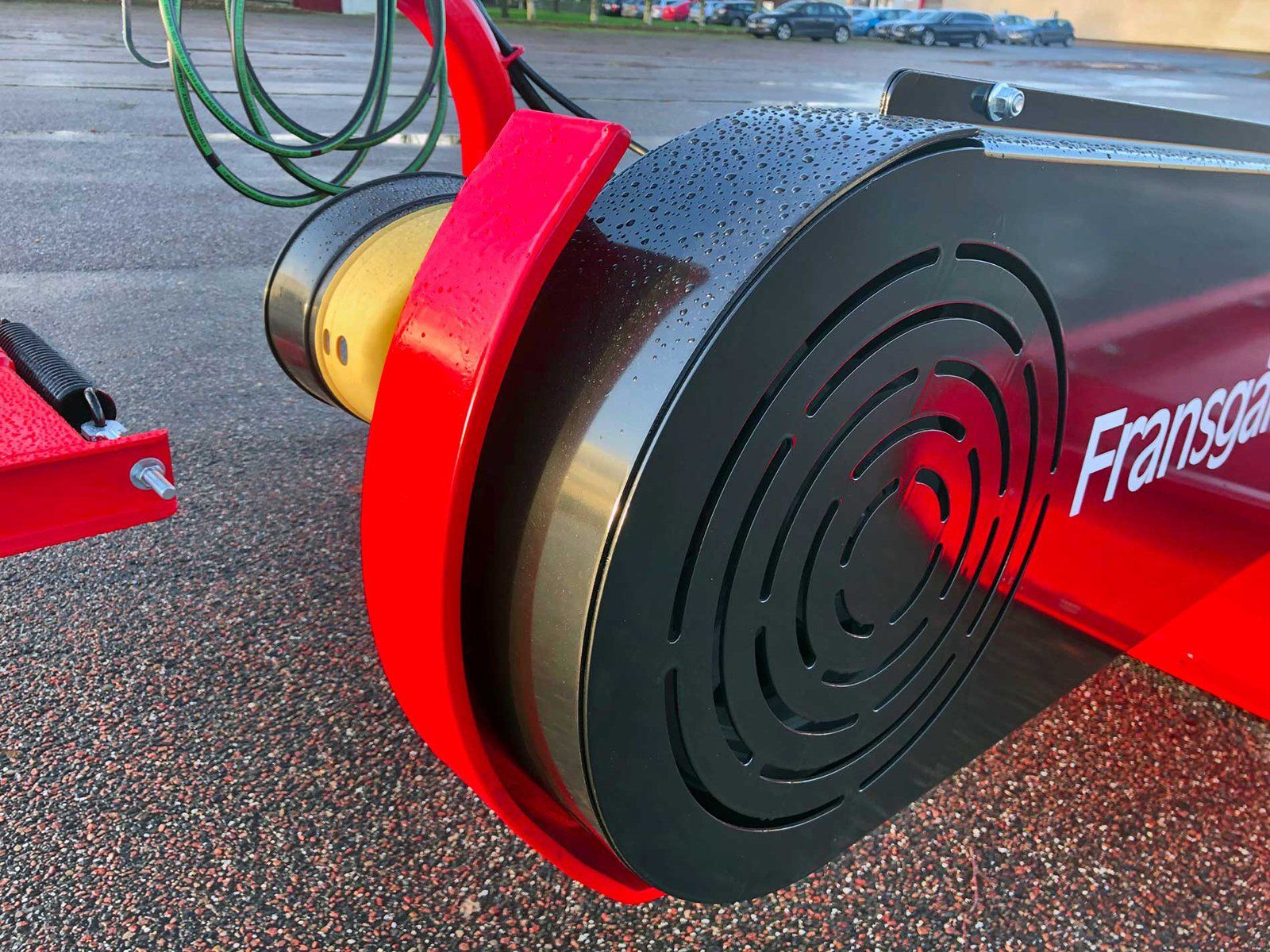

Belt guard

Ventilated belt guard with a wear shoe to protect the screen during work.
Button

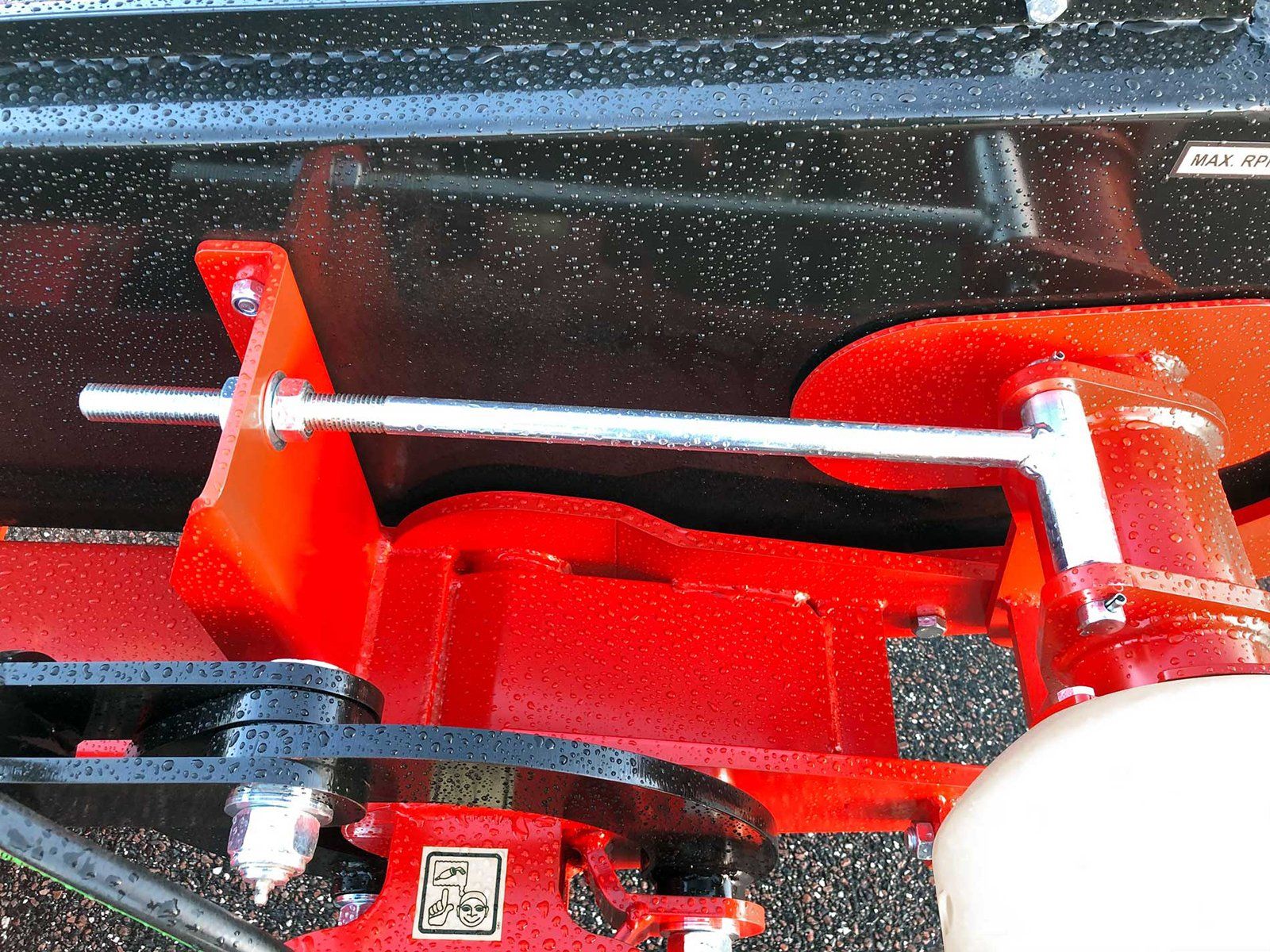

Belt tensioner

The external belt tensioner makes it easy to tighten the belt.
Button

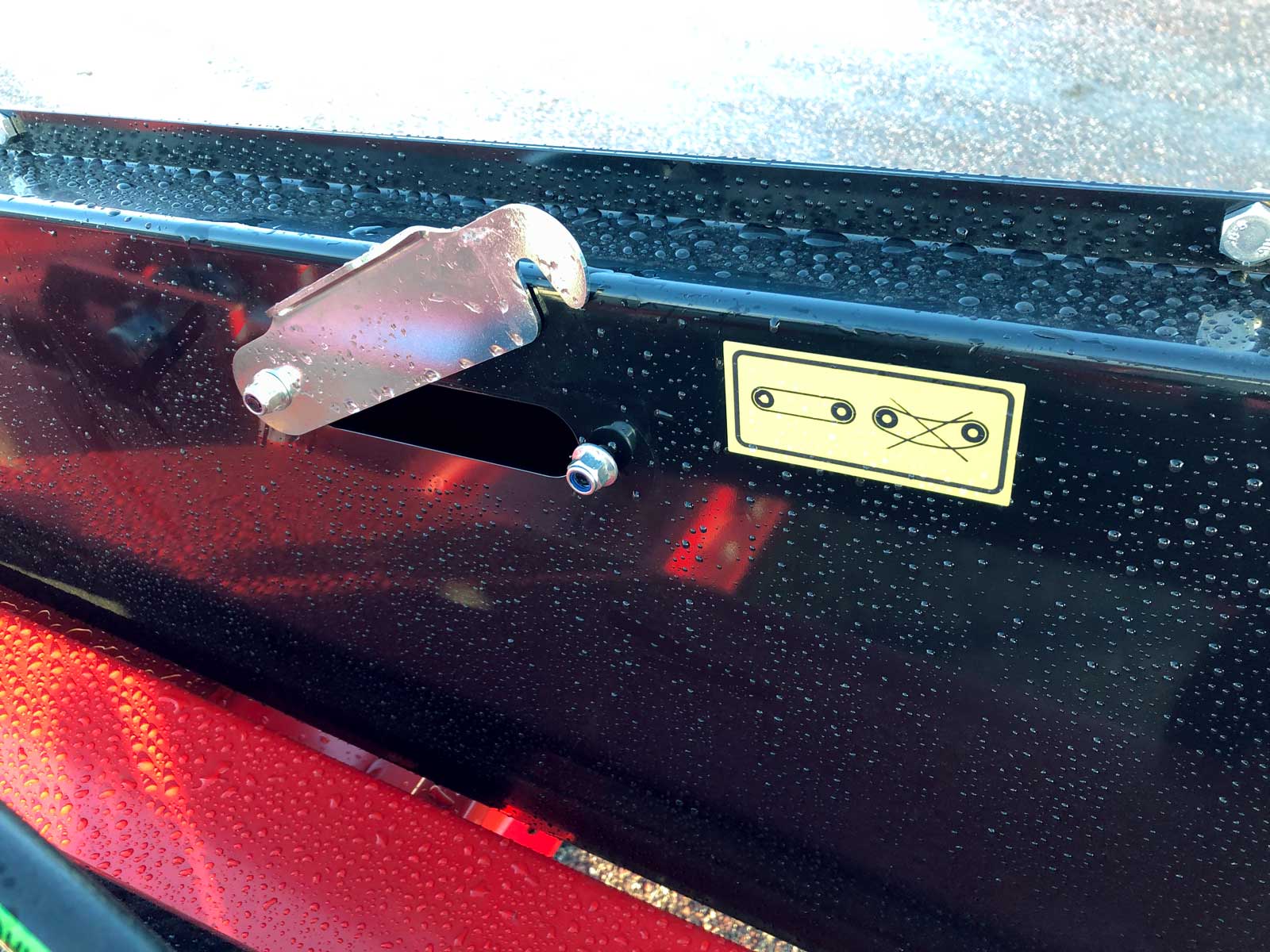

Service hole

The belt guard has a service hole to check if the belt is tightened.
Button

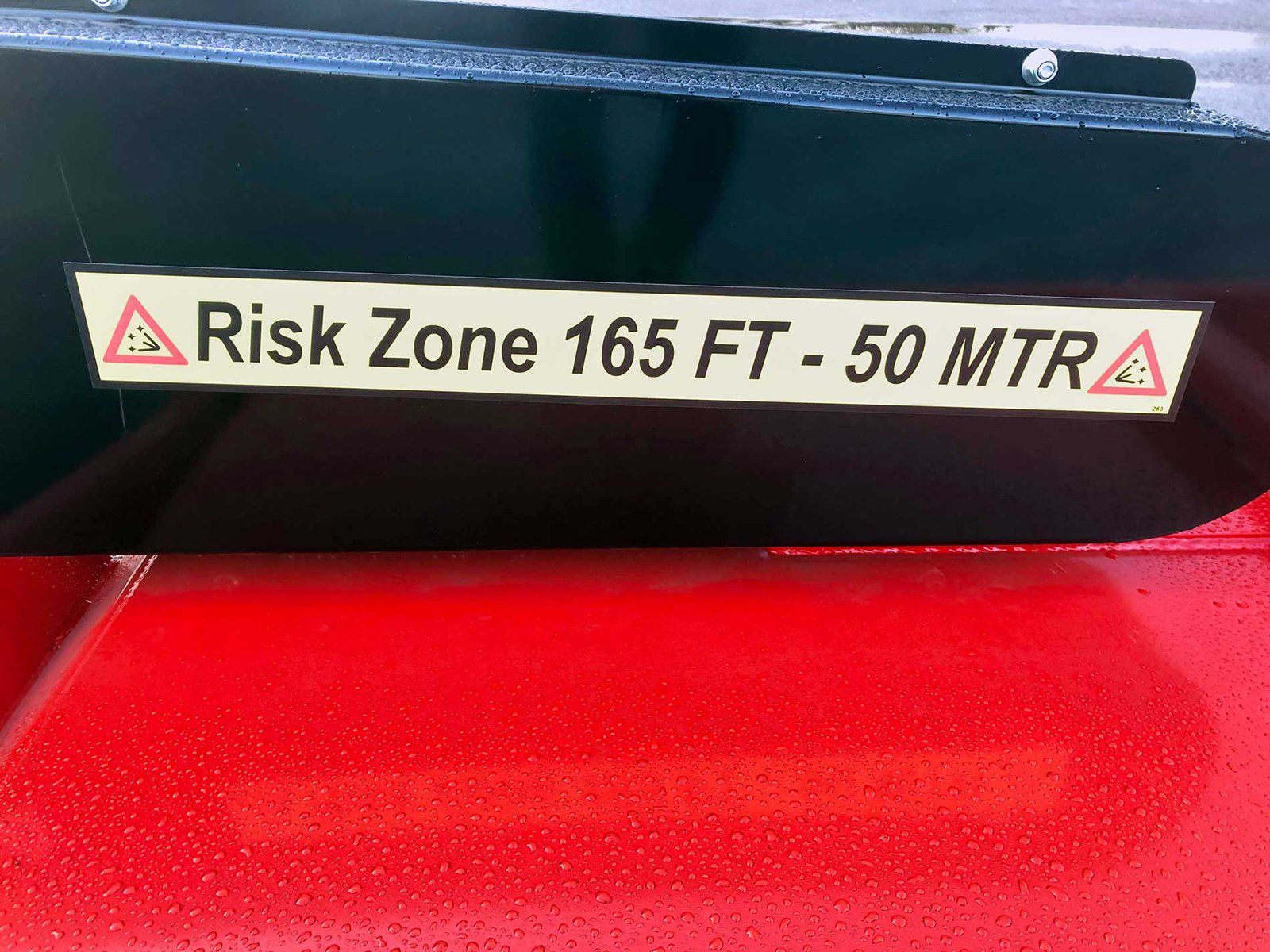

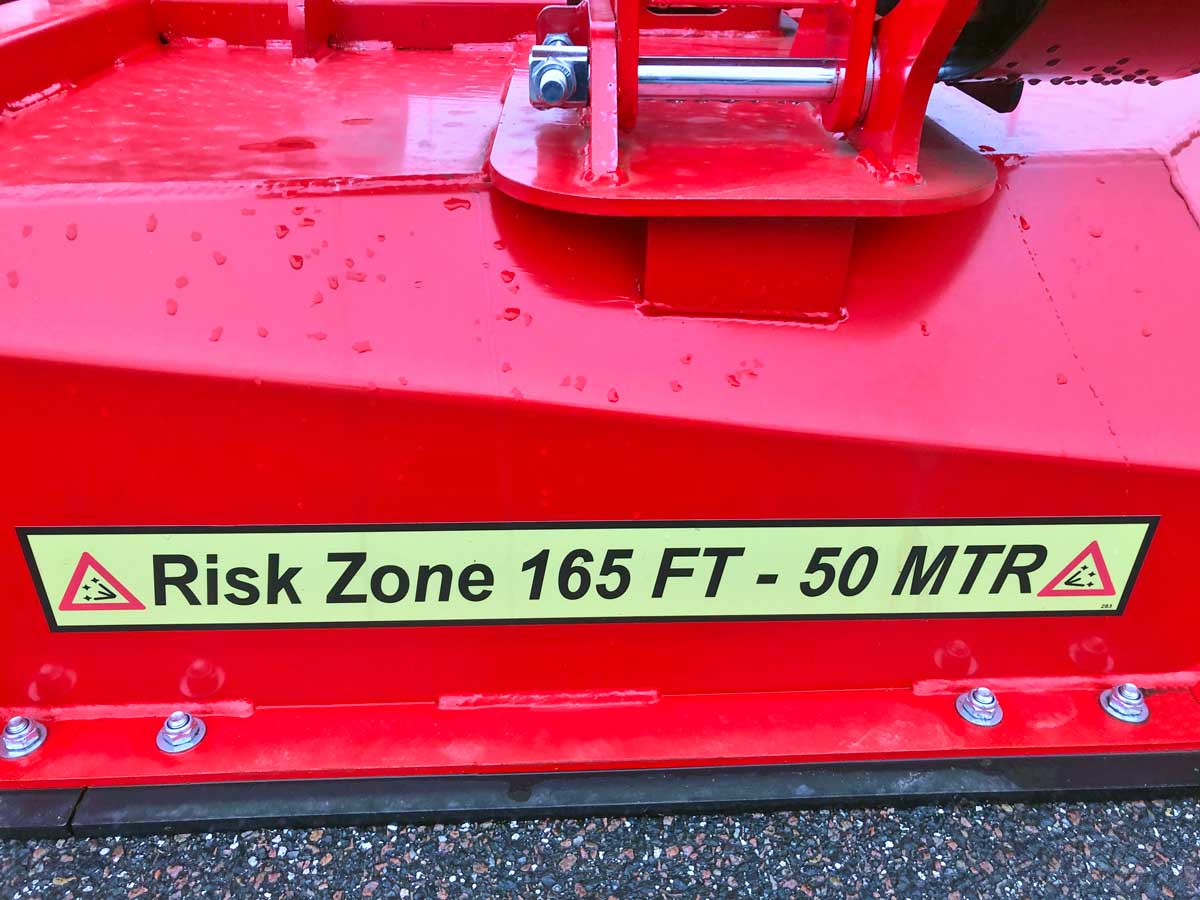

Safety label

The chain mower is clearly marked with large yellow safety warnings.
Button

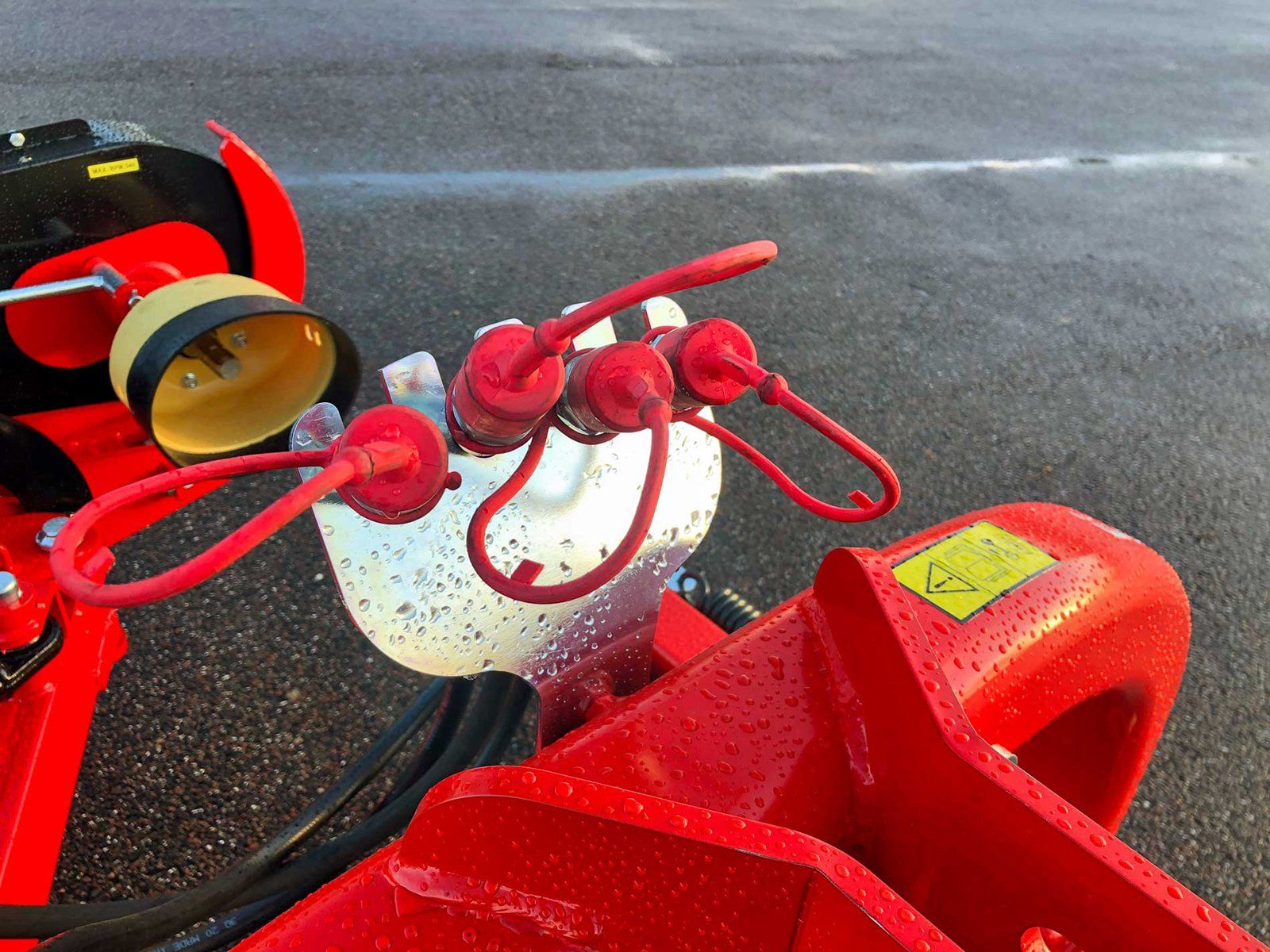

Hose holder

Hydraulic hose holder is standard on the FKR-150.
Button

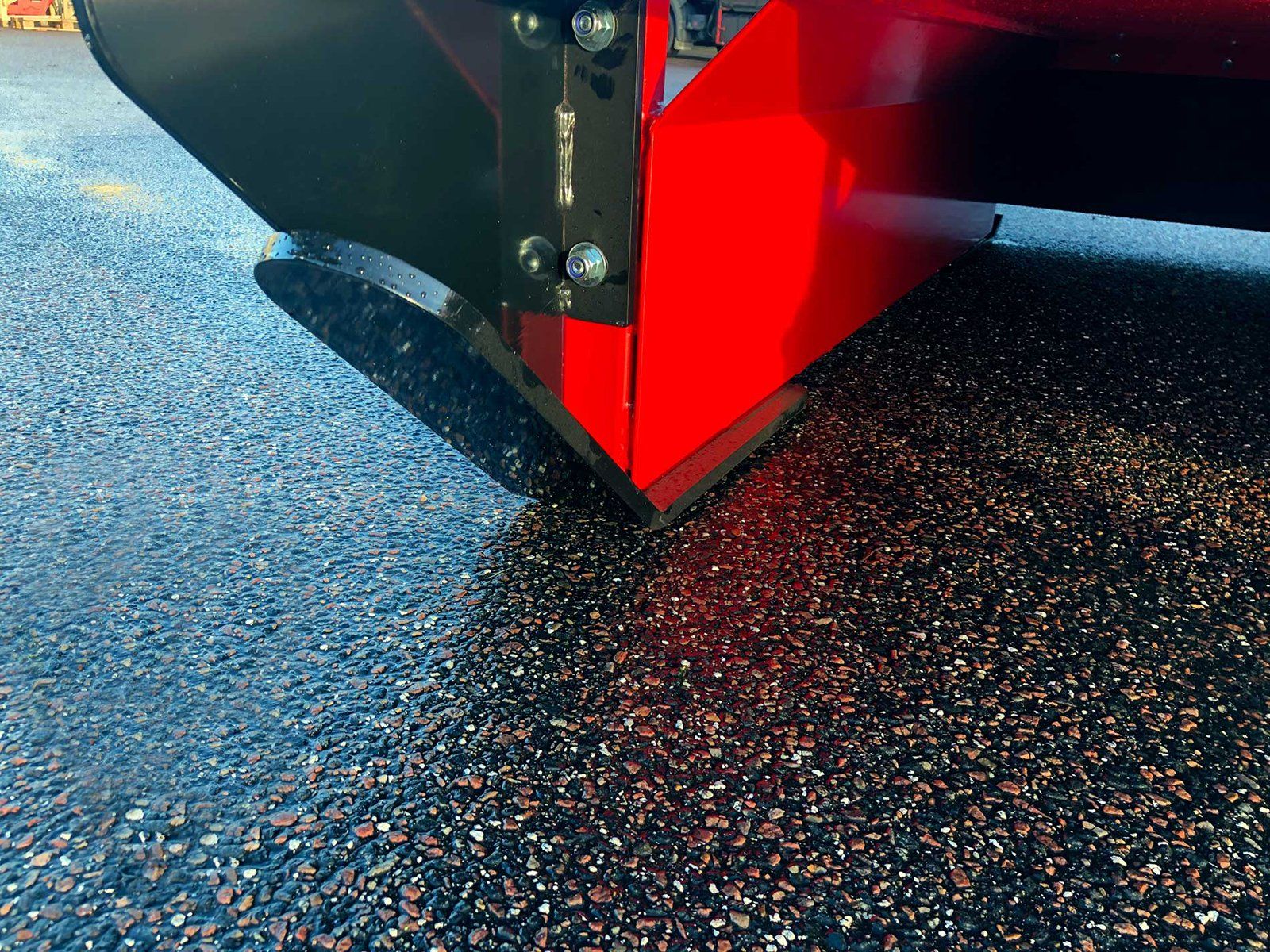

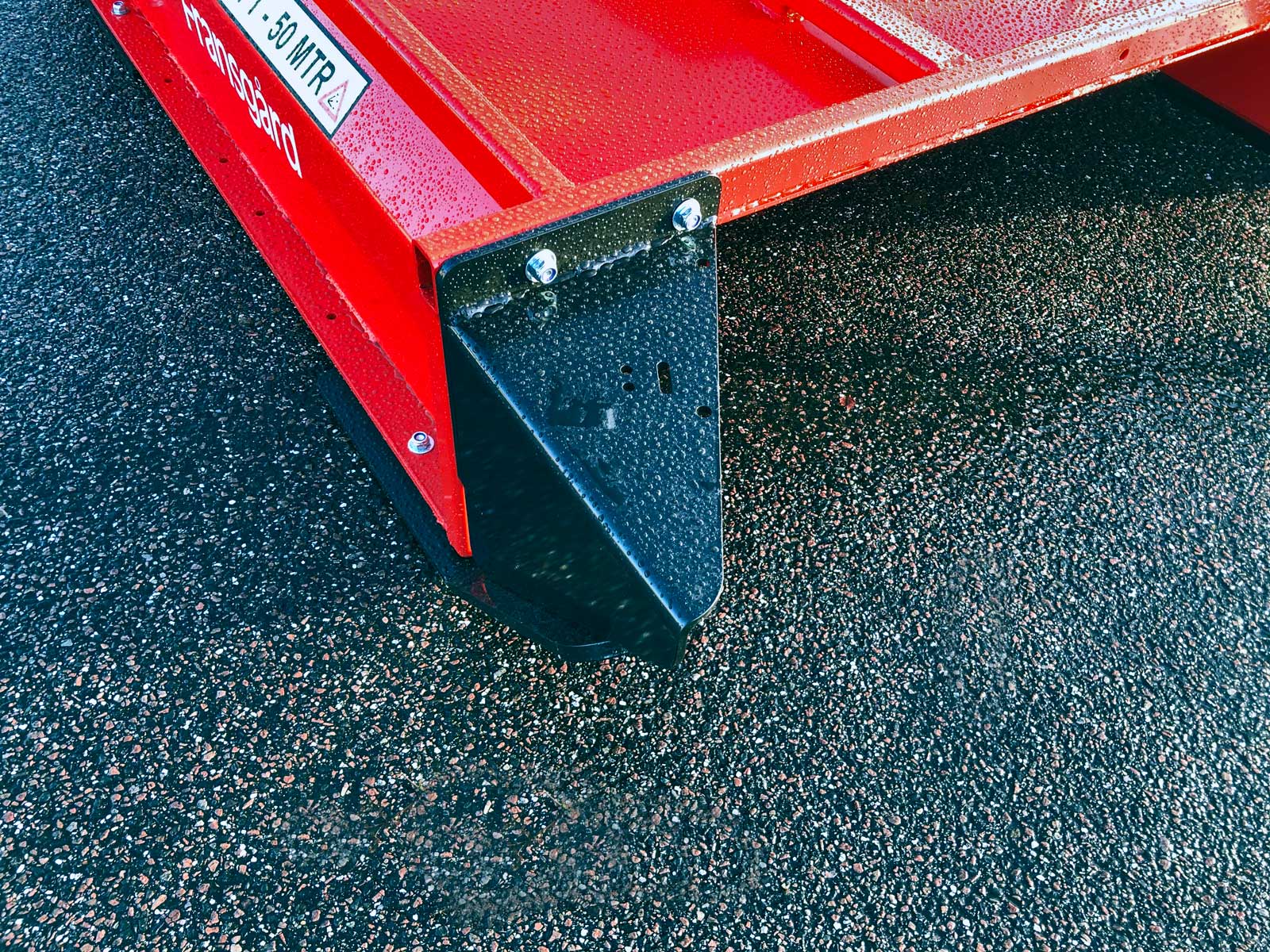

Towing shoes

The large and wide front wear shoes, made of Hardox 500, are designed to easily slide up over tree stumps, etc. Smaller wear shoes are fitted at the rear.
Button

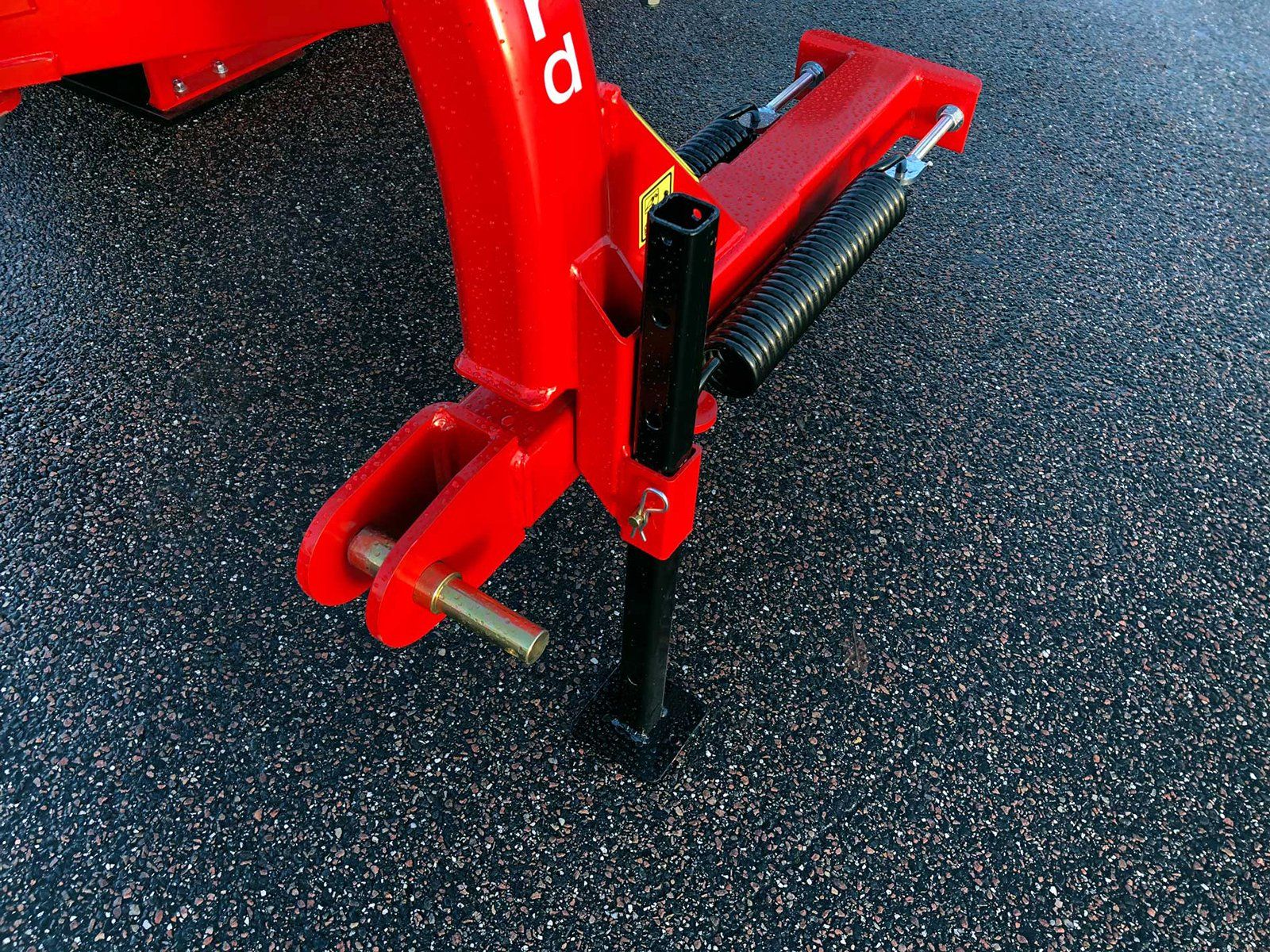

Support legs

The 2 support legs ensure stable parking of the machine and they are easily lifted up during work, so they are always accessible on the machine.
Button

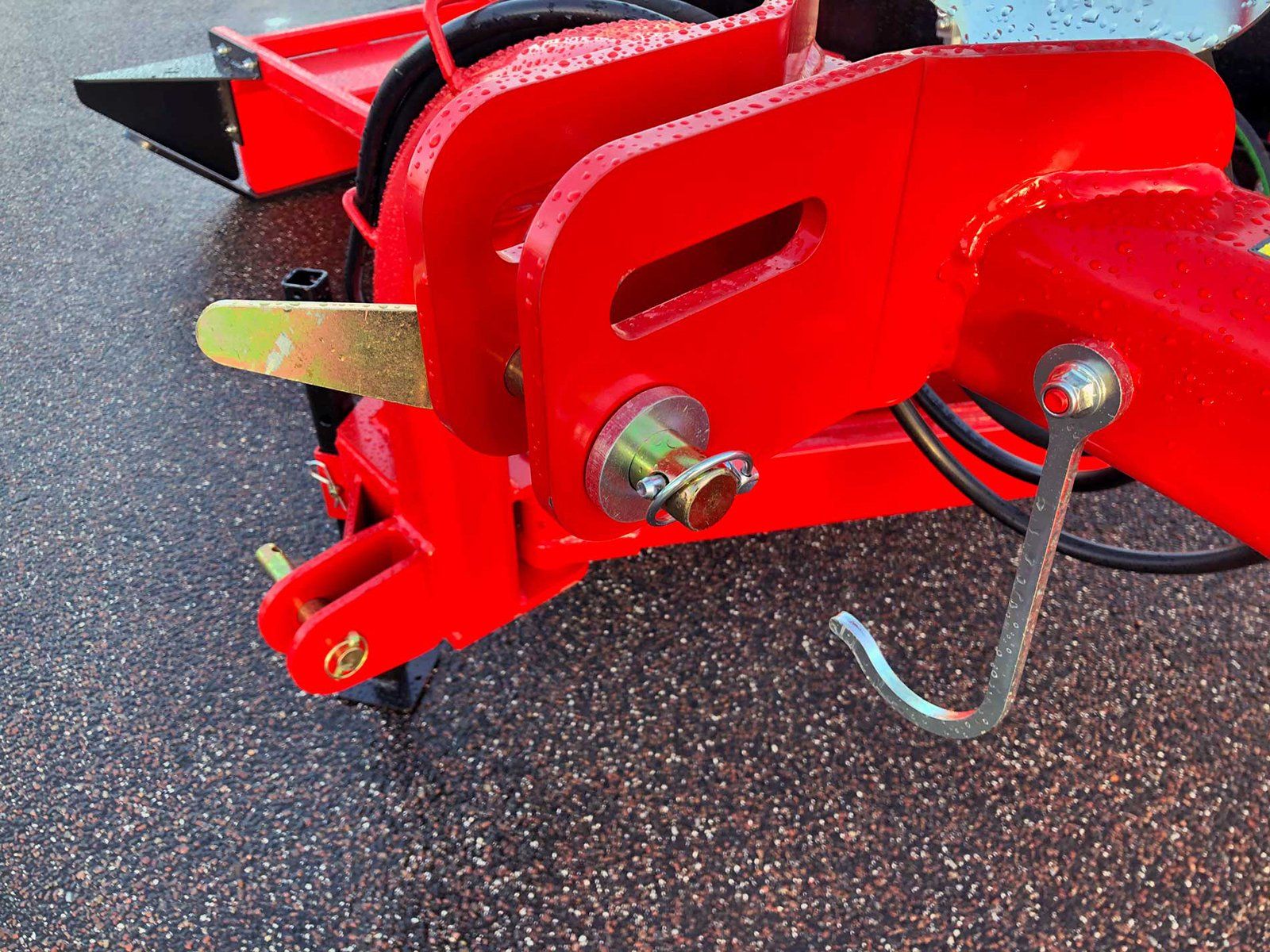

Top bar attachment

The top bar attachment on the FKR has both a fixed and an elongated hole. By using the elongated hole, the machine follows a hilly terrain better.
Button

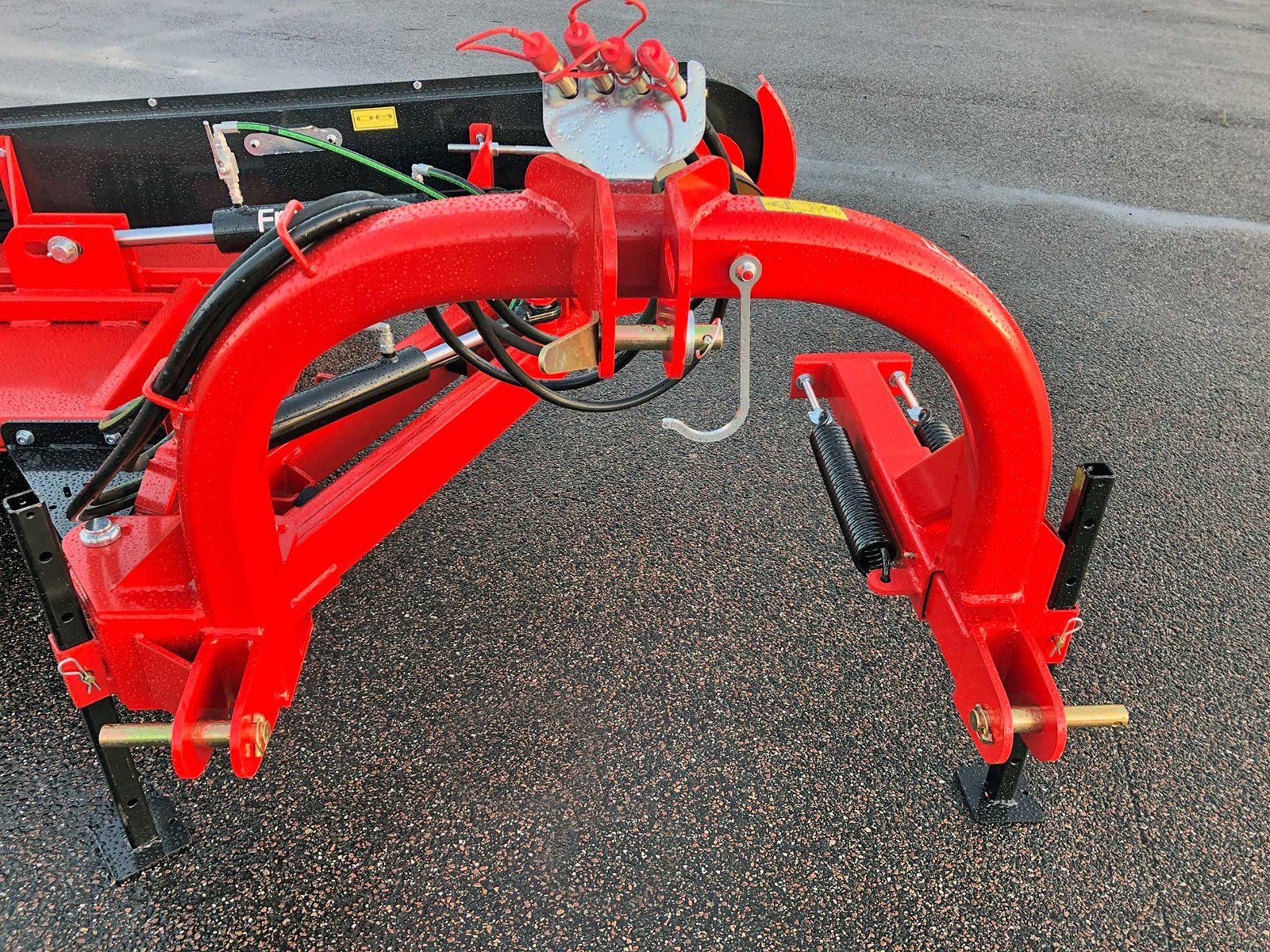

3-point suspension

The frame of the 3-point suspension is rolled into a hollow profile, which provides a very high strength to withstand the high loads during work with the machine.
Button

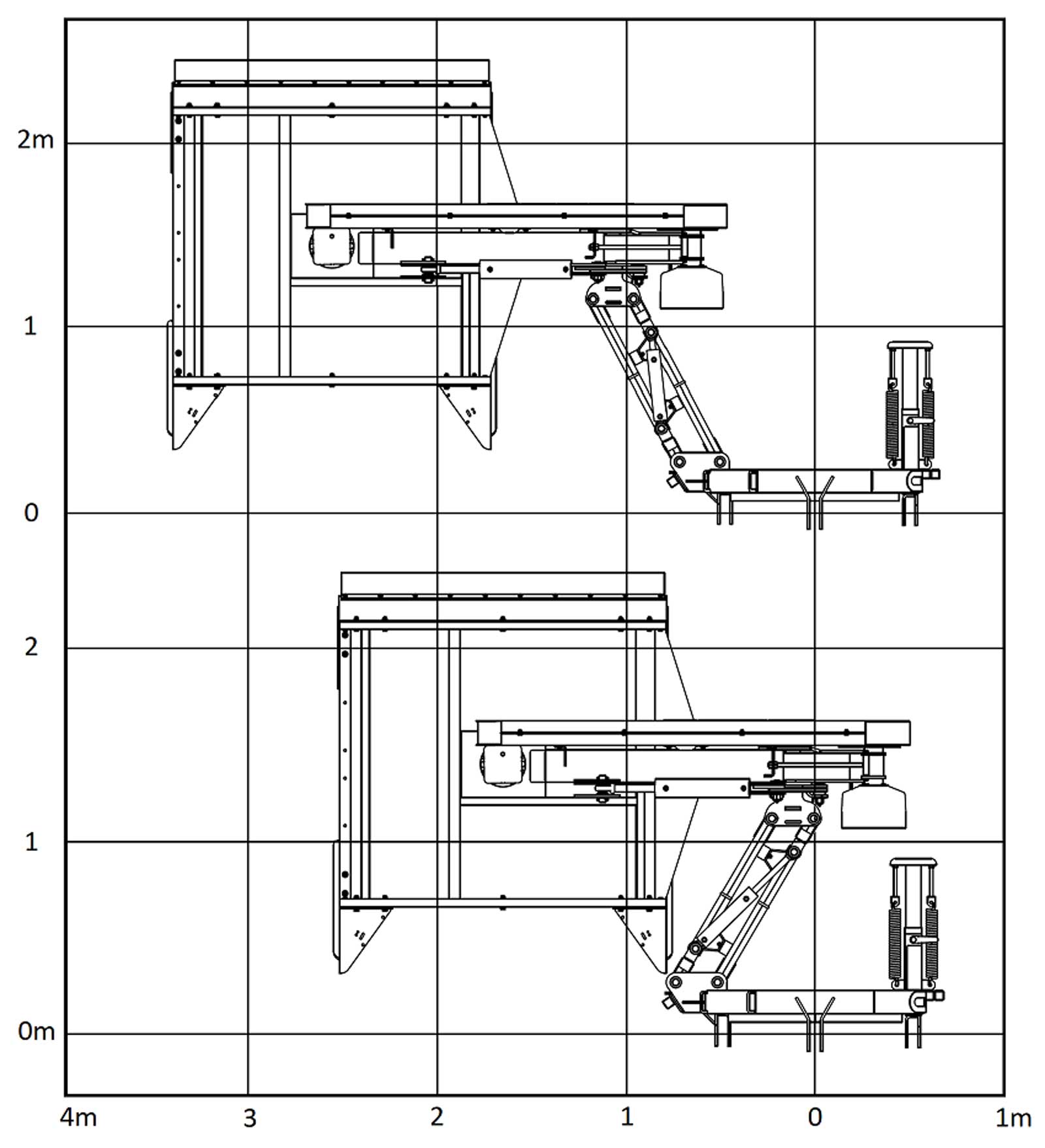

Working area

Work area diagram for FKR-150.
Button

Optional extras:

Item No. 6112

Tow rails for mounting between front and rear wear shoes.
Button

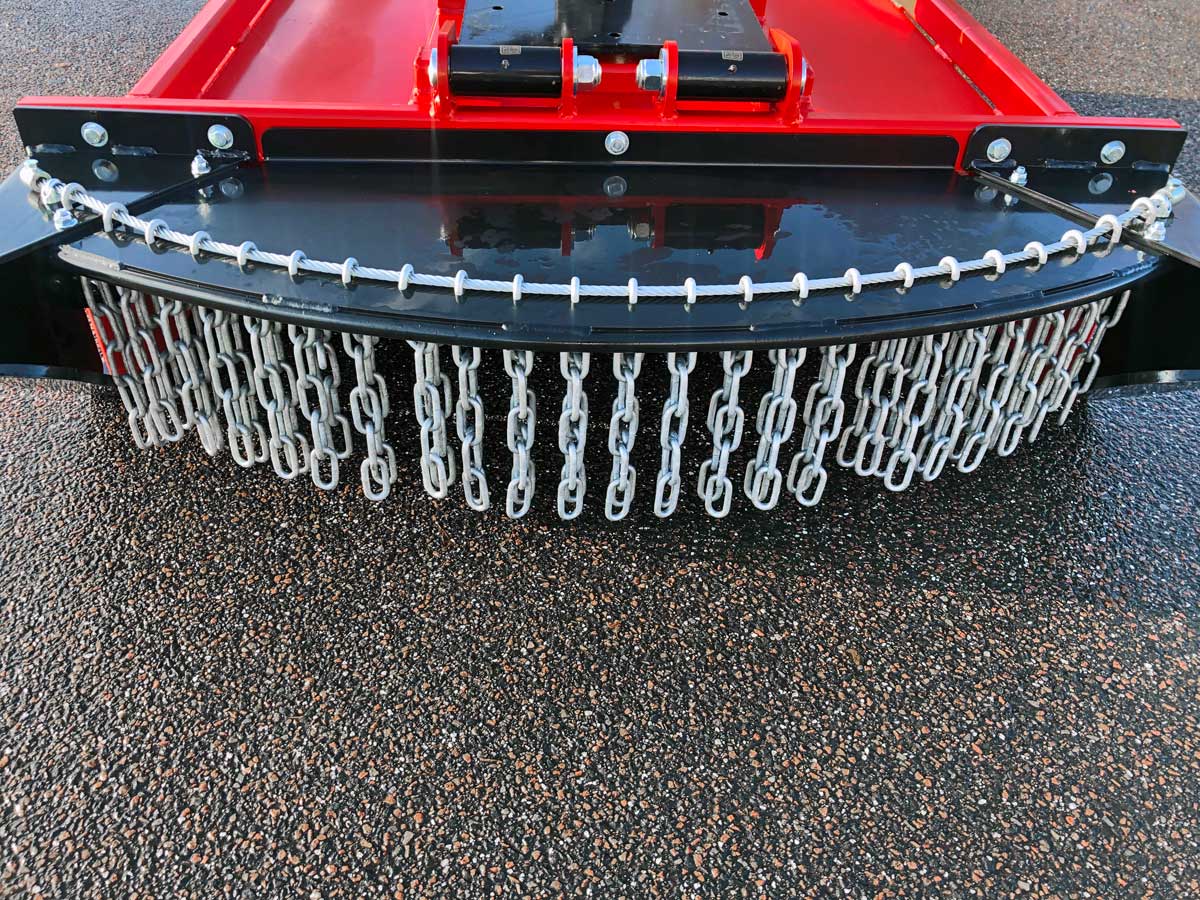

Item No. 6117

Protective guard with a chain fall for mounting between the 2 horns.
Prevent the material from being thrown out of the box.
Button
Item No. 6134

Chain kit 10 mm with bracket and splitter
Button

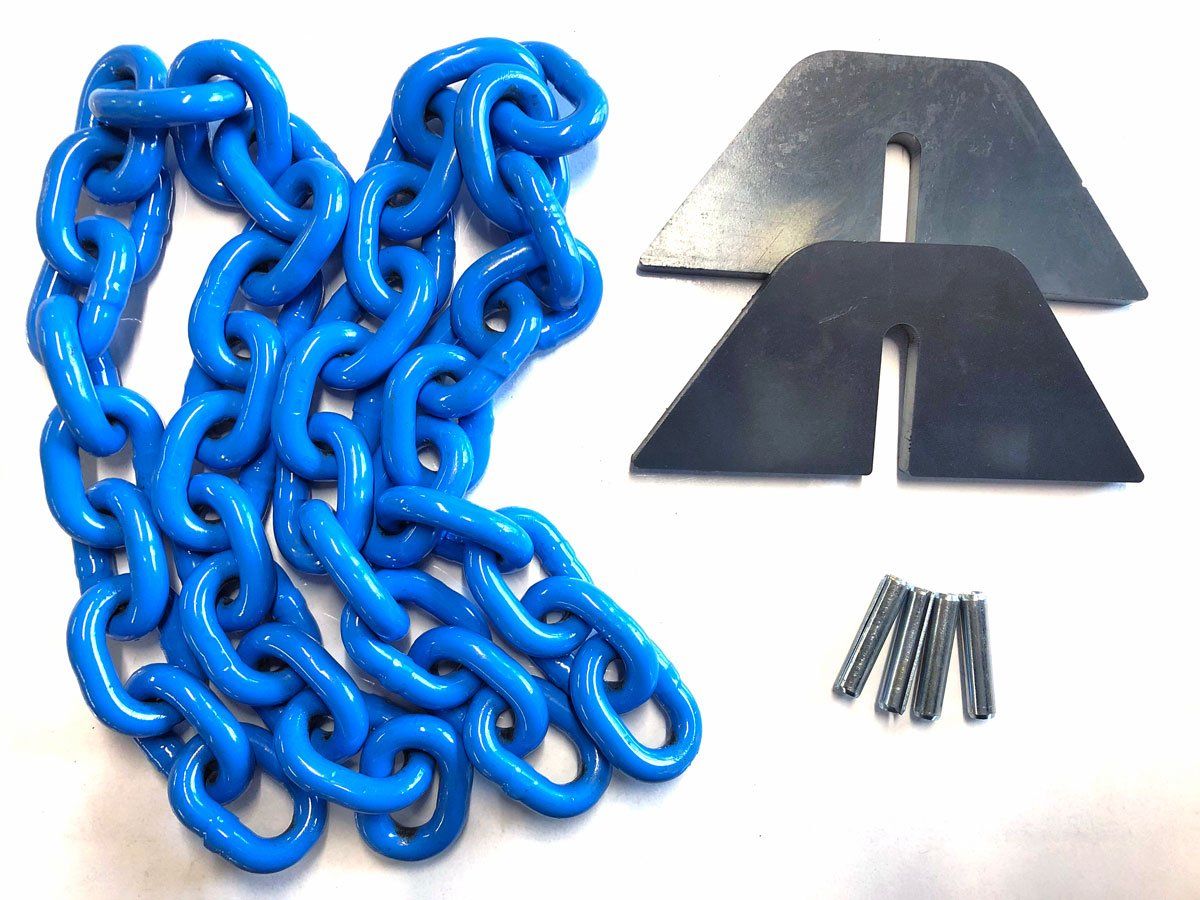

Item No. 6136

Chain kit 13 mm chain bracket and splitter.
Button
Item No. 6150

Knife set, 150 cm with 3 knives
